Year |
2018 |
|---|---|
Make |
Flow |
Model |
Mach 200 4020 |
Description |
6' x 13.1' Pivot+ Head CNC Waterjet |
Reference # |
8070241 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

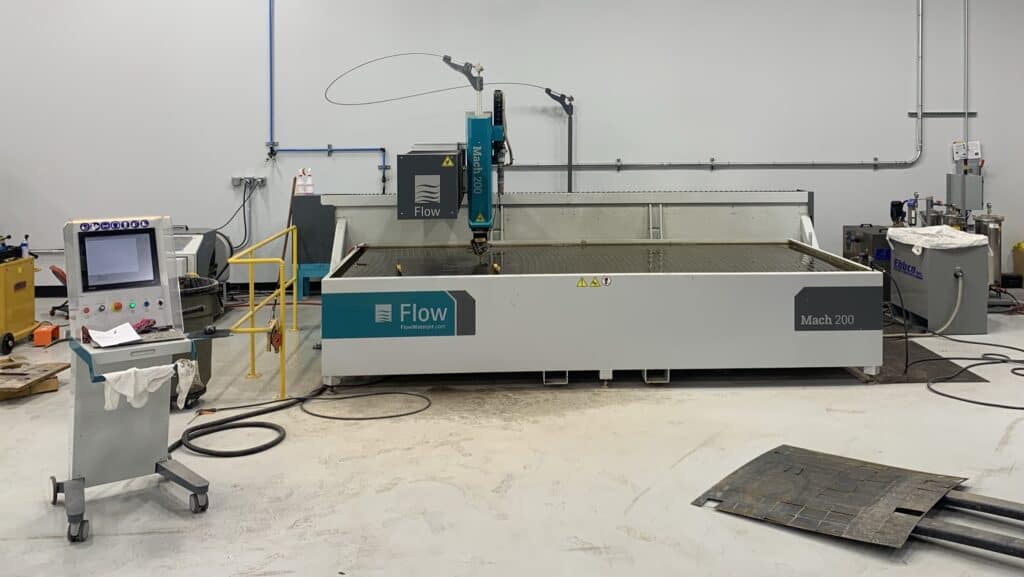

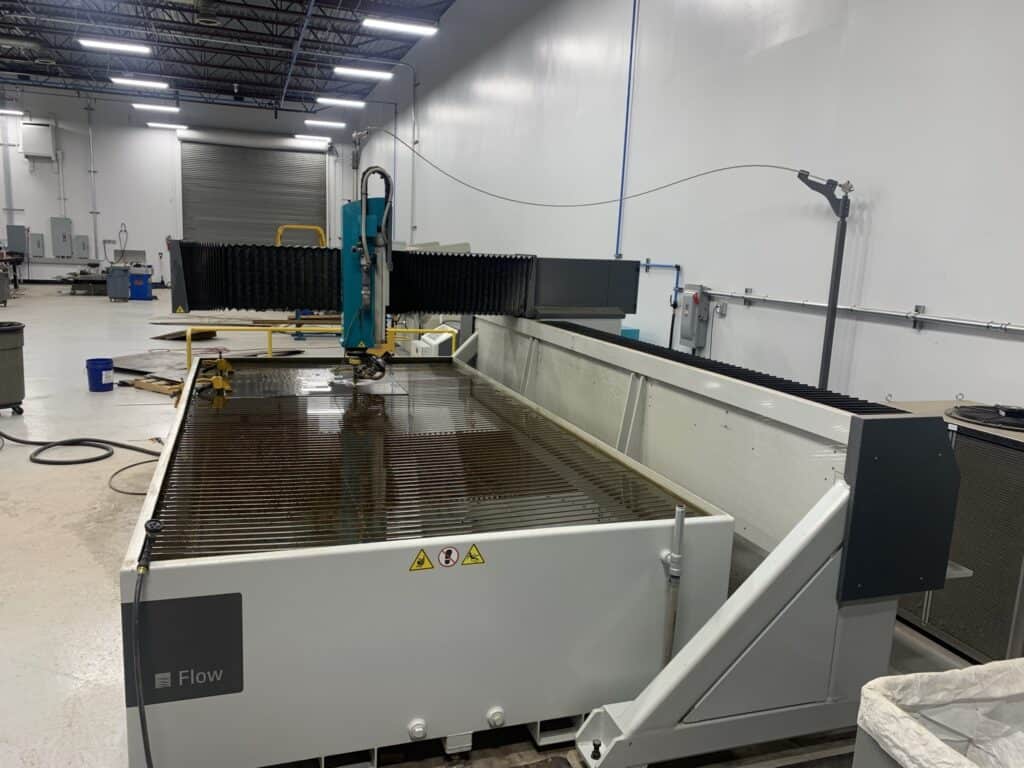

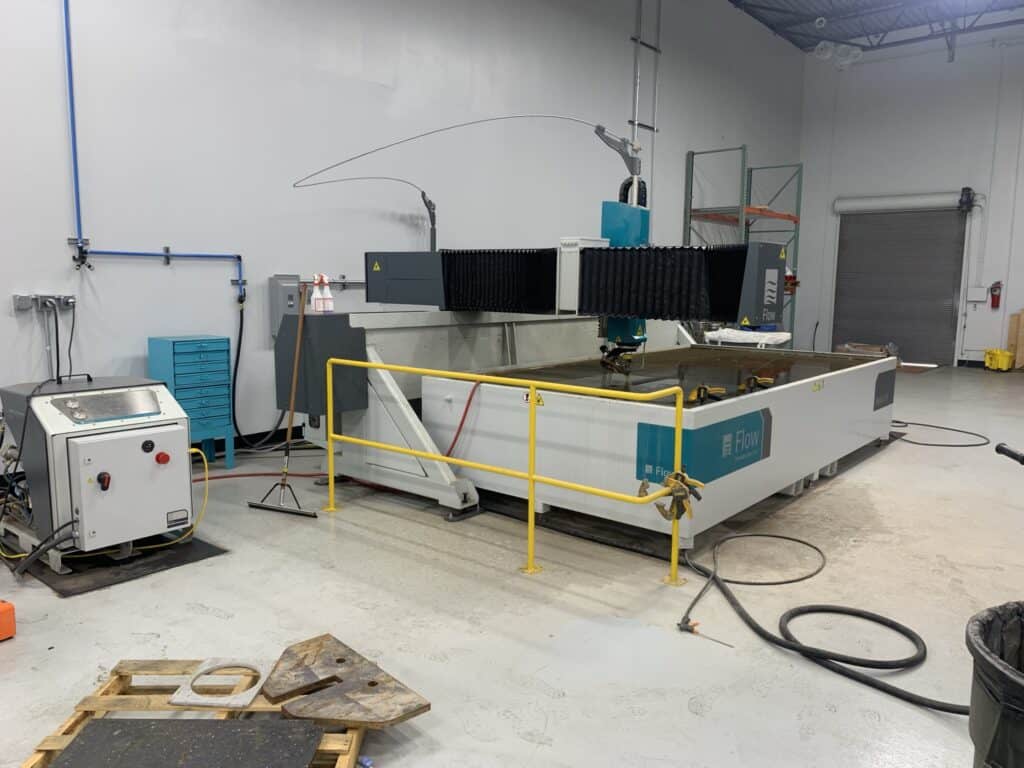

Flow Mach 200 4020
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
13.1' |
| Control |
FlowExpert |
| Pump |
30 HP |
| Max Cutting Pressure |
60,000 PSI |
| Power Requirement |
480/3/60 |
| Rapid Traverse |
400" Per Min |
| Repeatability |
.002" |
| Note |
Sold New 2019, Closed Loop System is Not Included |
Features
|
Automatic Taper Compensation |
Roll-Around Control with Touch Screen Control Console |
|
15” Color Monitor/ Keyboard/ Mouse/ USB Port |

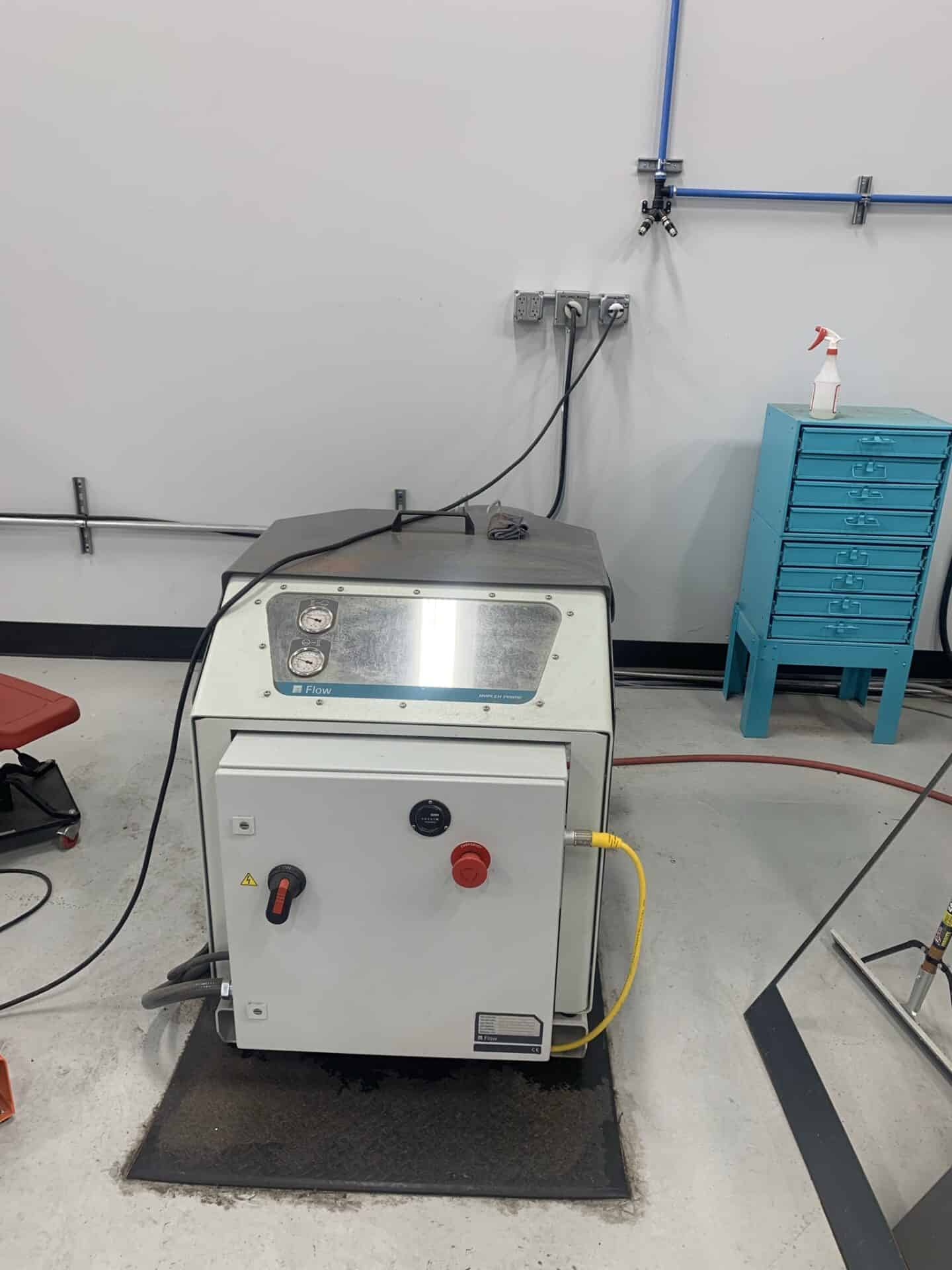

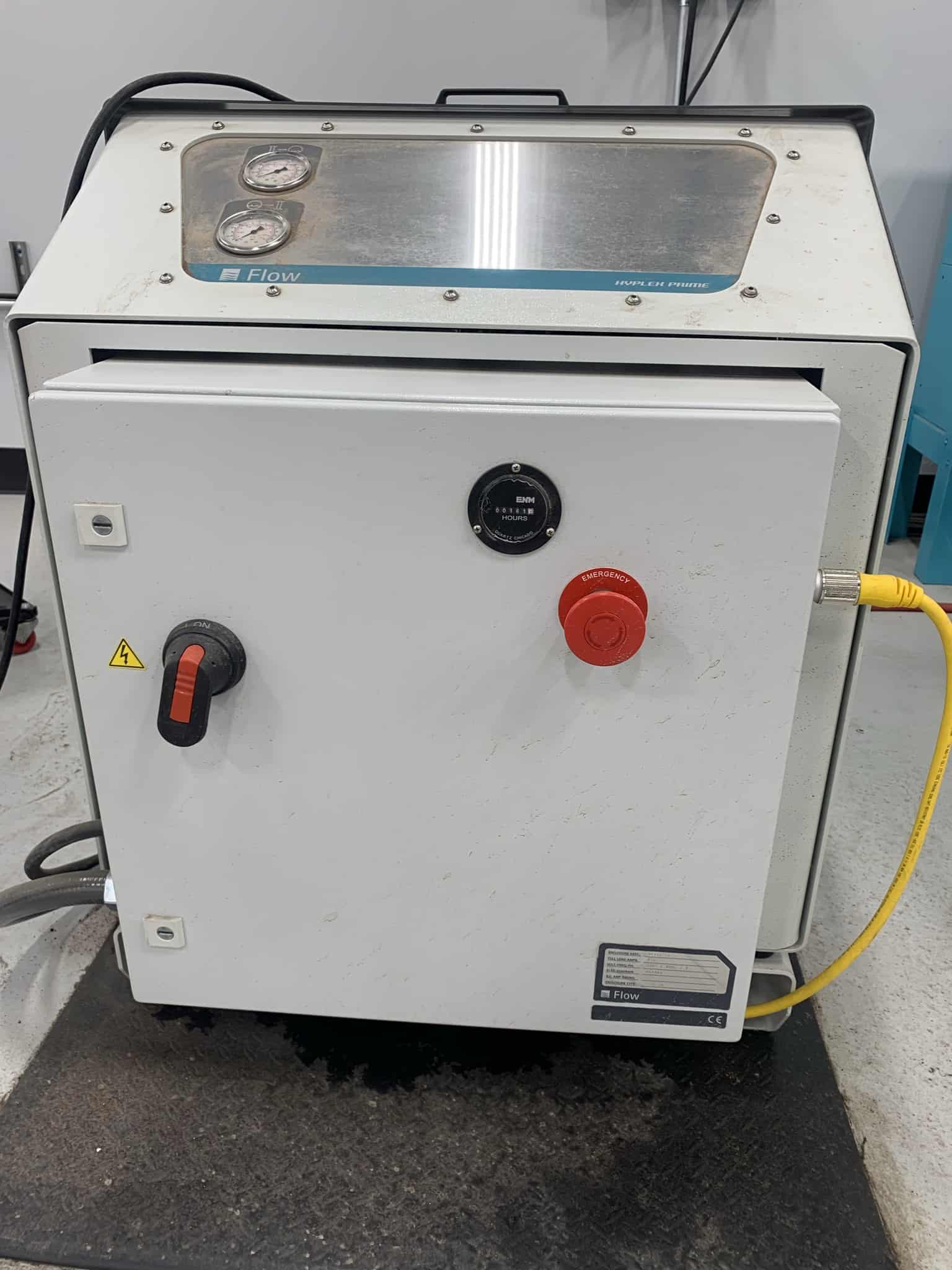

30hp Hyplex Pump |
|
900 lbs Abrasive Hopper without Low Level Shutoff Sensor |
Able To Generate Solid Models |
|
Advanced Beveling and 3d 5axis Capability |

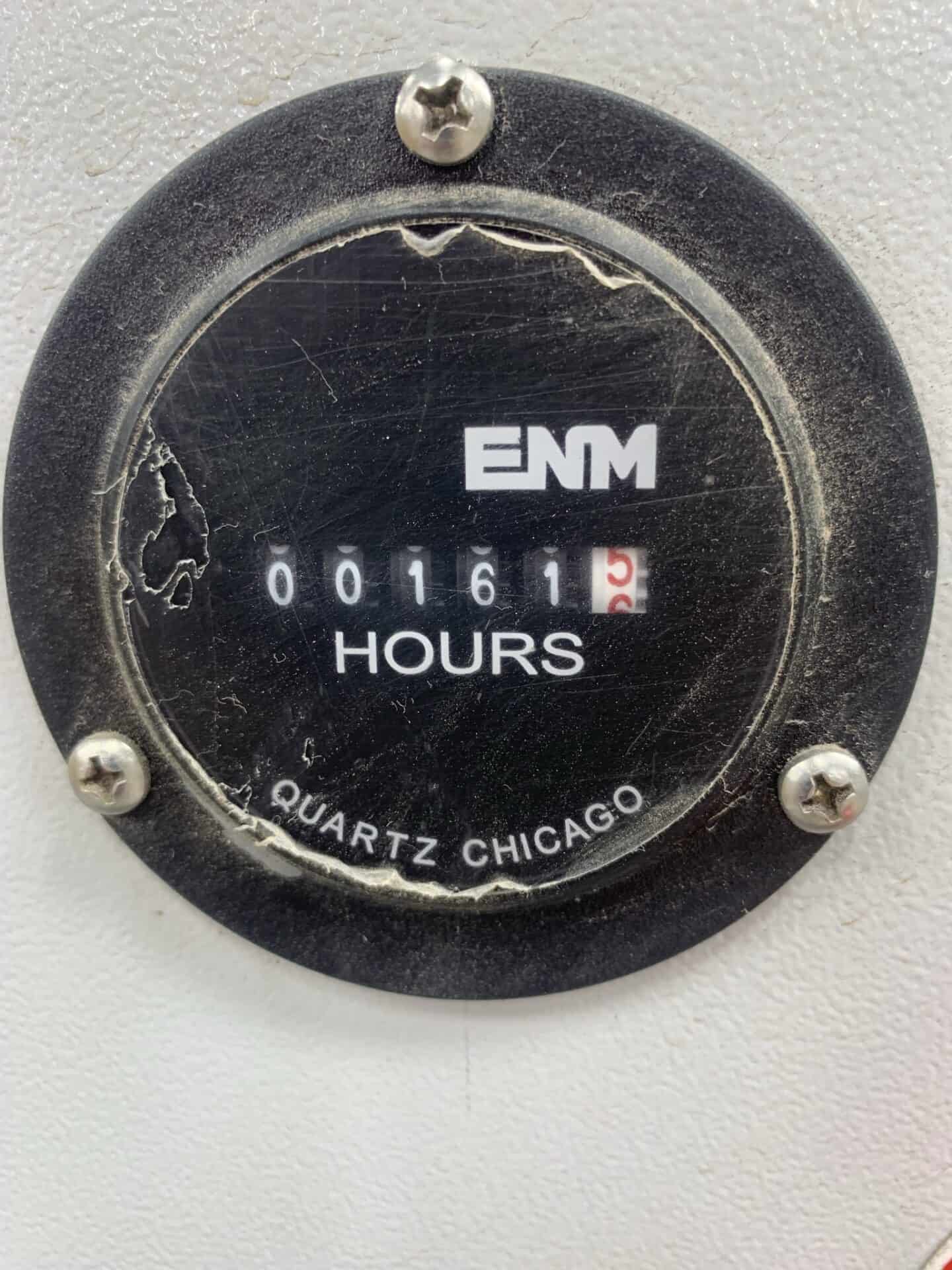

Almost New - Low Hours |
|
Automatic Collision Detection |
Automatic Cost per Part Generation Based On User Defined Parameters |
|
Automatic Part Time Estimation |
Easy-To-Use 2d And 3d Cad Drawing and Editing Tools |
|
Integrated Water Level Control Underwater or Above Water Cutting |
Laser Calibrated At Factory and Dynamically Ball Bar Tested |
|
Paser 4 Cutting Head System |

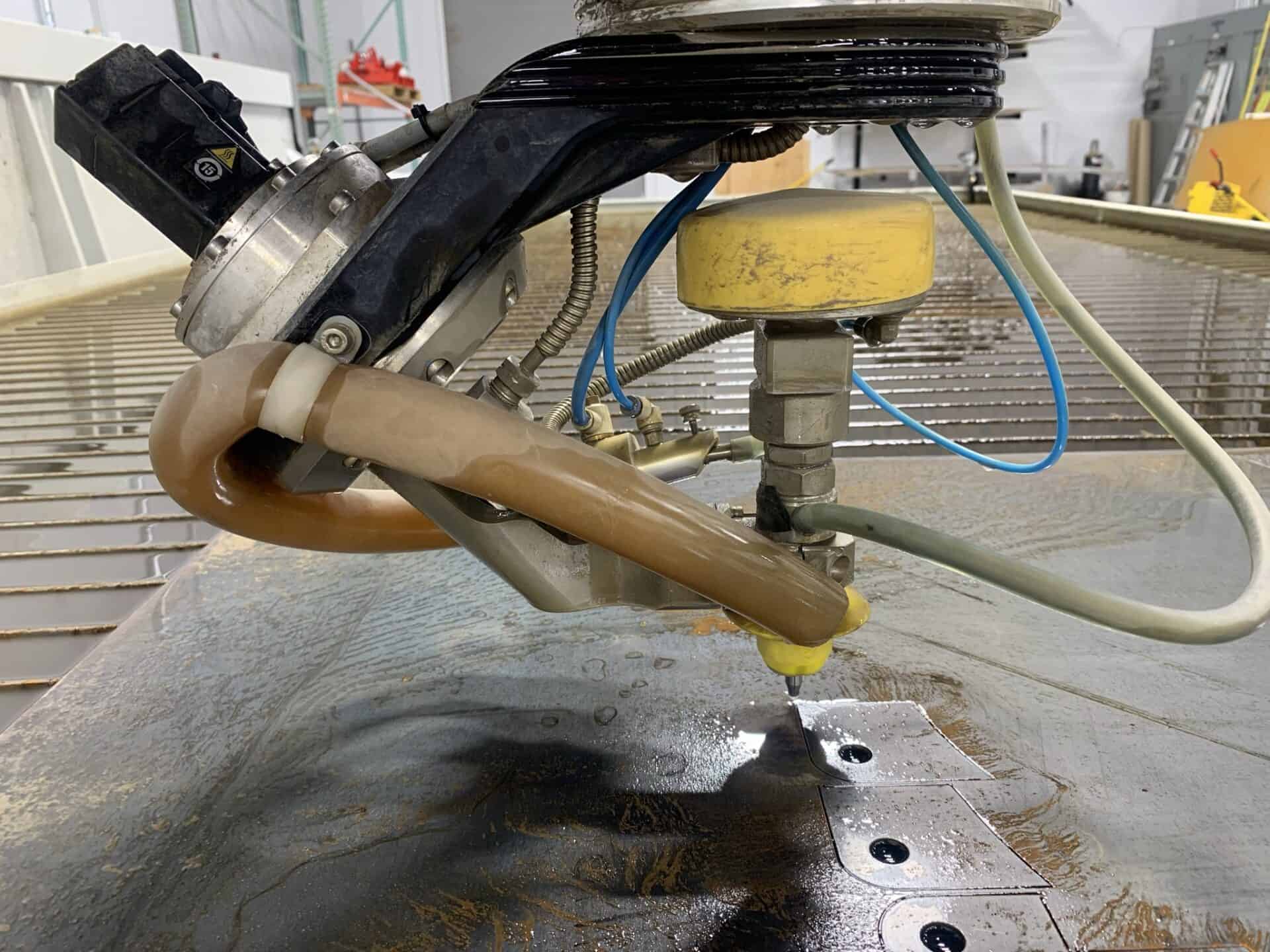

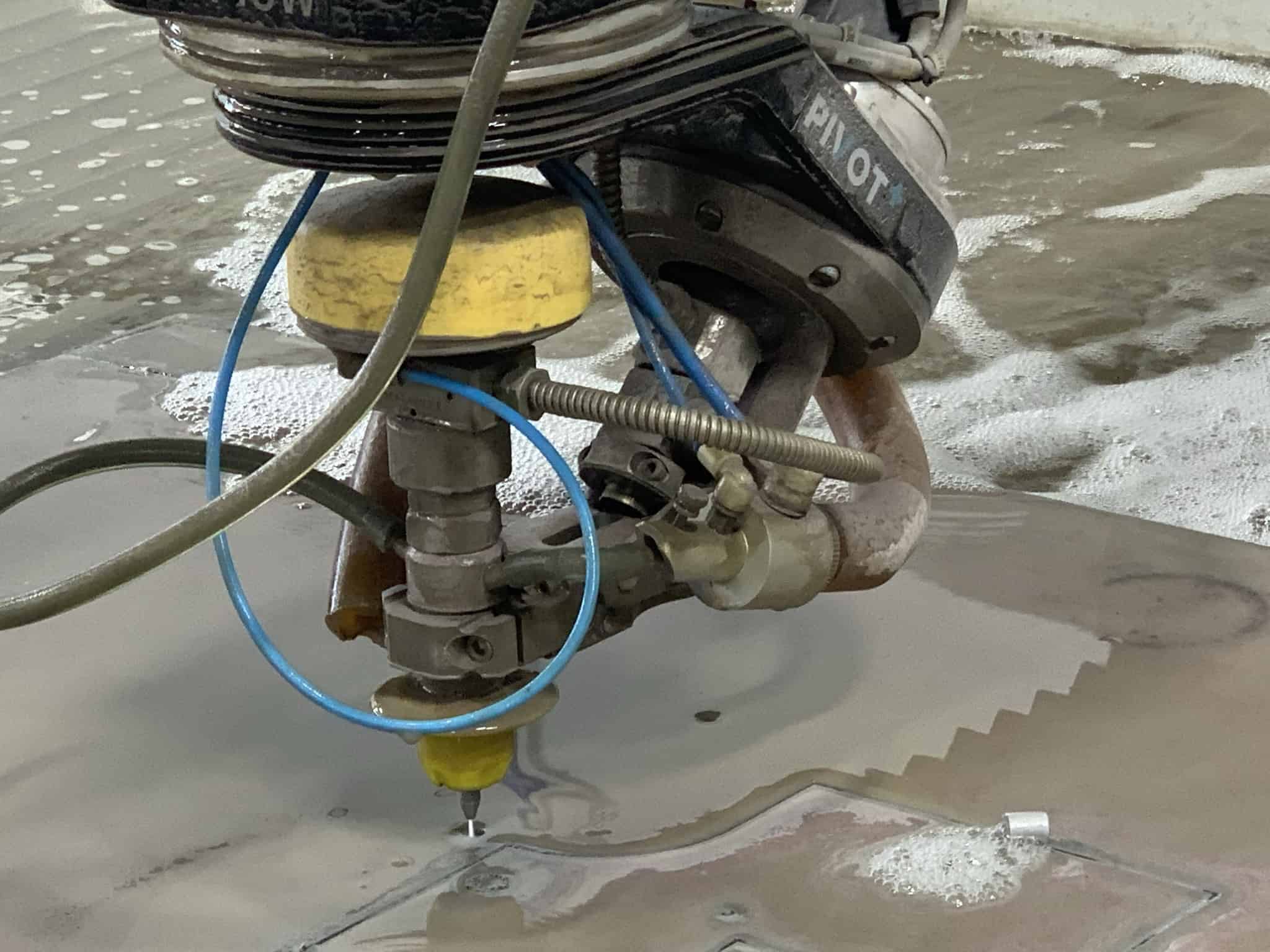

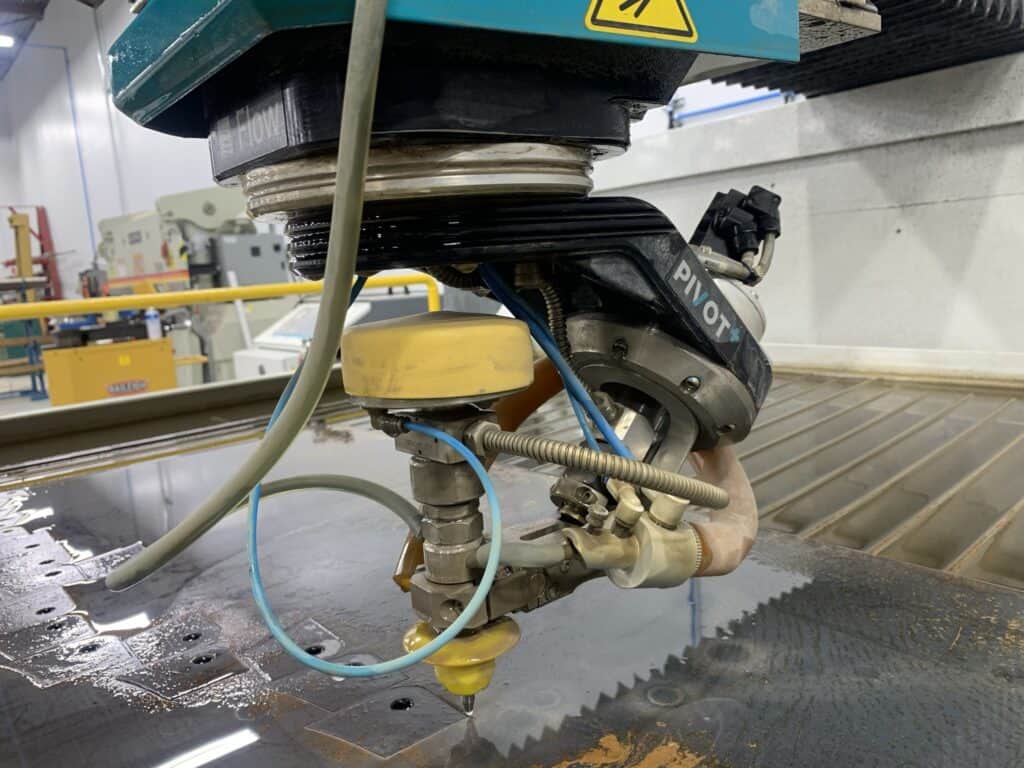

Pivot + Is Flow 5 Axis Head for 3d Cutting and Taper Comp |
|
Z Axis 8" Fully Programmable Servo Driven |
