Year |
2018 |
|---|---|
Make |
Ermak |
Model |
Speed-Bend Pro |
Description |
193 Ton x 12' Hydraulic Press Brake |
Reference # |
8072633 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Ermak Speed-Bend Pro (2018) CNC Press Brake for Sale. This pre-owned Ermak CNC press brake is located in The United States. If you have any questions regarding this Ermak Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
193 Ton |
|---|---|
| Overall Length of Bed |
12' |

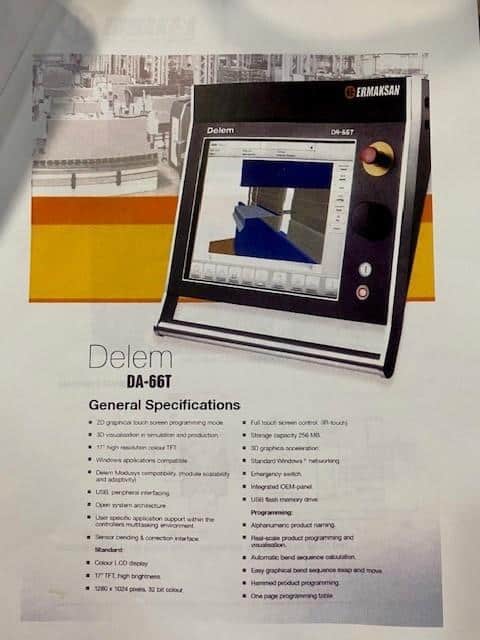

| Control |
Delem 66T |
| Distance Between Housings |
128" |
| Stroke |
10.8" |
| Throat Depth |
16.1" |
| Open Height |
17.7" |
| Free Down Speed |
7.09 IPS |
| Bending Speed |
0.47 IPS |
| Return Speed |
7.48 IPS |
| Backgauge Stroke (X-Axis) |
31.5" |
| Backgauge Stroke (R-Axis) |
9.8" |
| Main Motor |
20 HP |
| Table Height |
35.4" |
| Power Requirement |
220/440 |
| Machine Dimensions |
193" x 85" x 110" |
| Machine Weight |
24,476 Lbs |
Features
|
Portable Double Foot Pedal |
Rear Guard with Sick Light Curtain |
|
Siemens Electrics |
256 MB Memory |
|
Sliding Front Support Arms |
USB Port |
|
5-Axis Backgauge Plus Crowning |
7-Axes |
|
Tooling Library |
Touch Screen Control |
|

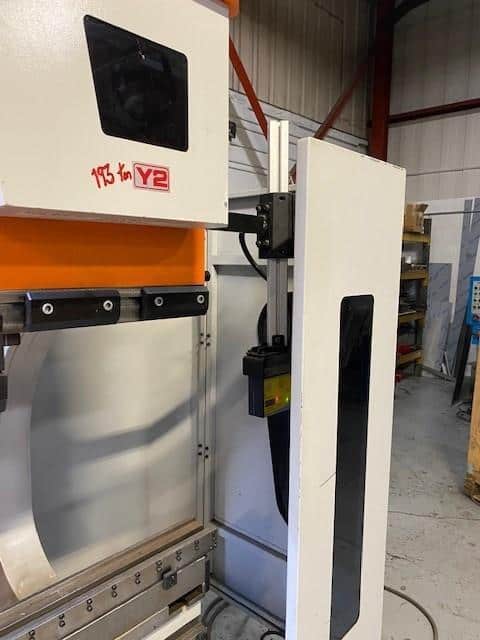

Akas Front Laser Safety Finger Guard |
American / European Quick Release Punch Clamps |
|
CNC Motorized Crowning |
Full Length 4-Way Die |
|
Full Length Die Holder |
Full Length Punch |
|
Graphical Automatic Bend Sequence |
Hoebiger Hydraulic System |
