Year |
2017 |
|---|---|
Make |
Yama Seiki |
Model |
GTZ-2600Y |
Description |
CNC Lathe |
Reference # |
8073491 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

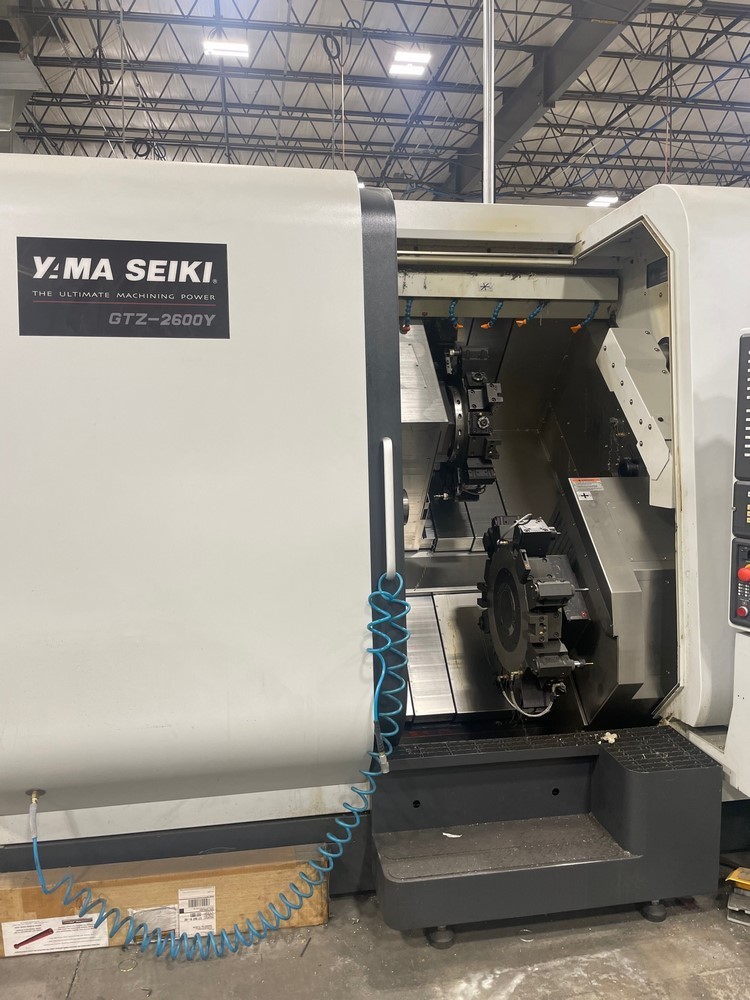

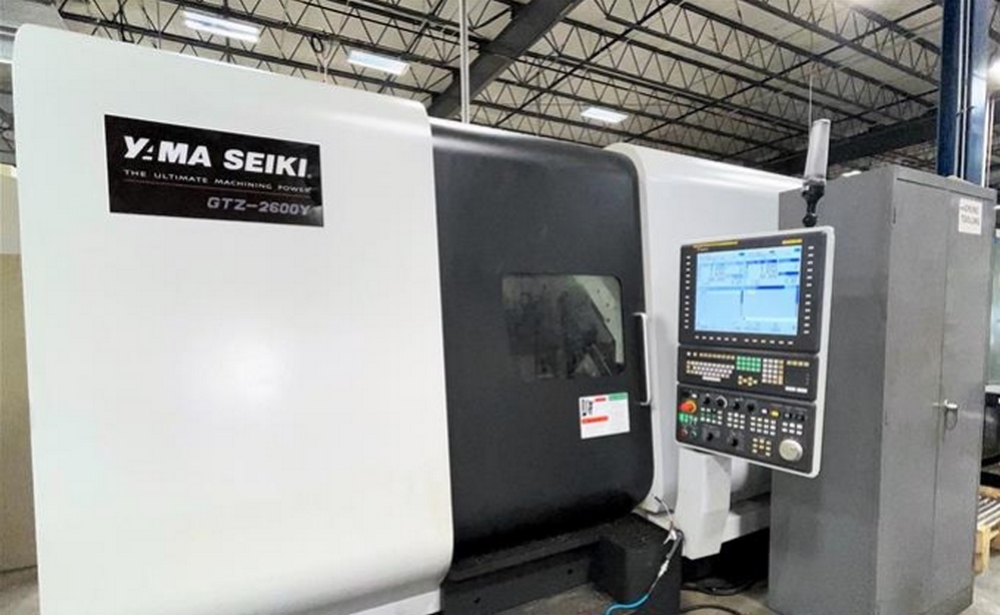

Used Yama Seiki GTZ-2600Y (2017) CNC Lathe for Sale. This pre-owned Yama Seiki CNC lathe is located in The United States. If you have any questions regarding this Yama Seiki Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.57" |
| Swing |
10.62" |
| Turning Diameter |
9.8" |
| Spindle Speed |
4,000 RPM |

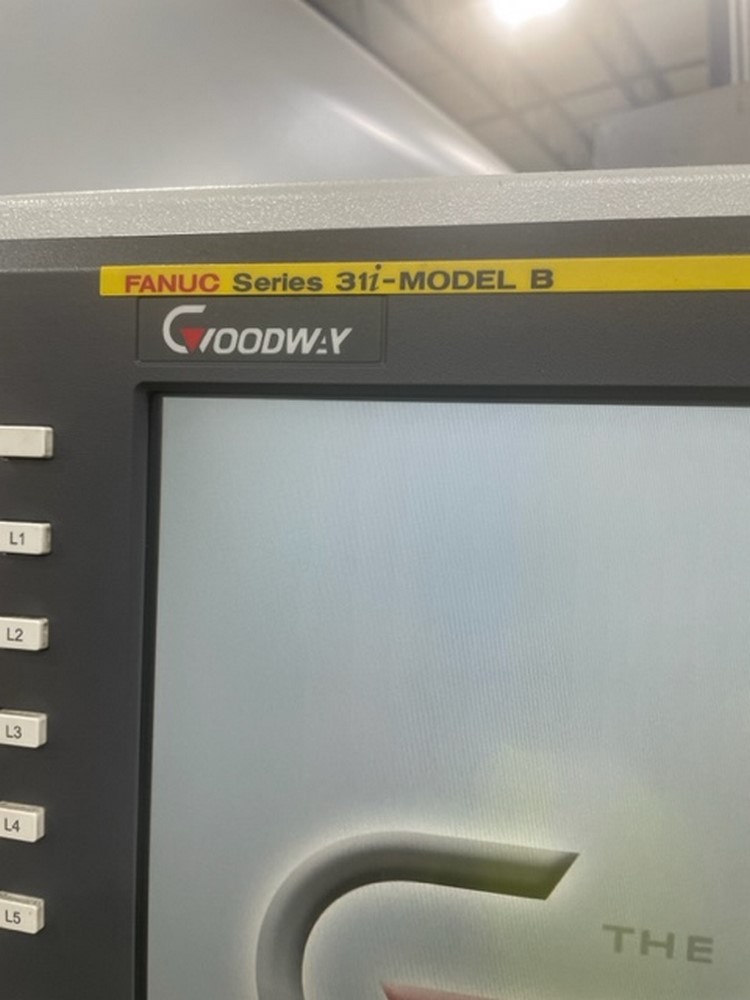

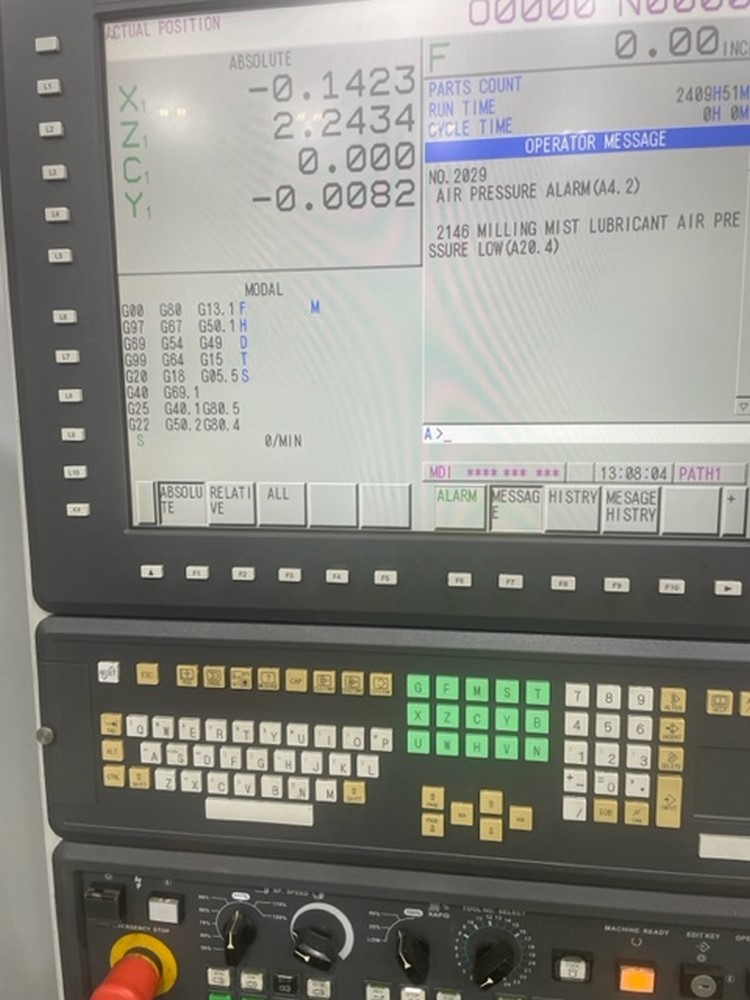

| Control |
Fanuc 31IB GLINC 350 CNC |
| Distance Between Centers |
23.3" |

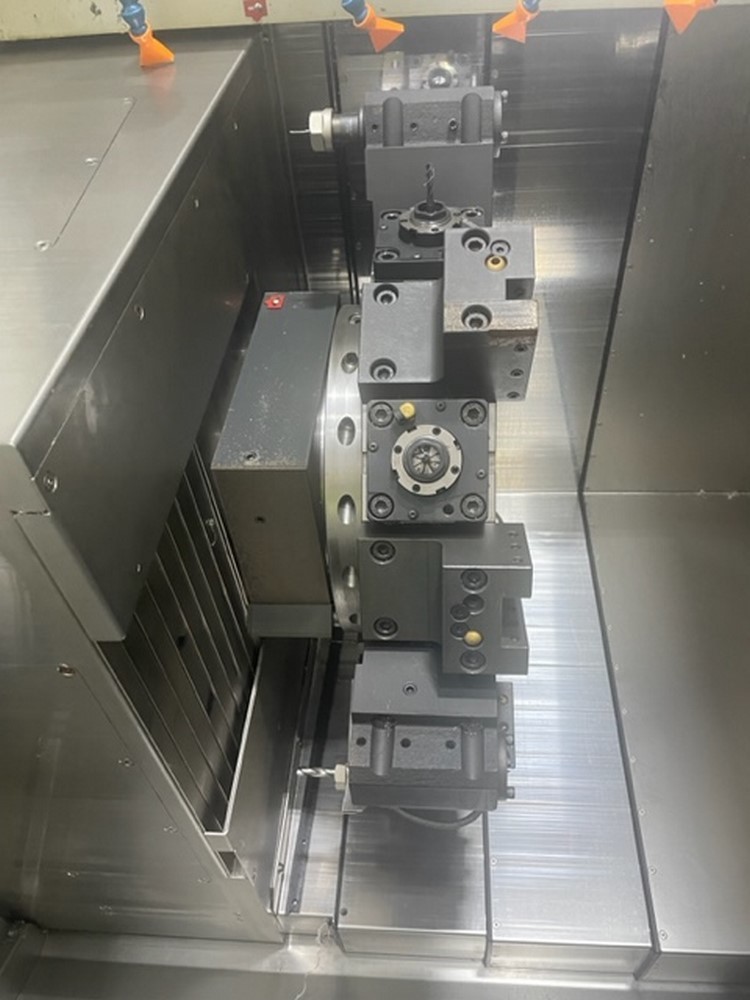

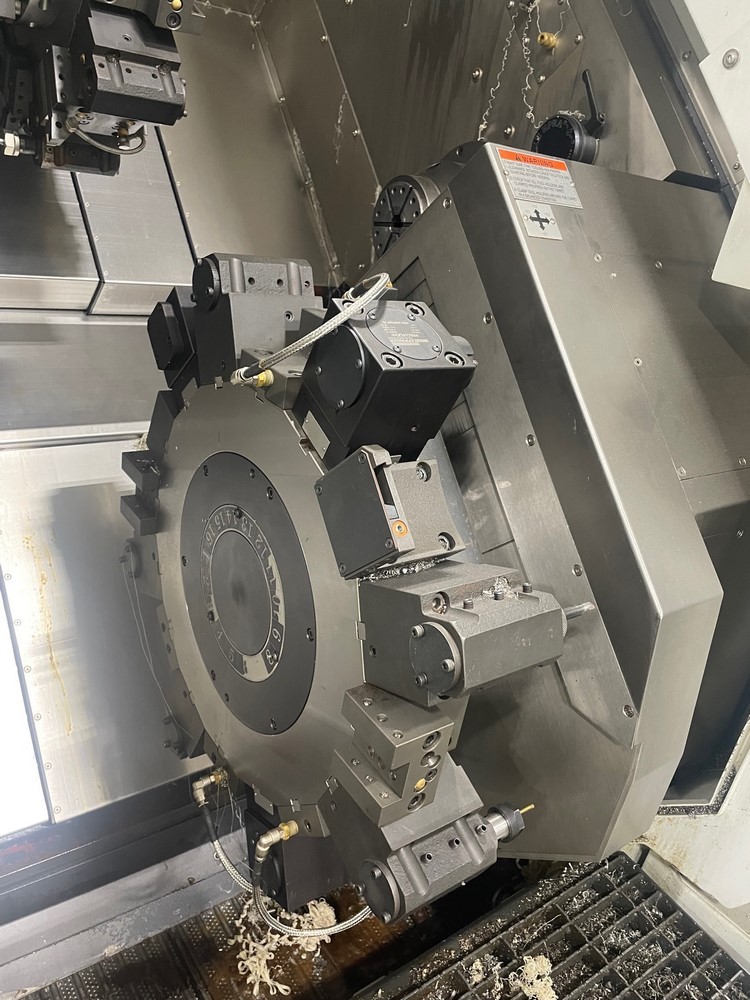

| Turret |
16 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
8" Chuck |
| X1 Travel |
7.67" |
| X2 Travel |
8.26" |
| Z1/Z2 Travel |
24.39" |
| Maximum Z Travel |
27.16" |
| Y-Axis Travel |
3.93" +/- 1.96" |
| Y-Axis Rapid |
393.69 IPM |
| Y-Axis Feed Rates |
1 - 189 IPM |
| X/Z Axis Rapids |
945 IPM |
| X/Z Axis Feed Rates |
1- 1,890 IPM |
| Live Tooling Speed |
6,000 RPM |
| Chip Removal |
Chip Conveyor |
| Approximate Machine Weight |
19,800 Lbs |
Features
|
30 Degree Slant Bed |

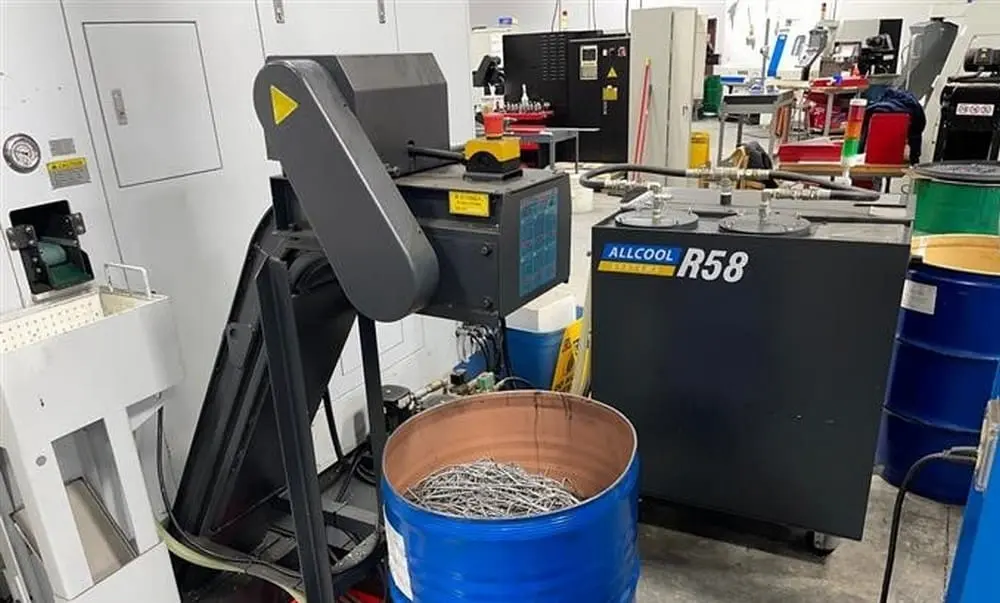

All Cool R58 1000 PSI High Pressure Coolant System |
|

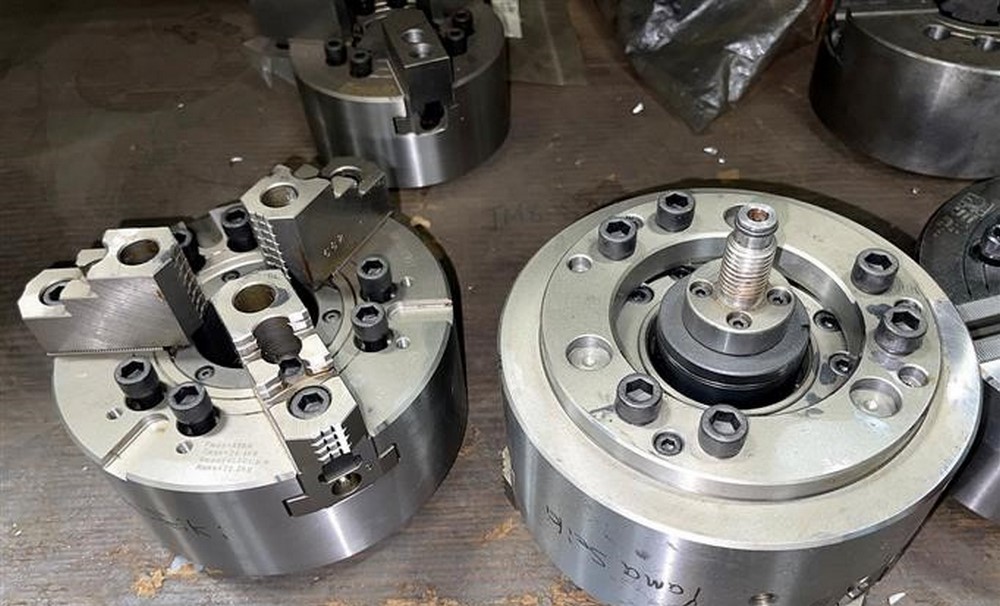

ATS S26 Collet Chuck (Main and Sub Spindle) |
Coolant Thru Sub-Spindle |
|
Renishaw Tool Pre-Setter |

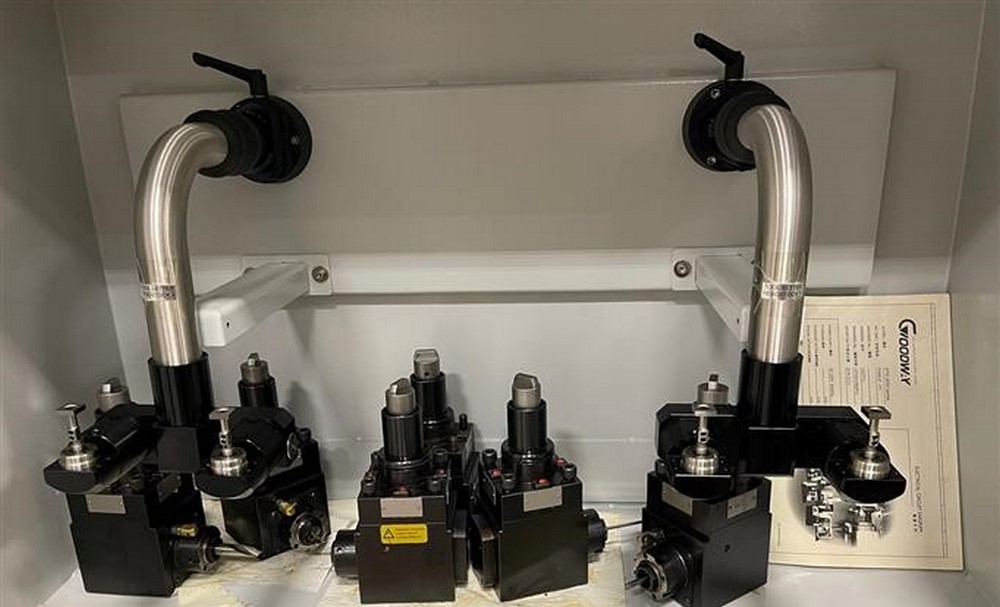

Tooling (Includes BMT 55 Live Tools Approx 10-12) |
|
Auto Tool Presetter |
Bar Feed Interface |
|

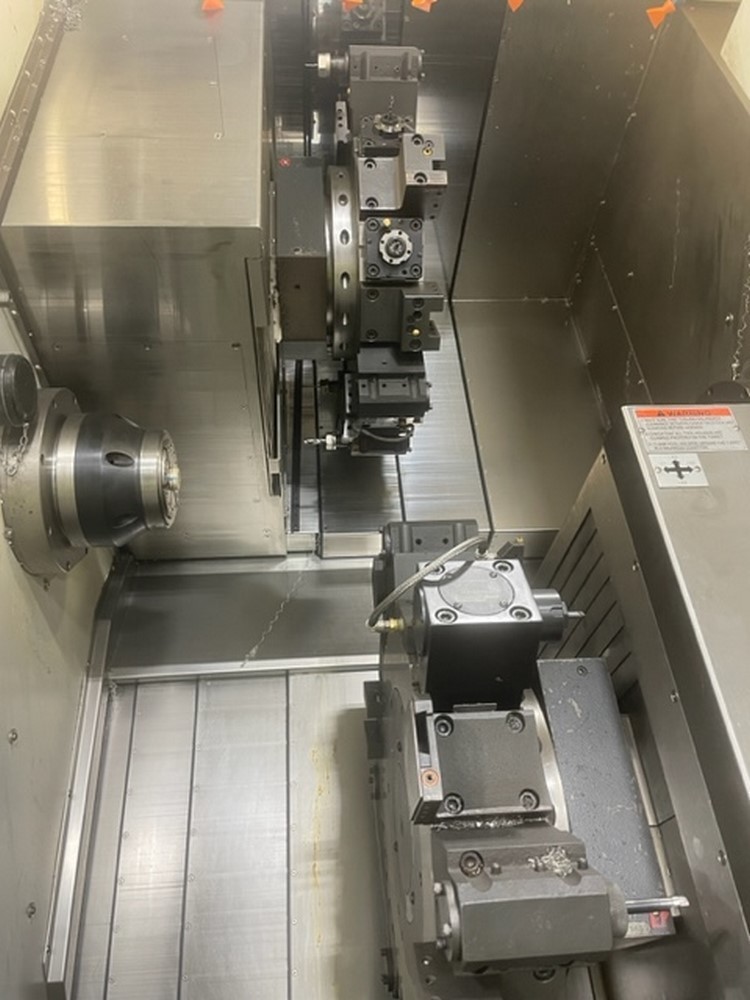

Dual Turret |
Parts Catcher |
