Year |
2017 |
|---|---|
Make |
Thermalcare |
Model |
TCR700K |
Description |
Chiller System |
Reference # |
8076216 |
Price |
Activate Pricing |

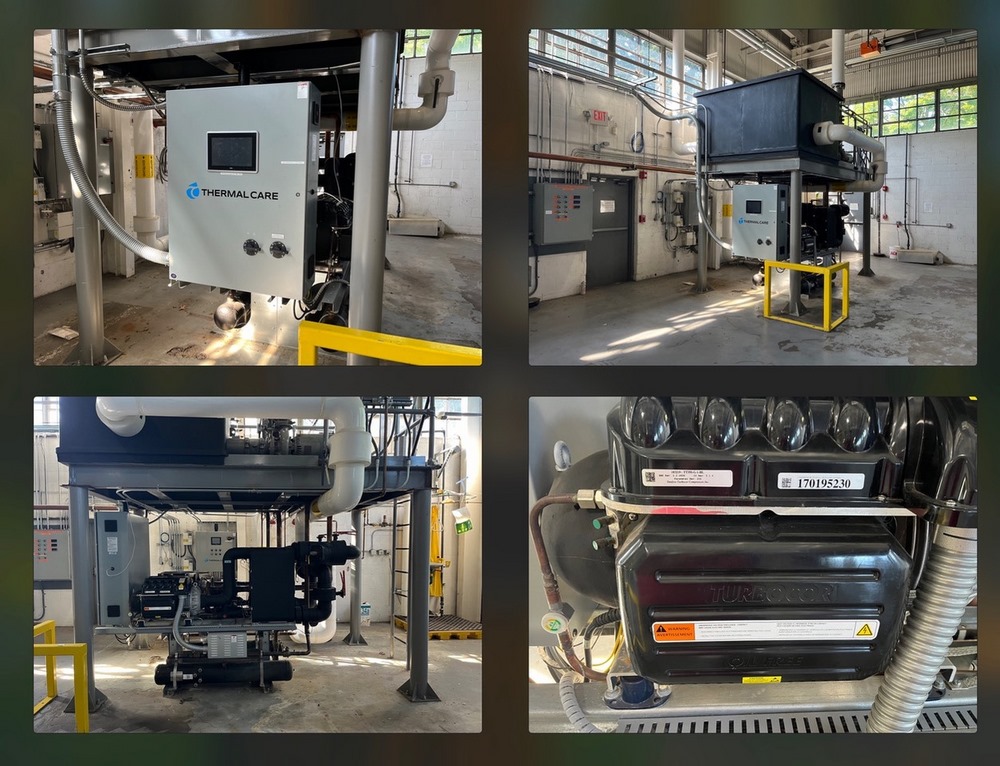

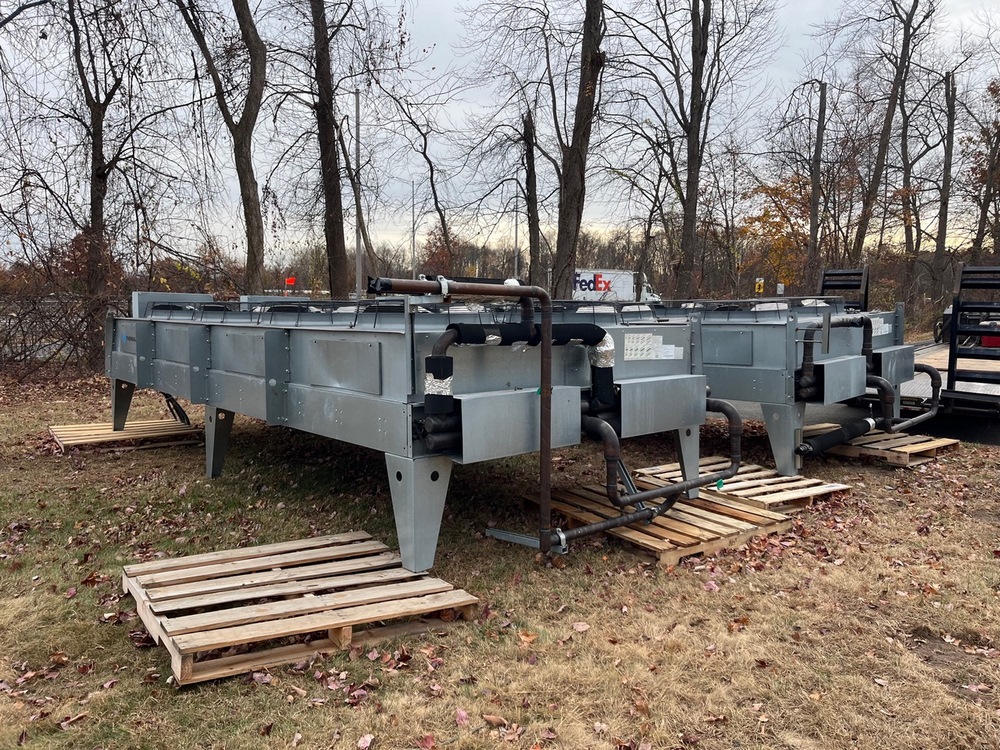

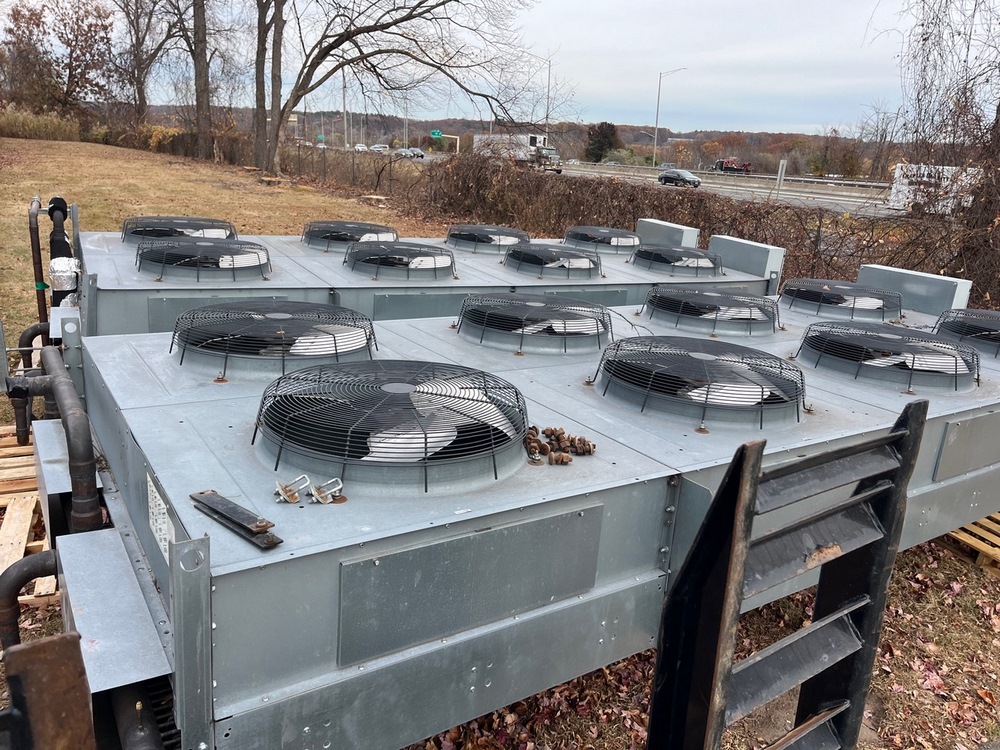

Used Thermalcare TCR700K (2017) Chiller for Sale. This remote air-cooled condenser center chiller is rated at 196.6 tons and delivers 432 GPM of water cooled from 60 F to 50 F, with a condenser air inlet of 95 F. It is arranged with two independent refrigeration circuits, a 25 HP process pump plus a dedicated 25 HP stand-by process pump, and a 15 HP chiller pump with a dedicated 15 HP stand-by chiller pump. Water is held in a 1000 gallon stainless steel reservoir mounted on 7′ legs. Controls are handled through a C-UL508A control panel. The unit is equipped with evaporative inlet strainers and remote air-cooled condensers. It can be seen under power for an inspection. Request a Quote for further details.
Specifications
| Type of Chiller |
Remote Air-Cooled Condensor Center Chiller |
|---|---|
| Chiller Unit Tonnage |
196.6 Tons |
| Gallons Per Minute |
432 GPM of Water Cooled from 60 F to 50 F |
| Process Pumps |
25 HP Process Pump |
| Dedicated Stand-by Process Pumps |
25 HP Process Pump |
| Chiller Pump HP |
15 HP |
| Dedicated Stand-by Chiller Pump |
15 HP |
| Condensor Air Inlet |
95 F |
| Reservoir |
1000 Gallon Stainless Steel Mounted on 7' Legs |
| Refrigeration Units |
(2) Independent Refrigeration Circuits |
| Controller |
C-UL508A Control Panel |
Features
|
Evaporative Inlet Strainers |
Remote Air Cooled Condensors |
