Year |
2017 |
|---|---|
Make |
SMEC |
Model |
MCV400 |
Description |
CNC Vertical Machining Center |
Reference # |
8079093 |
Price |
Activate Pricing |

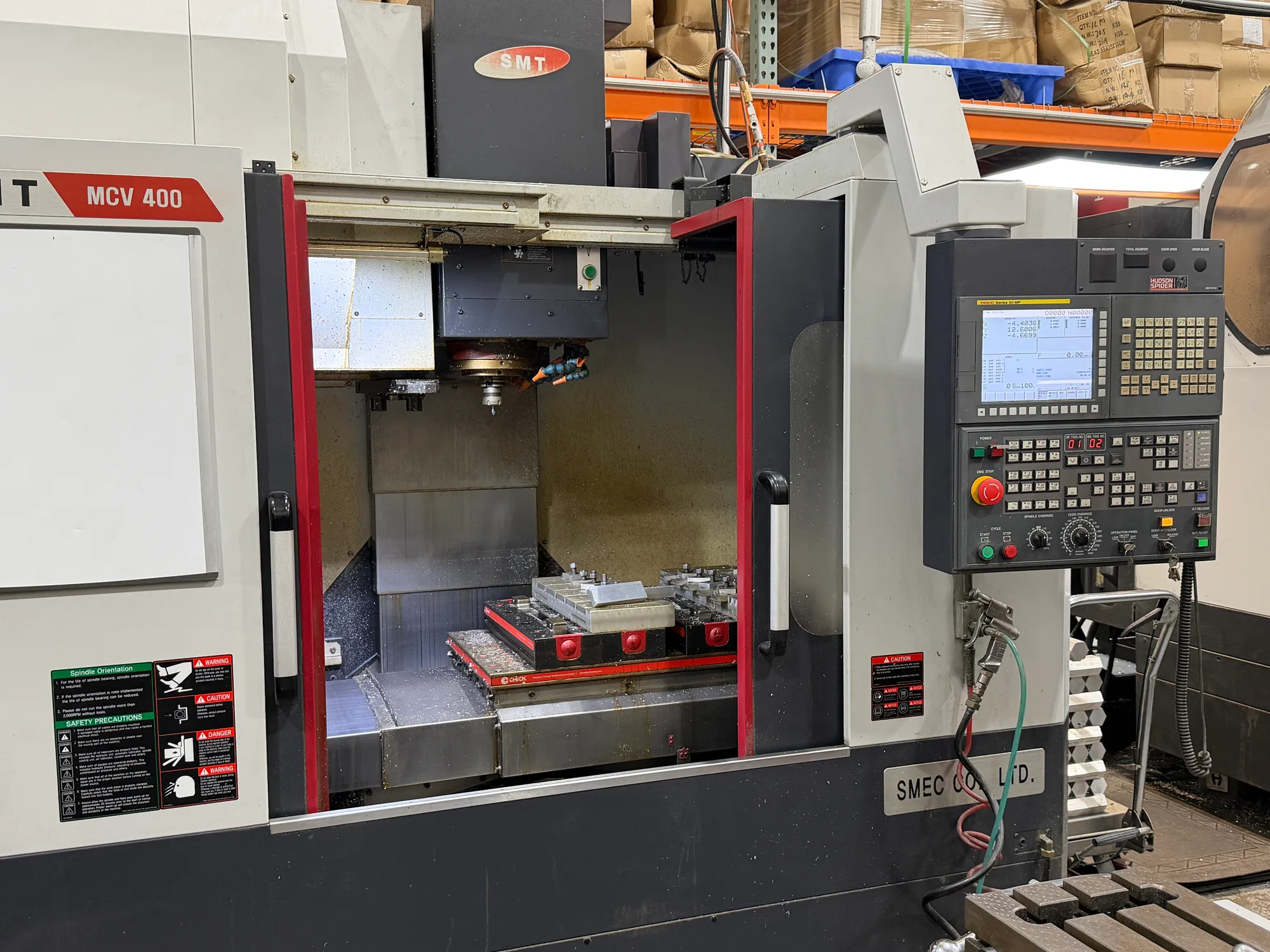

Used SMEC MCV400 (2017) CNC Vertical Machining Center for Sale. This machine offers 30.31″ of X-axis travel, 16.92″ in Y and 20.08″ in Z, with a 30-station ATC and a CAT 40 spindle rated to 12,000 RPM. Control is a FANUC 0i-MF. It is equipped with through spindle coolant, built-in dual internal screw conveyors with rear discharge, and a 4th axis prep kit that covers wiring for the connector box and cable only — no amplifier is included. The machine can be seen under power for an inspection, and we welcome buyers who want to run it before committing. It is one of a number of used CNC vertical machining centers we carry. Activate Pricing or use the Inquire Now button for details.
Specifications
| X-Axis Travel |
30.31" |
|---|---|
| Y-Axis Travel |
16.92" |
| Z-Axis Travel |
20.08" |
| Tool Magazine Capacity |
30 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
Features
|
4th Axis Prep Kit (Wiring For Connector Box For Cable Only |

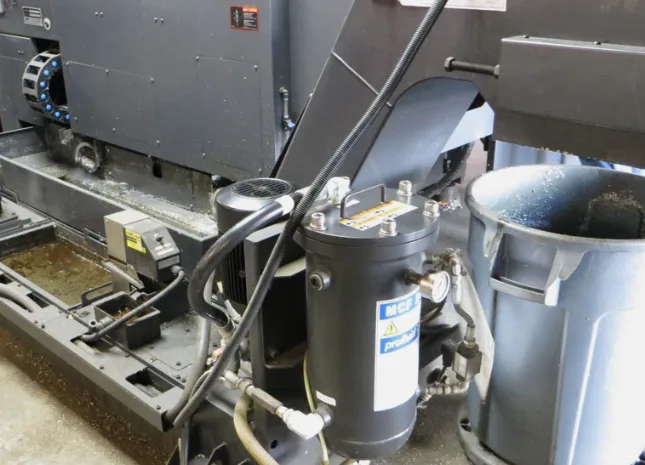

Built-In Dual (Internal) Screw Conveyors – Rear Discharge |
|

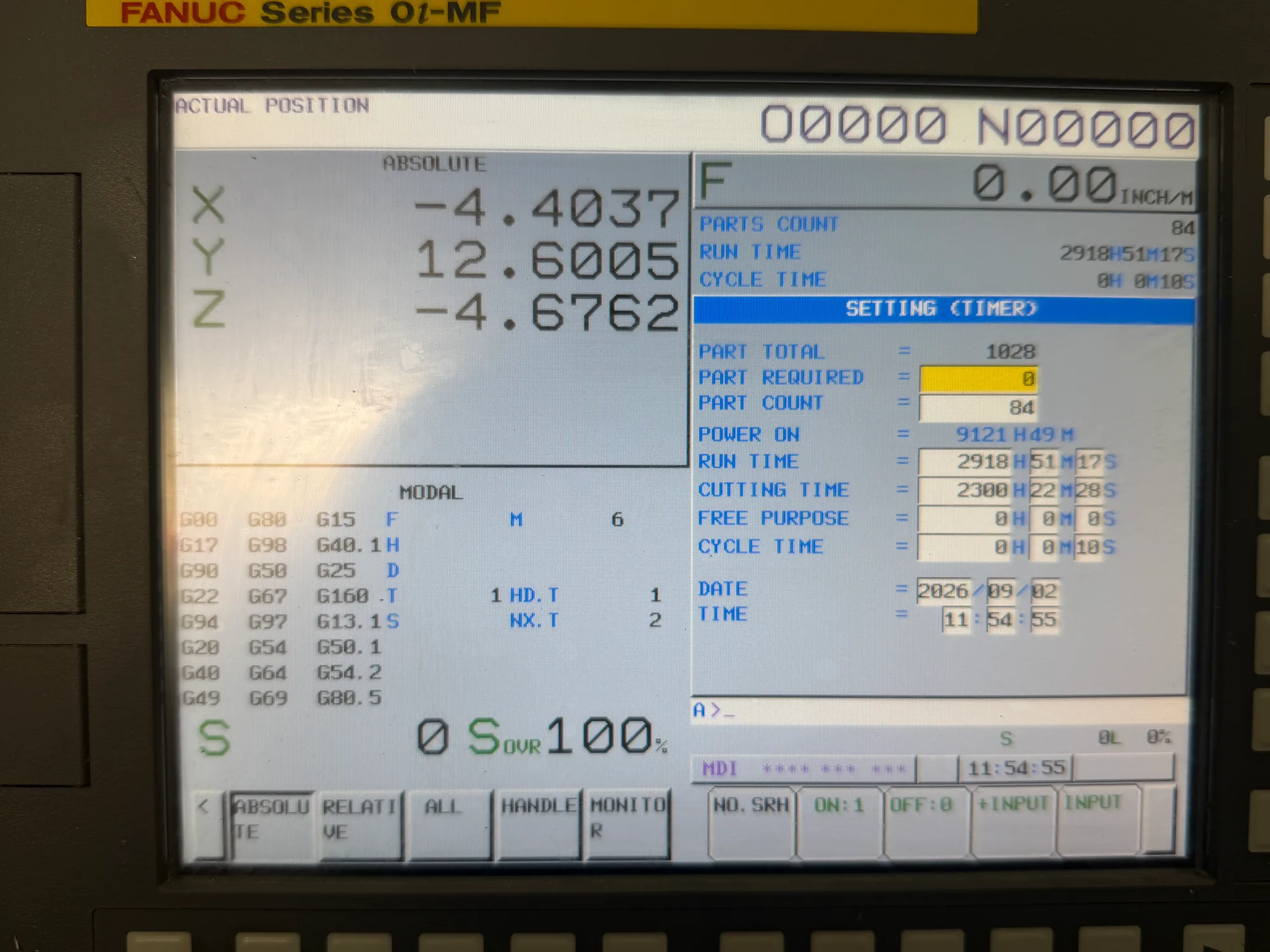

FANUC 0i-MF Control |
No Amplifier) |
|
Through Spindle Coolant |
