Year |
2017 |
|---|---|
Make |
Multicam |
Model |
5000 Series |
Description |
CNC Router |
Reference # |
8078878 |
Price |
Activate Pricing |

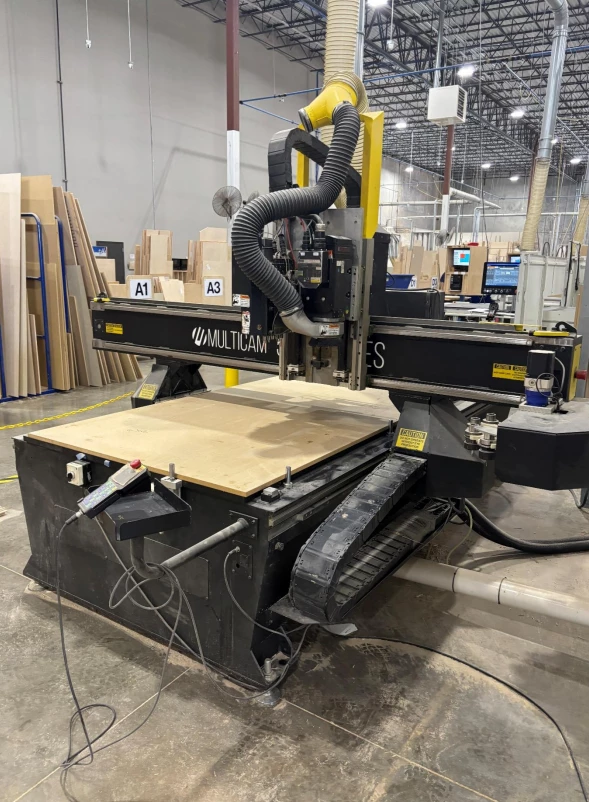

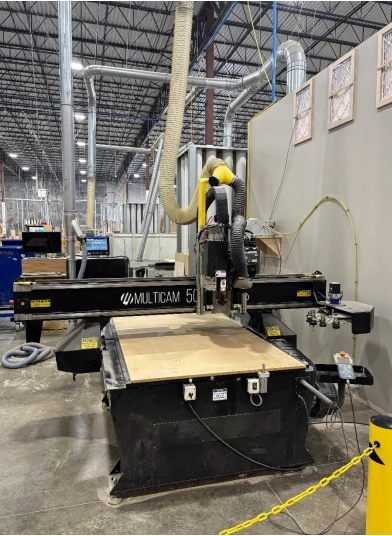

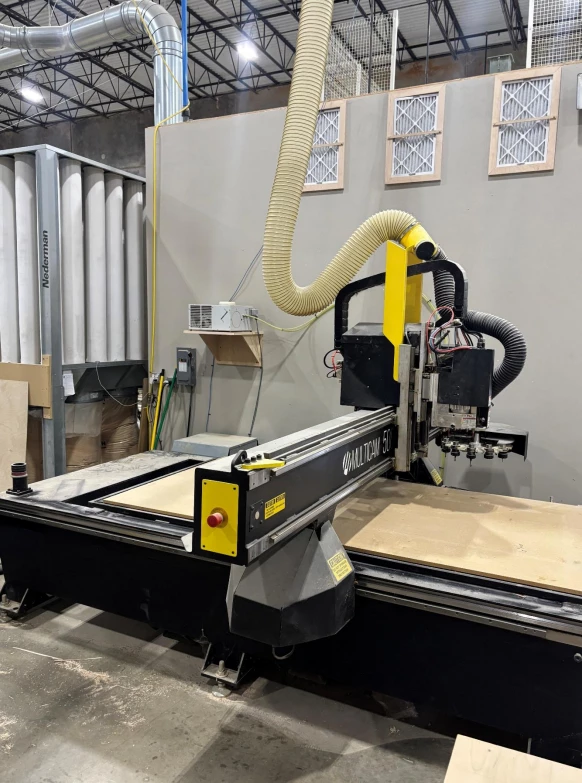

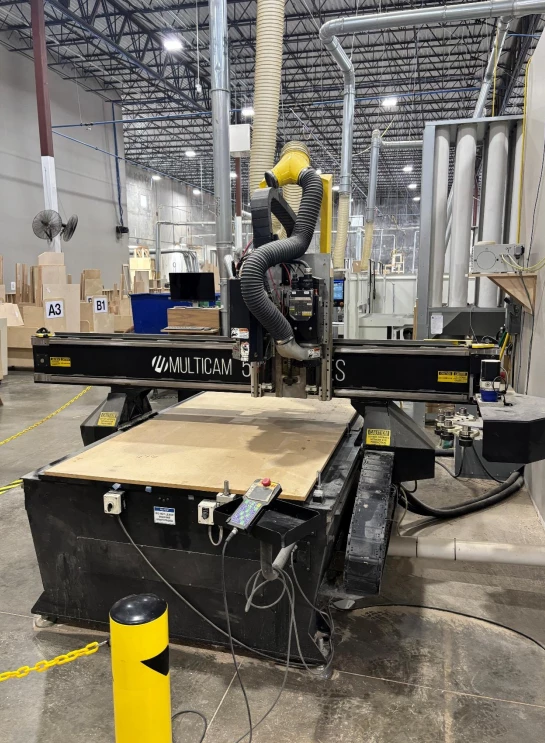

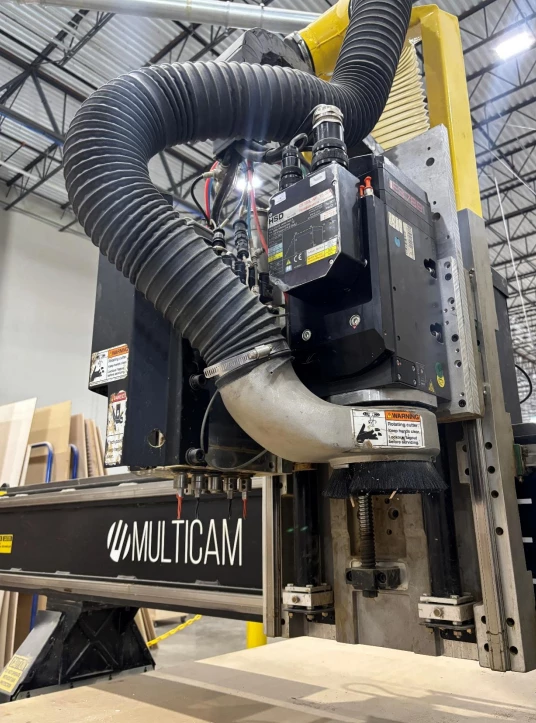

Used Multicam 5000 Series (2017) CNC Router for Sale. This 3-axis machine has a 48″ x 96″ table with vacuum hold down, a vacuum pump included, and pop up material location pins. It is fitted with an HSD ES789 ATC spindle rated 16 HP 4-pole with HSK 63 taper and pneumatic chuck, 15.74 of Z-axis travel (TBD), a 12-position rotary ATC, and a 9-drill 5×5 matrix boring unit (32mm). Control is the Multicam EZ Controller. Power requirement is 380v, 3 ph, 50/60hz at 67.5 amps, with transformer included. Also equipped with a high volume dust collector attachment, wide carriage for 5000 Series machines, X-Edge HSK63 stand and wrench kit, and heat exchanger for liquid cooled spindles. Currently in operation and can be seen under power for an inspection. See more used CNC routers, Activate Pricing, or Request a Quote.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
48" |
| Table Length |
96" |
| Table Hold Down |
Vacuum Hold Down |
| Spindle Mfg |
HSD ES789 ATC Spindle |
| Spindle Horsepower |
16 HP 4-Pole/HSK 63 Spindle w/ Pneumatic Chuck |
| Spindle Z-Axis Travel |
15.74 (TBD) |

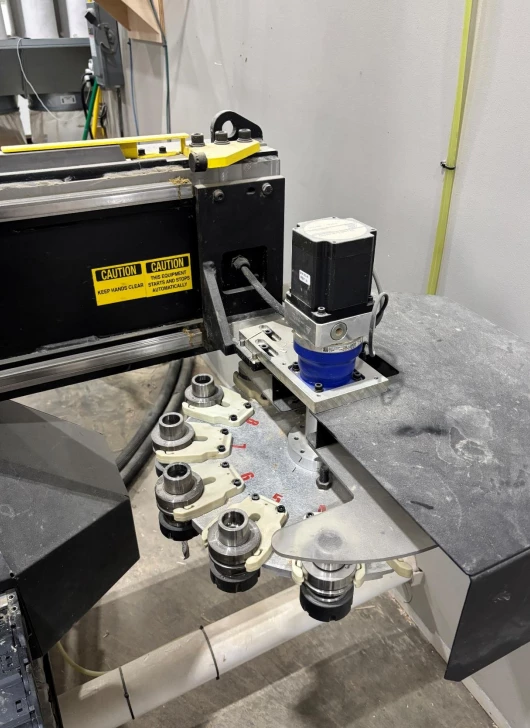

| Tool Changer |
(12) Position Rotary ATC |
| Multi-Spindle Boring Block |
(9) Drill 5x5 Matrix Boring Unit (32mm) |

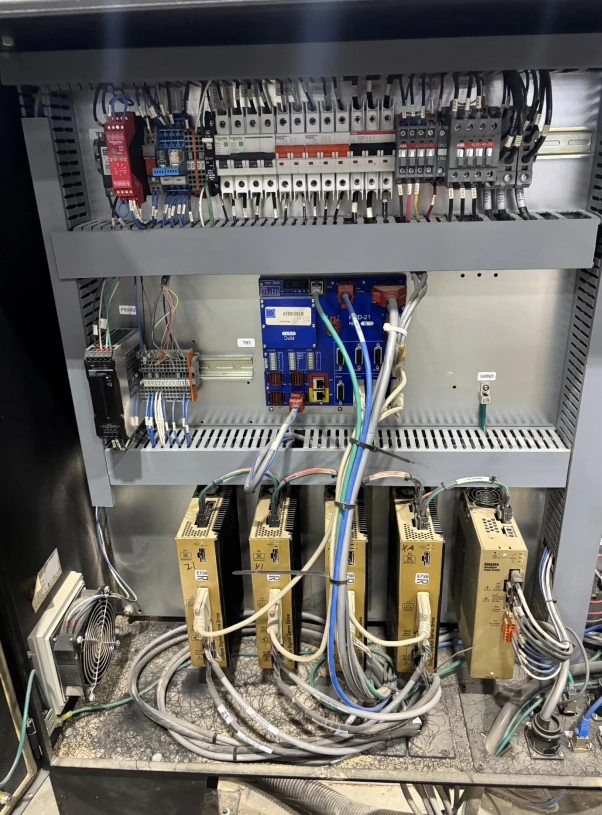

| Control |

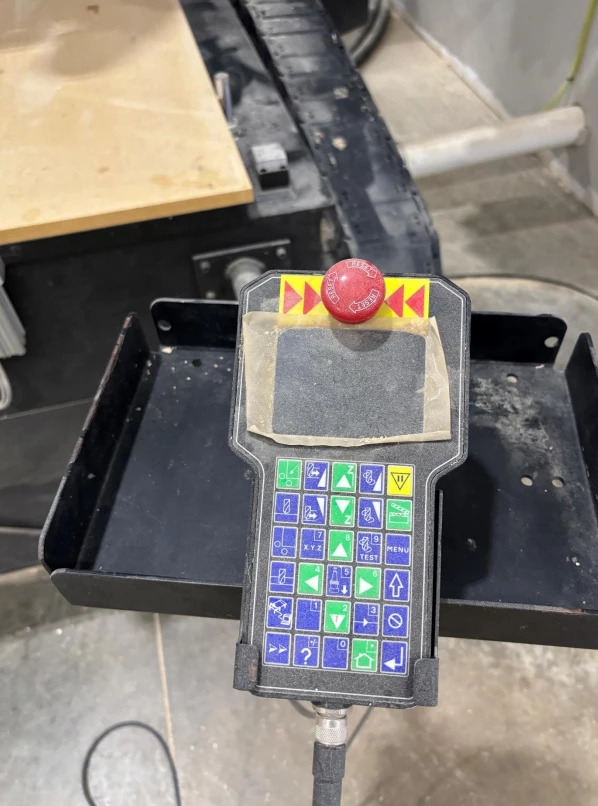

Multicam EZ Controller |

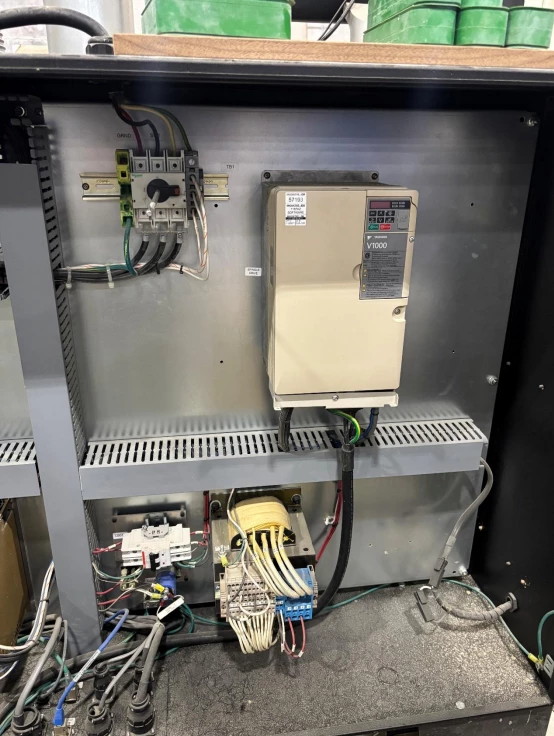

| Power Requirement |
380v - 3 ph - 50/60hz (67.5 Amps) |
Features
|
Currently in Operation |
High Volume Dust Collector Attachment |
|
Wide Carriage for 5000 Series Machines |
X-Edge HSK63 Stand & Wrench Kit |
|

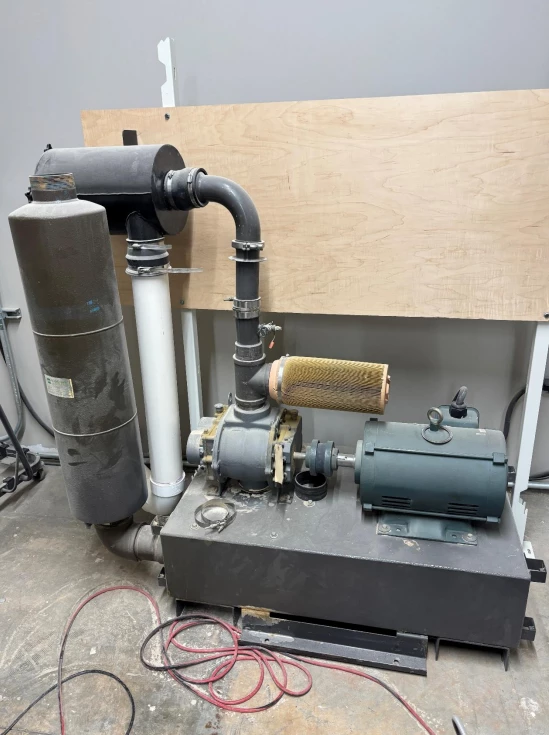

Vacuum Pump Included |
Heat Exchanger for Liquid Cooled Spindles |
|
Pop Up Material Location Pins |
Transformer Included |
