Year |
2017 |
|---|---|
Make |
Kawasaki |
Model |
RS020N |
Description |
6-Axis Industrial Robot with Lathe Machine Tending Tooling |
Reference # |
8078518 |
Price |
Activate Pricing |

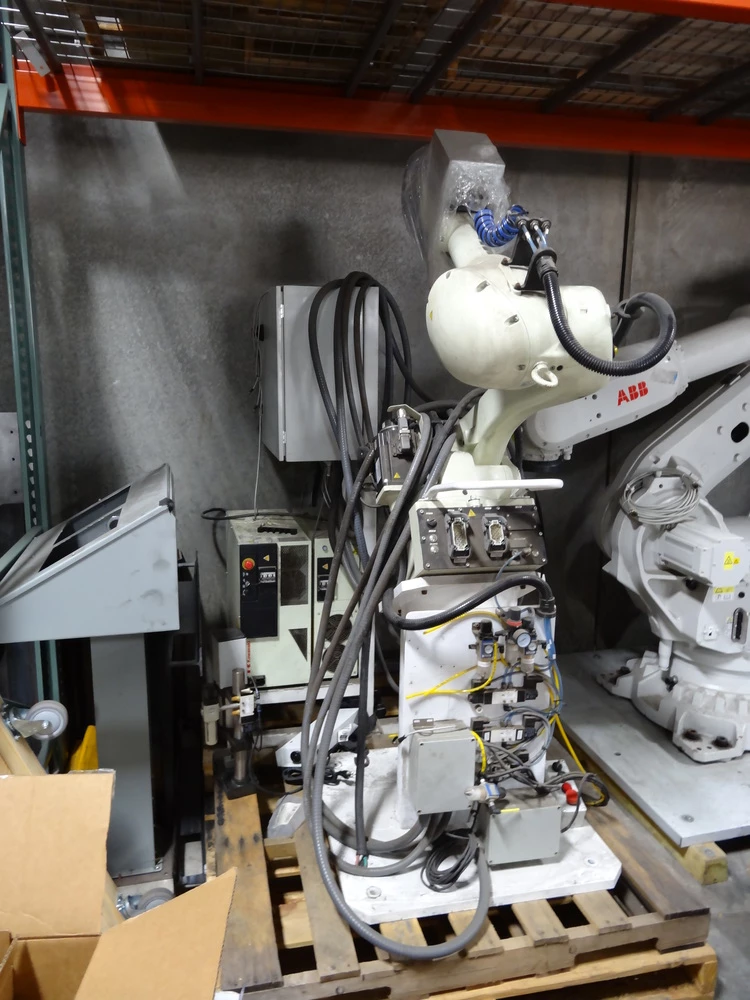

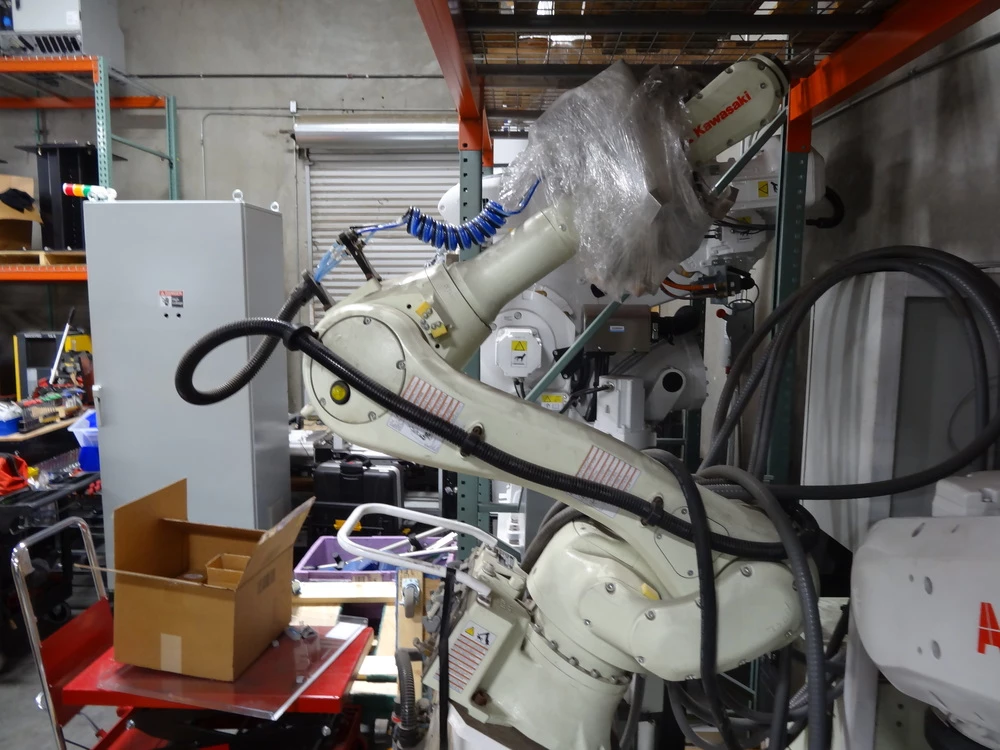

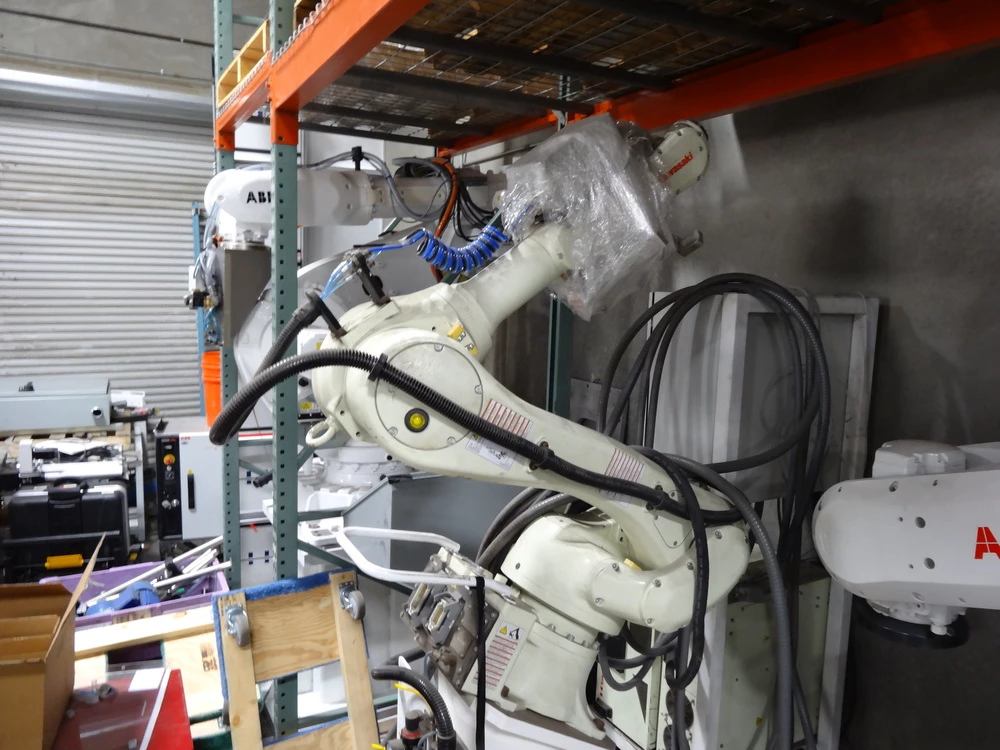

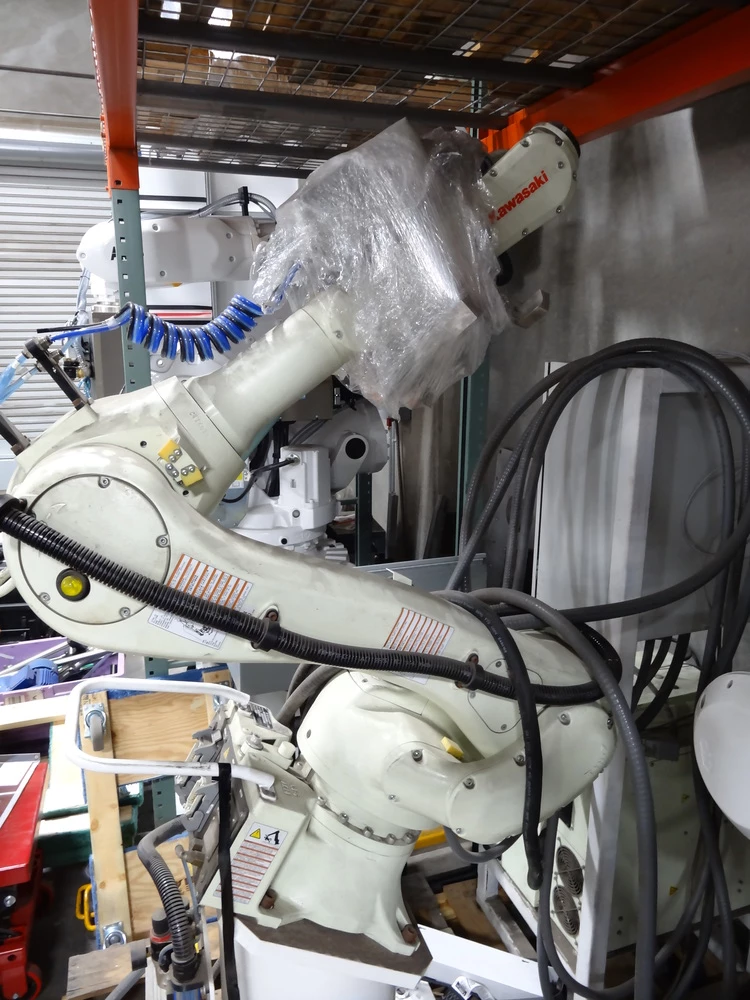

Used Kawasaki RS020N (2017) Robot for Sale. This R-Series six-axis robot has a 20 Kg payload, 1725 mm reach and repeatability of +/-0.04 mm, with a robot weight of 230 Kg and floor or ceiling mounting. Axis travels are JT1 +/-180° @190°, JT2 +155°/-105° @205°, JT3 +150°/-163° @210°, JT4 +/-270° @400°, JT5 +/-145° @360° and JT6 +/-360° @610°, with a JT4 wrist moment of 45 Nm. Applications include material handling, machine tending, deburring, MIG/TIG welding and laser cutting. It is equipped with lathe machine tending tooling. The robot can be seen under power for an inspection. See more listings in our used robots category, then Request a Quote for pricing and further details.
Specifications
| Payload |
20 Kg |
|---|---|
| Reach |
1725 mm |
| Repeatability |
+/-0.04 mm |
| Robot Weight |
230 Kg |
| Mounting |
Floor or Ceiling |
| Series |
R-Series |
| JT1 |
+/-180° @190° |
| JT2 |
+155°/-105° @205° |
| JT3 |
+150°/-163° @210° |
| JT4 |
+/-270° @400° |
| JT5 |
+/-145° @360° |
| JT6 |
+/-360° @610° |
| Wrist Moment JT4 |
45 Nm |
| Applications |
Material Handling / Machine Tending / Deburring / MIG/TIG Welding / Laser Cutting |
Features
|
Lathe Machine Tending Tooling |
