Year |
2017 |
|---|---|
Make |
Ficep |
Model |
Excalibur 1201 DE |
Description |
CNC Single Spindle Drilling Line |
Reference # |
8078399 |
Price |
Activate Pricing |

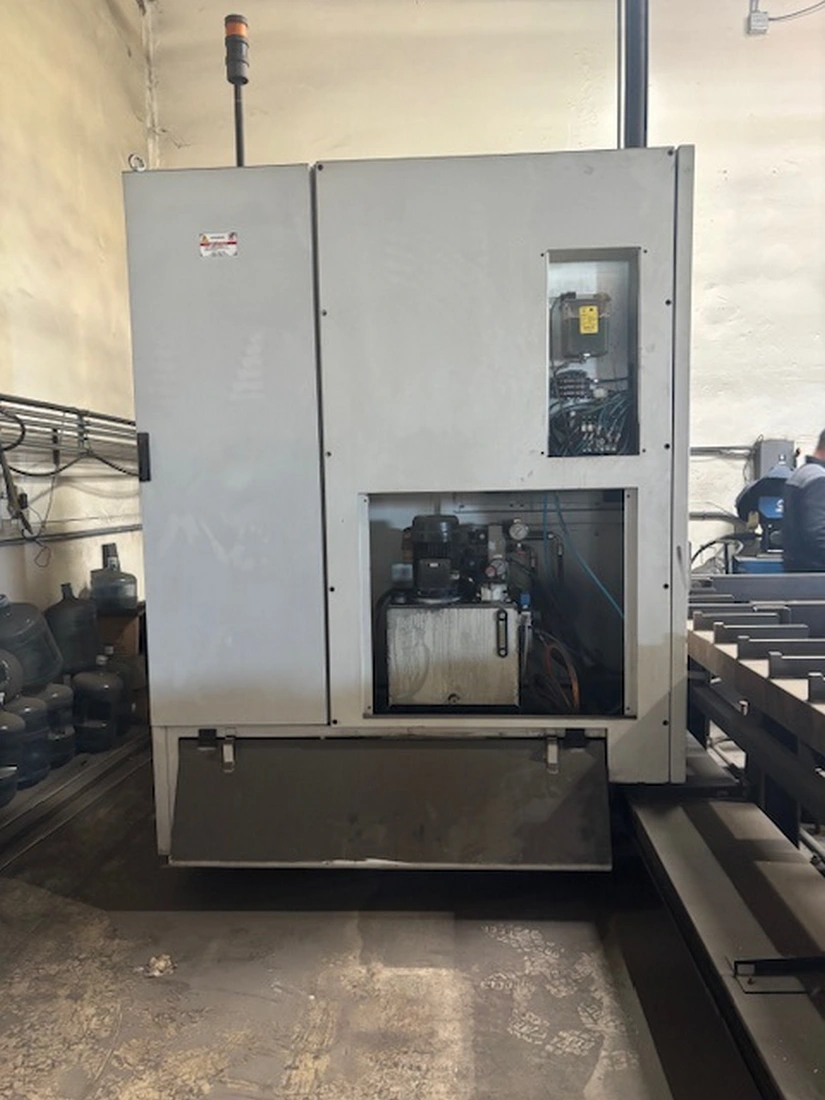

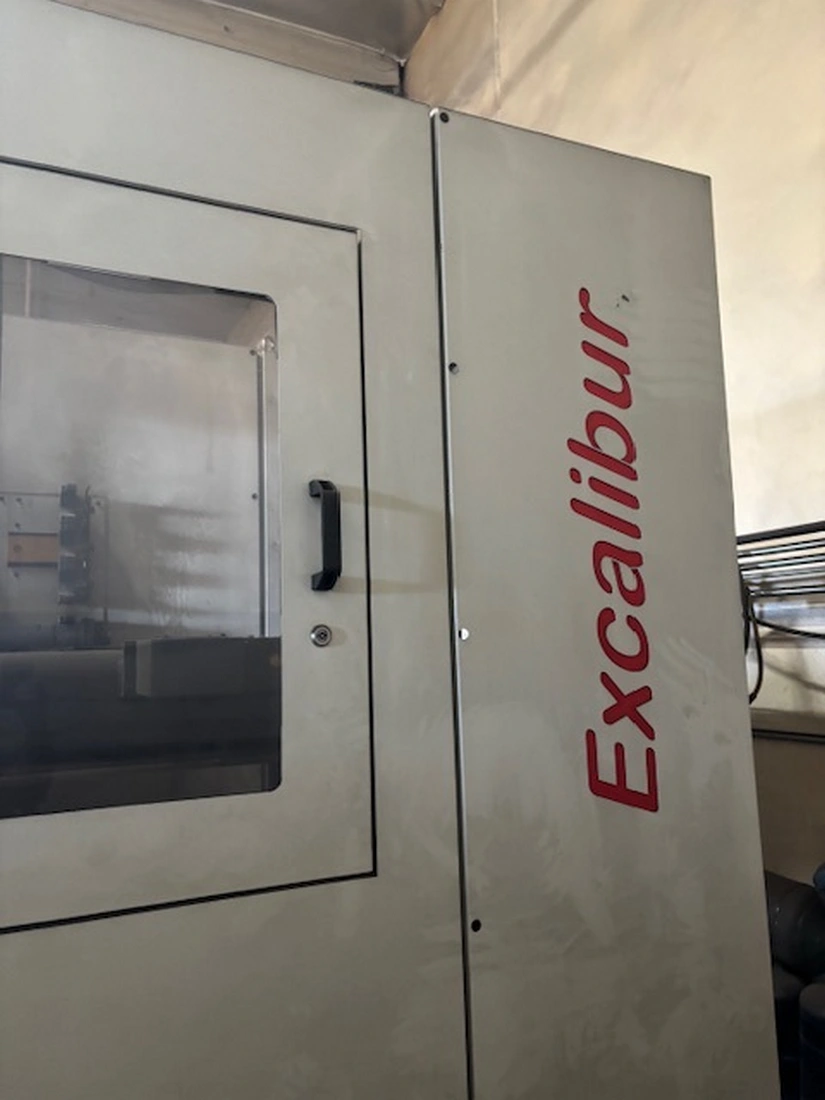

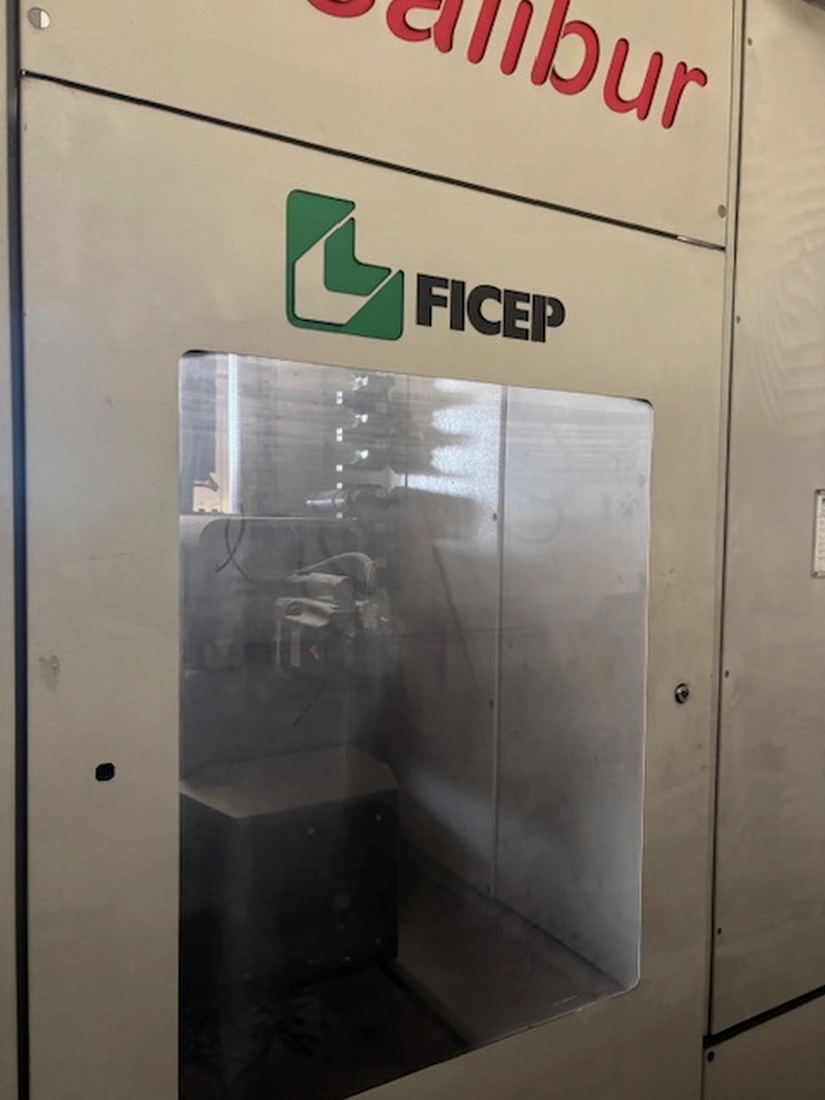

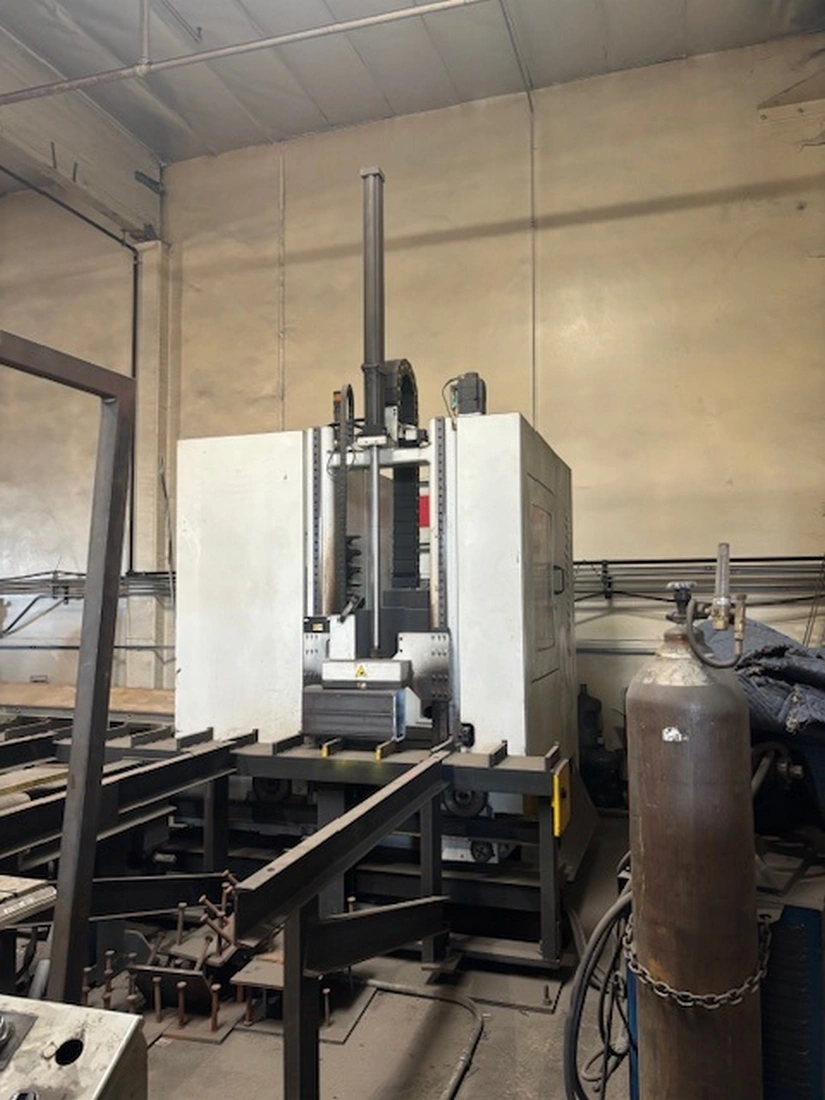

Used Ficep Excalibur 1201 DE (2017) Beam/Drill Line for Sale. This CNC drill line handles a beam section volume of 47″ x 47″ with a section length of 60″ and a maximum beam size of 47″. Drilling diameter is 1-9/16″, with 25 HP per head from an AC infinitely variable drive motor and spindle speeds to 5,000 RPM. Positioning speeds are 115 FPM on the X axis and 470 IPM on the Y axis, and the two vises provide 10 tons of total clamping pressure. Equipped with a non-contact web probe system, servo-driven electric ball screw spindle feed, automatic vertical clamp position adjustment, a Windows PC CNC control, and table included. The machine can be seen under power for an inspection. Request a Quote for details.
Specifications
| Beam Section Volume |
47" x 47" |
|---|---|
| Section Length |
60" |
| Max Beam Size |
47" |
| Drilling Diameter |
1-9/16" |
| X-Axis Positioning Speed |
115 FPM |
| Y-Axis Positioning Speed |
470 IPM |
| Power per Head (AC) |
25 HP |
| Spindle Speed |
5,000 RPM |
| Total Vise Camping Pressure (2) |
10 Ton |
Features
|
AC Infinitely Variable Drive Motor |
Non-Contact Web Probe System |
|
Servo-Driven Electric Ball Screw Spindle Feed System |

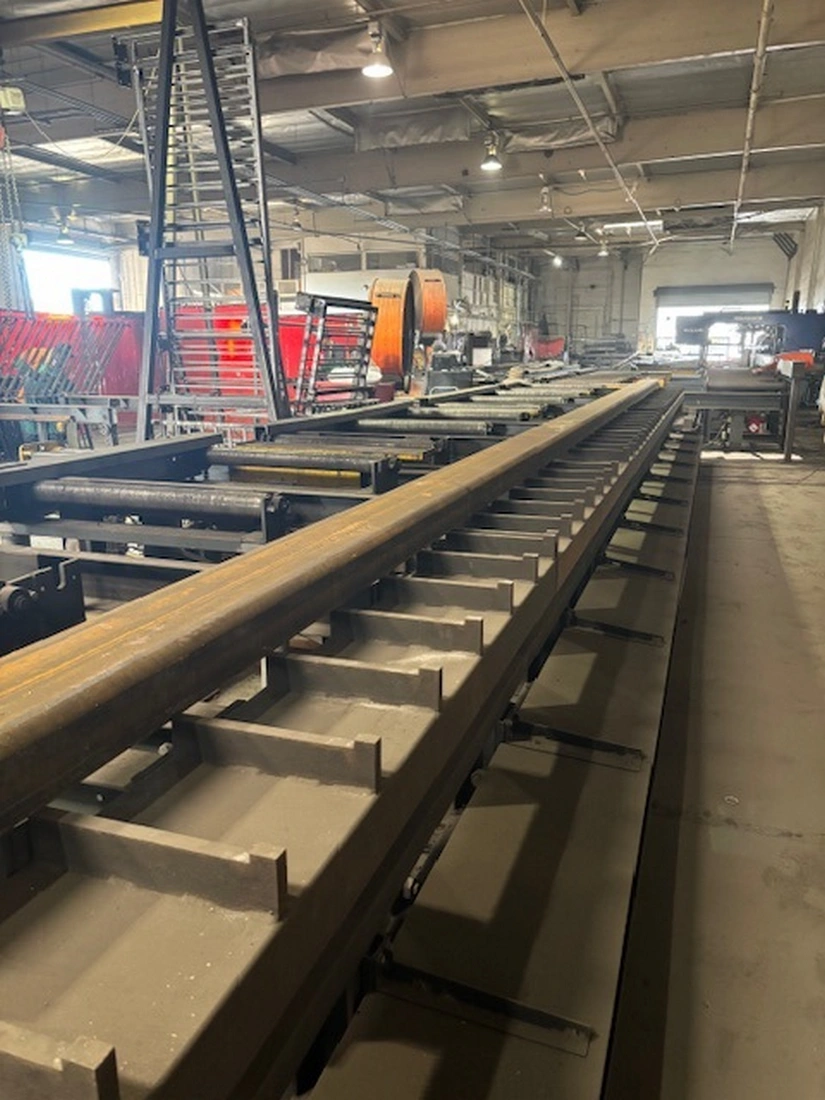

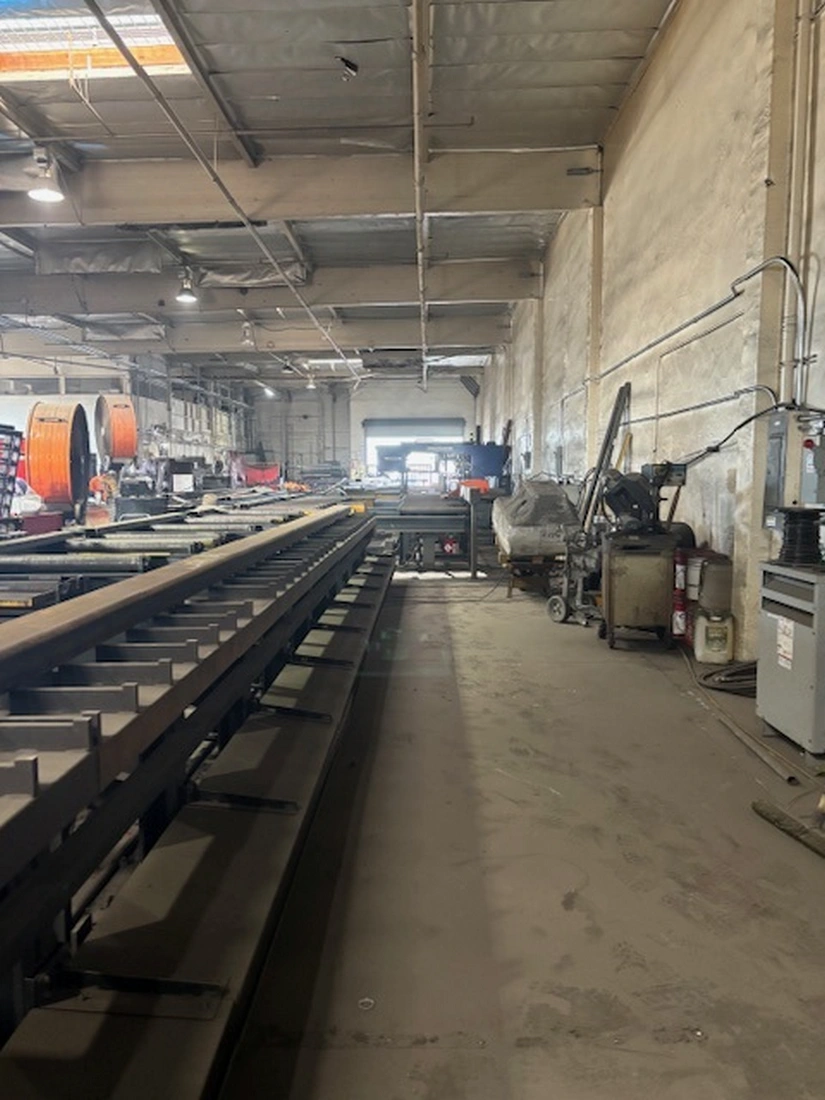

Table Included |
|
Vertical Clamp Position Adjusts Automatically |

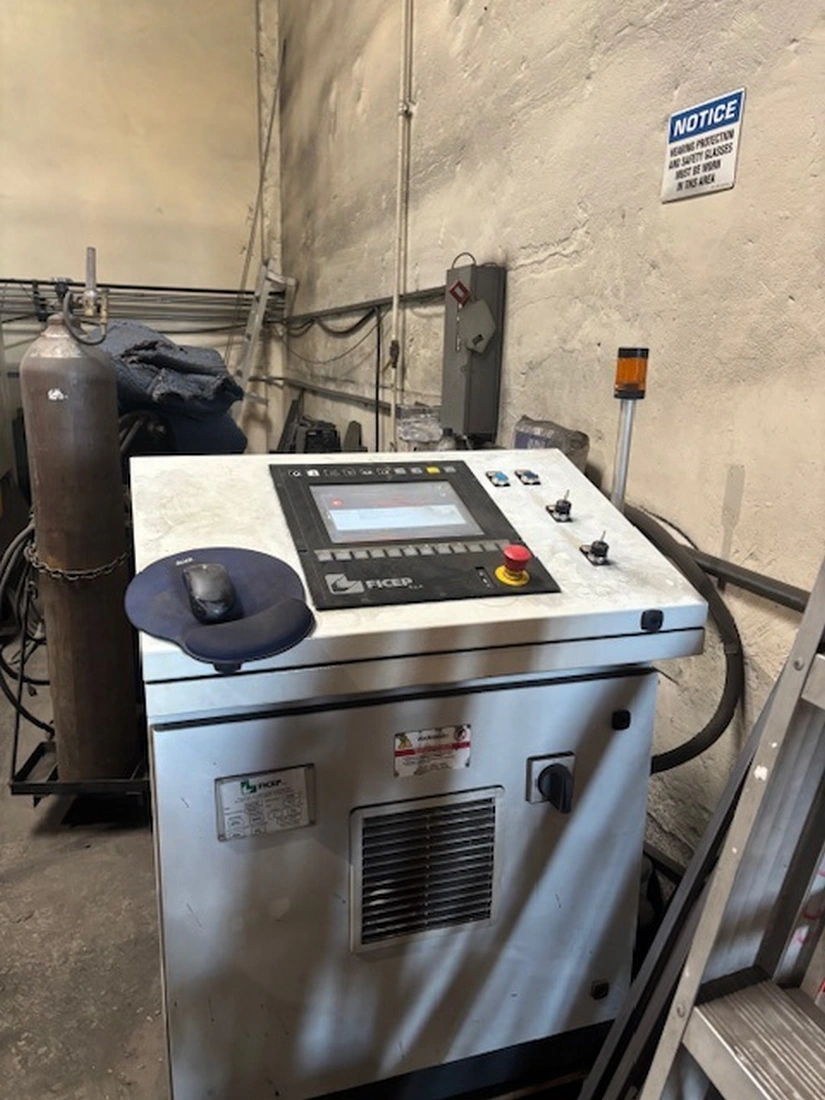

Windows PC CNC control |
