Year |
2017 |
|---|---|
Make |
Amada |
Model |
EG 6013 |
Description |
67 Ton x 4.5' Hydraulic Press Brake w/ Robot |
Reference # |
8076126 |
Price |
Activate Pricing |

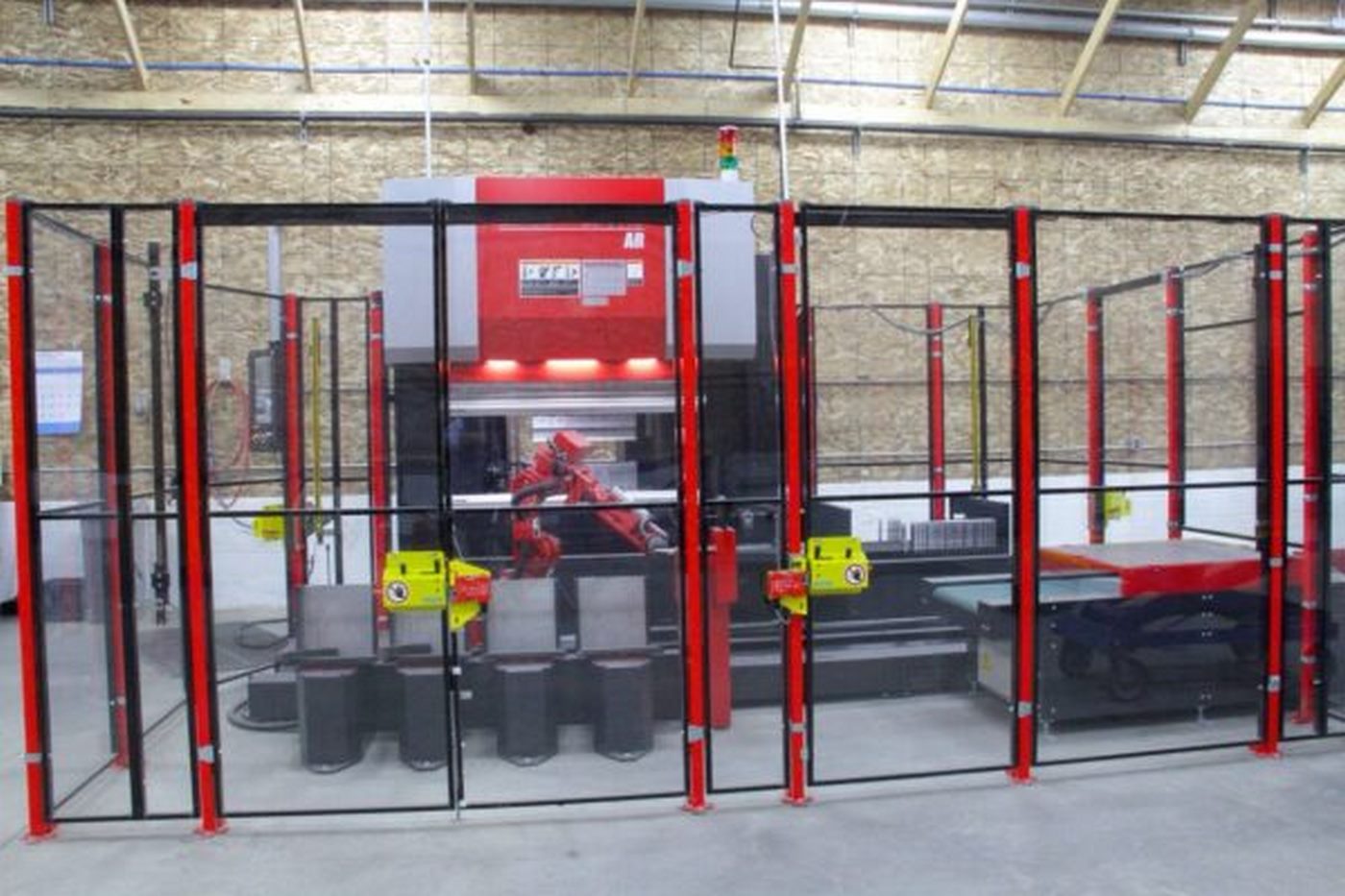

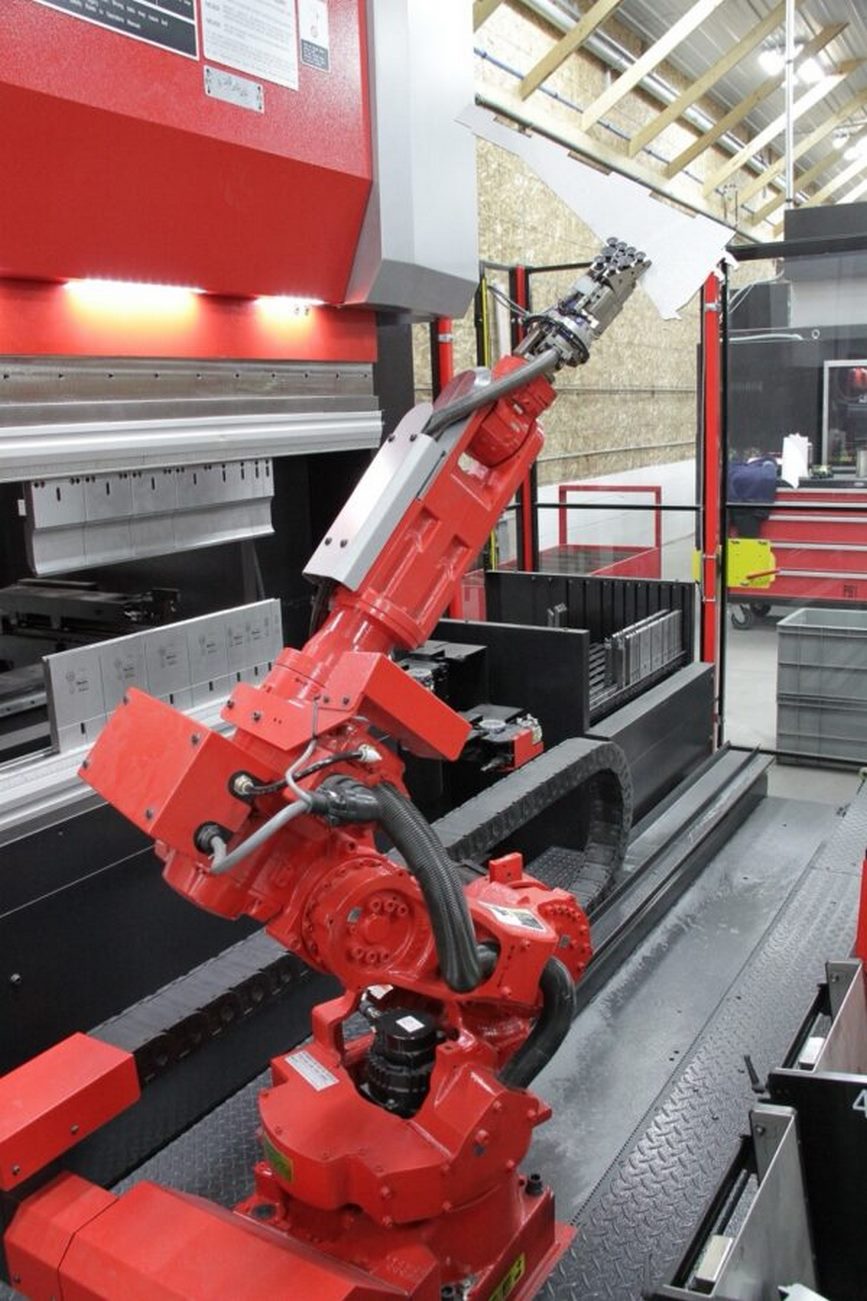

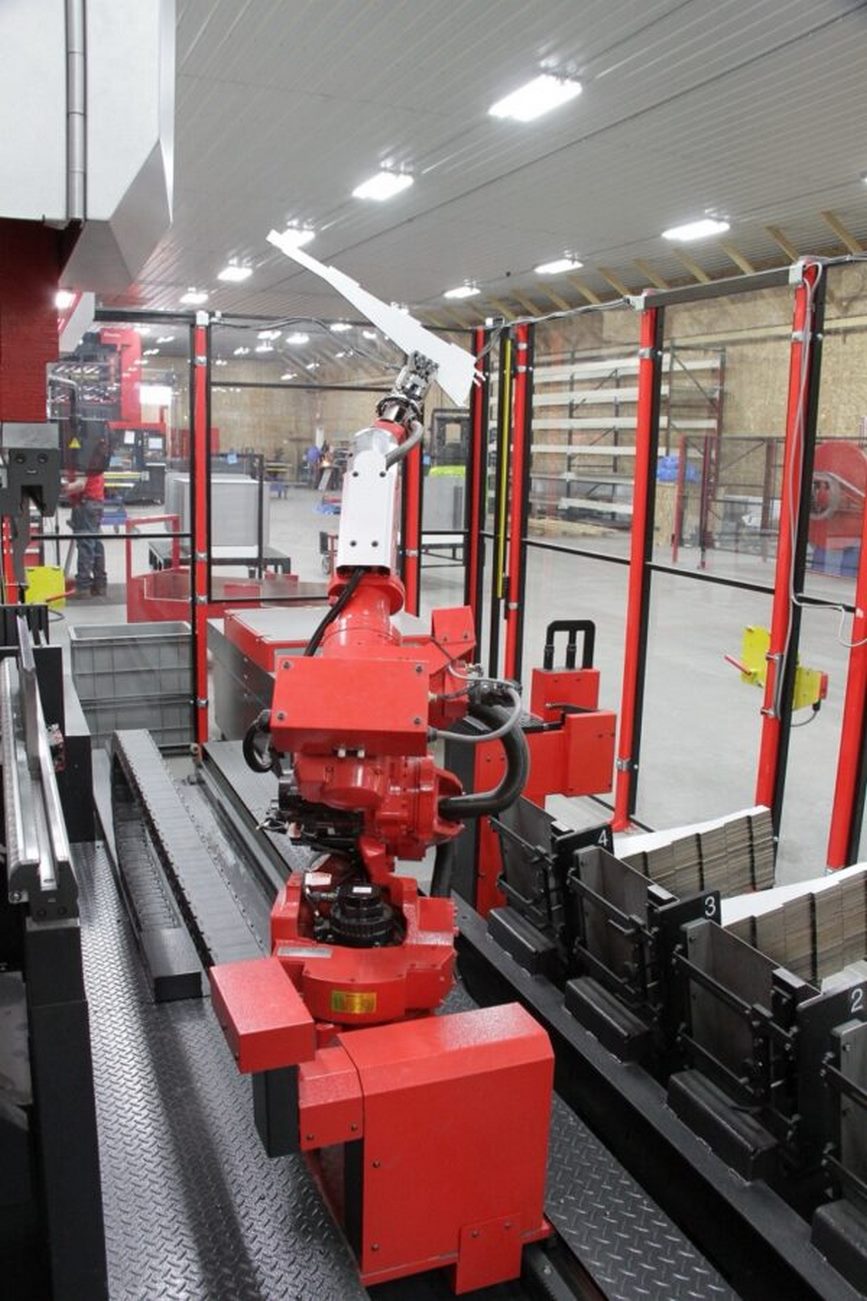

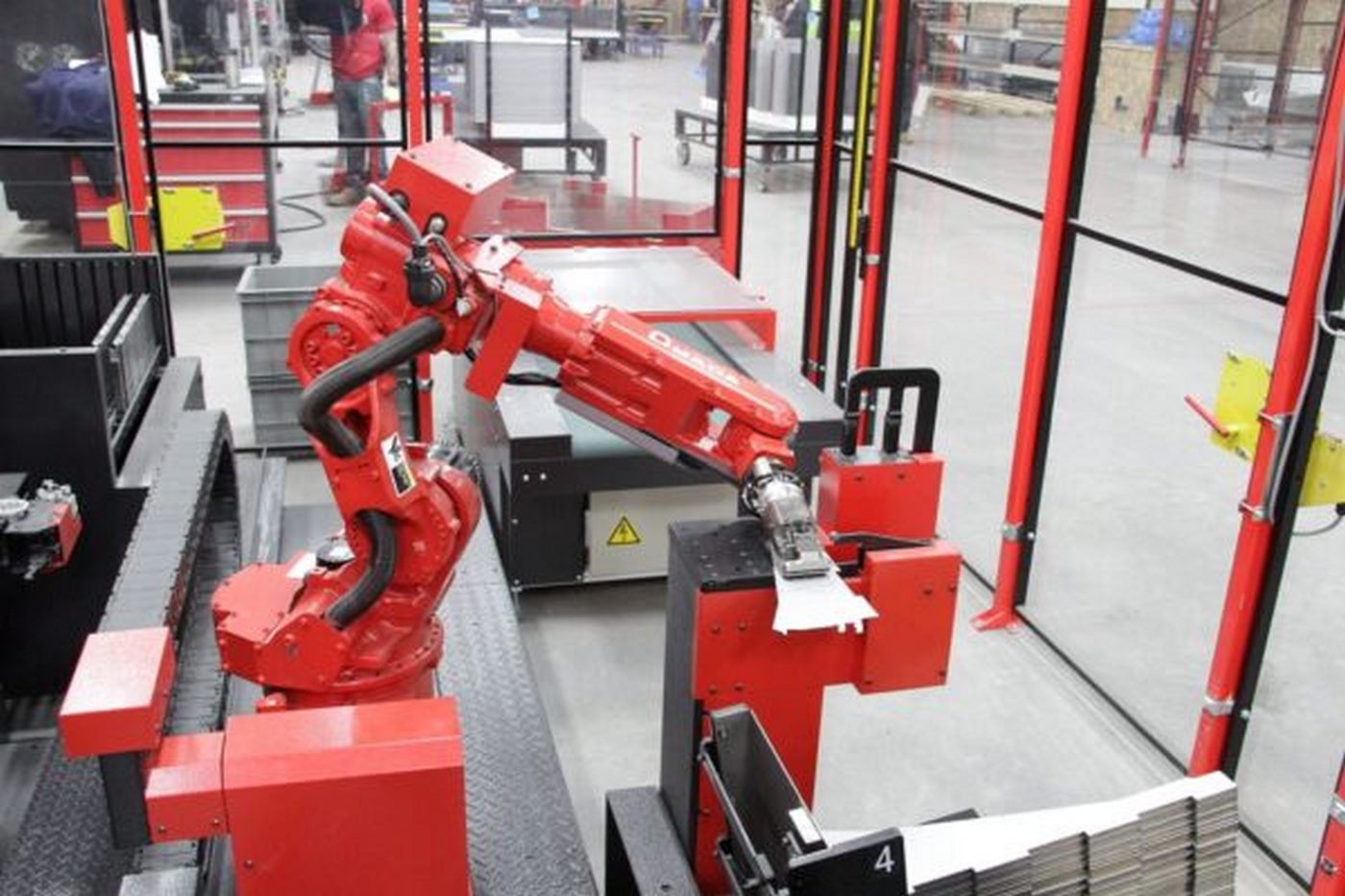

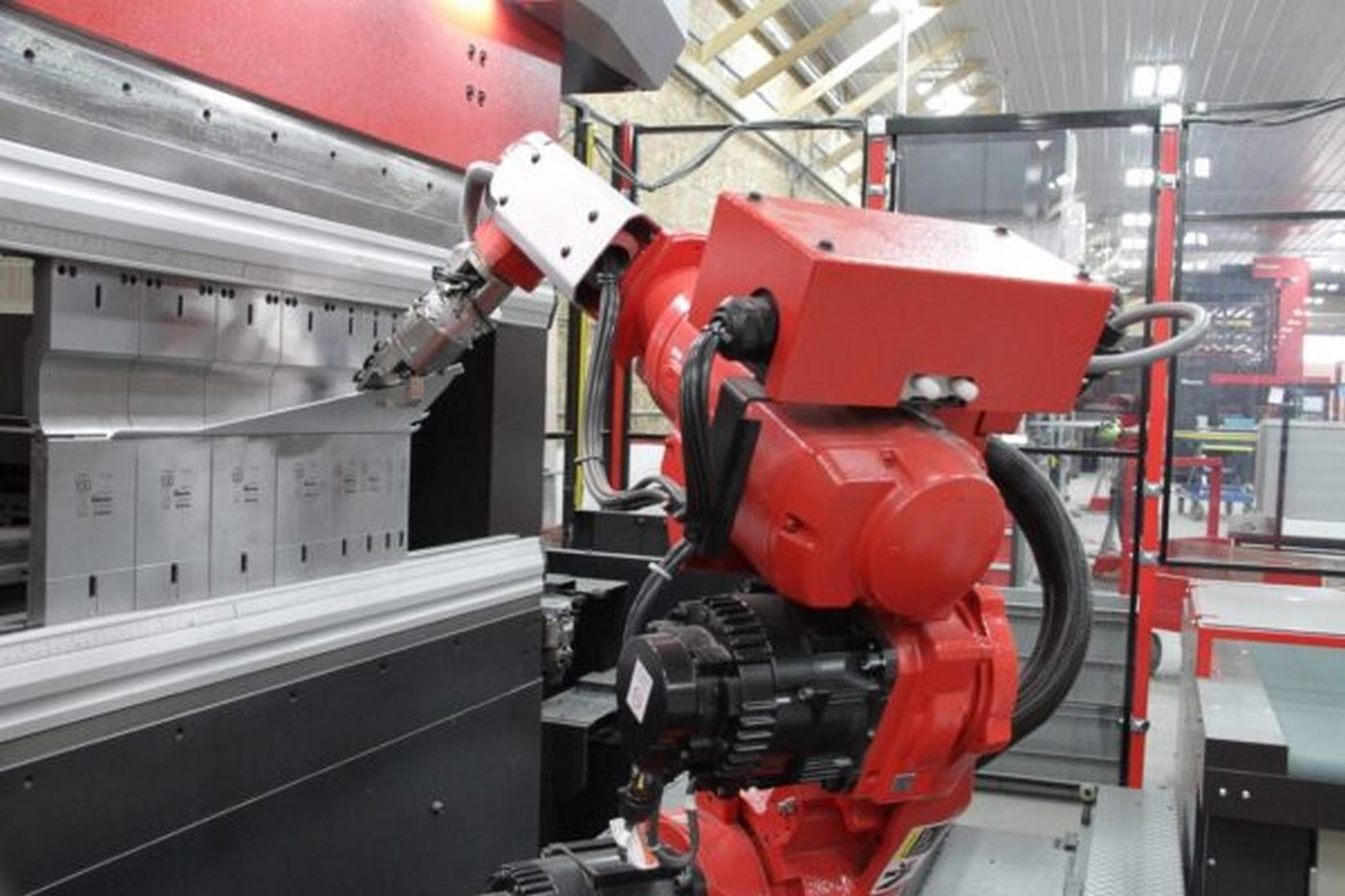

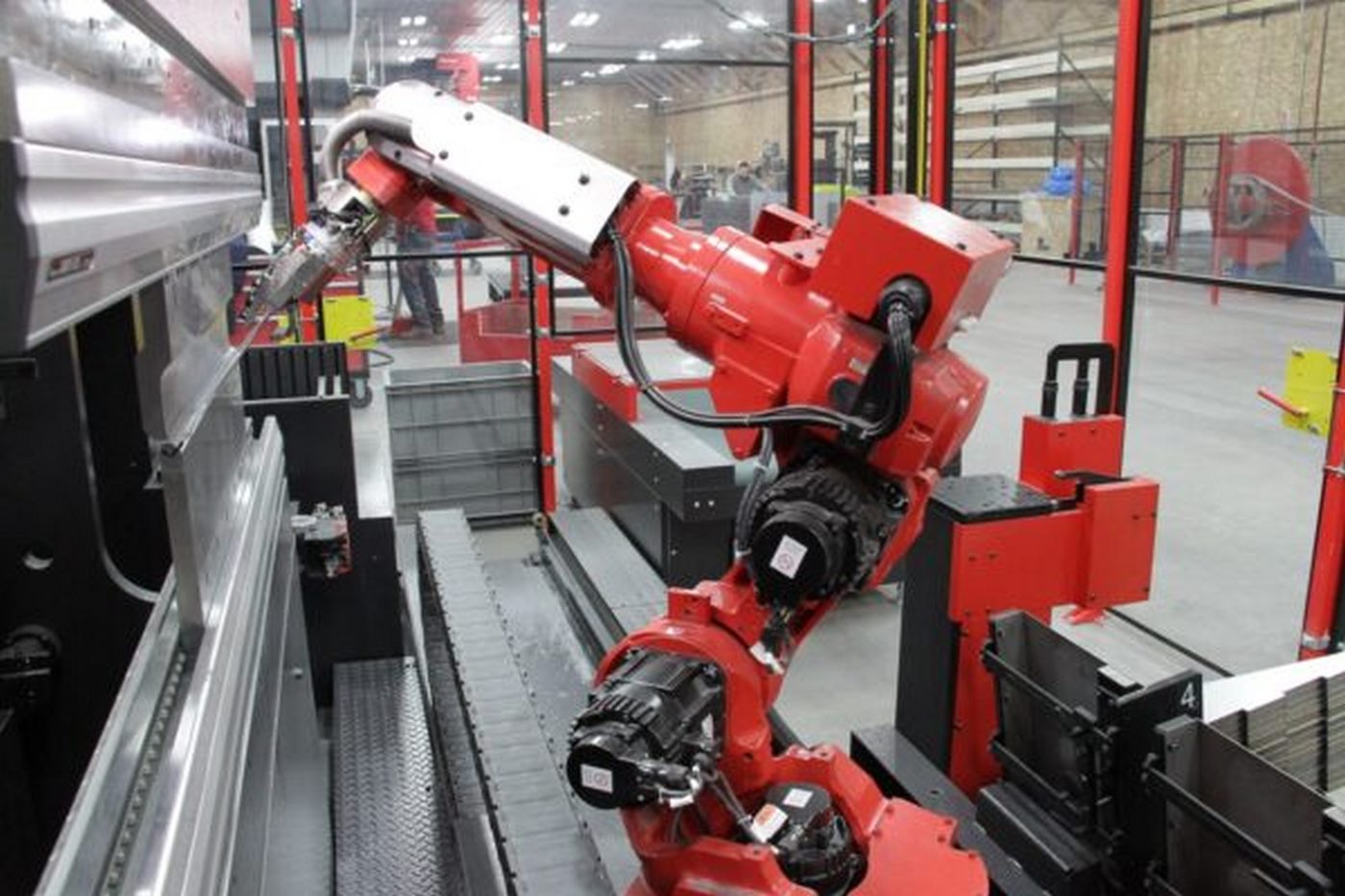

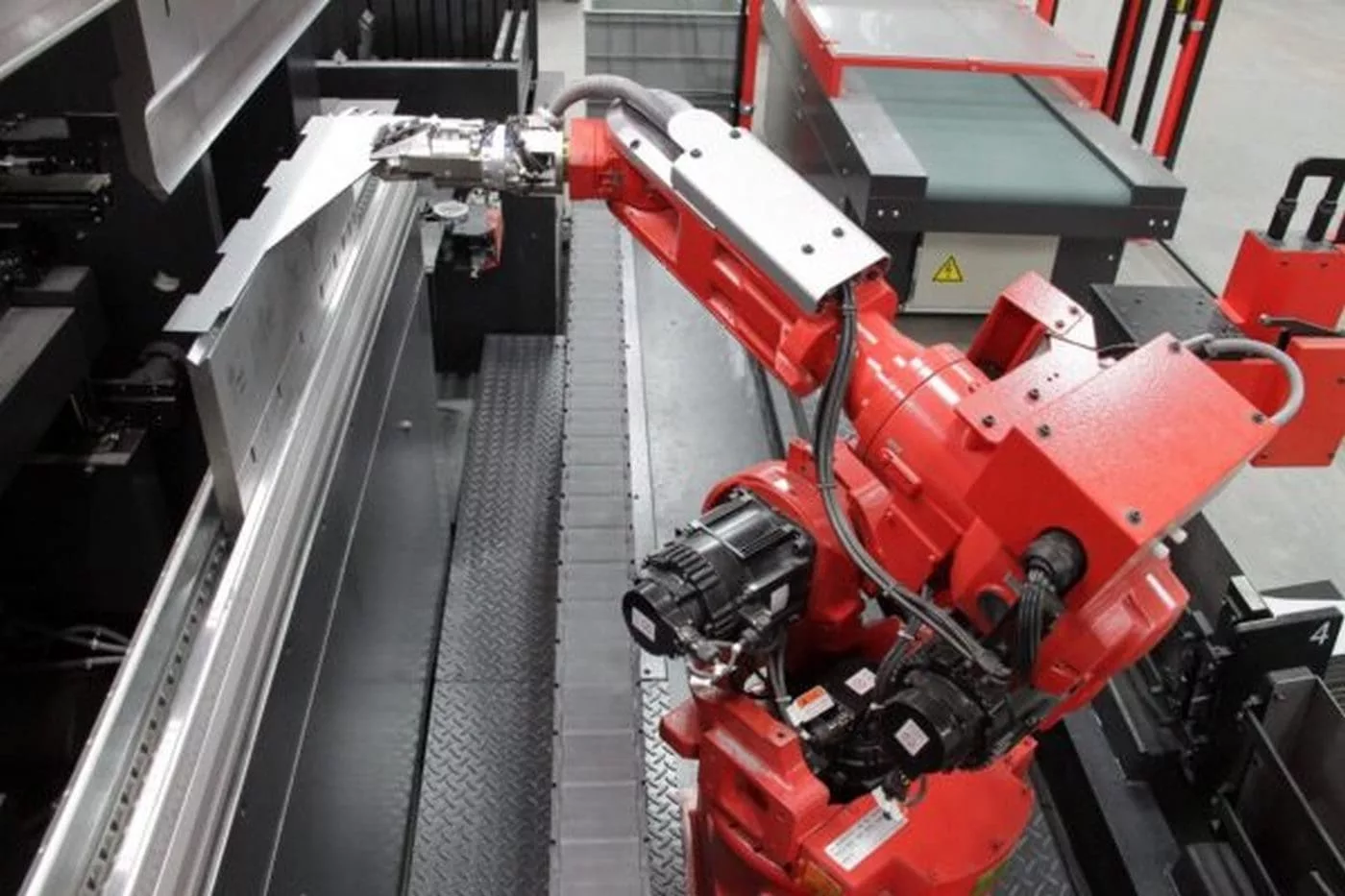

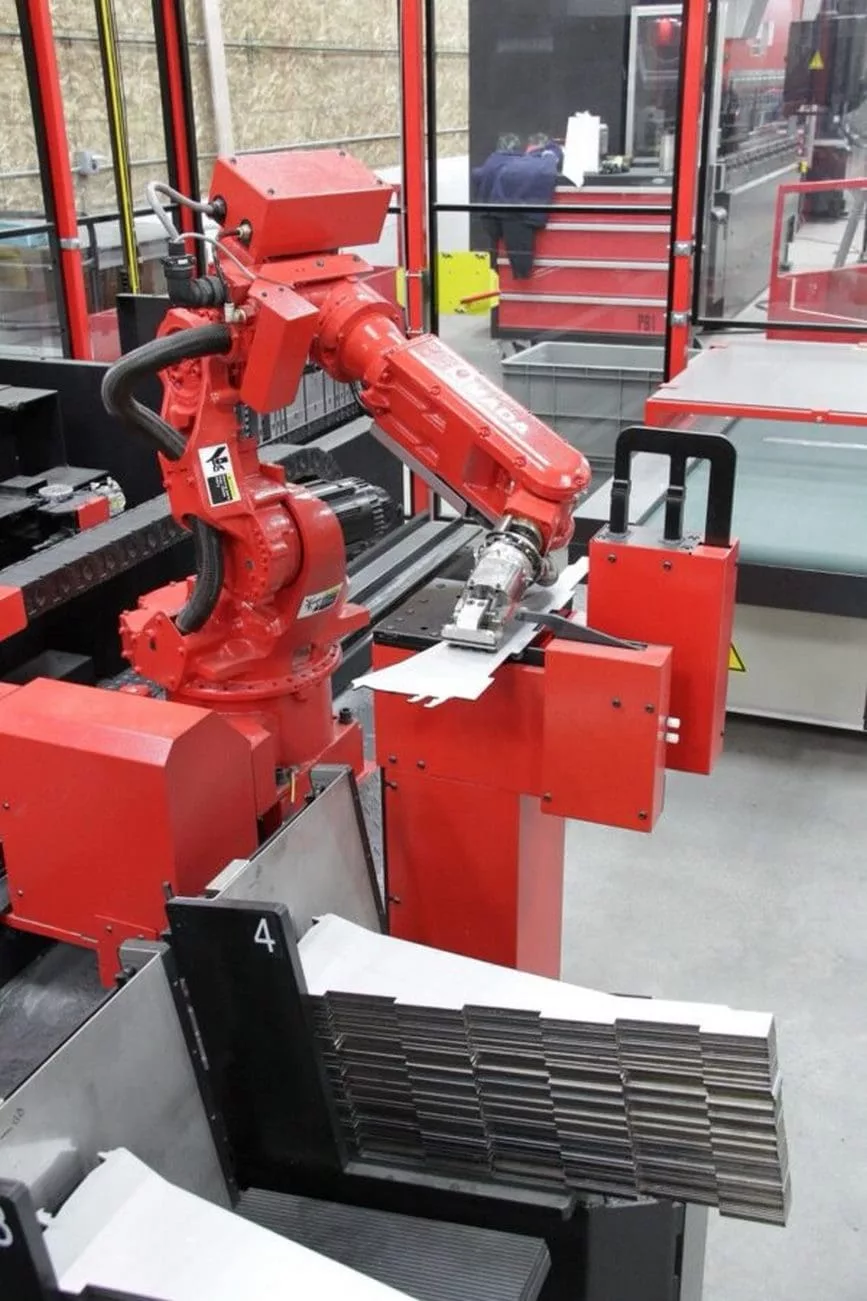

Used Amada EG 6013 (2017) Press Brake for Sale. This 67 ton machine has a 4.5′ overall bed length, 53.1″ between housings, 6″ stroke and 16.5″ open height, with a high-rigidity frame supporting the large open height and stroke. Approach/return speed is 8.7 IPS and bend speed is 1 IPS, run through an Amada AMNC 3i CNC control with a 7-axis potentiometer backgauge and side gauge system. Automation includes a Yaskawa MH6S-10 high precision 7-axis bending robot on a 120″ carriage, 39.25″ max reach at the P-point, 22 lb max part weight, 3 gripper station with seamless tool change to production, robotic tool changer, load/unload to drop box or conveyor and dual electric servo power drive. Floor space is 211″ x 154″ x 105″; weight is 8,200 lbs. Available for inspection under power. See more press brakes and Amada equipment, Activate Pricing, or Request a Quote.
Specifications
| Capacity |
67 Ton |
|---|---|
| Overall Length of Bed |
4.5' |
| Control |
Amada AMNC 3i CNC |
| Distance Between Housings |
53.1" |
| Stroke |
6" |
| Open Height |
16.5" |
| Approach/Return Speed |
8.7 IPS |
| Bend Speed |
1 IPS |
| Robot Carriage Axis |
120" |
| Max Reach P-Point |
39.25" |
| Max. Part Weight on Robot |
22 Lbs |
| Max Tool Length/Tool Holder Length |
31.5"/49.2" |
| Floor Space |
211" x 154" x 105" |
| Weight |
8,200 Lbs |
Features
|

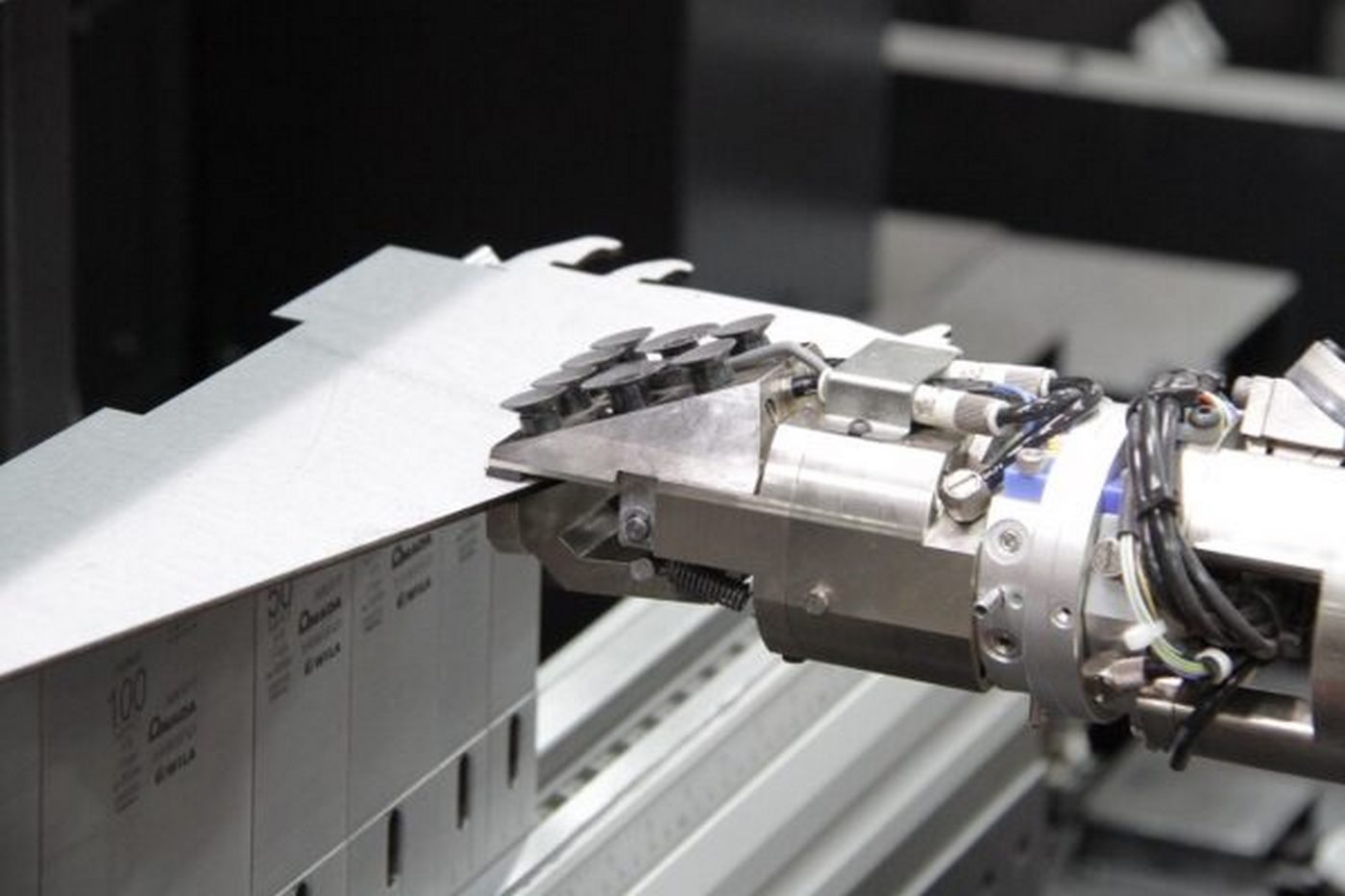

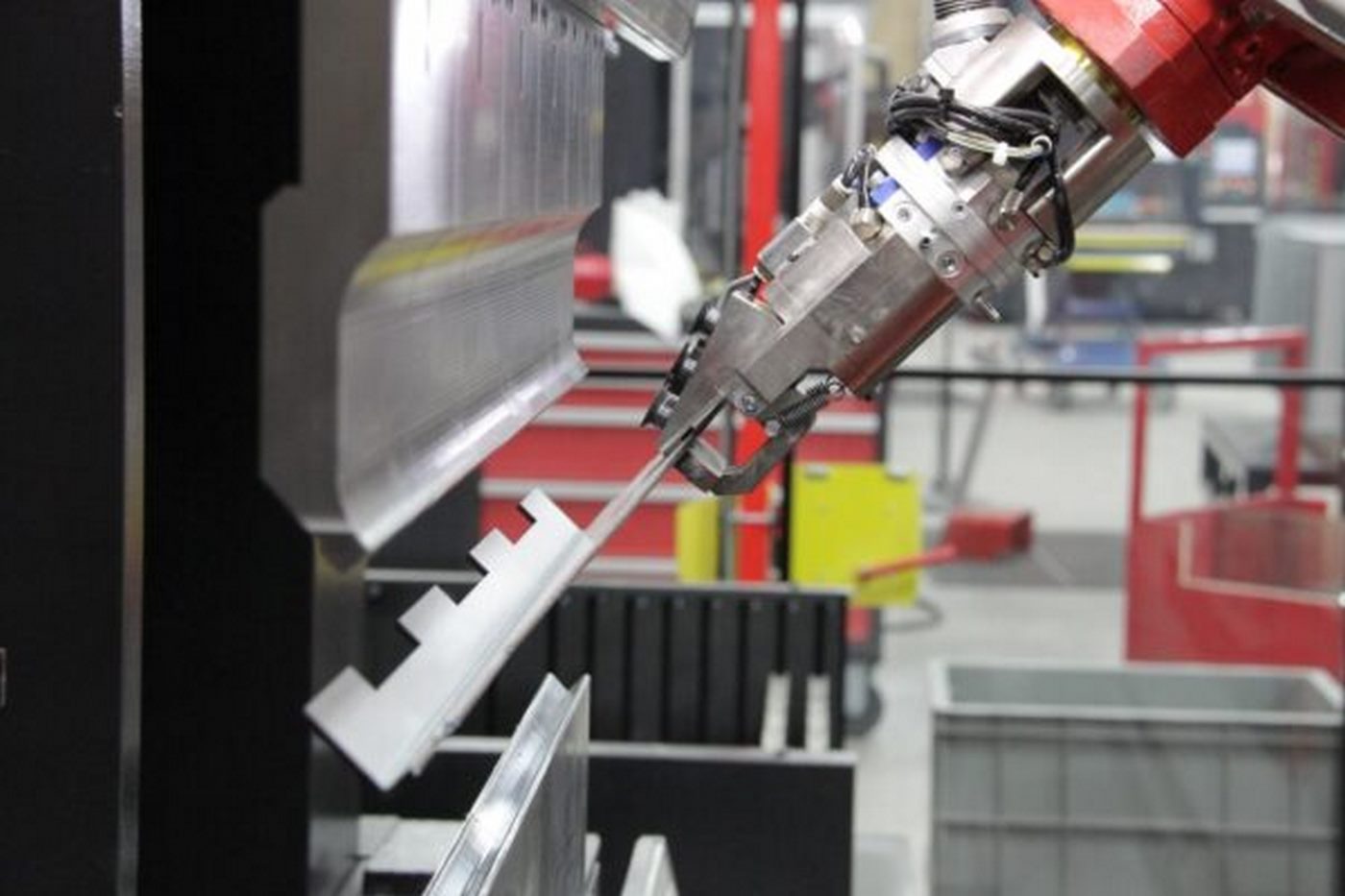

3 Gripper Station / Seamless Tool Change To Production |
7-Axis Potentiometer Backgauge With Side Gauge System |
|
High-Rigidity Frame for Large Open Height and Stroke |
Load/Unload to Drop Box or Conveyor |
|
Robotic Tool Changer |

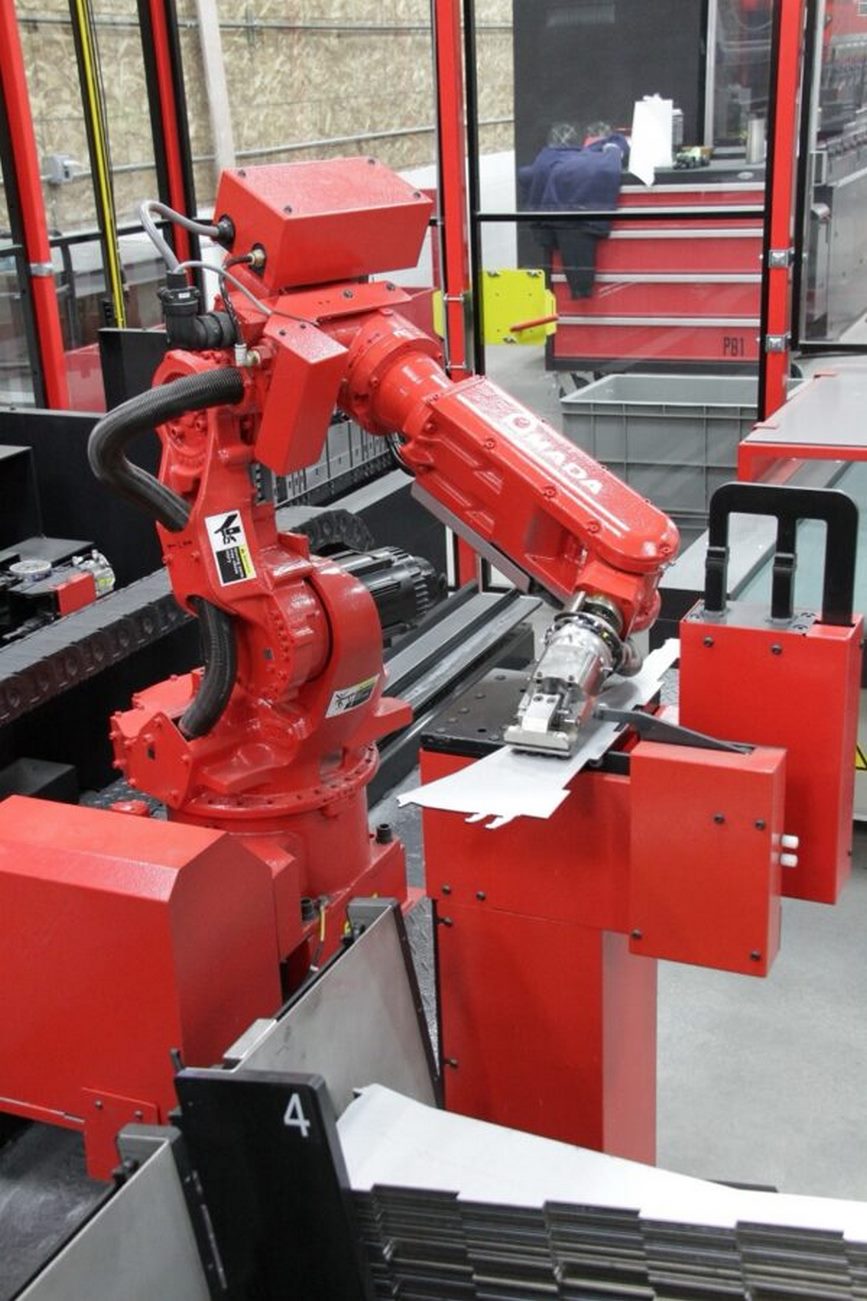

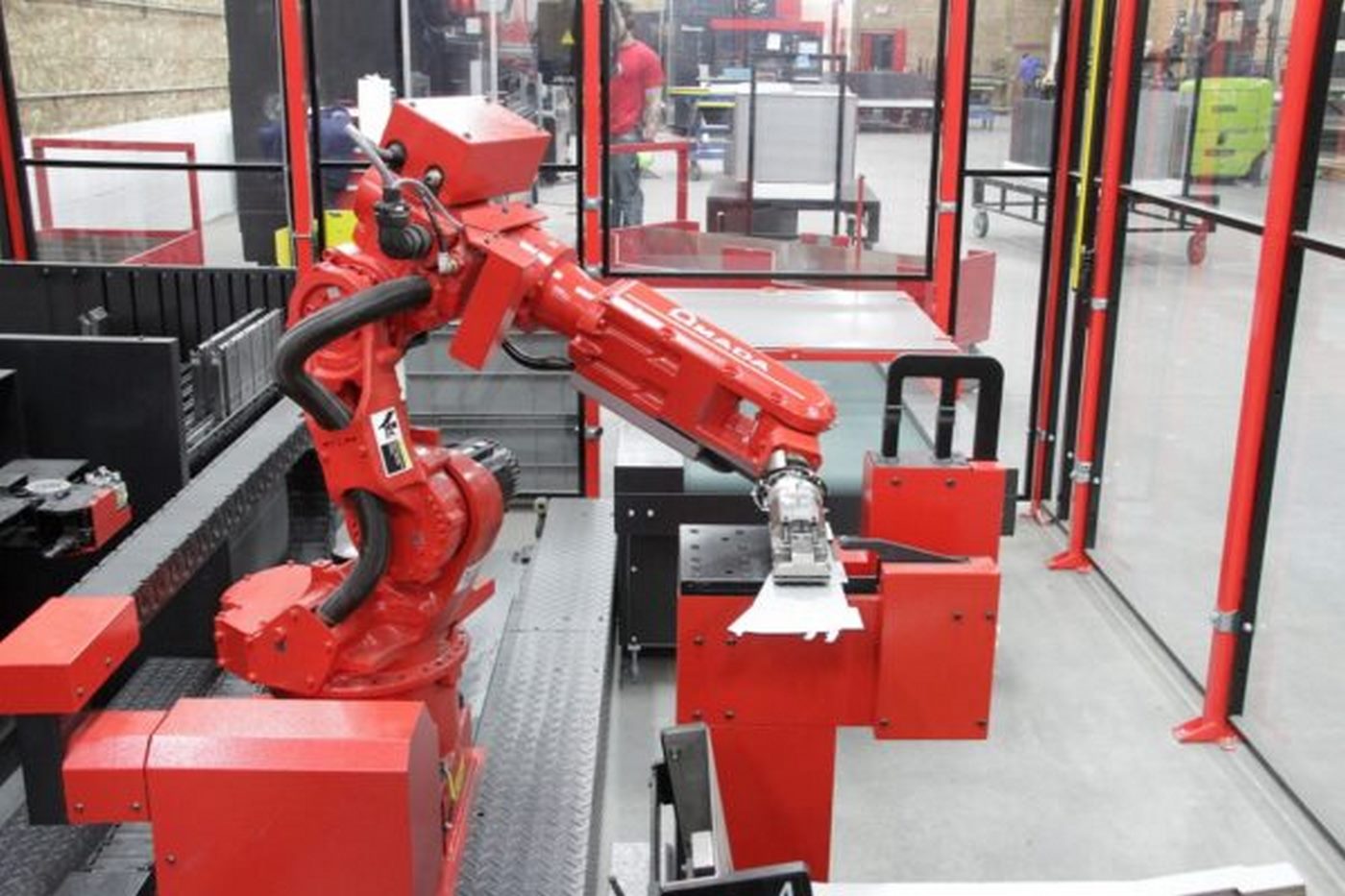

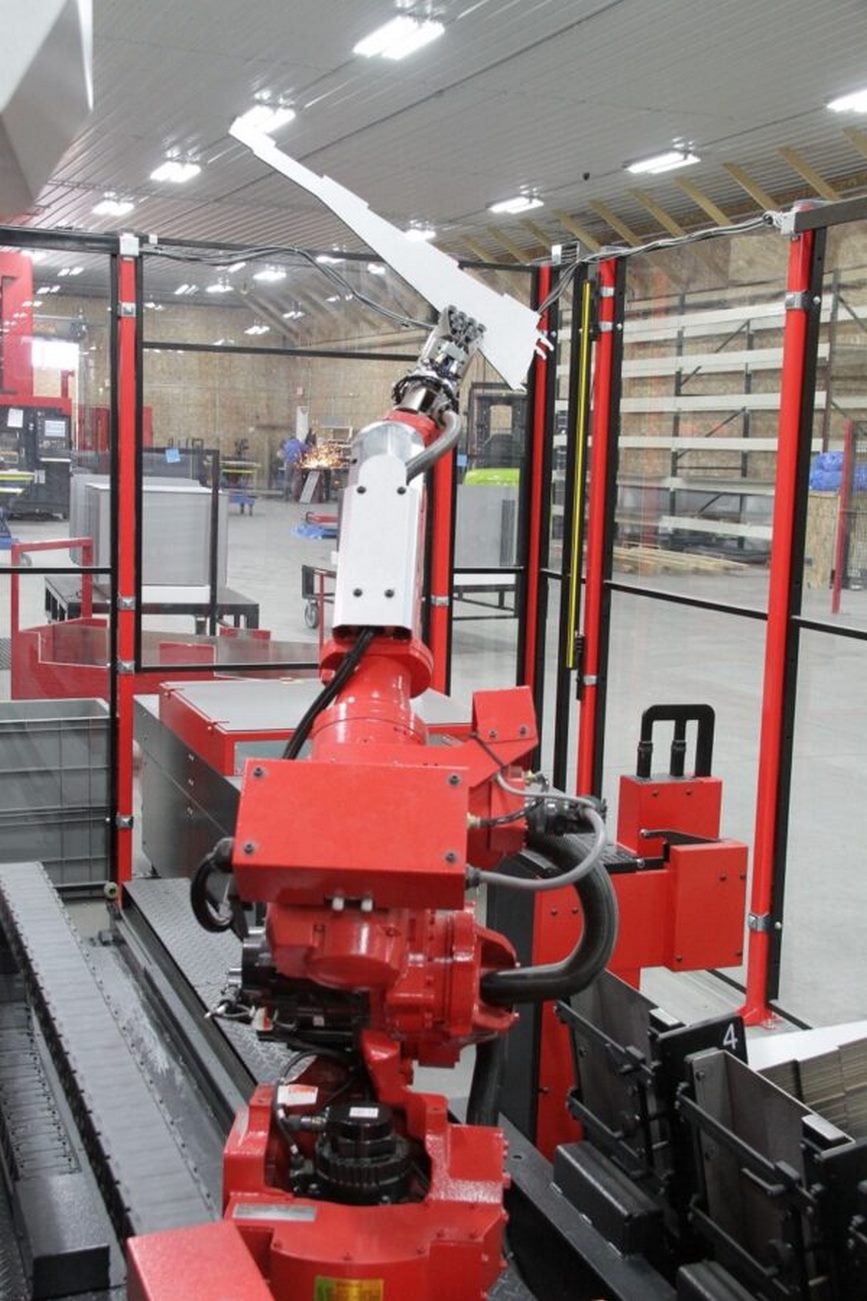

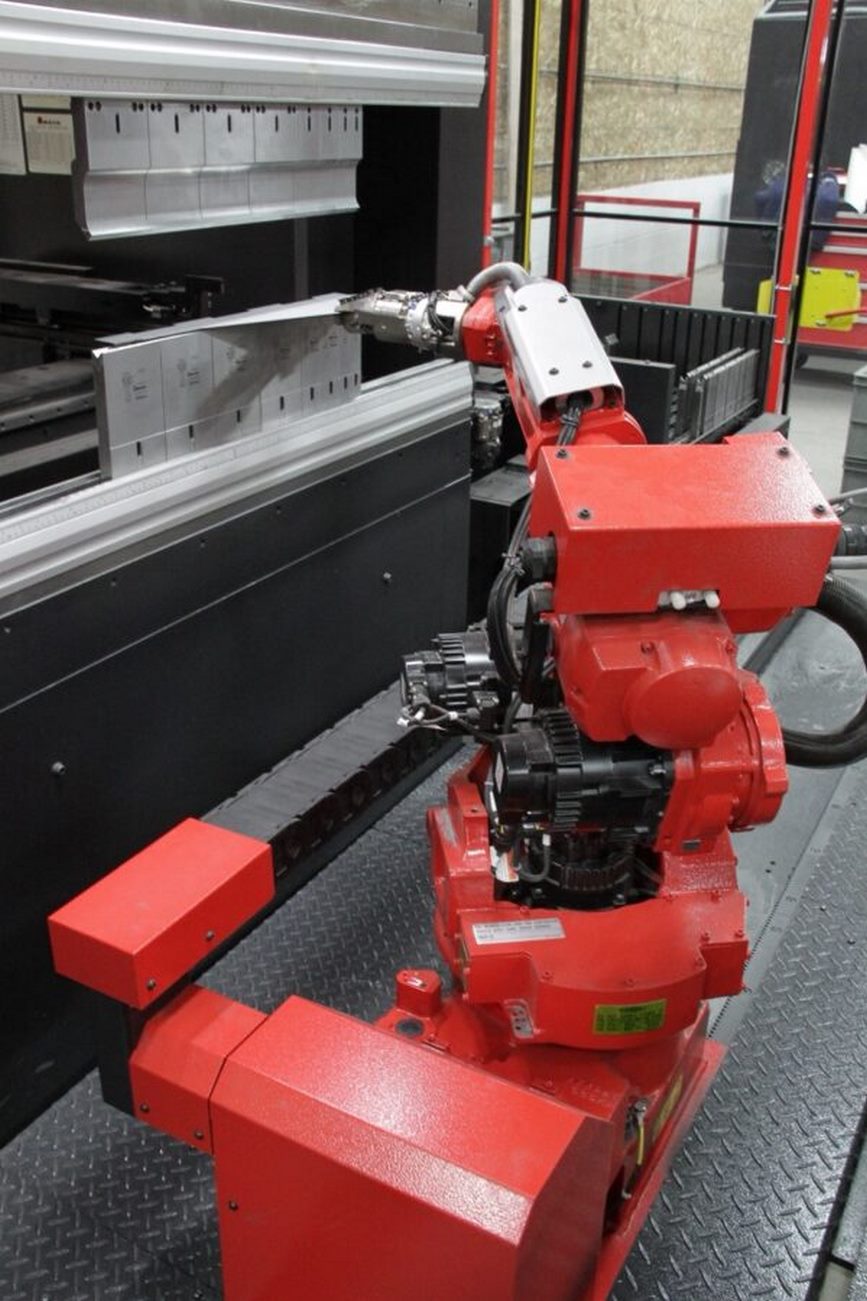

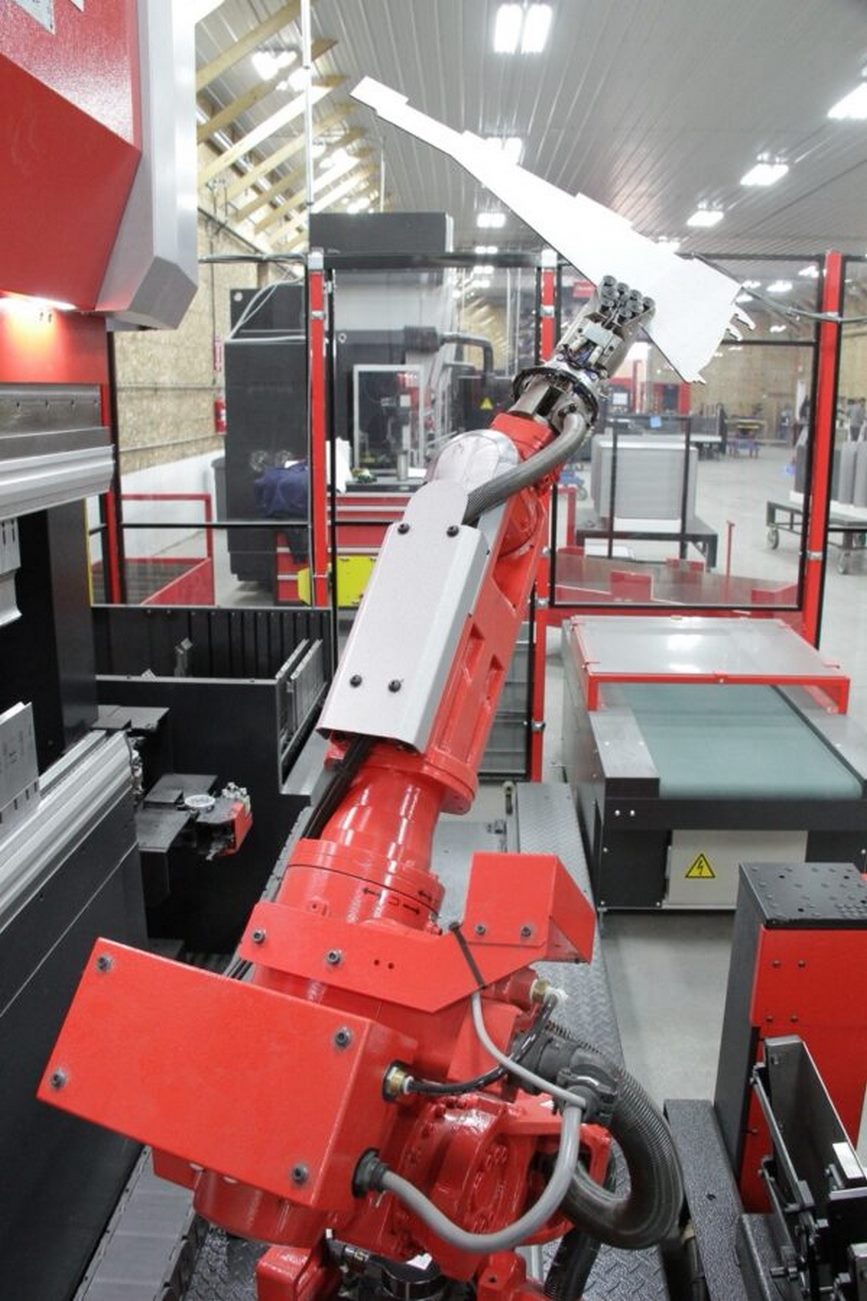

Yaskawa MH6S-10 High Precision 7-Axis Bending Robot |
|
Dual Electric Servo Power Drive |
