Year |
2016 |
|---|---|
Make |
Matsuura |
Model |
MX-330-5X |
Description |
CNC Vertical Machining Center |
Reference # |
8079162 |
Price |
Activate Pricing |

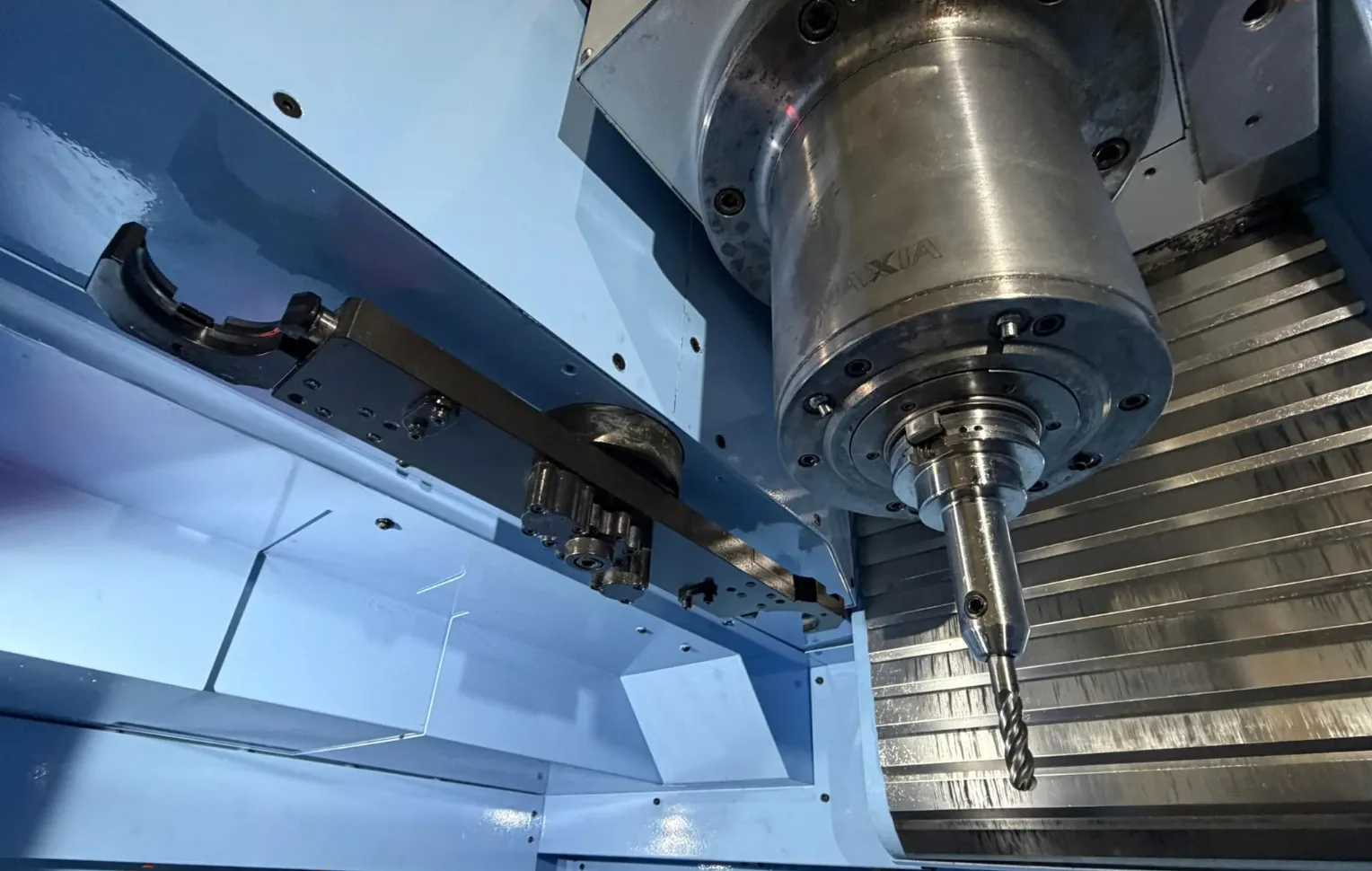

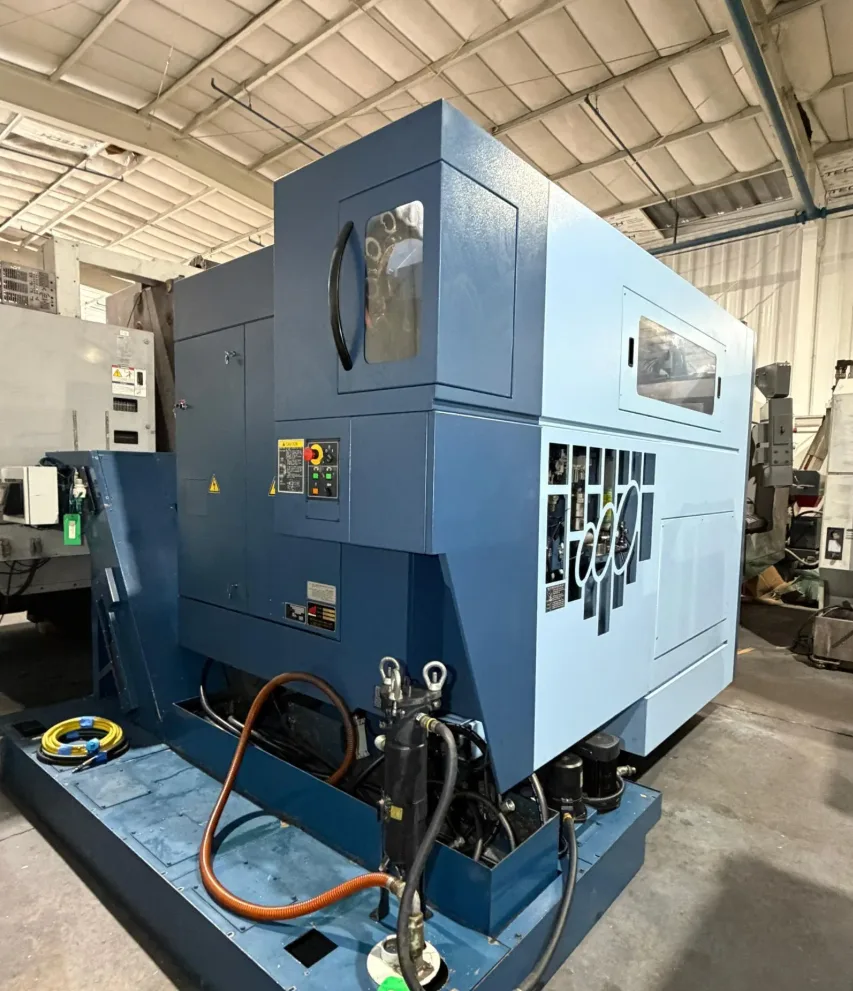

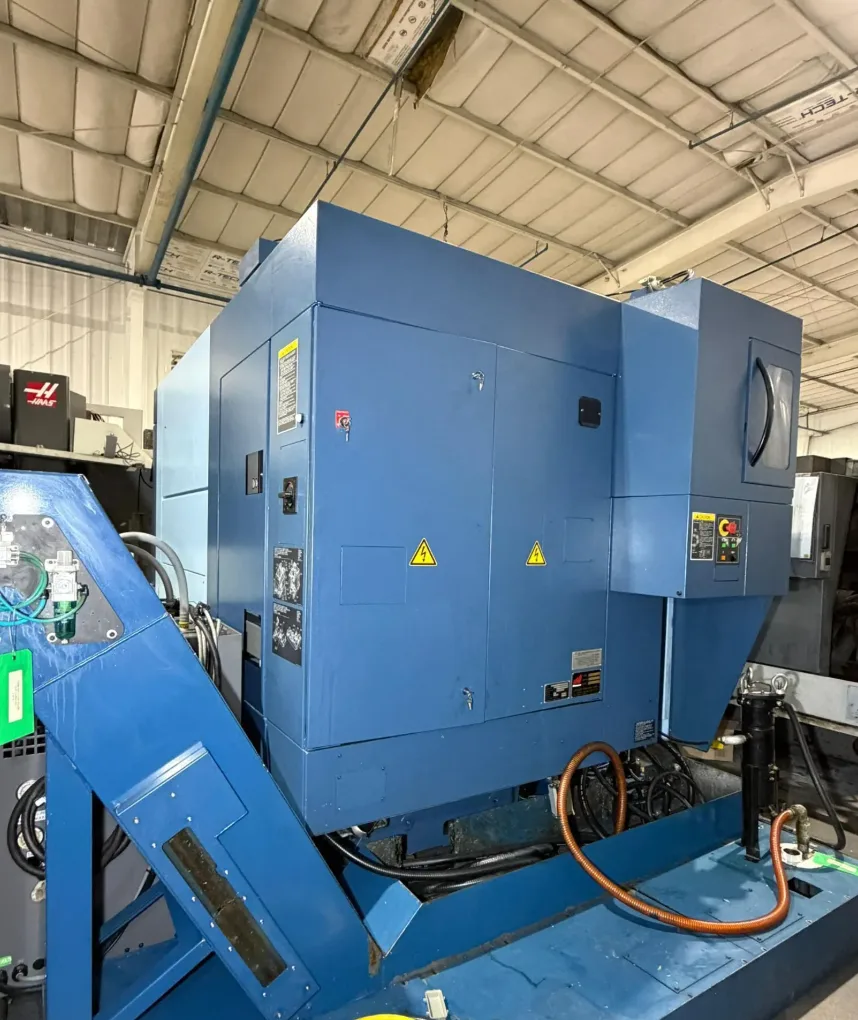

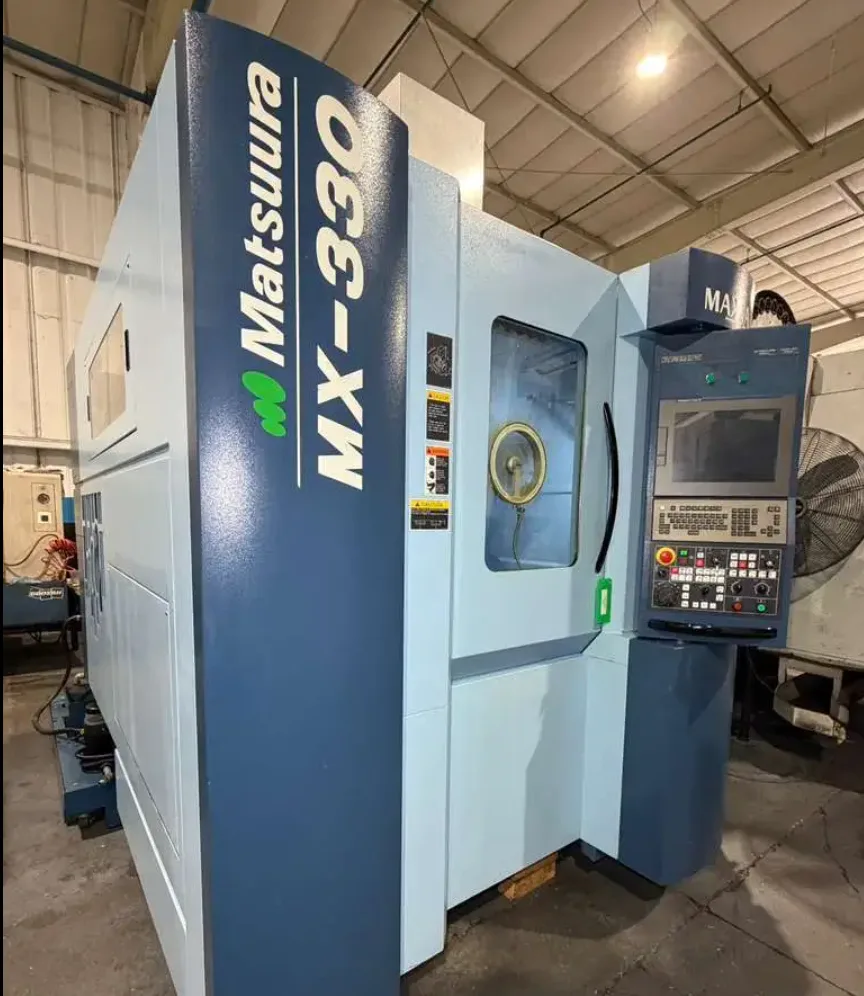

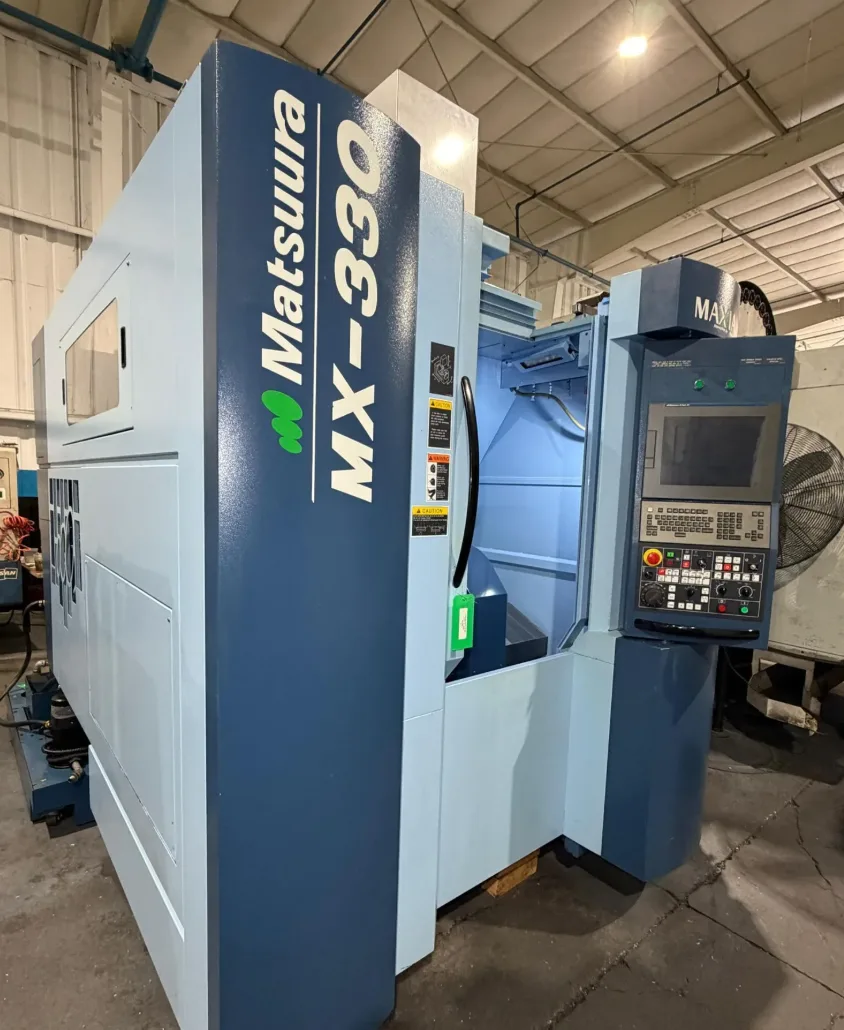

Used Matsuura MX-330-5X (2016) CNC Vertical Machining Center for Sale. This 5-axis machine offers 17.13″ of X-axis travel, 18.31″ in Y and 22.05″ in Z, with an 11.81″ diameter table and a 9.84″ diameter rotary table for 5-axis simultaneous machining. The 25 HP spindle runs to 15,000 RPM with a CAT 40 taper, served by a 60-station ATC and run by the Matsuura G-Tech 31i Fanuc control. Equipped with a Renishaw receiver and tool probe, through spindle coolant, Cool Jet coolant unit, rigid tapping, spindle orientation and an LNS chip conveyor. Dimensions are 205″ x 183″ x 126″ and weight is 13,860 lbs. The machine can be seen under power for an inspection. See our other used CNC vertical machining centers and used Matsuura machines, then Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
17.13" |
|---|---|
| Y-Axis Travel |
18.31" |
| Z-Axis Travel |
22.05" |
| Tool Magazine Capacity |

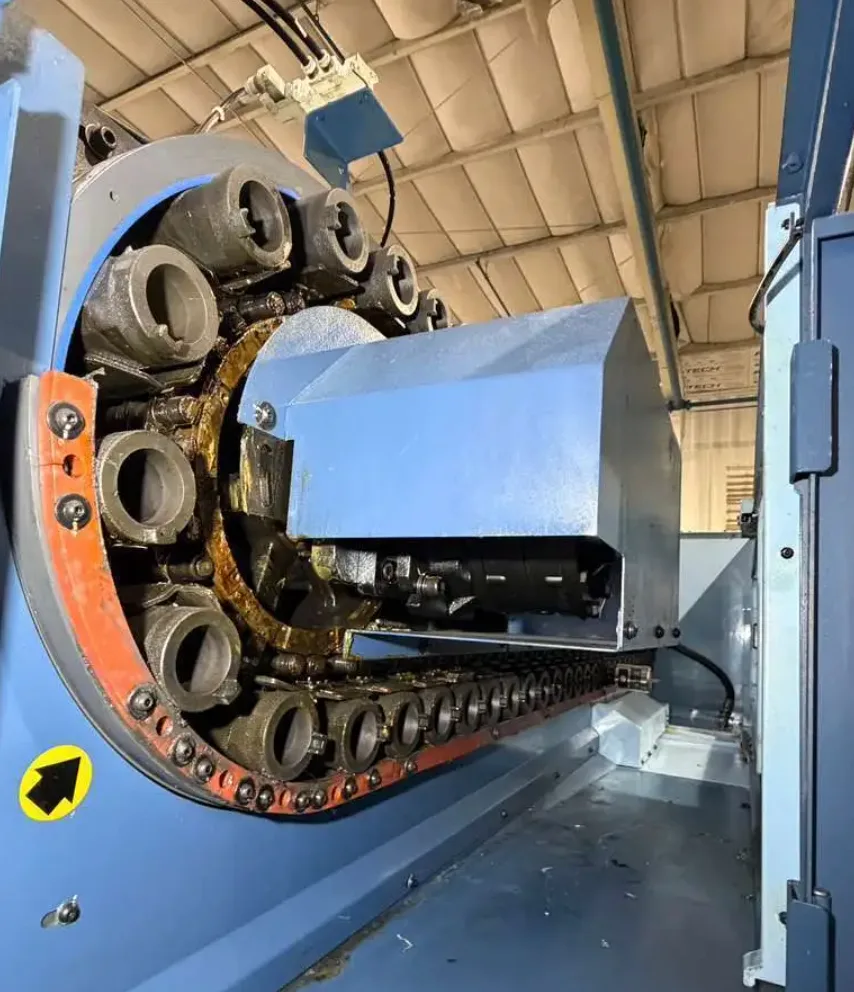

60 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |

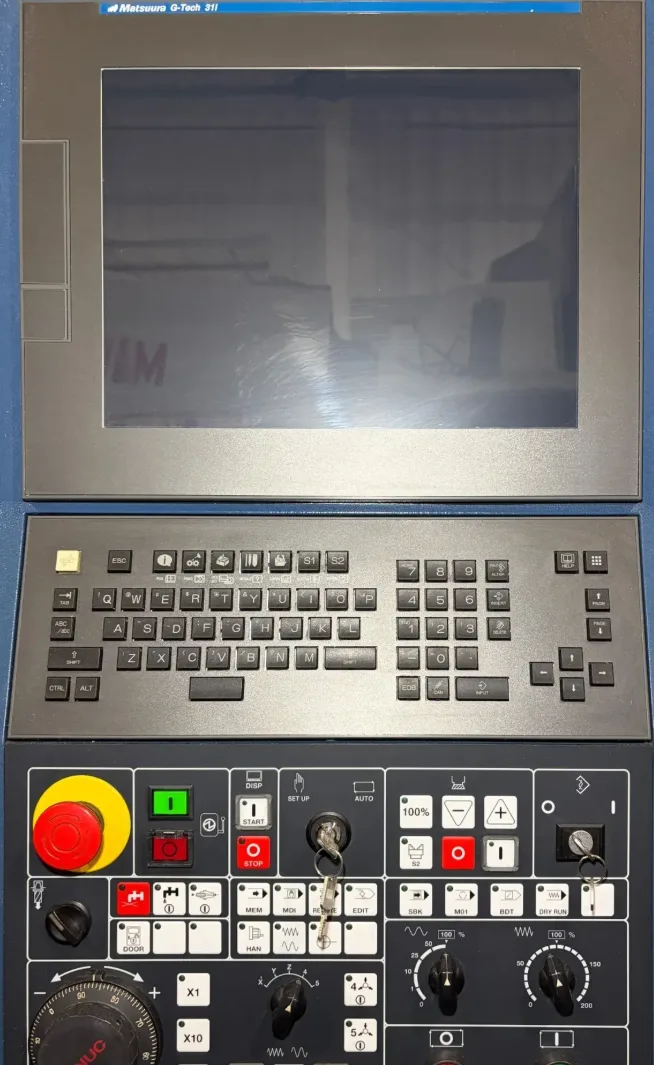

Matsuura G-Tech 31i Fanuc |
| Spindle Motor |
25 HP |
| Table Diameter |
11.81" |
| Dimensions |
205" x 183" x 126" |
| Machine Weight |
13,860 Lbs |
Features
|

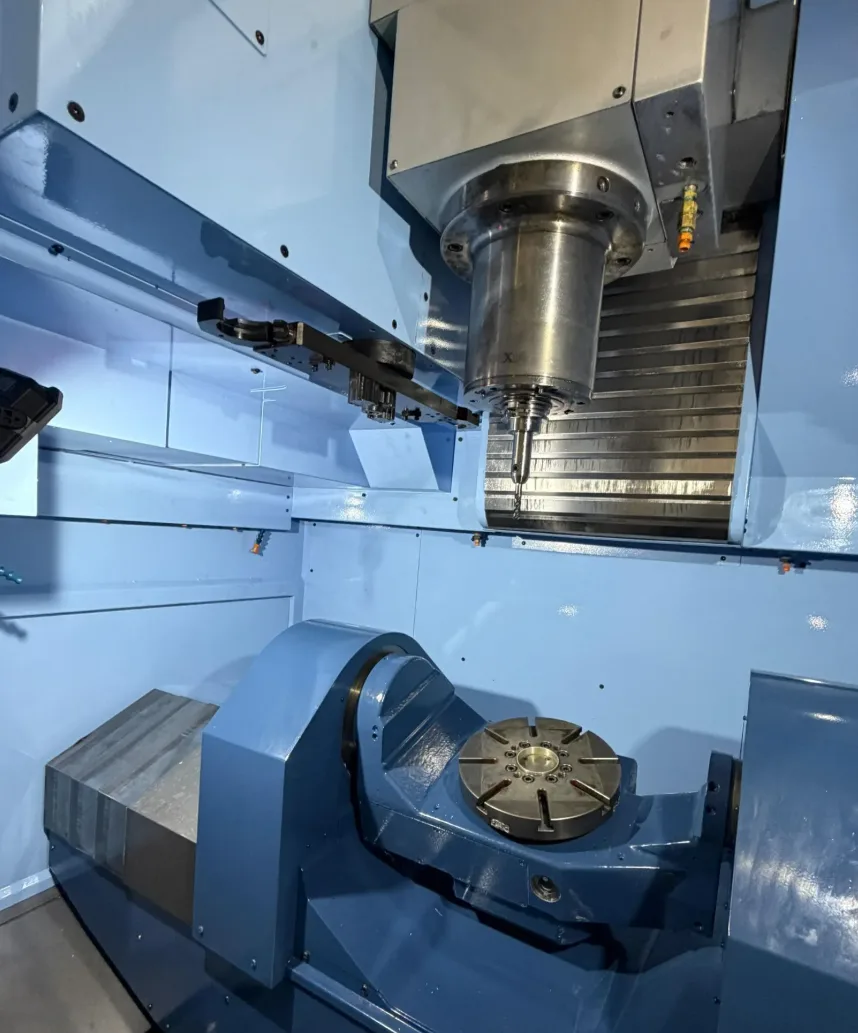

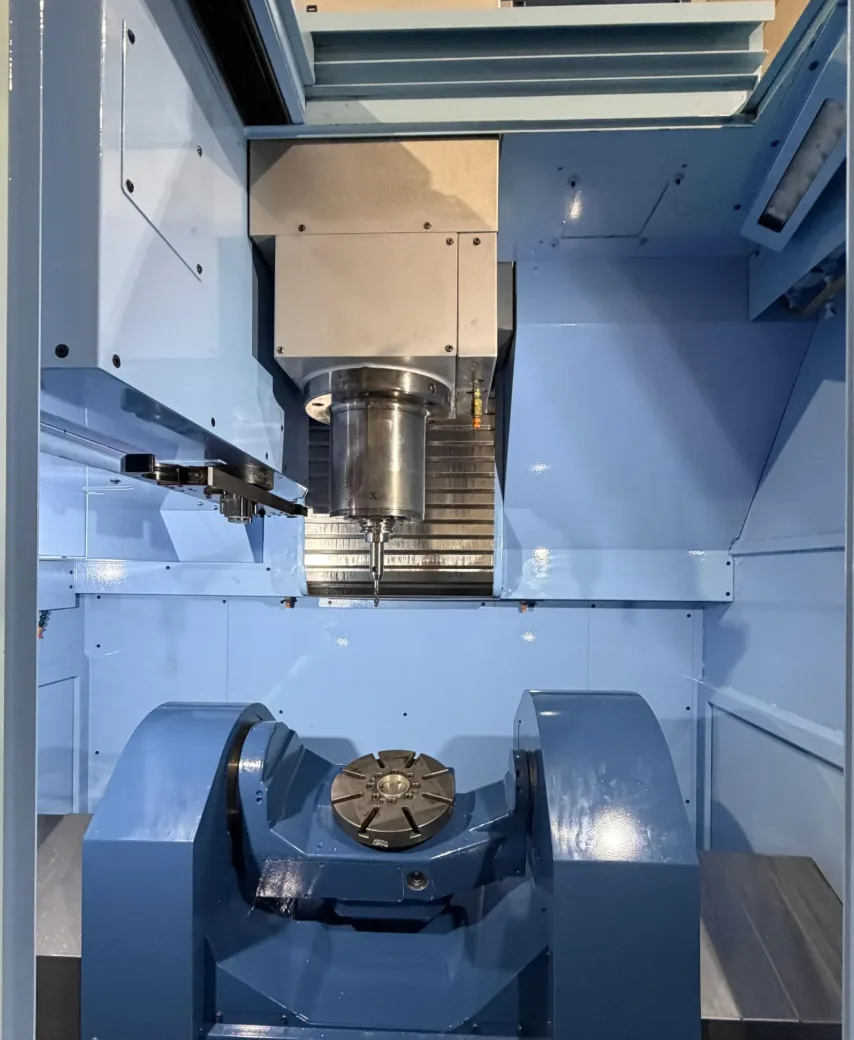

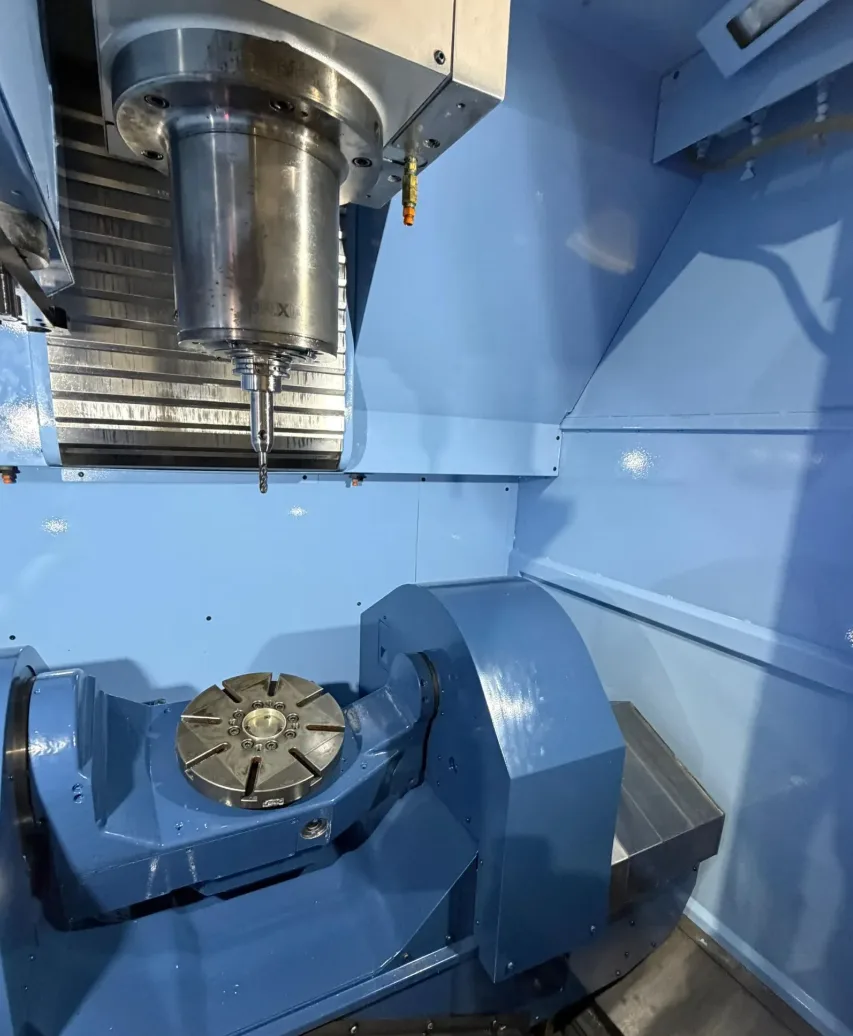

9.84" Diameter Rotary Table |

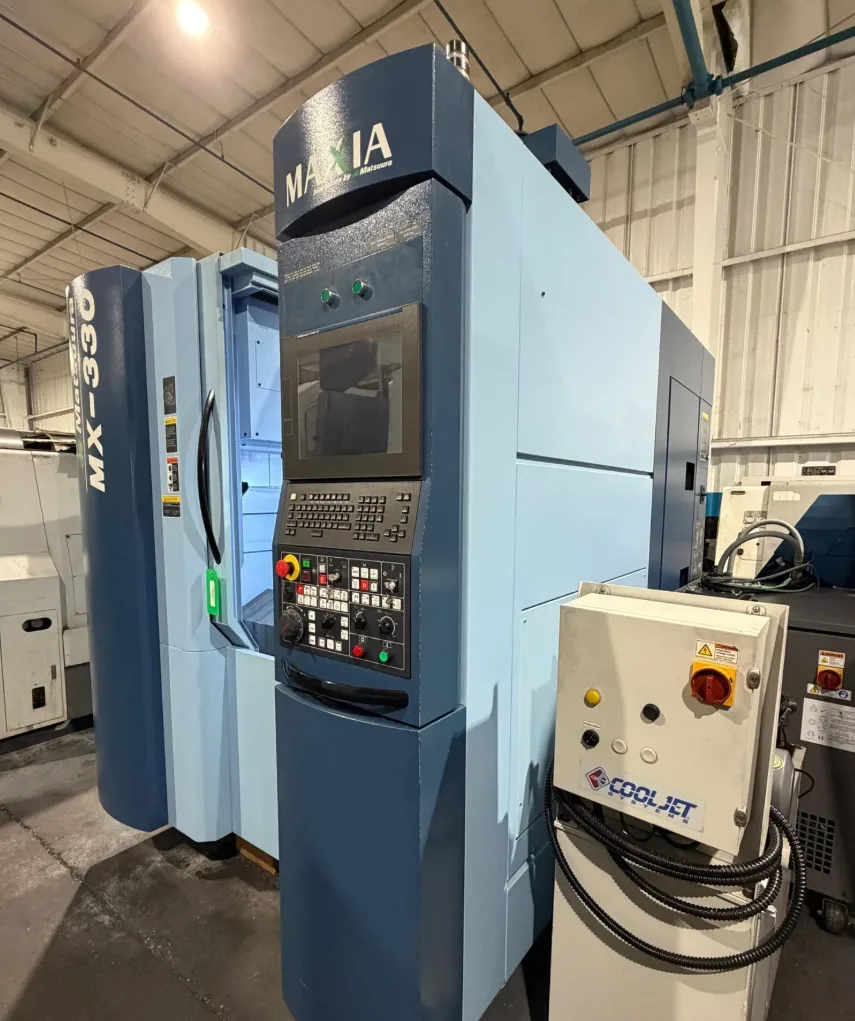

Cool Jet Coolant Unit |
|

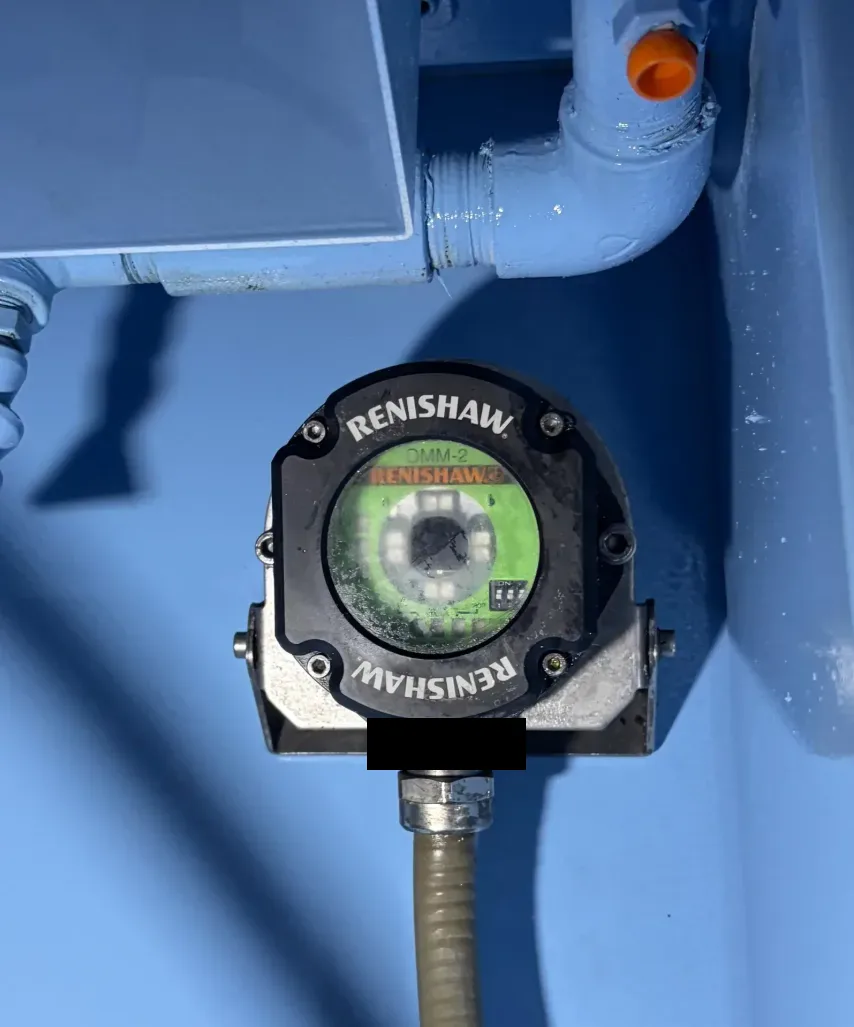

Renishaw Receiver Installed |
Renishaw Tool Probe |
|
Rigid Tapping |
Spindle Orientation |
|
Through Spindle Coolant |
5-Axis Simultaneous Machining |
|

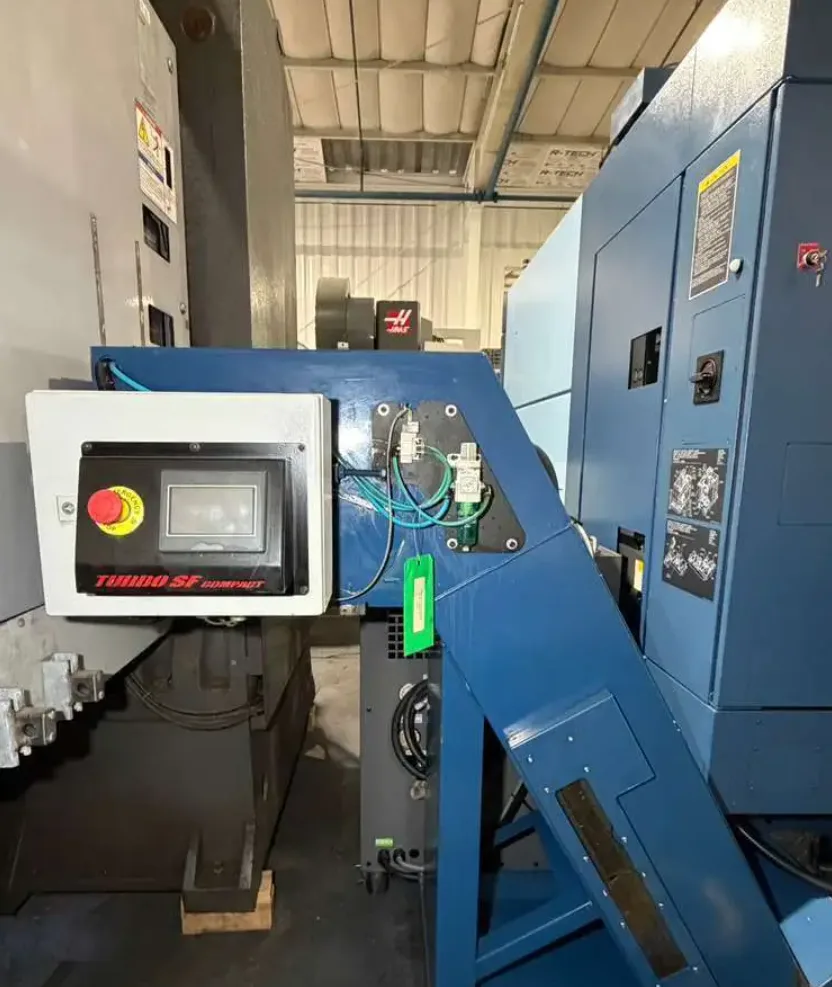

LNS Chip Conveyor |
