Year |
2015 |
|---|---|
Make |
Omax |
Model |
60120 |
Description |

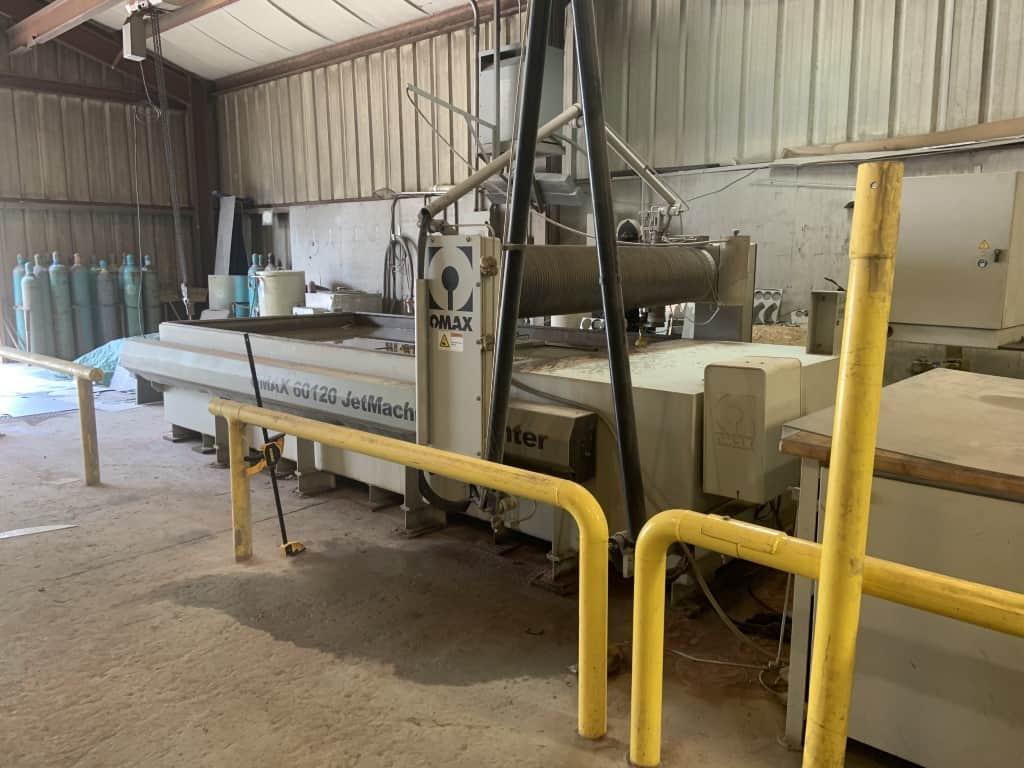

5' x 10' A-Jet Head CNC Waterjet |
Reference # |
8069519 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Control |
Intellimax |
| Pump |
50 HP |
| Max Cutting Pressure |
60,000 PSI |
| Power Requirement |
460/3/60 |
| Approx Machine Weight |
11,000 Lbs |
Features
|

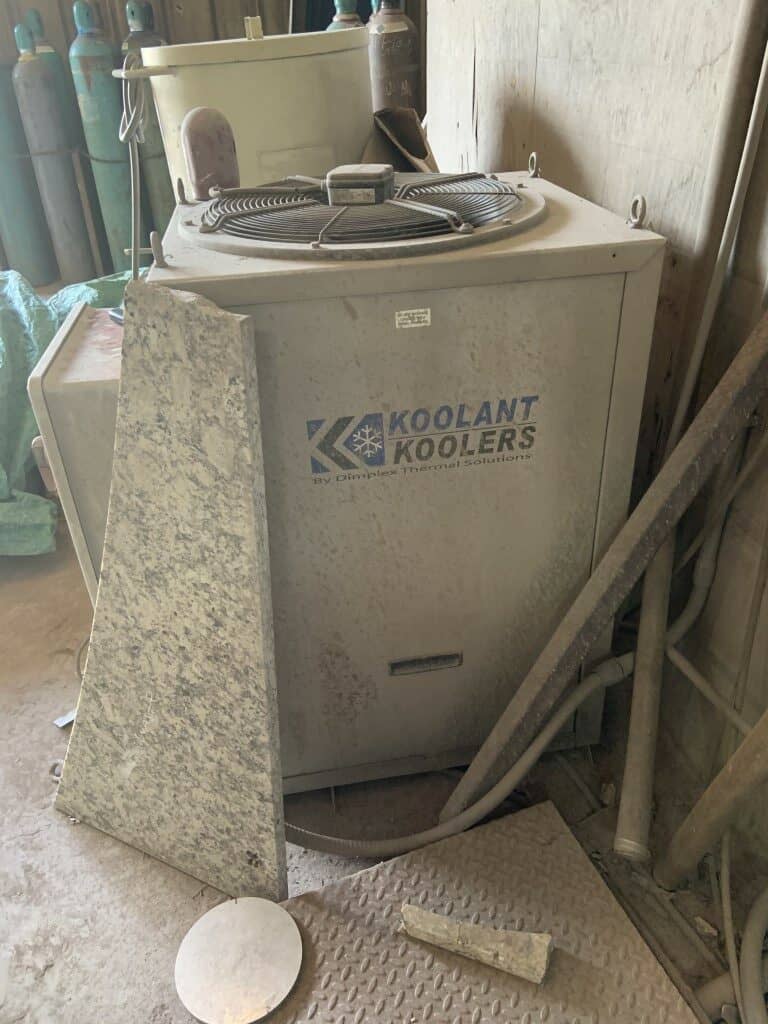

2 Ton Chiller |
Programmable Z-Axis |
|
Rapid Water Level Control Submerged Cutting |

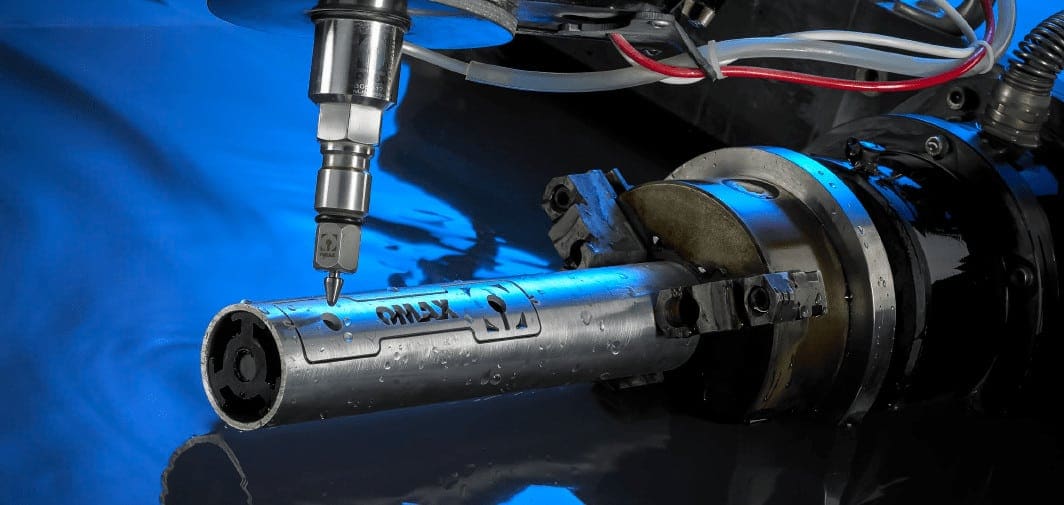

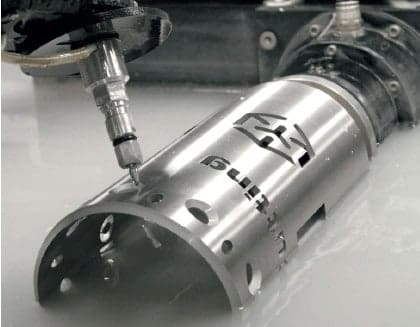

Rotary Axis - ER40 Collet Adapter Kit |
|
Rotary Axis - Extension Cable Assembly |
Rotary Axis - Universal Adapter Flange Kit |
|
Rotary Axis Very Raw Option |

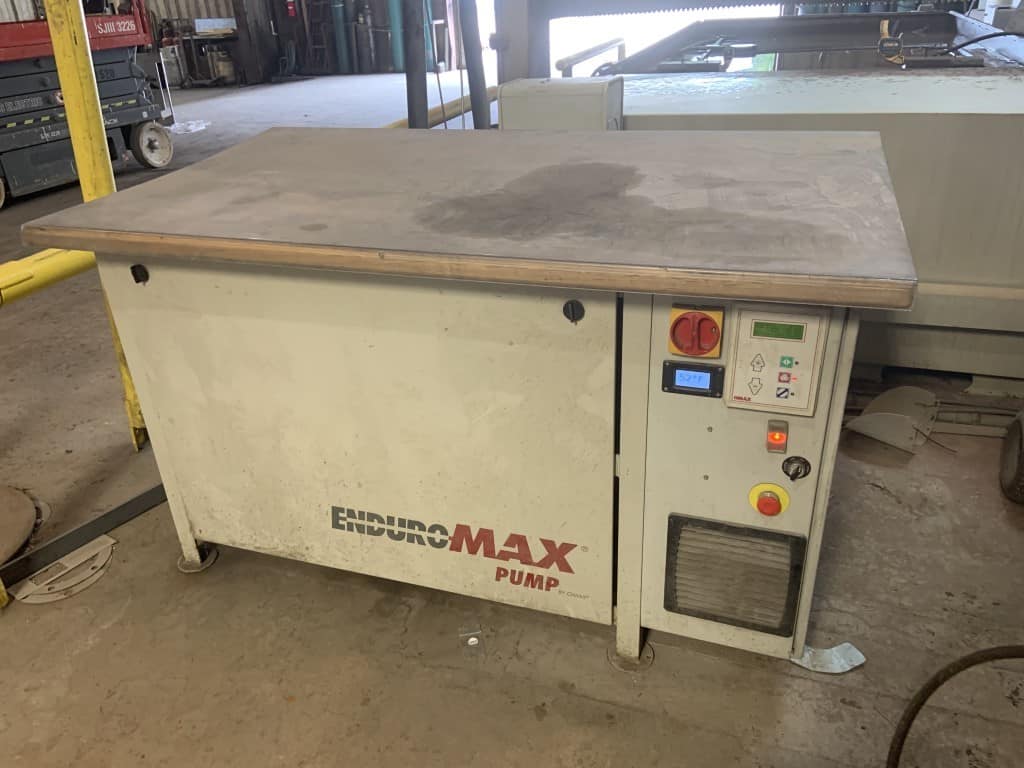

50 HP Enduromax Pump |
|
Terrain Follower Upgrade |
600 Lbs Abrasive Delivery System |
|
A Jet 5-Axis Head with Taper Compensation |
Ball Screw Drive Inside the Y-Axis Bridge |
|
Extra Z Axis Assembly with Straight Cutting Head |
Fully Enclosed Bellows |
|
Fully Enclosed Inside Coated Steel Covers |
Intelli-TRAX Traction Drive Inside the X-Axis Beams |
|
Maxjet 5i Nozzle with Fusible Mixing Tube |
