Year |
2015 |
|---|---|
Make |
Ocean |
Model |
Terminator DCM 18/42 |
Description |
Dual Column Double Miter Horizontal Band Saw |
Reference # |
8070481 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

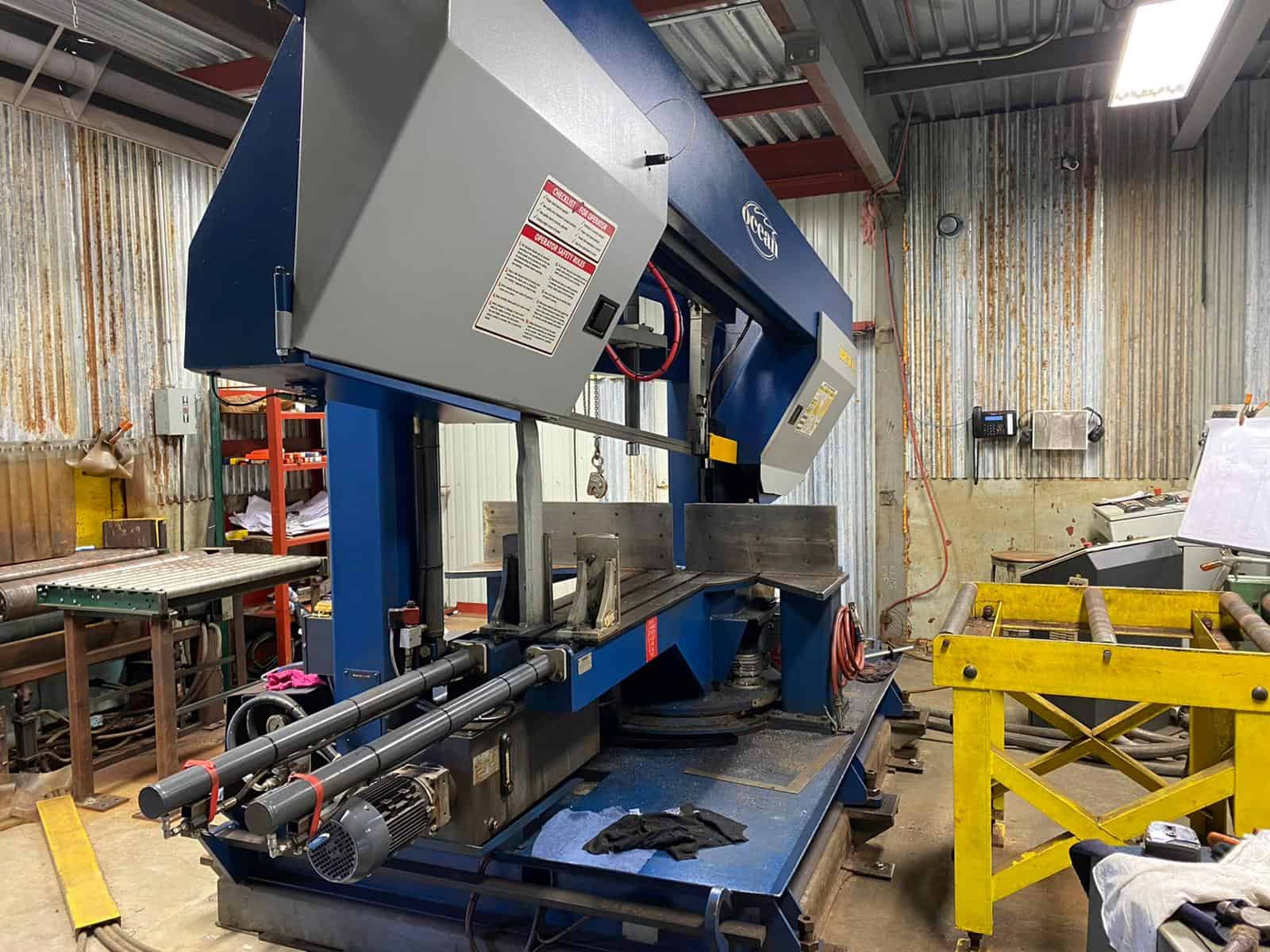

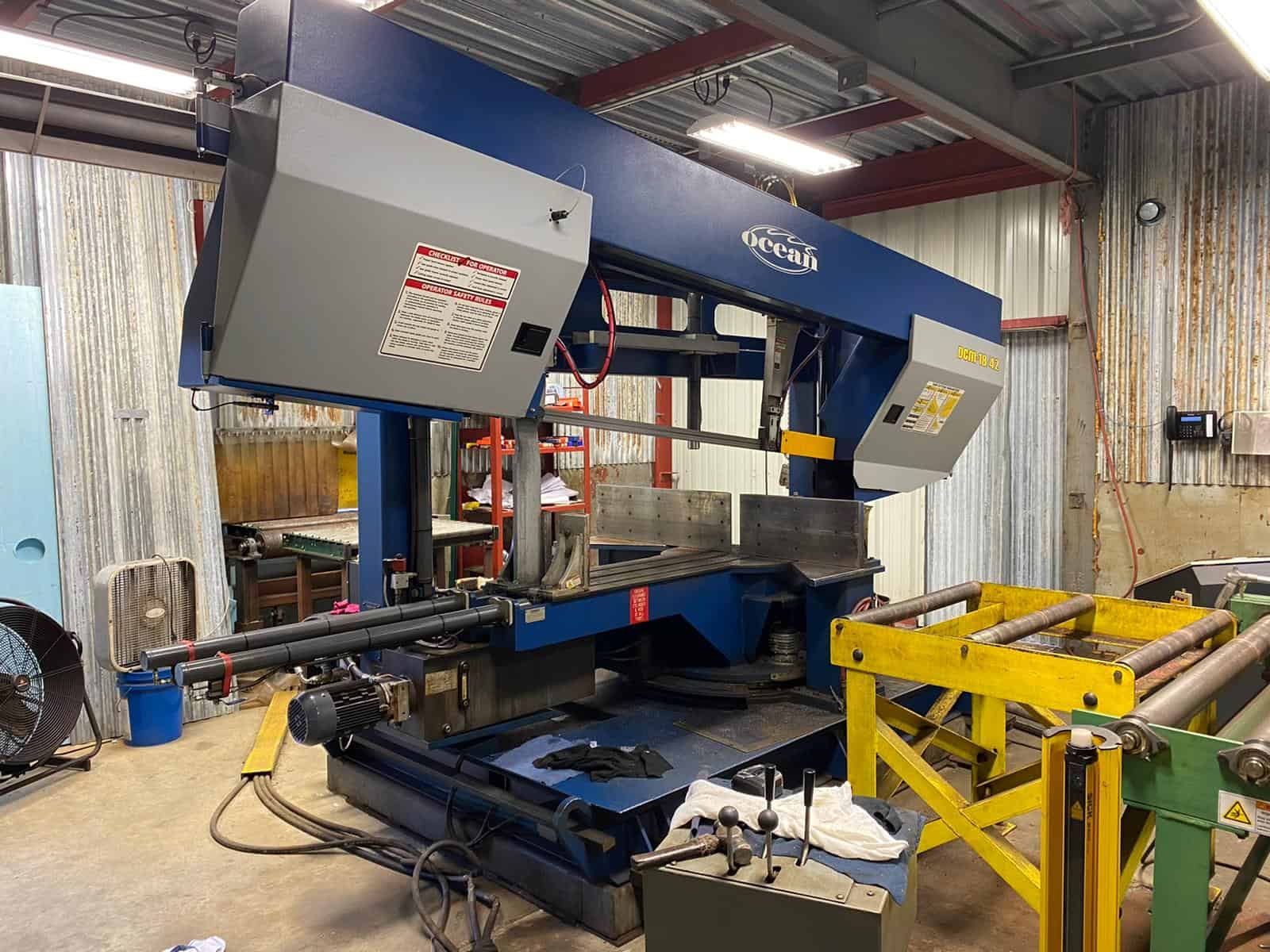

Ocean Terminator DCM 18/42
Specifications
| Straight Cut 90 Deg Capacity |
18'' x 42'' Rectangular, 18'' Round |
|---|---|
| 45 Deg Right and Left Capacity |
18'' x 25'' Rectangular, 18'' Round |
| 60 Deg Right |
18'' Rectangular, 15'' Round |
| Blade Size |
2″ x 29′-6″ (50 x 8992mm) |
| Blade Wheel Dia. |
27″ (686mm) |
| Blade Speed |
40-300 fpm (12-90 mpm) |
| Blade Drive Motor |
10 HP (7.5 kw) |
| Hydraulic Motor |
3 HP (2.2 kw) |
| Hydraulic Tank Cap. |
9.5 US gallons (36 L) |
| Dimensions (WxLxH) |
162″ x 182″ x 88″ (2007 x 4623 x 2235mm) |
| Shipping Dimensions |
79″ x 182″ x 88″ (2007 x 4623 x 2235mm) |
| Table Height |
31″ (787mm) |
| Weight |
12,000 lbs (5,455 kg) |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
