Year |
2015 |
|---|---|
Make |
Nomura |

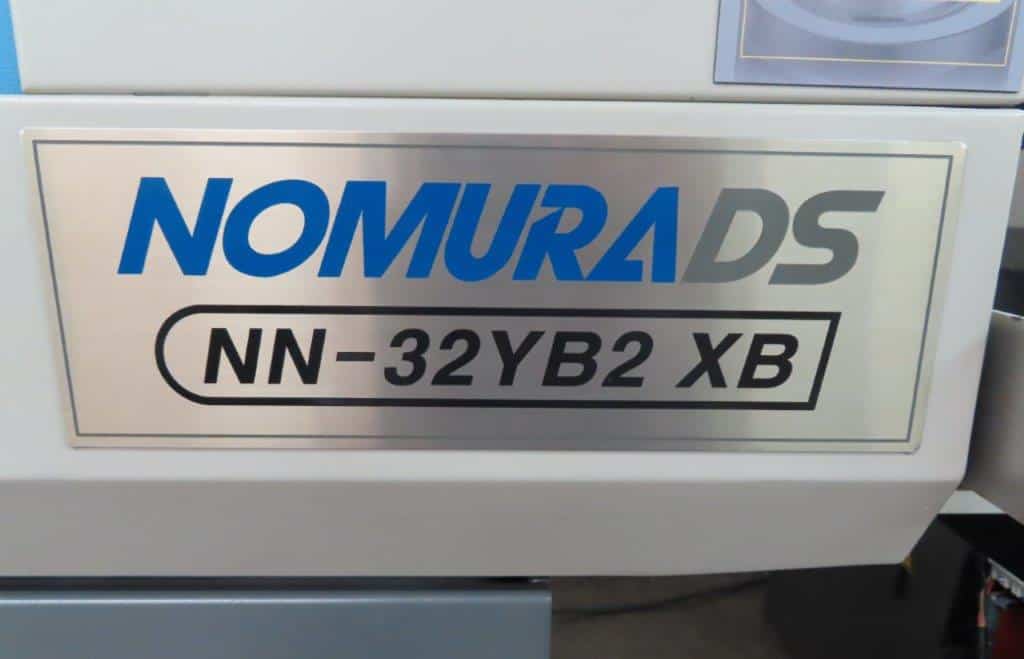

Model |
NN-32YB2 XB |
Description |
CNC Swiss Lathe |
Reference # |
8069609 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
1.26" |
| Spindle Speed |
3,000 RPM |

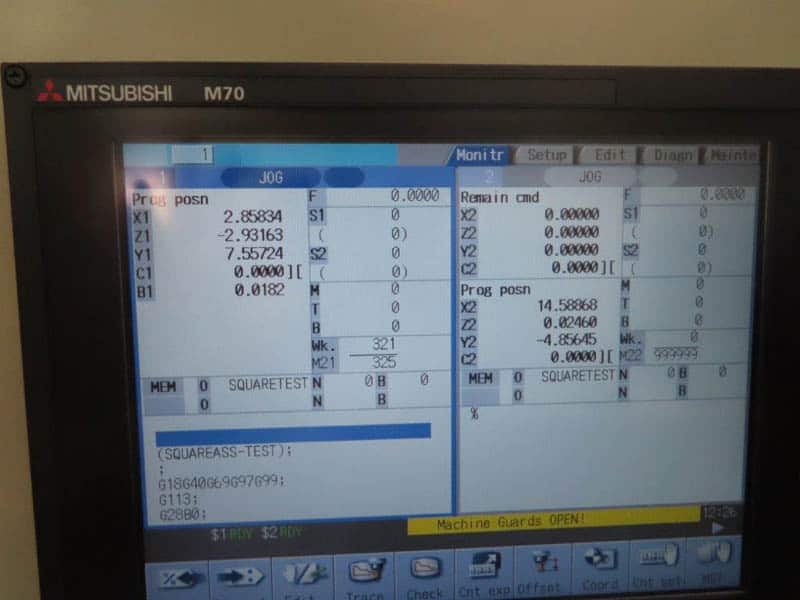

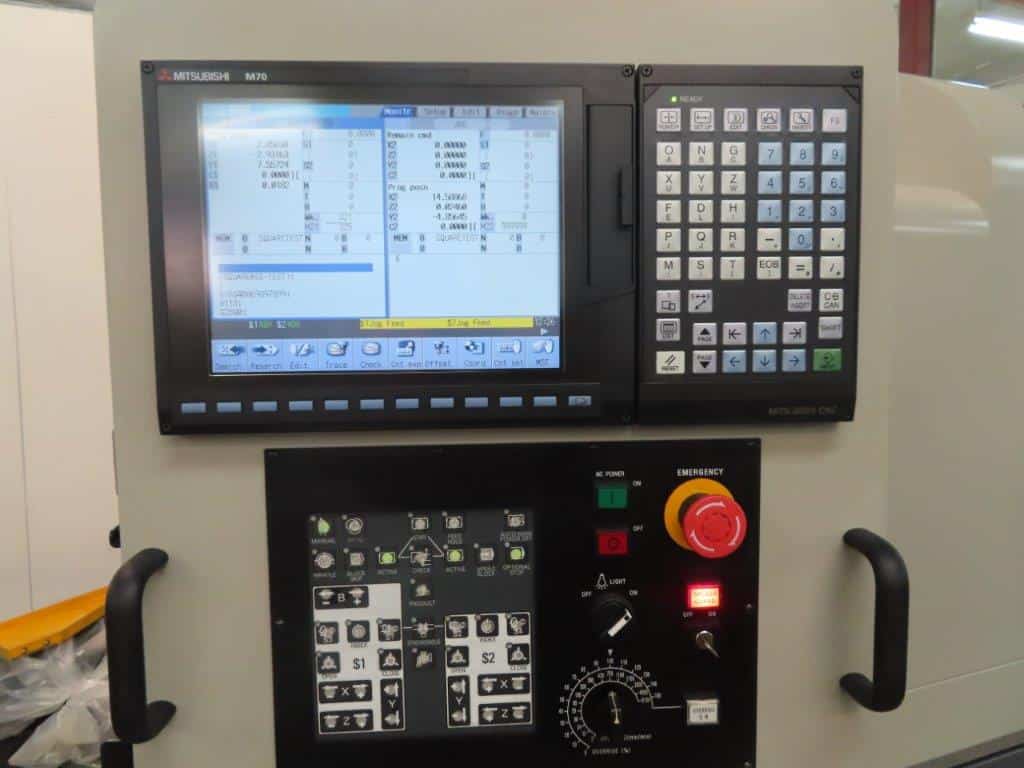

| Control |
Mitsubishi M70VS |
| Live Tooling |
Milling |
| Sub-Spindle |
8,000 RPM, 2 HP |
| Capacity |
1.26″ |
| Length |
7.5″ |
| Max Tools |
33 |
| OD Tools |
6 |
| Live Tool Spindle |
6,000 RPM |
| Main Spindle |
7.5 HP |
| Distance Between Centers |
N/A |
| Turning Diameter |
N/A |
| Weight |
6,700 Lbs. |
Features
|
1 OD Back Working Tool |
1280m Memory |
|
Part Take Out Unit |
Parts Catcher |
|
3 ID Back Working |

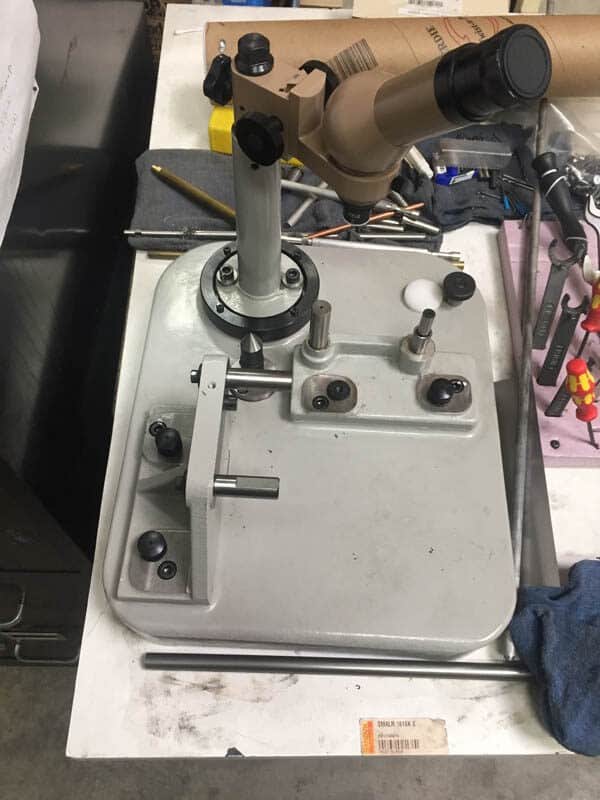

Tool Presetter |
|
Syncronized 32 Mm Rotary Guide Bushing |
B Axis W/ 135⁰ Rotation |
|
Chip Pan |
Drum Of Coolant |
|
Fixed Collet |

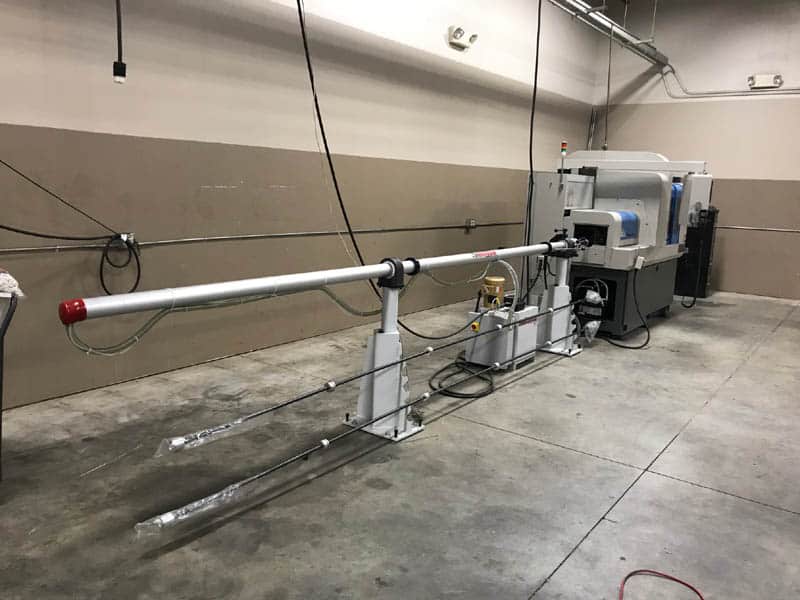

Lexair 12’ Mini Rhino Barfeed W/ 3 Stock Tubes |
|
Nsk Controller (2) Nsk High Speed Spindles |
*
