Year |
2015 |
|---|---|
Make |
Elumatec |
Model |
SBZ 151 |
Description |
CNC Vertical Machining Center |
Reference # |
8079116 |
Price |
Activate Pricing |

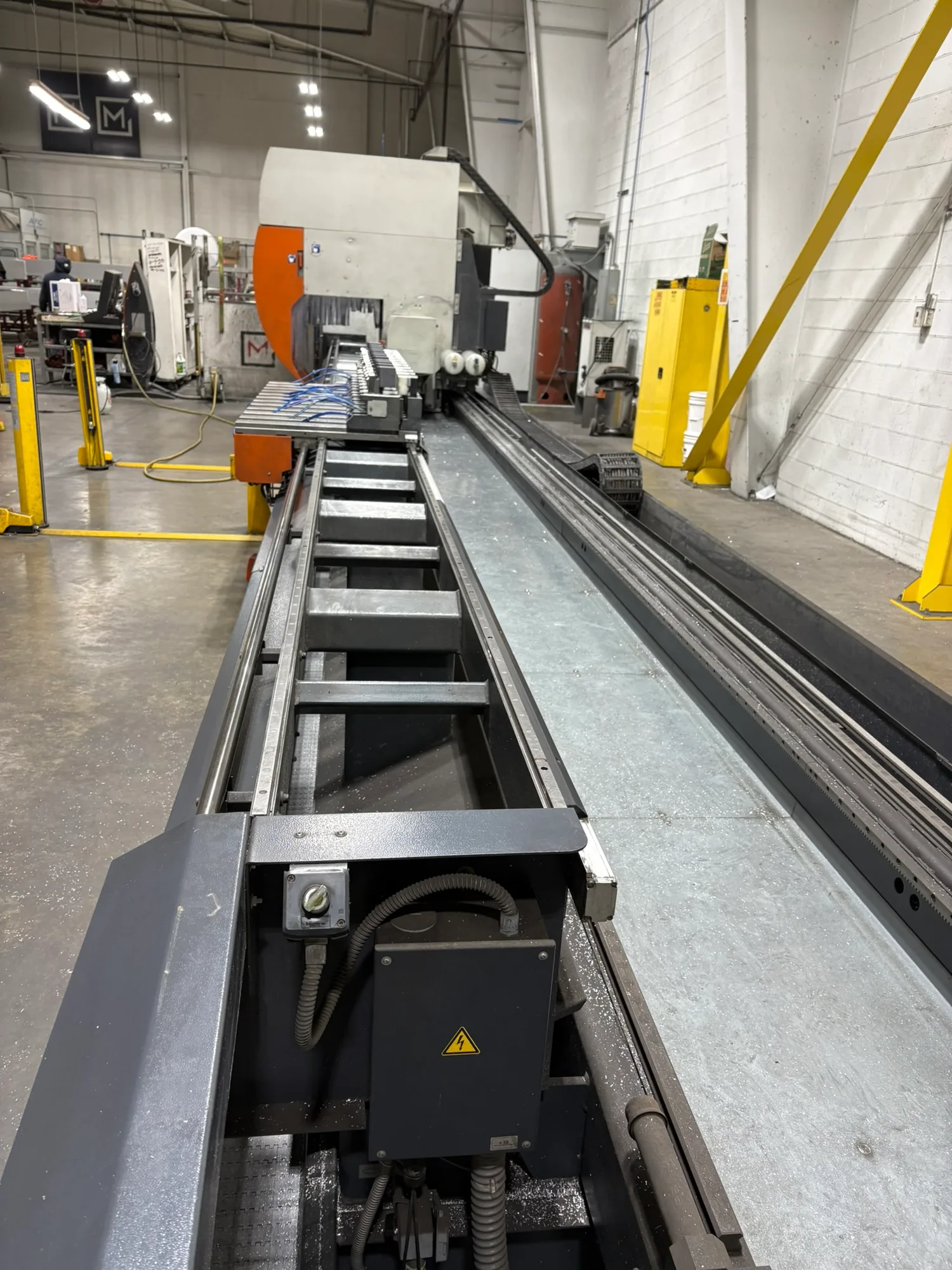

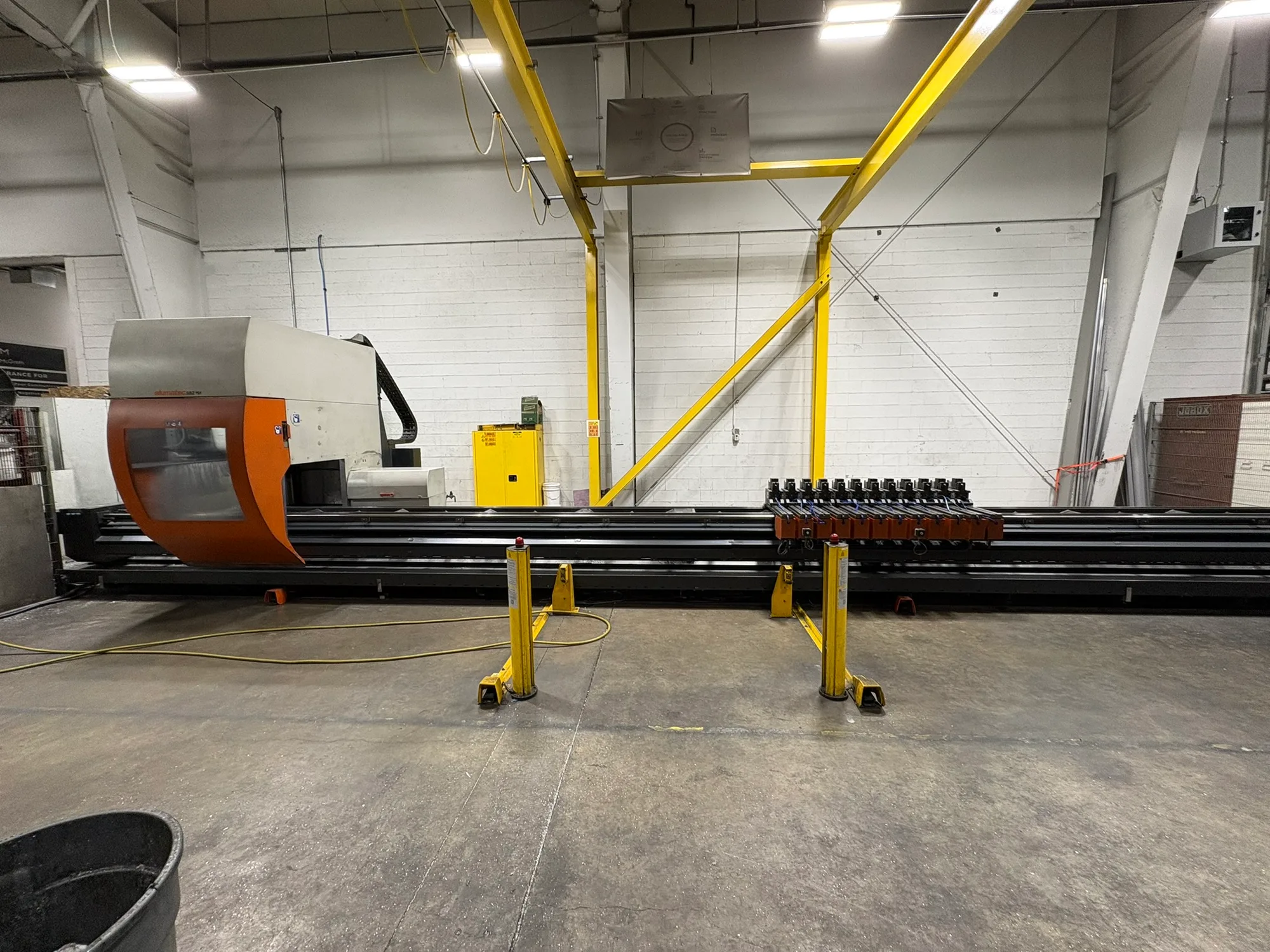

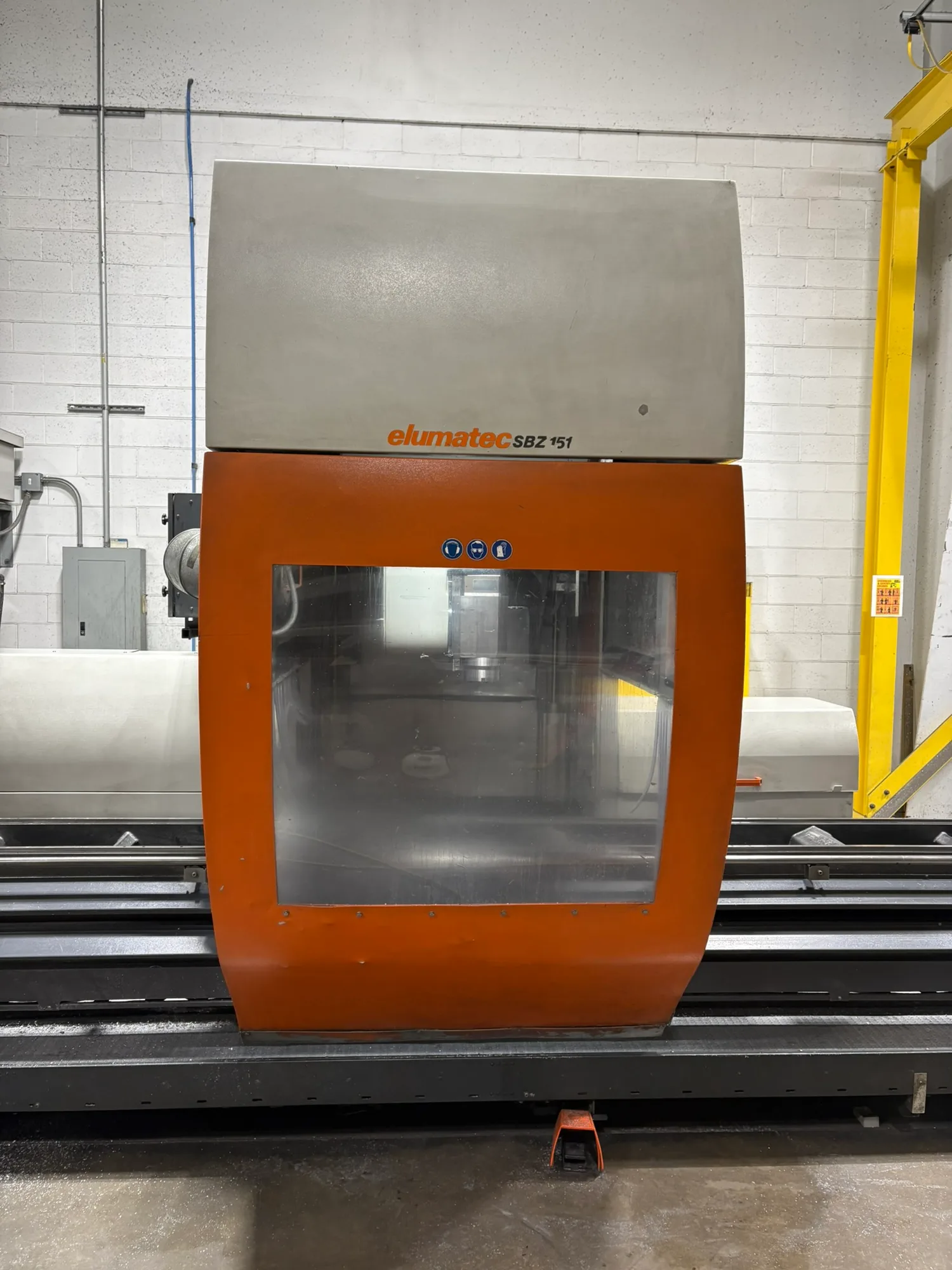

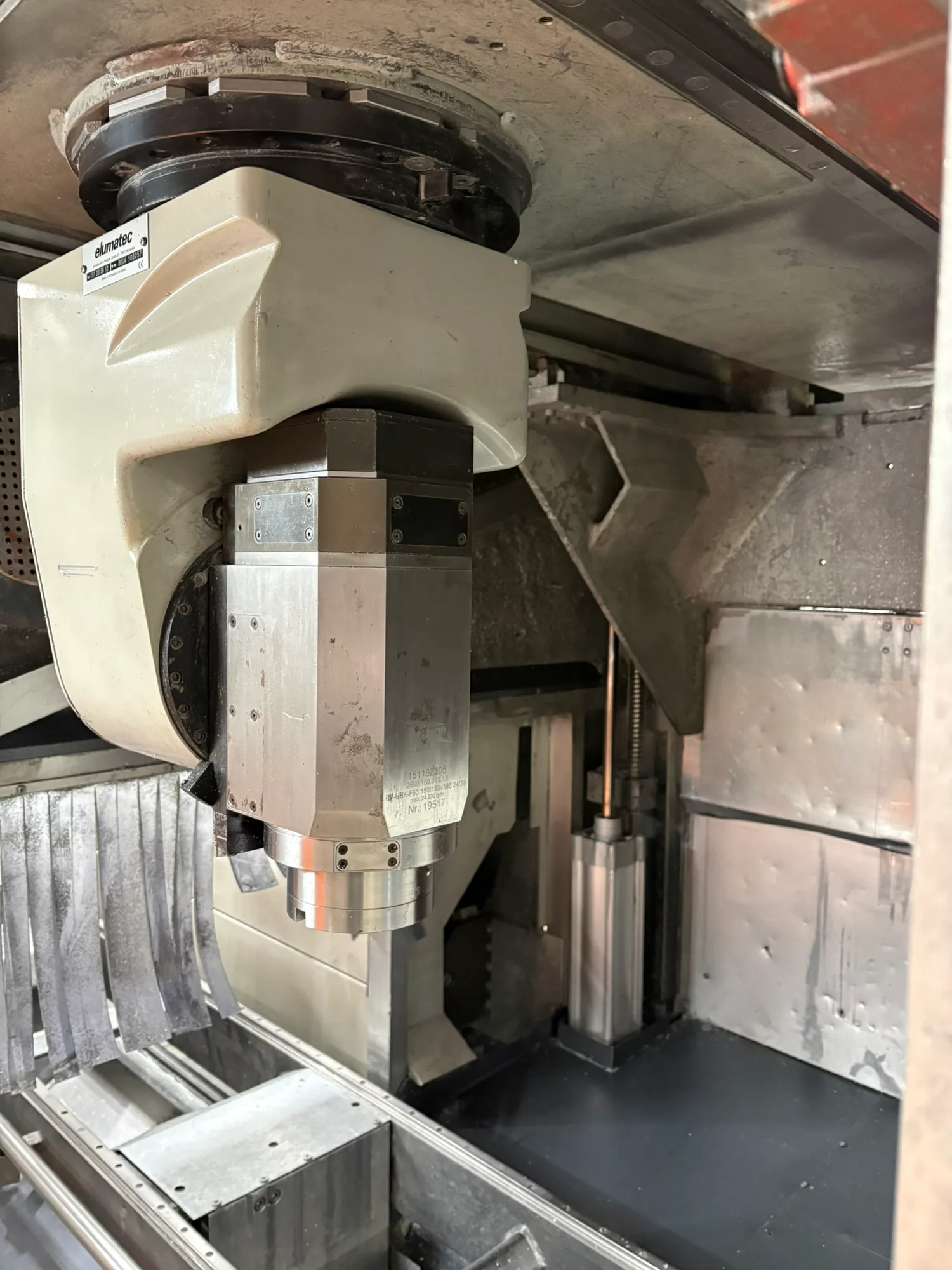

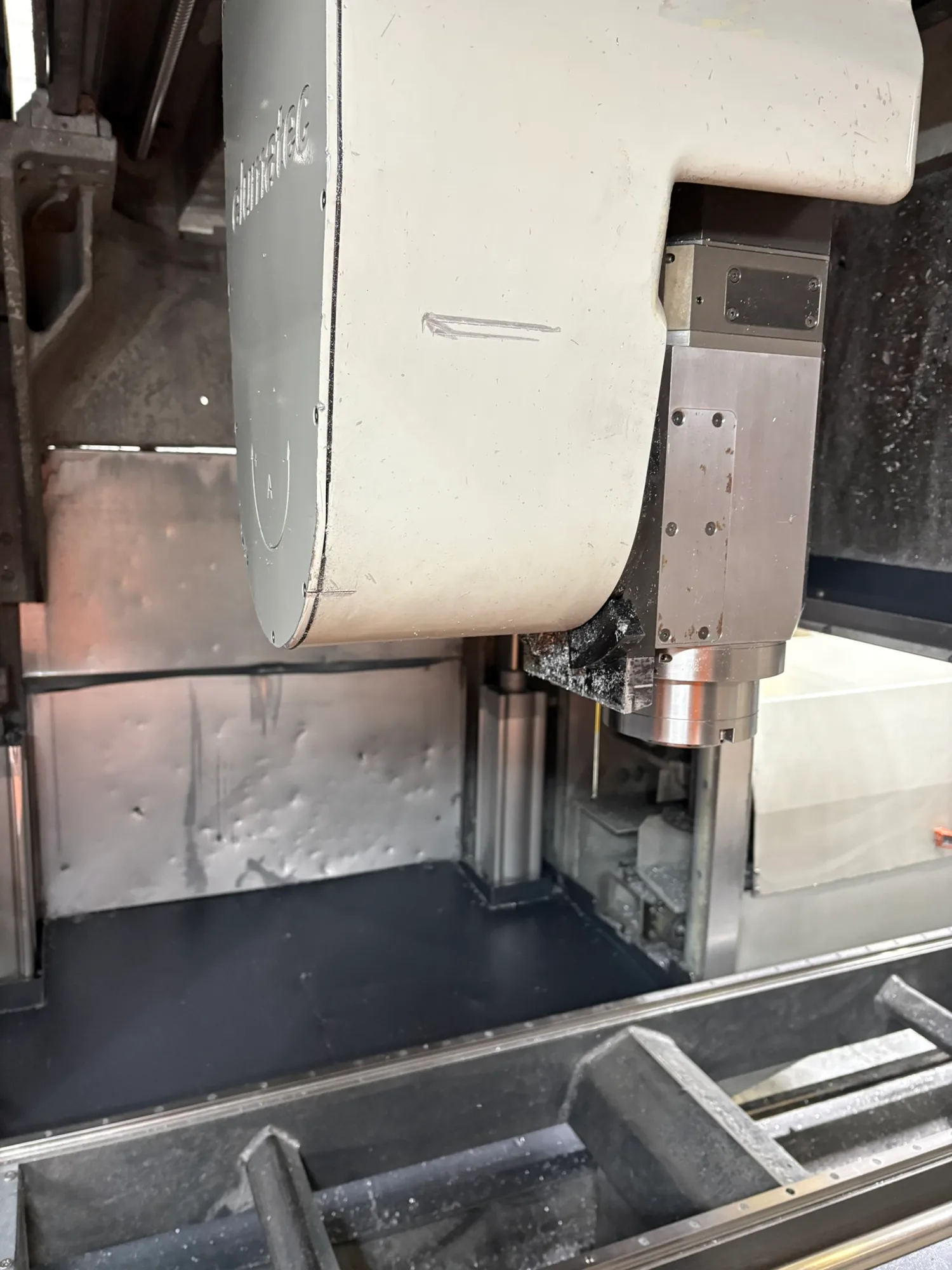

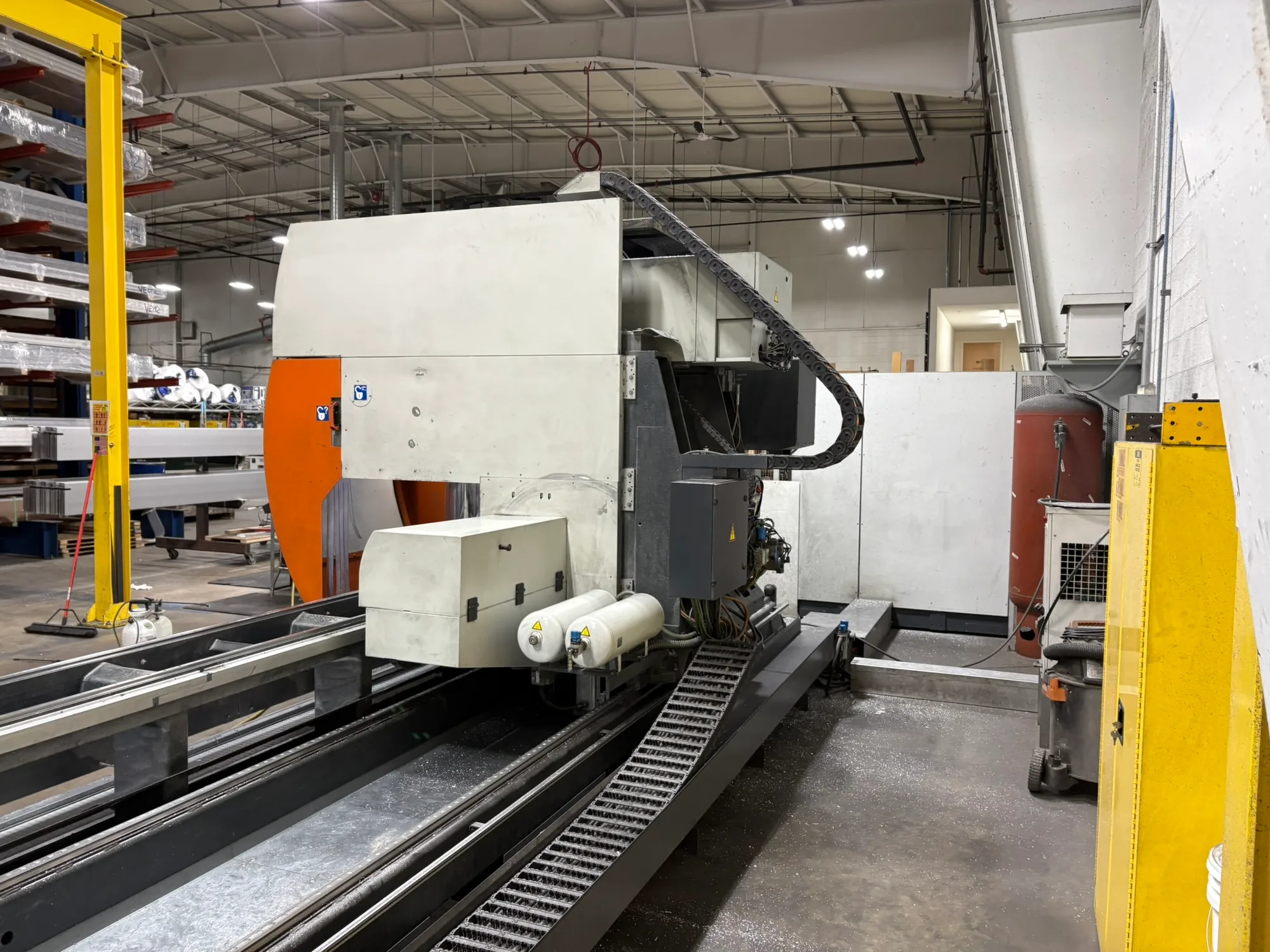

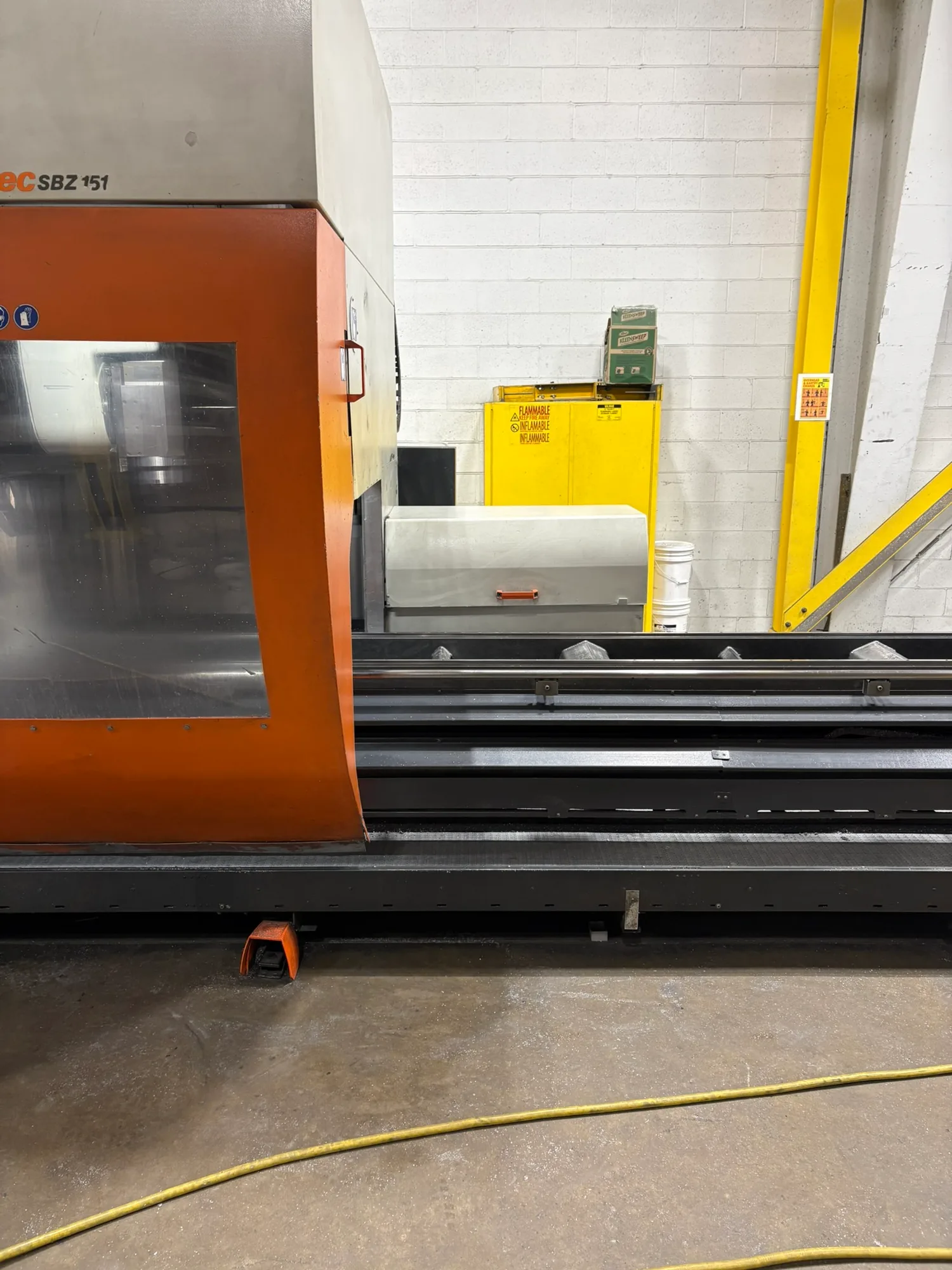

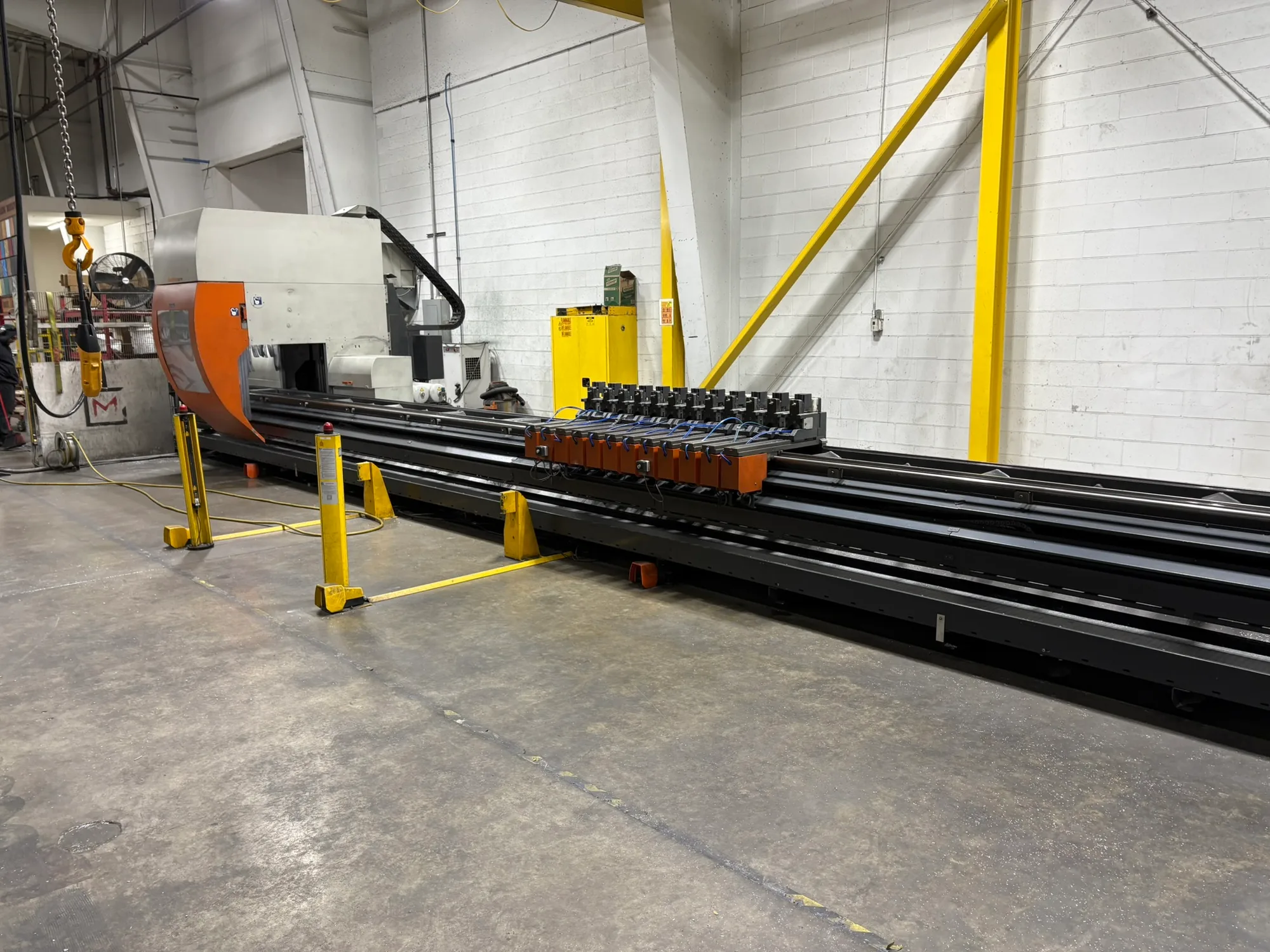

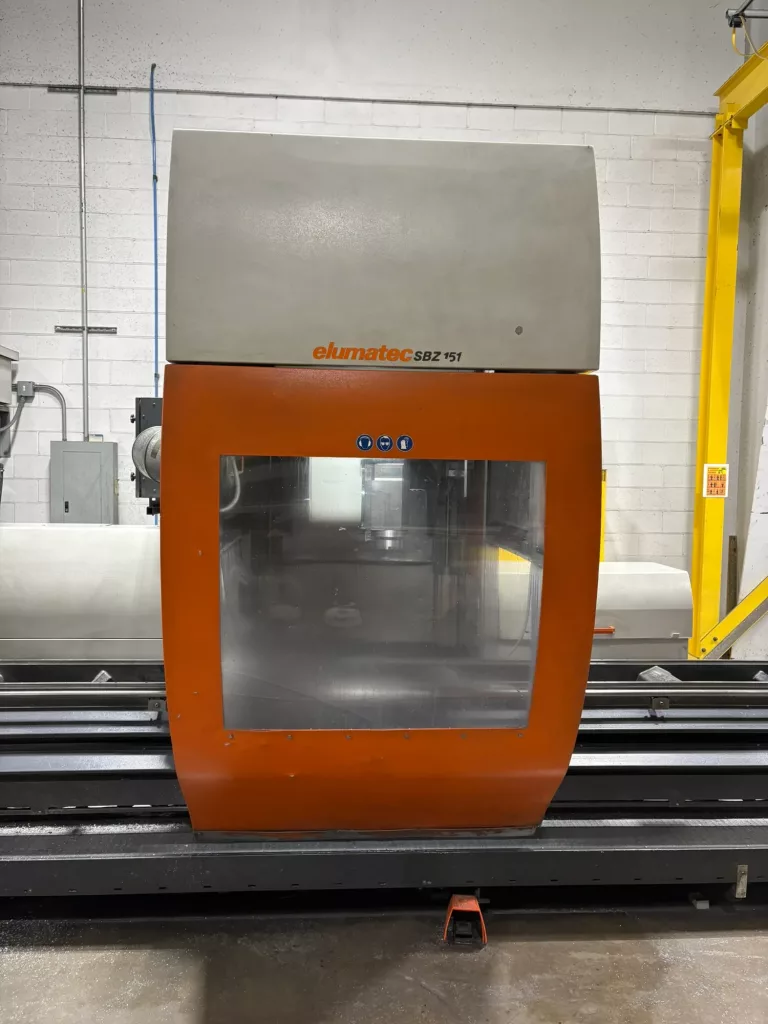

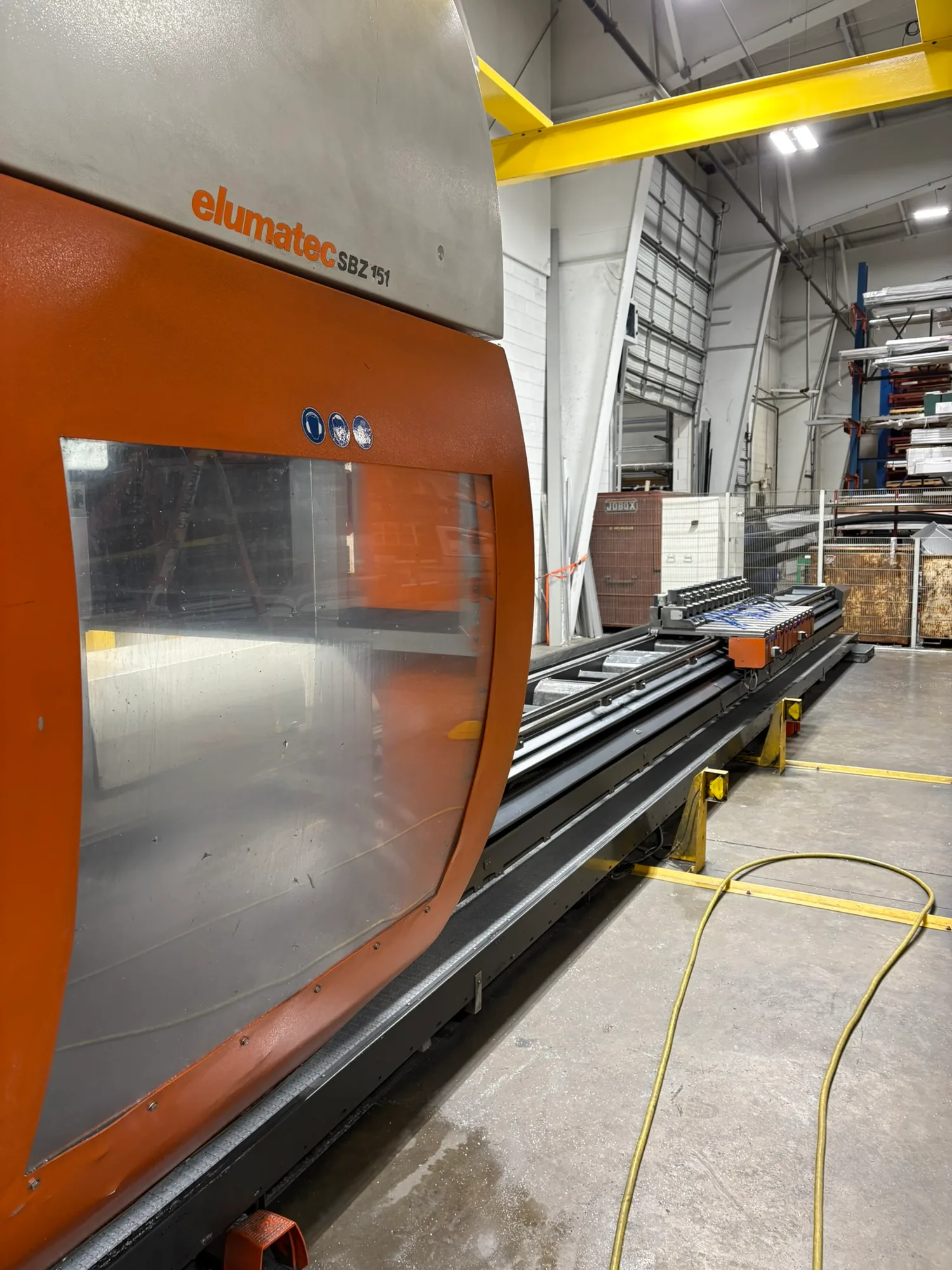

Used Elumatec SBZ 151 (2015) CNC Vertical Machining Center for Sale. This profile machining center offers 405″ of X-axis travel, 45″ in Y and 28″ in Z, with a 24,000 RPM spindle in HSK F63 taper and a 20-position ATC. Equipped with automatic length measuring, rigid tapping (no compensation), a mist extraction system with clam shell cover, EluCad Deluxe software (4/5-axis, DGX module), 3D import with auto feature recognition, and a 10.3m chip collection conveyor. Also included: a disk cutter seat (HSK-F63), angle router head for bottom processing (HSK-F63/ER20) with tool shelf, collet chucks (077 Med/ER32/Quick Action), four 8mm collets, and TCT sawblades in 120T x 500mm flush mount, 120T x 500mm countersink, and 34T x 180mm. Available for inspection under power. Browse more used CNC vertical machining centers, Activate Pricing, or use the Inquire Now button.
Specifications
| X-Axis Travel |
405" |
|---|---|
| Y-Axis Travel |
45" |
| Z-Axis Travel |
28" |
| Tool Magazine Capacity |

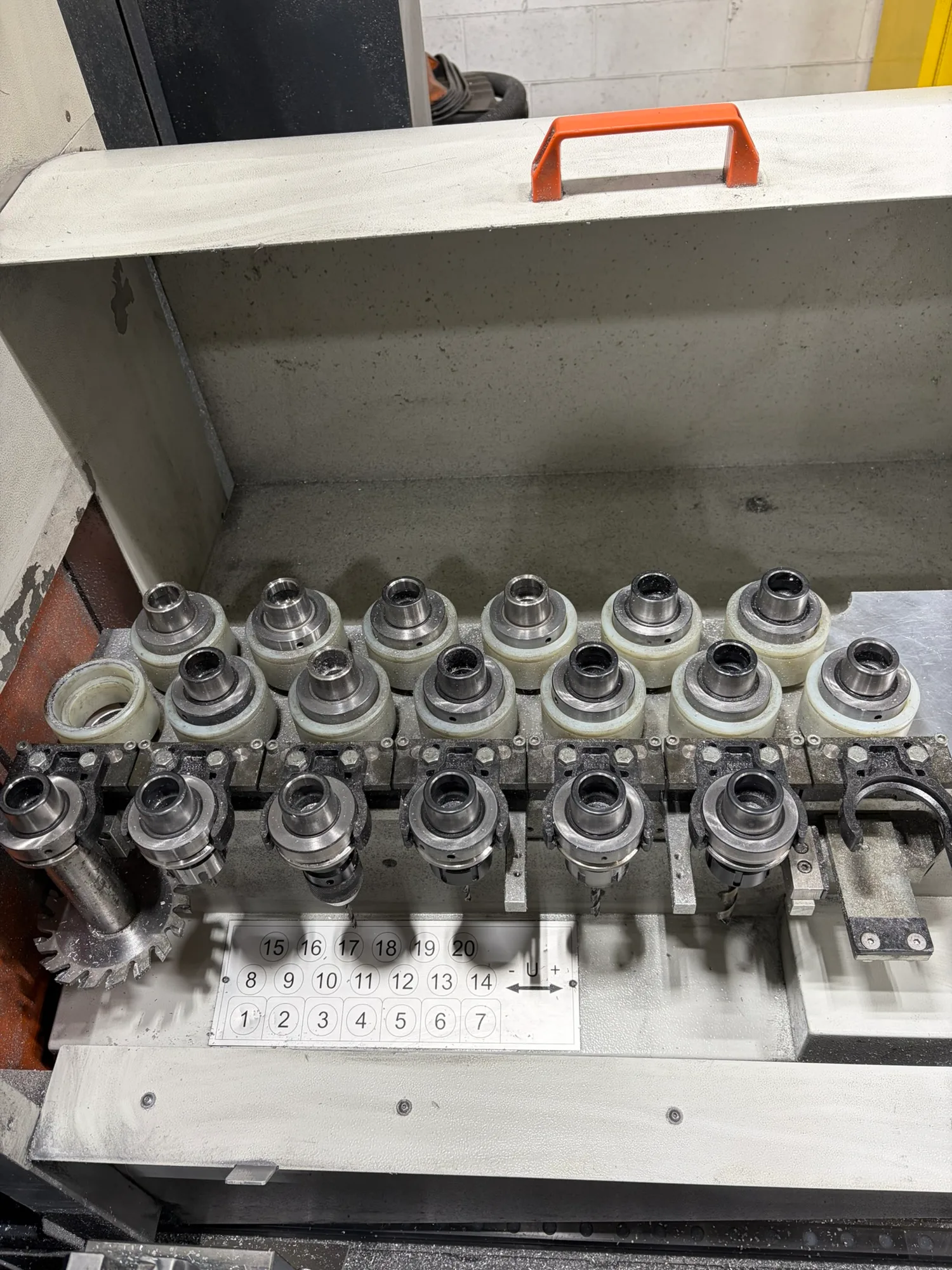

20 ATC |
| Spindle Speed |
24,000 RPM |
| Spindle Taper |
HSK F63 |
Features
|
3D Import W/ Auto Feature Recognition |
8mm Collets (X4) |
|
Angle Router Head - Bottom Processing (HSK-F63/ER20) |
Angle Router Head Tool Shelf |
|
Automatic Length Measuring |
Chip Collection Conveyor (10.3m) |
|
Collet Chucks - 077 Med/ER32/Quick Action (HSK-F63) |
DGX Module) |
|
Disk Cutter Seat (HSK-F63) |
EluCad Deluxe Software (4/5-Axis |
|

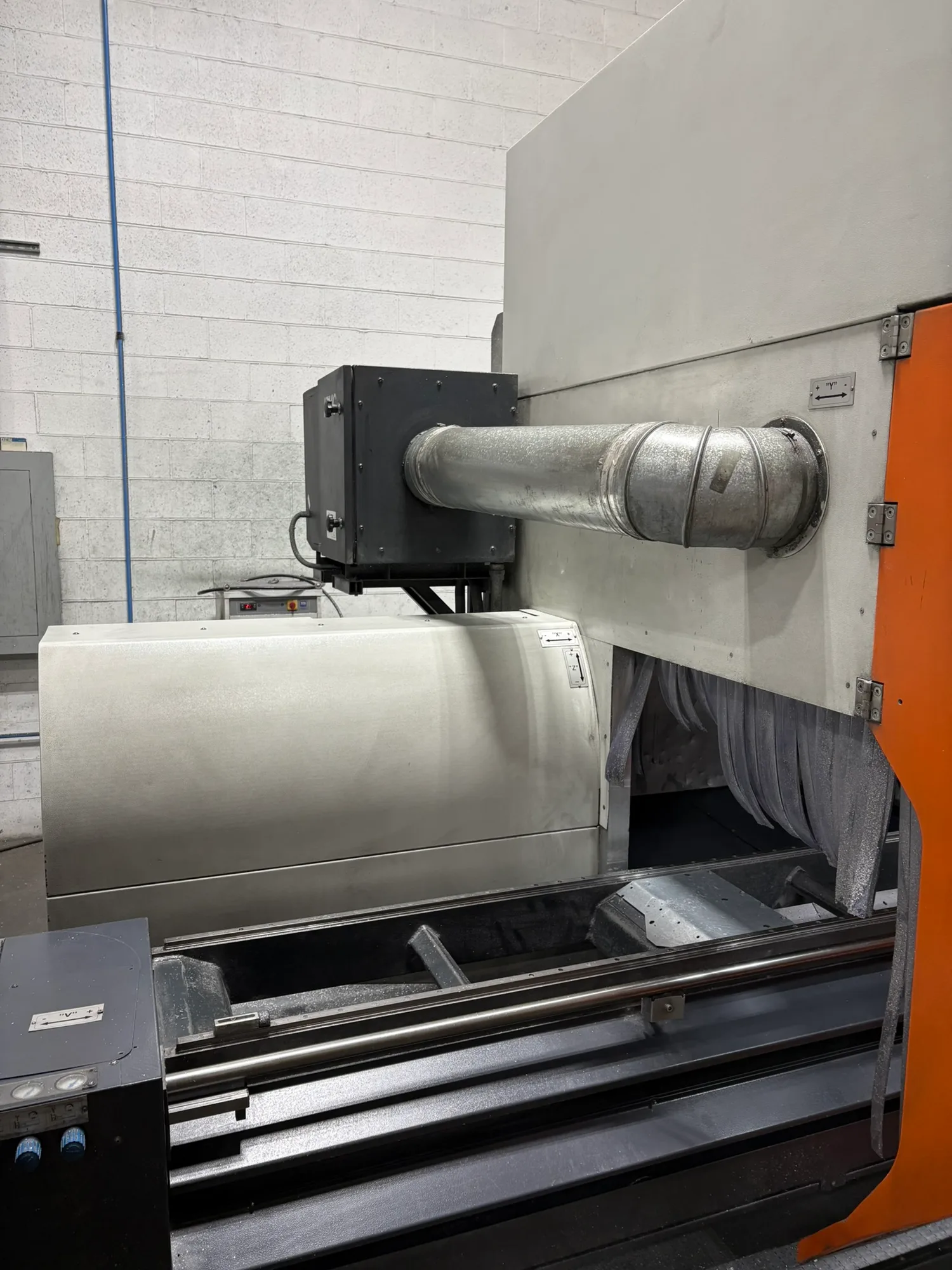

Mist Extraction System W/ Clam Shell Cover |
Rigid Tapping (No Compensation) |
|
TCT Sawblade 120T X 500mm (Countersink) |
TCT Sawblade 120T X 500mm (Flush Mount) |
|
TCT Sawblade 34T X 180mm |
