Year |
2015 |
|---|---|
Make |
Doosan |
Model |
HP 5100 |
Description |
CNC Horizontal Machining Center |
Reference # |
8078446 |
Price |
Activate Pricing |

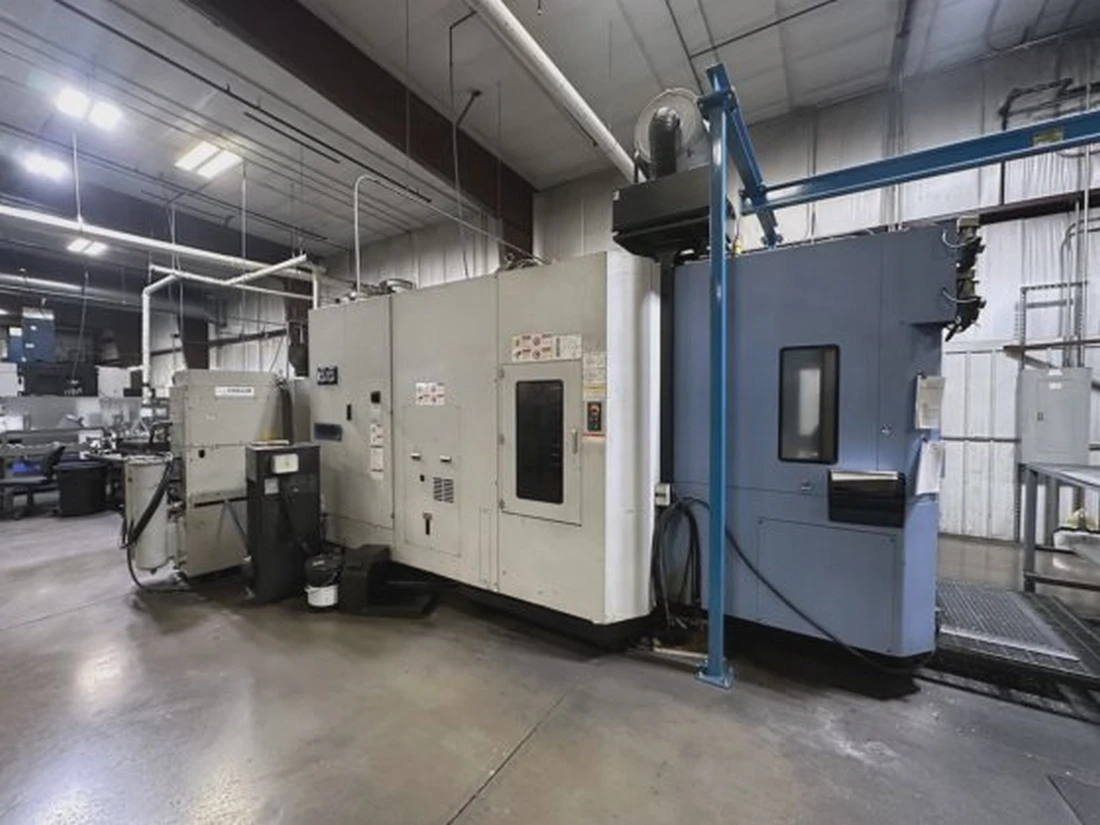

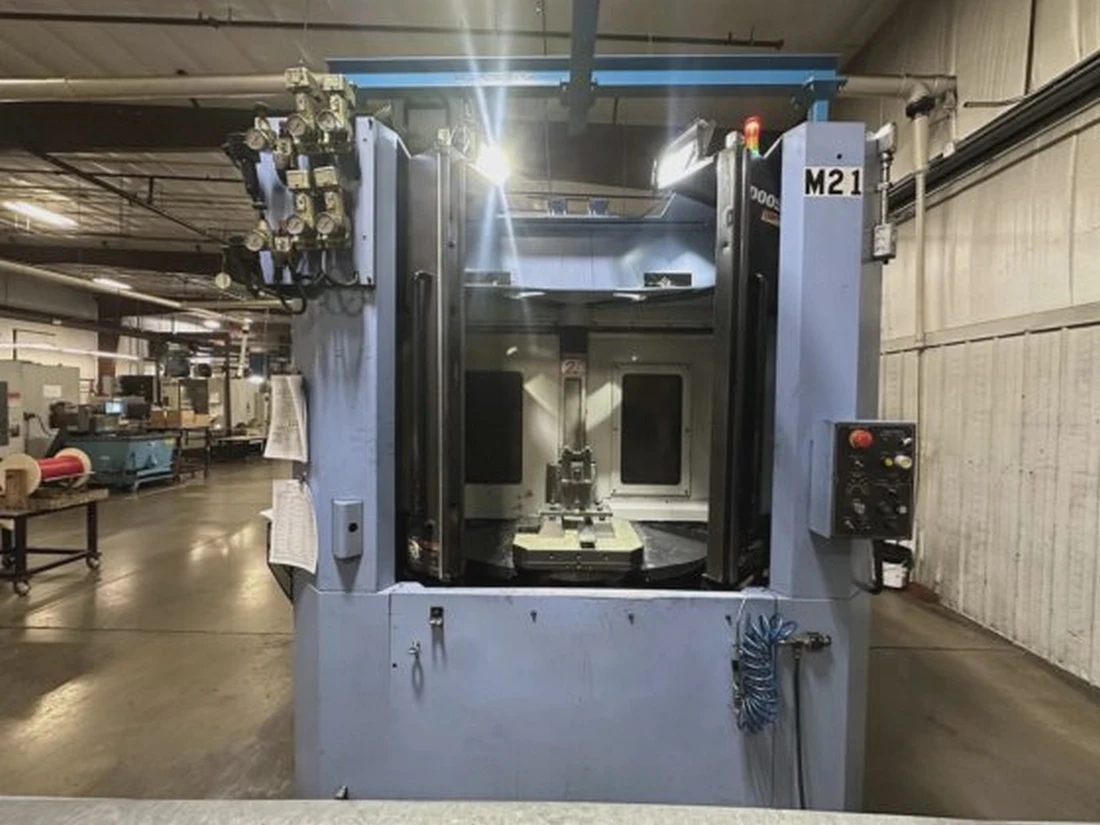

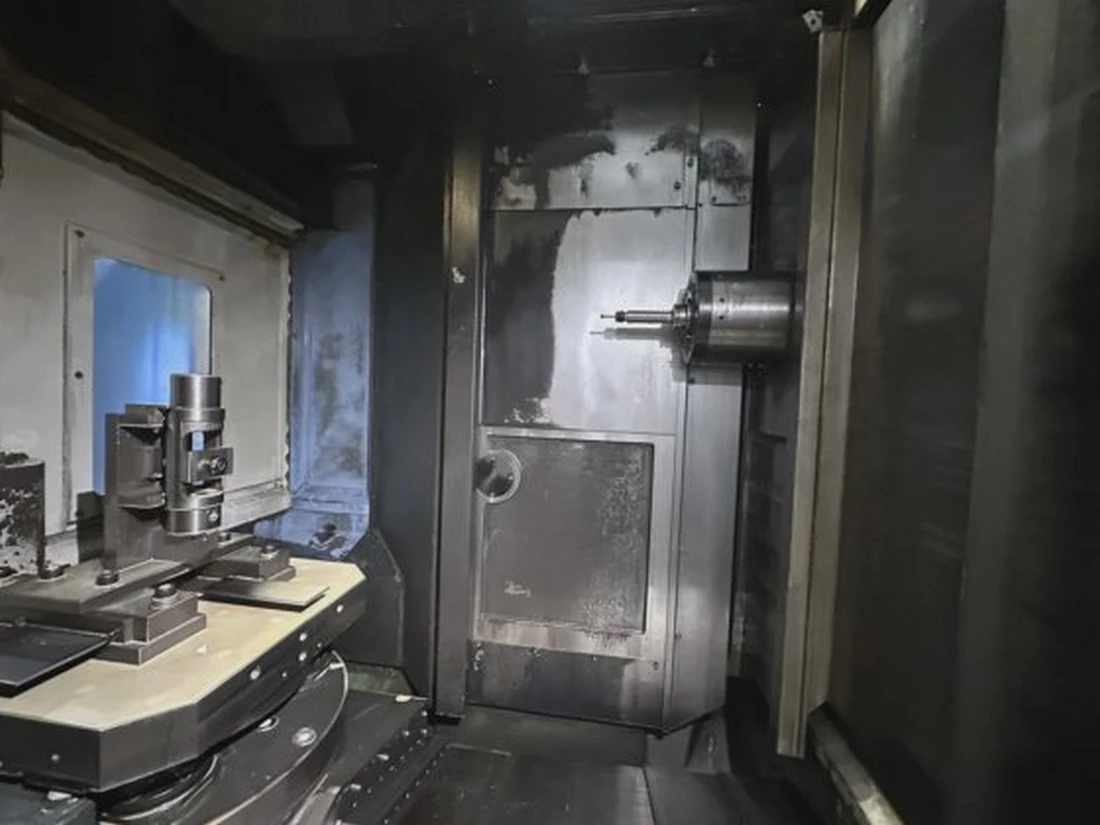

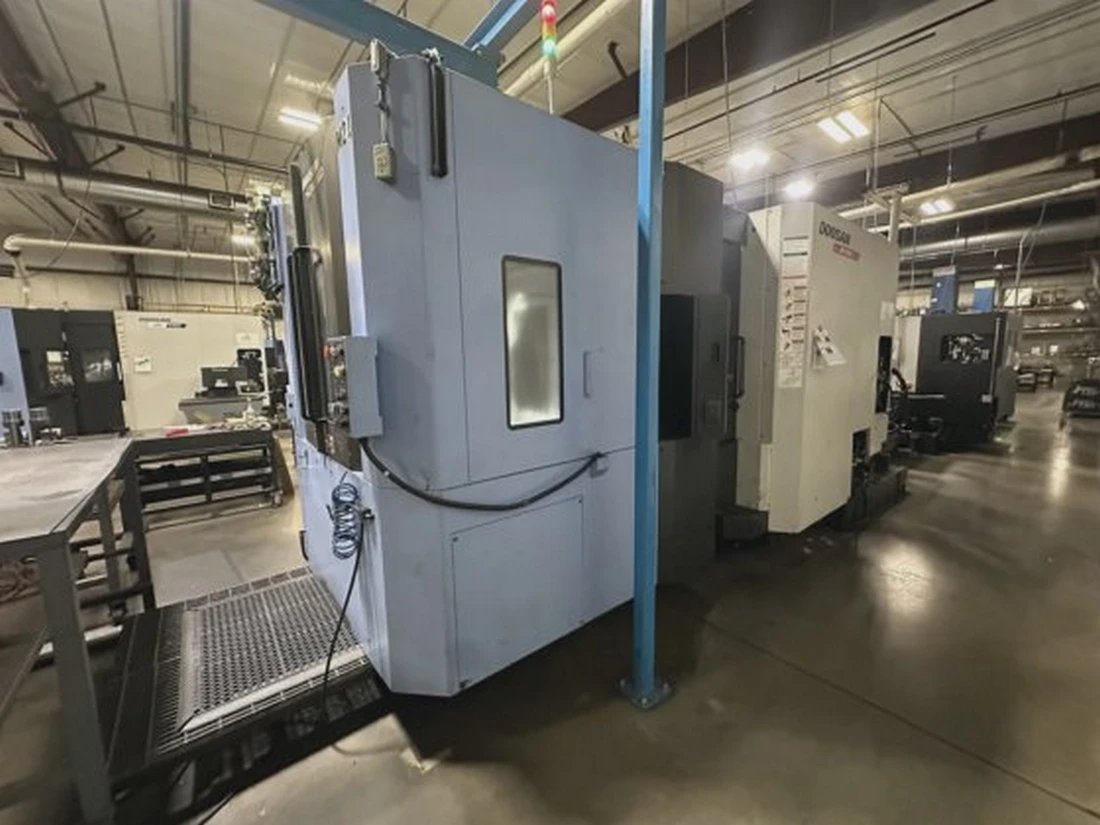

Used Doosan HP 5100 (2015) CNC Horizontal Machining Center for Sale. This machine has a 500 mm pallet measuring 19.6″ x 19.6″ with full 4th axis pallet indexing, and travels of 33.5″ in X, 27.6″ in Y and 29.5″ in Z. It is fitted with a 30 HP spindle rated to 14,000 RPM with an HSK 63 taper, a 60-tool ATC, and Fanuc 31i-MB control. Additional equipment includes a chip conveyor, a high pressure coolant system, and a Renishaw RMP600 spindle probe. The machine can be seen under power for an inspection. See more CNC horizontal machining centers or browse our other Doosan machines. Use Activate Pricing to view pricing, or Request a Quote and we will follow up with details.
Specifications
| Pallet Size (Millimeters) |
500 |
|---|---|
| Pallet Size |
19.6" x 19.6" |
| X-Axis Travel |
33.5" |
| Y-Axis Travel |
27.6" |
| Z-Axis Travel |
29.5" |

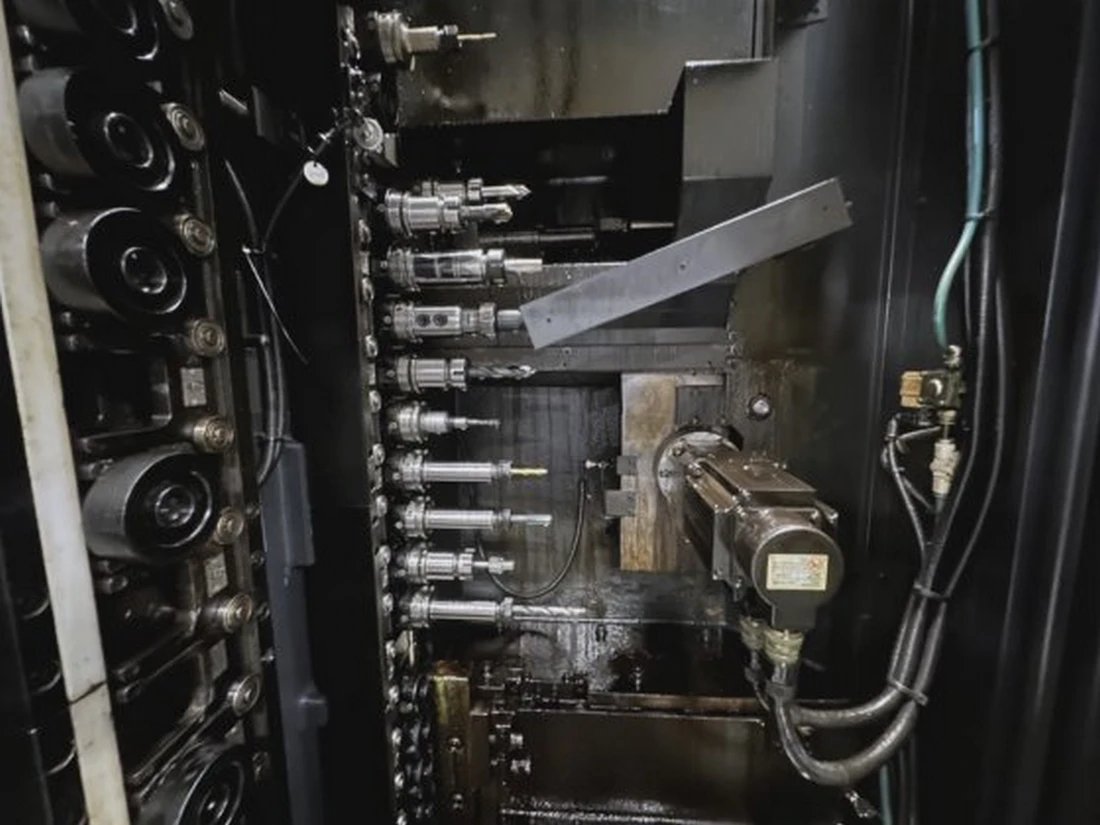

| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
14,000 RPM |
| Spindle Taper |
HSK 63 |

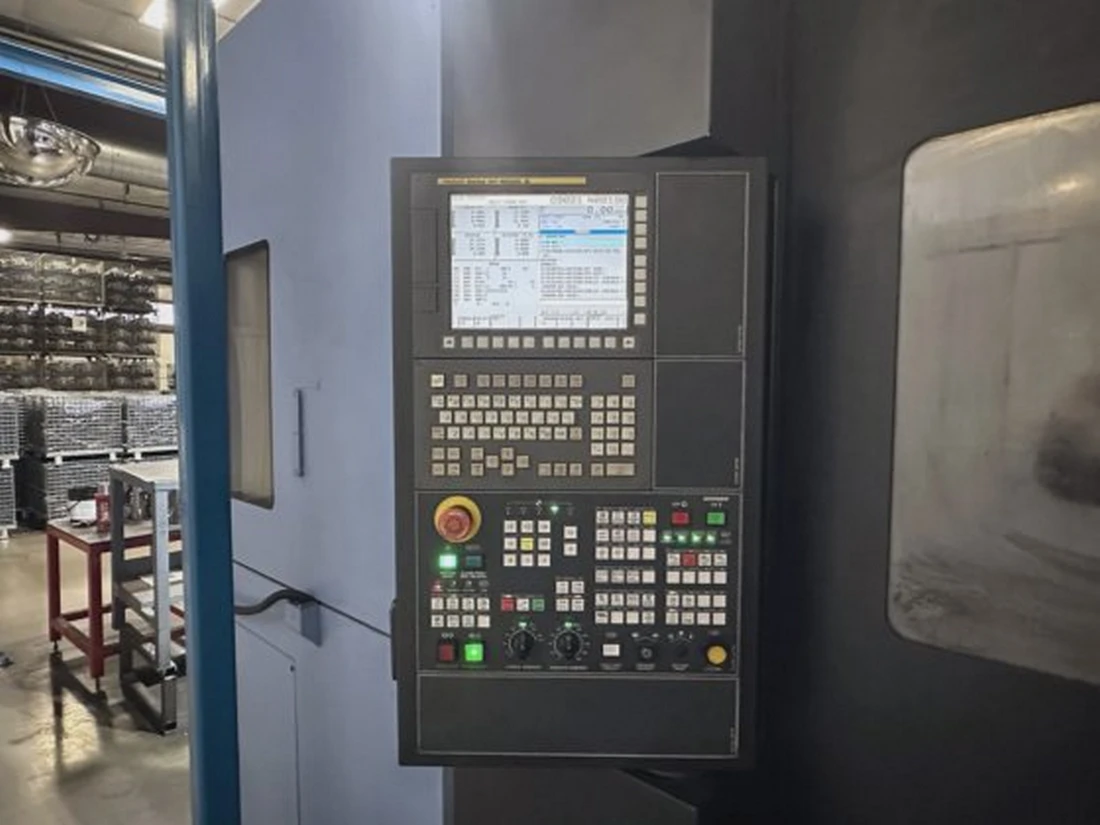

| Control |
Fanuc 31i-MB |

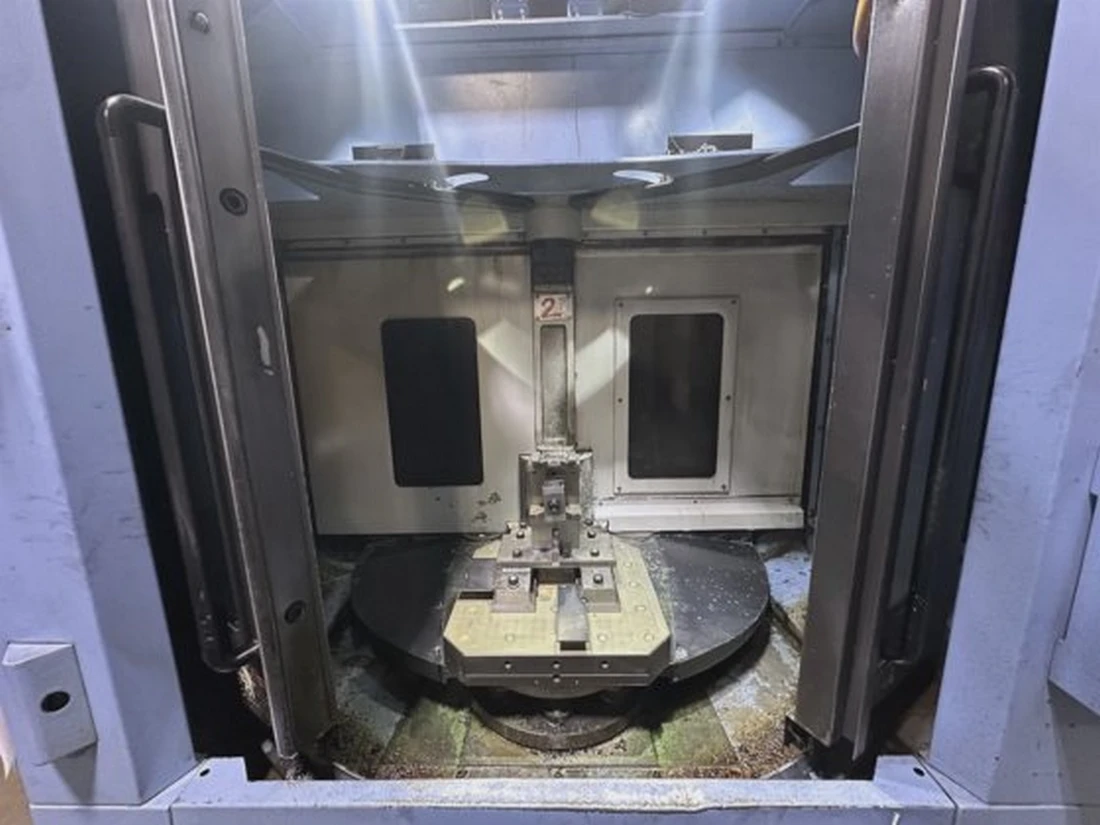

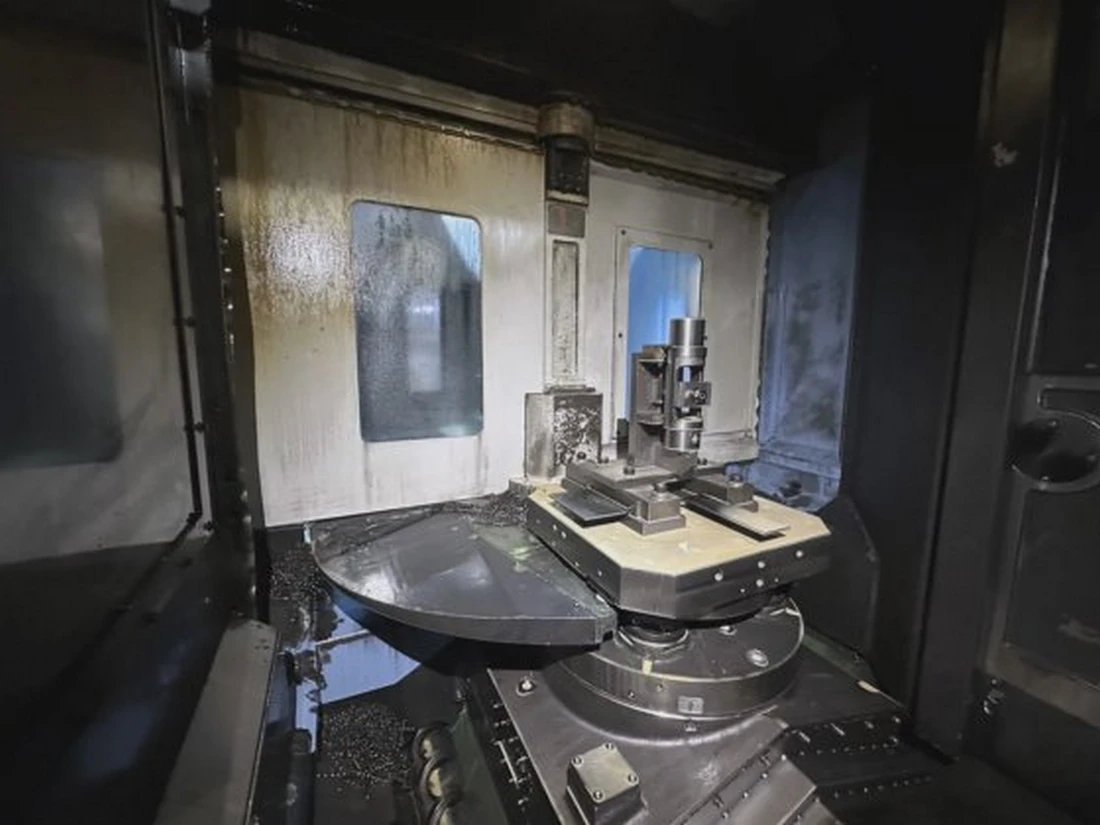

| Pallet Indexing |
Full 4th Axis |

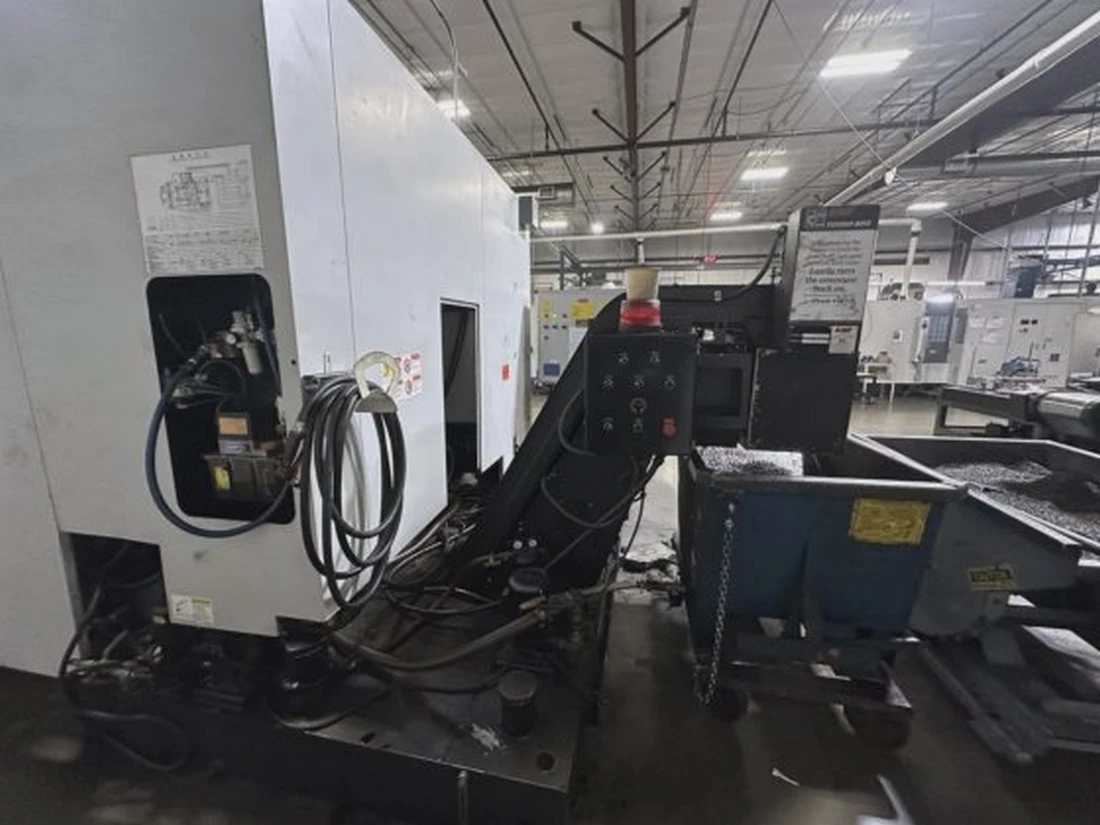

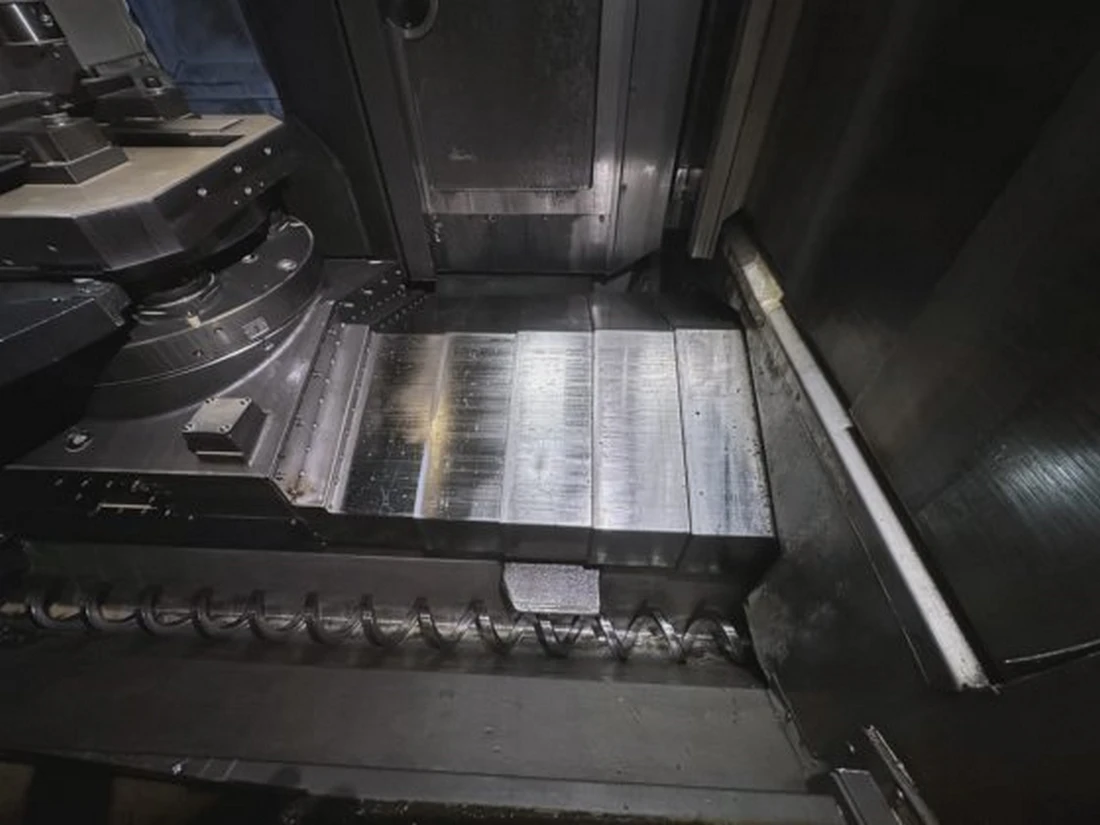

| Chip Removal |
Chip Conveyor |
| Spindle Motor |
30 HP |
| Coolant |
High Pressure Coolant System |
Features
|
Renishaw RMP600 Spindle Probe |
