Year |
2015 |
|---|---|
Make |
AXYZ |
Model |
Panel Builder 5036 |
Description |
CNC Router |
Reference # |
8073596 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

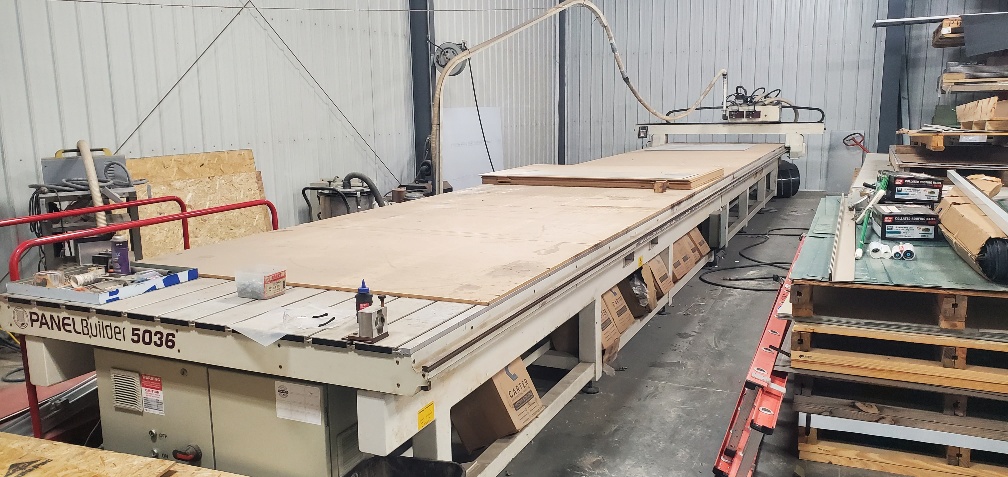

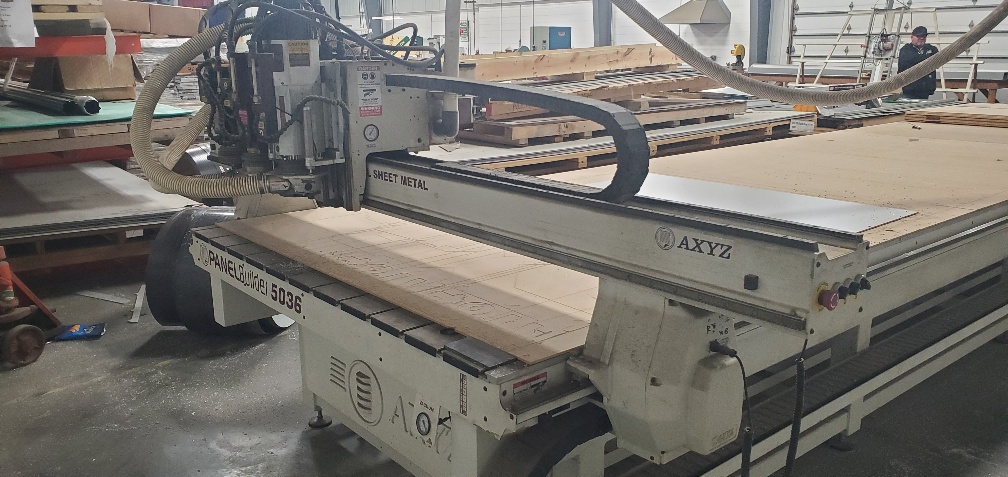

Used AXYZ Panel Builder 5036 (2015) CNC Router for Sale. This pre-owned AXYZ cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this AXYZ CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
72" |
|---|---|
| Table Length |
432" |
| Number of Axis |
3 |
| X-Axis Travel |
72" |
| Y-Axis Travel |
432" |
| Z-Axis Travel |
6" |
| Number of Spindles |
3 |
| Control |
A2MC Control System |
Features
|

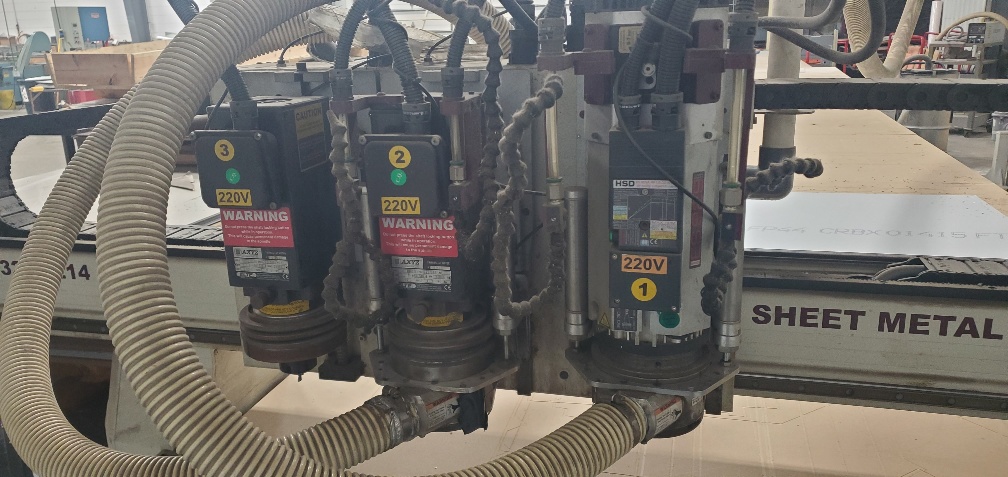

1C-3Z Head Configuration |
1x 10.8 HP Spindle (Upgrade From 5 HP) |
|
3 x 5 HP Collet Spindles |
3x Nose Rider Collars |
|
3x Pop-Up Pins |
3x Pressure Feet |
|
5x Pop-Up Pins |
9 HP Busch Mink Vacuum Pump |
|
ACM Chip Extraction Xystem |
Extra Unist Mister |
|
Panel Builder Software |
Precision Spoil Board |
|

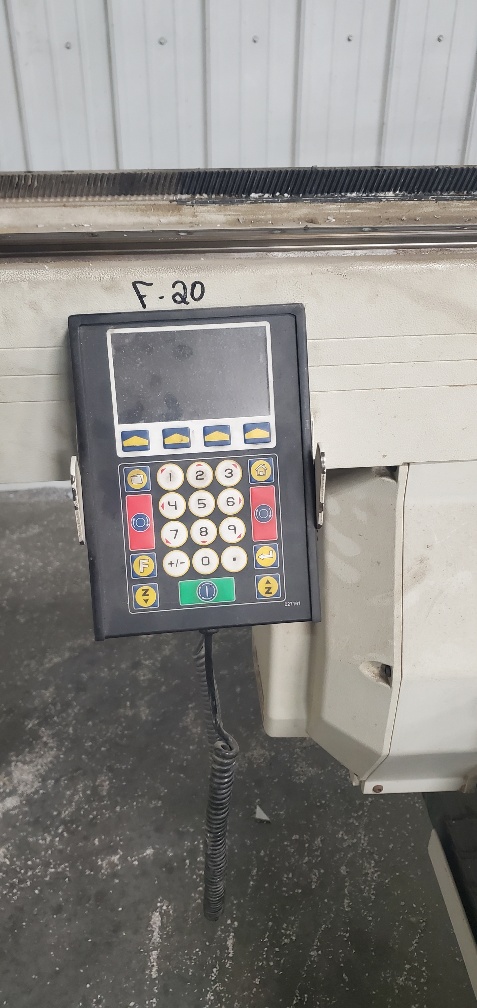

Smart Console |
Unist Mister |
|
VCarve Pro Software |
Pneumatic Drill |
|
Helical Rack |
Servo Drives |
|
Vacuum Table |
Auto Zone Management |
