Year |
2014 |
|---|---|
Make |
Weeke |
Model |
Optimat BHP-008 Vantech 510 |
Description |
CNC Router |
Reference # |
8073913 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Weeke BHP-008 Vantech 510 (2014) CNC Router for Sale. This pre-owned Weeke cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Weeke CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
61" |
|---|---|
| Table Length |
122" |
| Maximum Workpiece Thickness |
100 mm |
| X/Y Vector Speed |
96 m/min |
| Spindle Motor |
12 KW (16 HP) |
| Number of Pneumatic Pop-Up Pins |
3 |
| Spindle Speed |
1,250 – 24,000 RPM |
| Positioning Speeds |
72 m/min (x), 62 m/min (y), 25 m/min (z) |
| Air Volume Requirements |
1900 CFM |
| Consumption Volume |
600/700 NL/min |
| Electrical |
480 V/ 3PH/ 60 Hz |
| Total Connected Load |
27.5 kW |
Features
|

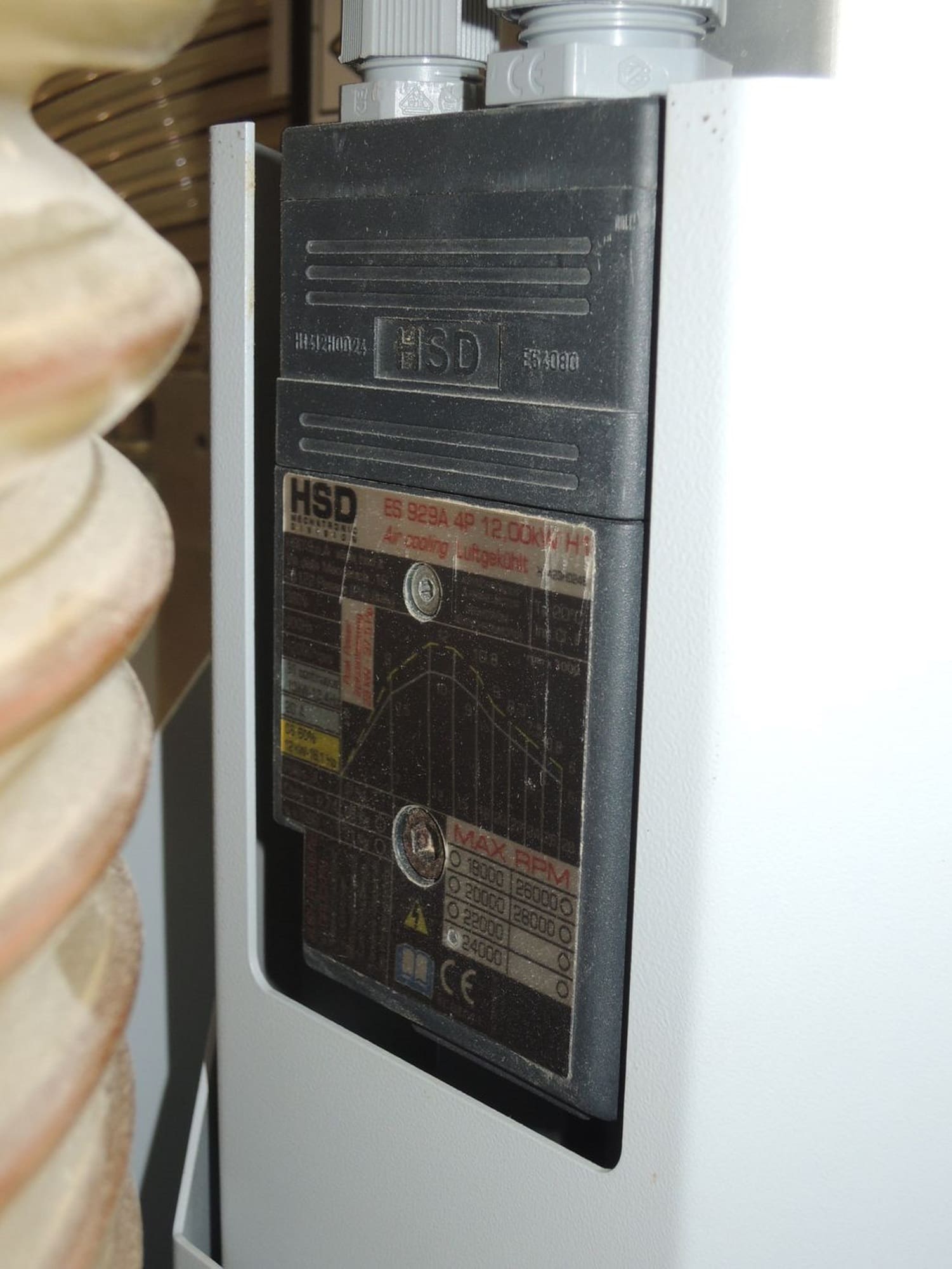

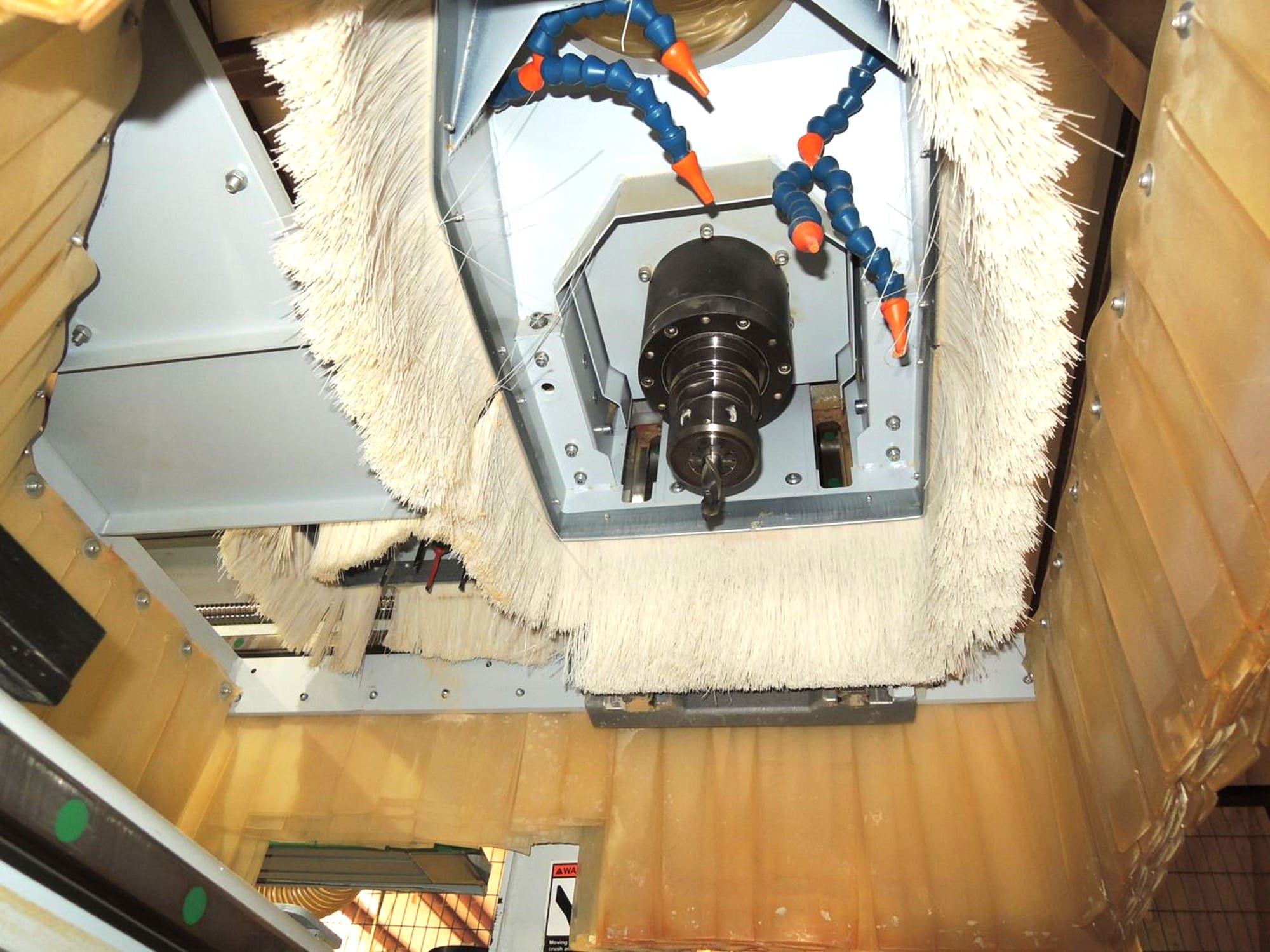

12 KW HSD Air Cooled Spindle w/ HSK63 Taper (24000 RPM) |

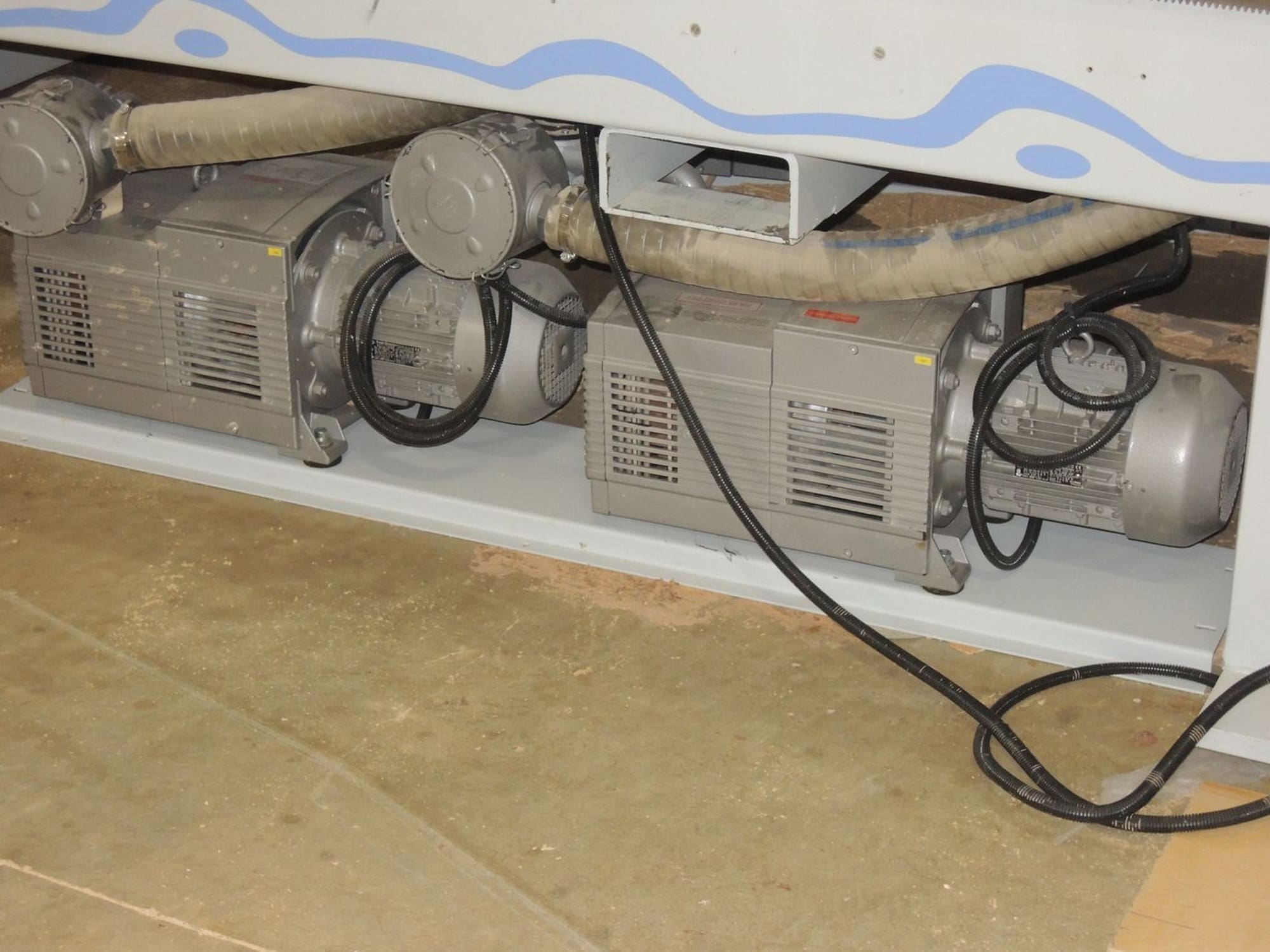

4 Vacuum Pumps (432 m3/h) |
|

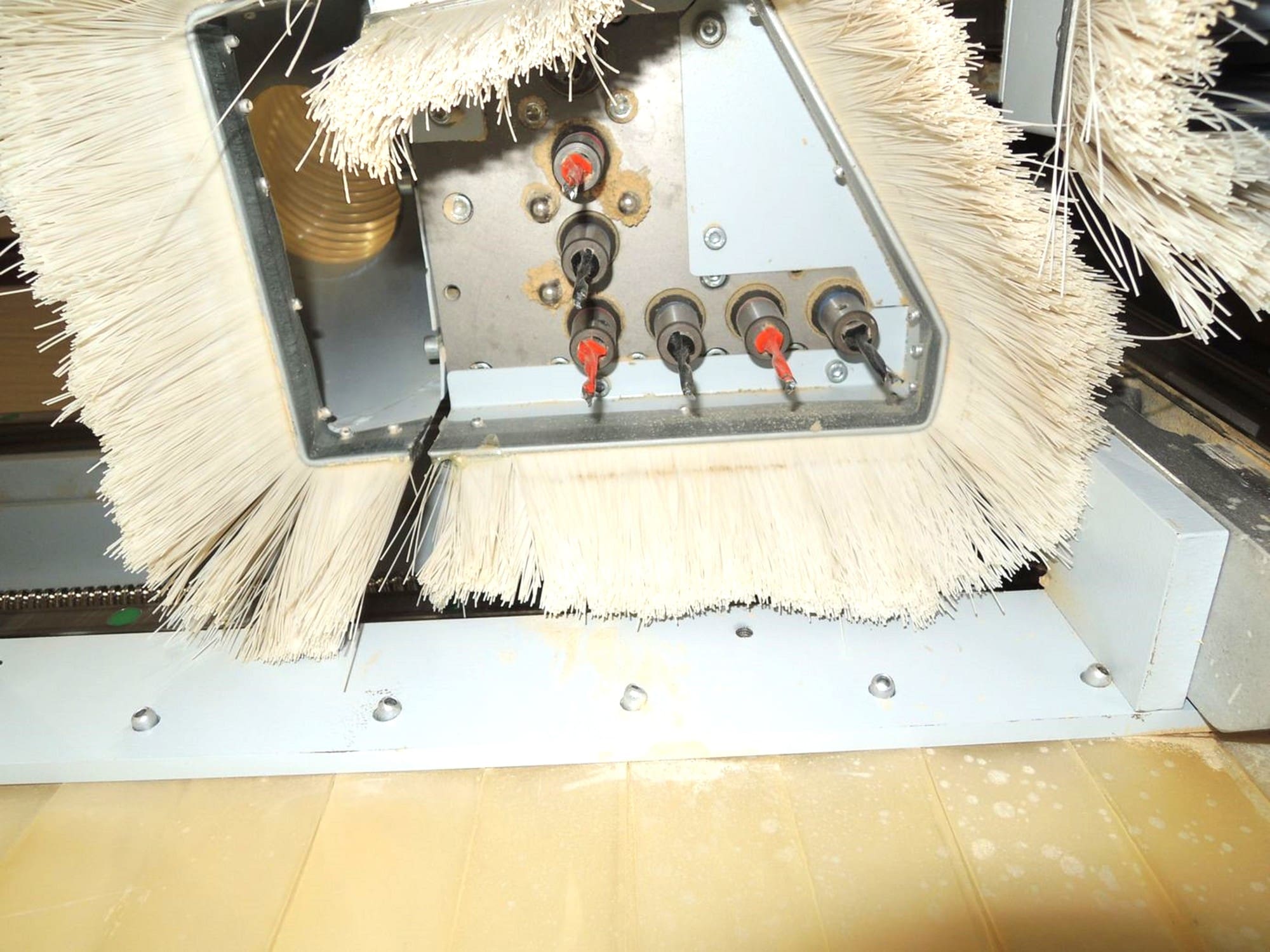

7 Position Drill Brank |
8 Position Tool Bar |
|
Automatic Tool Length Sensor |
Conveyor Table |
|
Unload Rake and Outfeed |
Safety Light Curtains |
