Year

2014

Make

Tsugami

Model

B0205-II

Description

CNC Swiss Lathe

Reference #

8072938

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Used Tsugami B0205-II (2014) CNC Swiss Lathe for Sale.  This pre-owned Tsugami CNC swiss lathe is located in The United States.  If you have any questions regarding this Tsugami Lathe, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Bar Capacity (mm)

20

Working Barstock Diameter

.12" to .79"

Main Spindle Speed

200-10,000 RPM

Back Spindle Speed

200-12,000 RPM

Rapid Traverse Rate

105 FPM

Max. Back Spindle Chucking Diameter

.79"

Max. Machining Length

8.26"

Max. Back Spindle Drilling Diameter

.31"

Max. Main Spindle Drilling Diameter

.39"

Max. Main Spindle Tapping Diameter

M10

Max. Back Spindle Tapping Diameter

M8

Main Spindle Motor

5 HP

Back Spindle Motor

3 HP

Control

Fanuc Oi-TD

Chip Removal

Chip Conveyor

Net Weight

4,409 Lbs

Machine Dimensions

65.16" x 44.29" x 66.93"

Features

Back Spindle

Firetrace Automatic Fire System

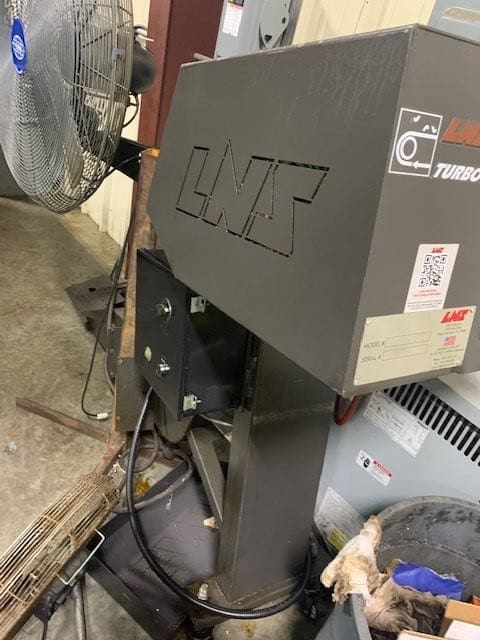

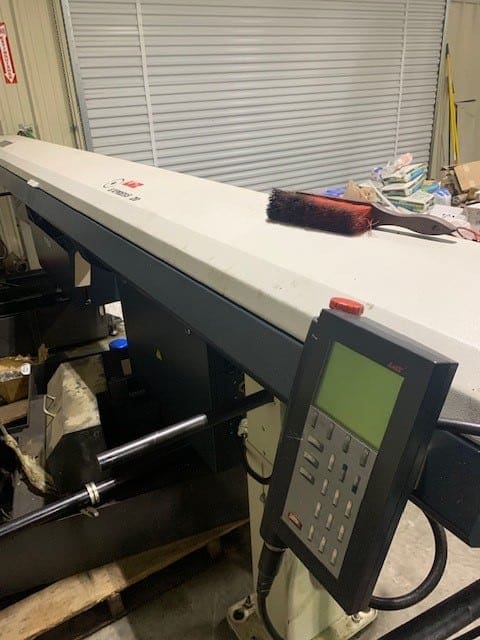

LNS Express 320 Barfeed

MP Systems High Pressure Pump for Oil Model AT V-2 H08 SD

Chucker Kit

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
