Year |
2014 |
|---|---|
Make |
Trumpf |
Model |
TruLaser 1030R |
Description |
5' x 10' 4kW CNC Fiber Laser |
Reference # |
8077598 |
Price |
Activate Pricing |

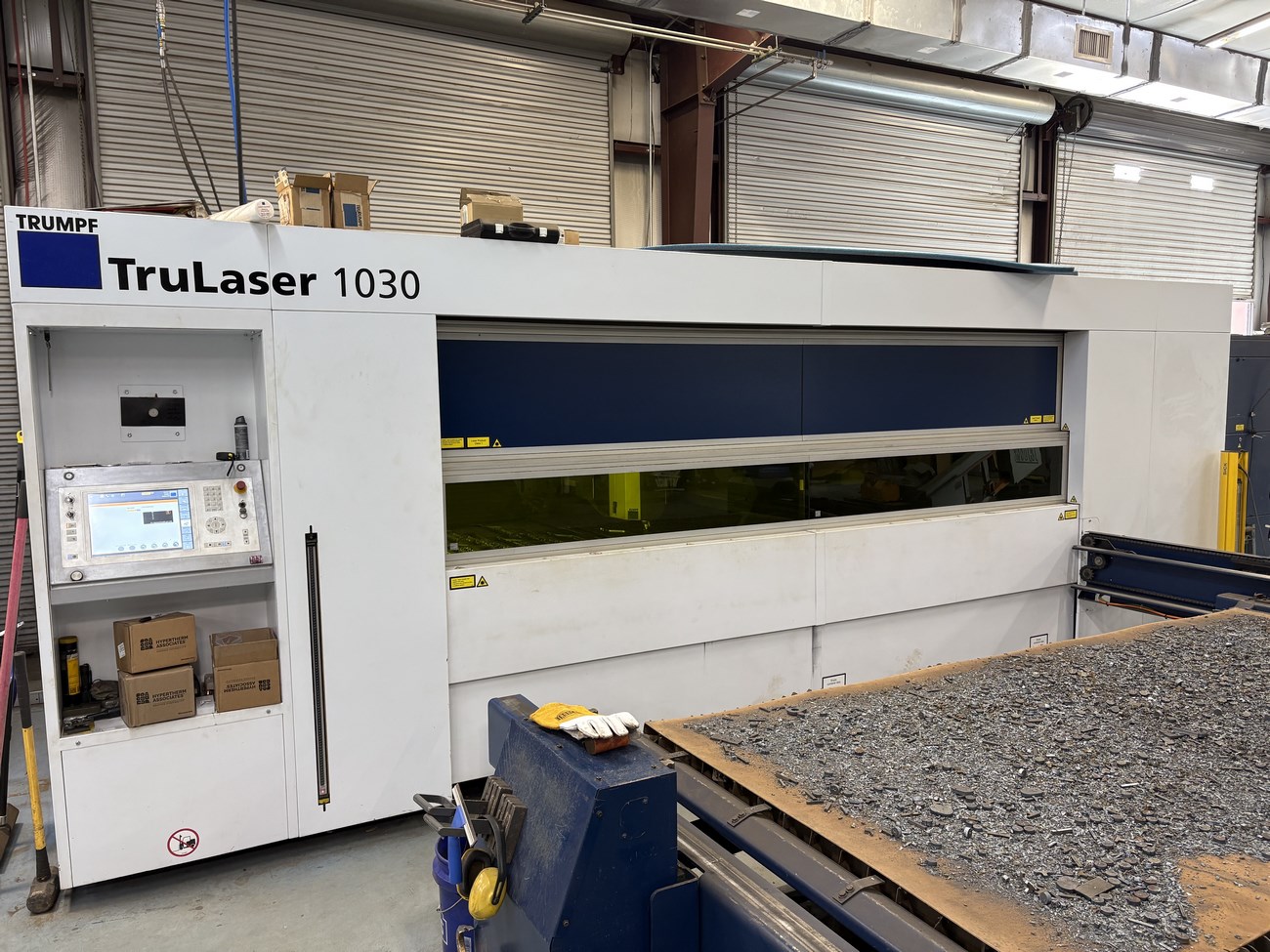

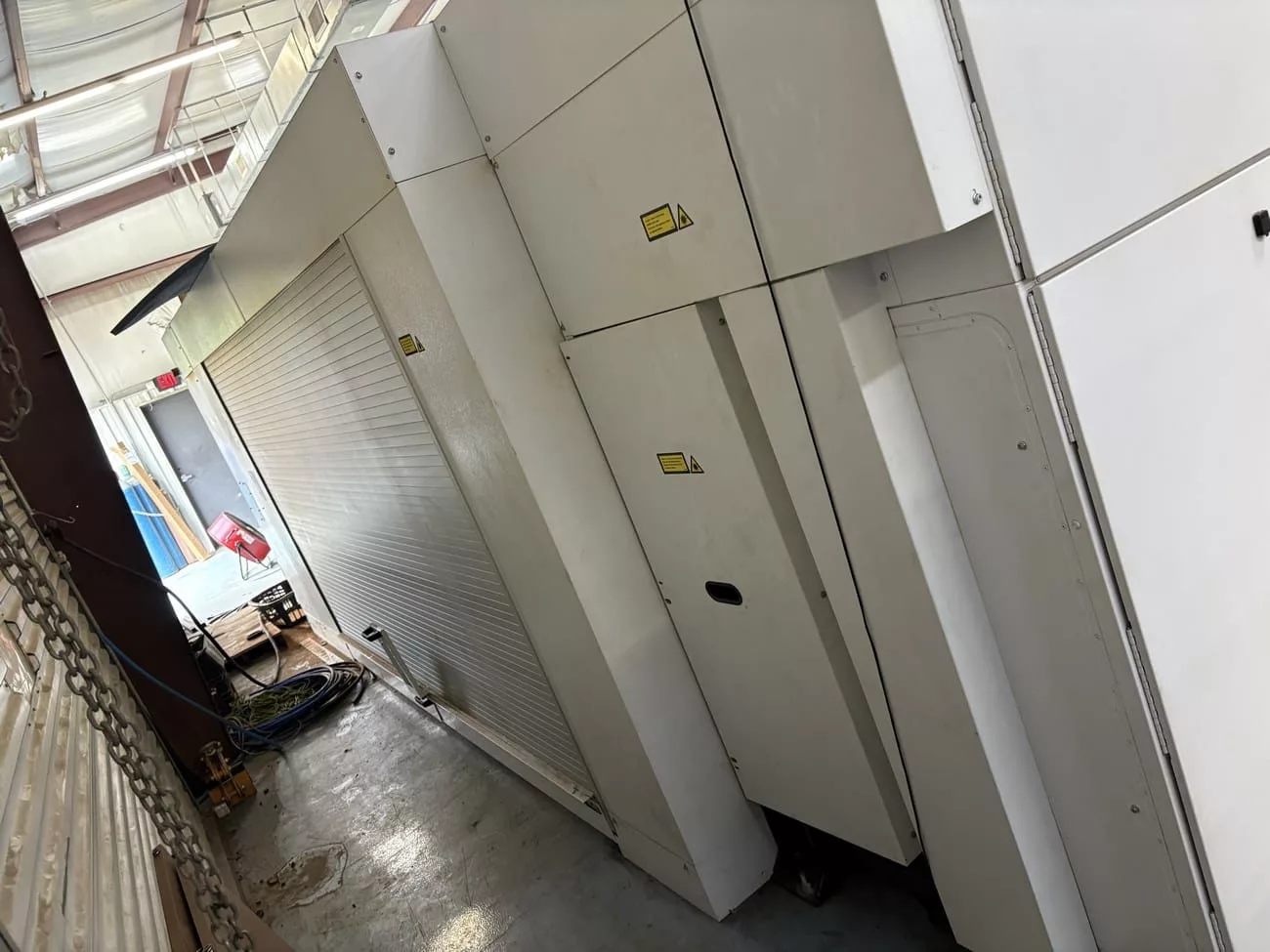

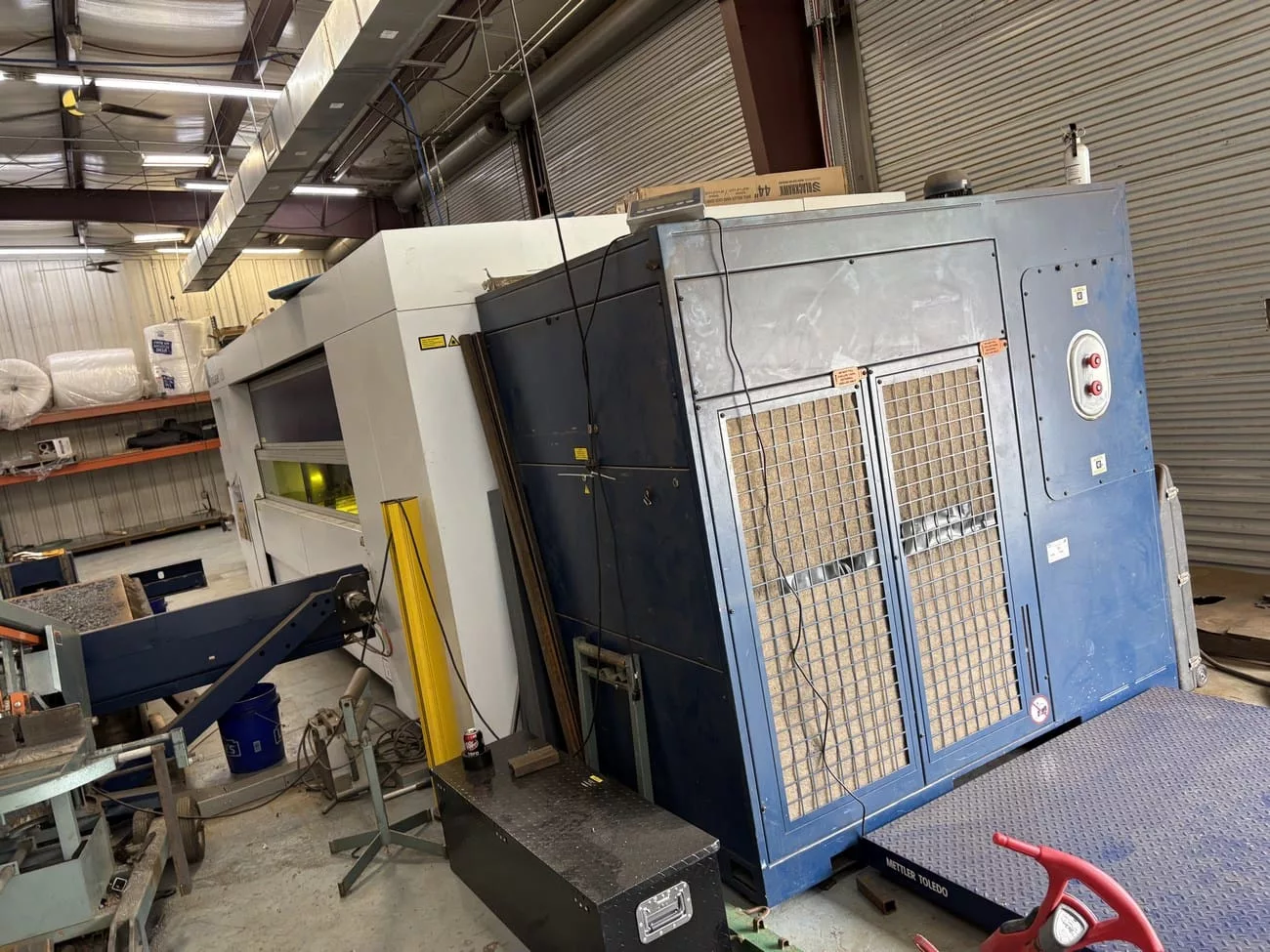

Used Trumpf TruLaser 1030R (2014) CNC Laser for Sale. This pre-owned Trumpf CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Trumpf Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
4,000 |

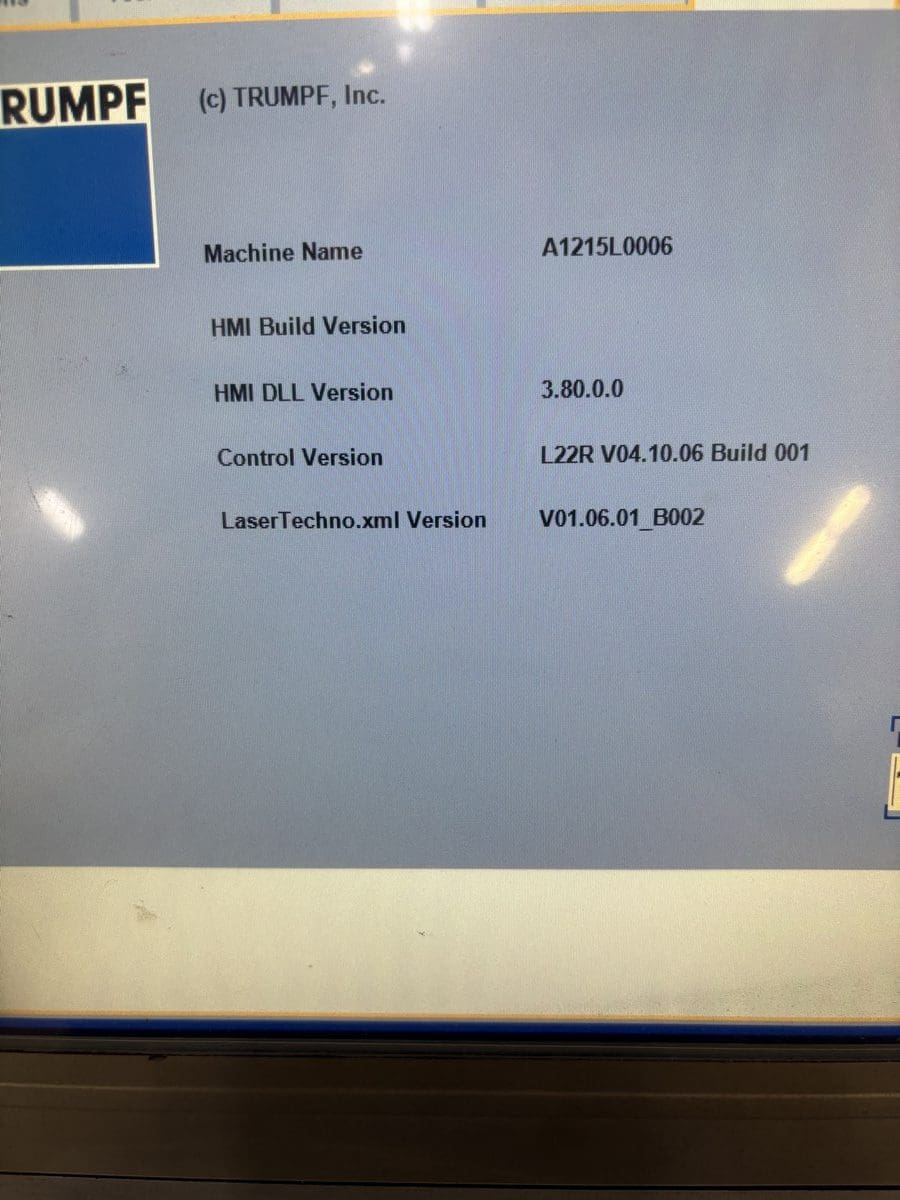

| Control |
Trumpf CNC |
| X-Axis Travel |
120" |
| Y-Axis Travel |
60" |
| Z-Axis Travel |
3" |
| Max Mild Steel |
22mm / .86" |
| Max Stainless Steel |
20mm / .78" |
| Max Aluminum |
20mm / .78" |
| Max Copper |
8mm / .31" |
| Max Brass |
8mm / .31" |
| Weight |
20,723 Lbs |
| Dimensions |
367" x 235" x 86" |
| Note |
Trumpf Manufacturer Overhaul in 2022 |
Features
|
Chiller Unit |
Dual Pallet Shuttle Tables |
|

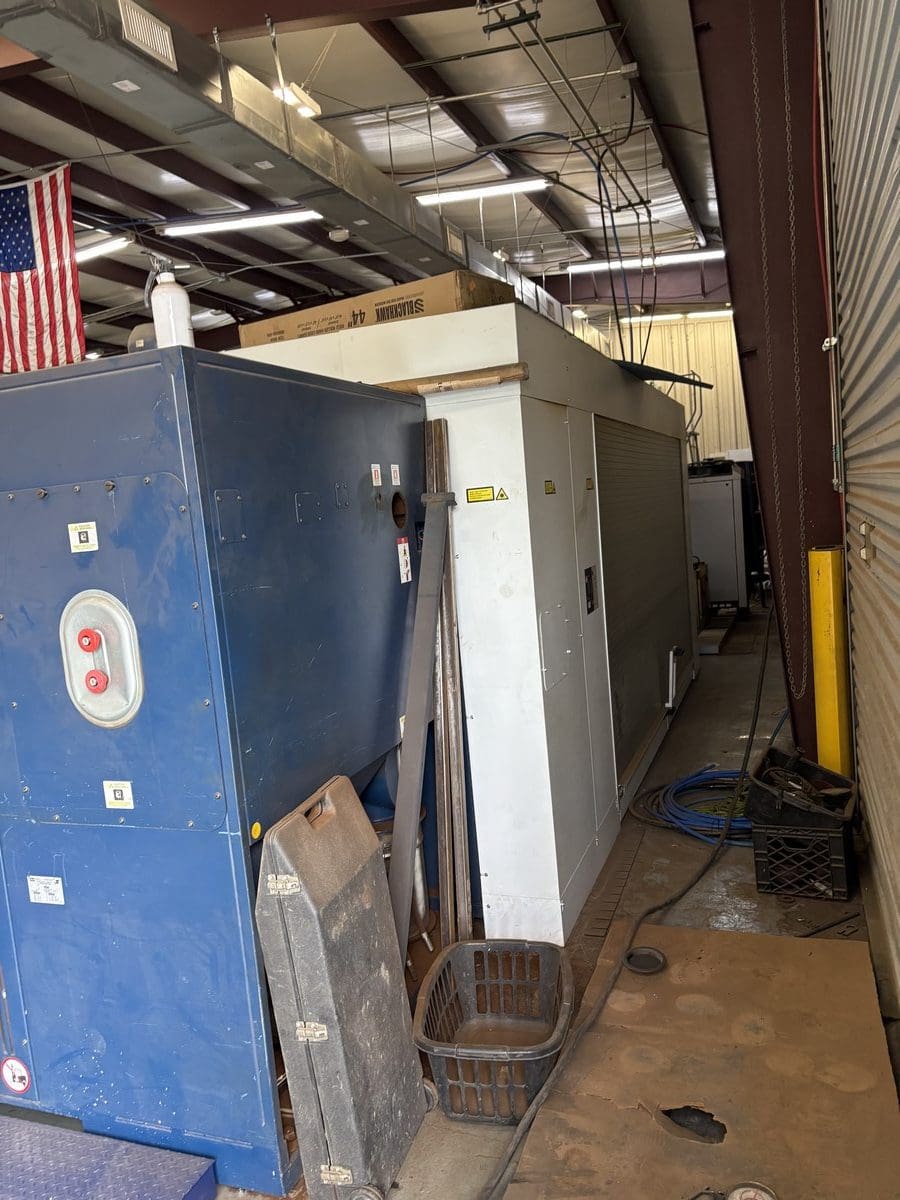

Dust Collector |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
