Year |
2014 |
|---|---|
Make |
DMG Mori |
Model |
NZX-6000E/2000 |
Description |
CNC Lathe |
Reference # |
8073610 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

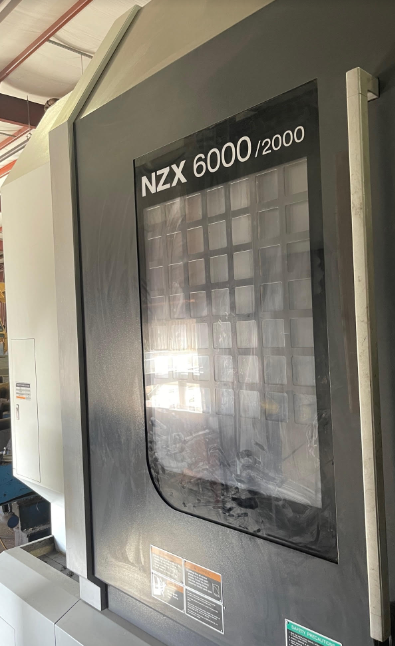

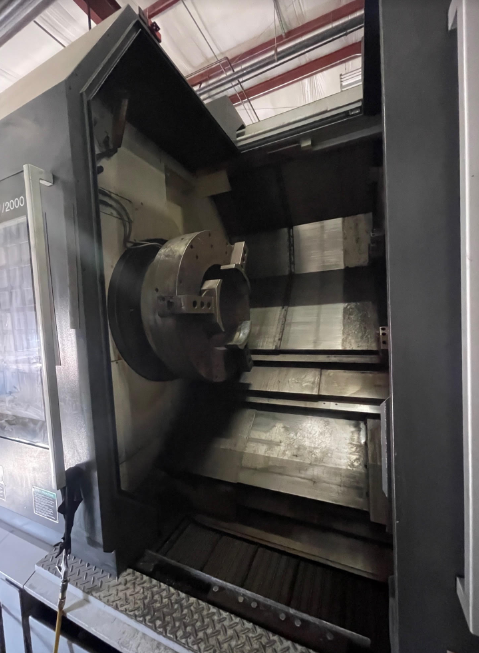

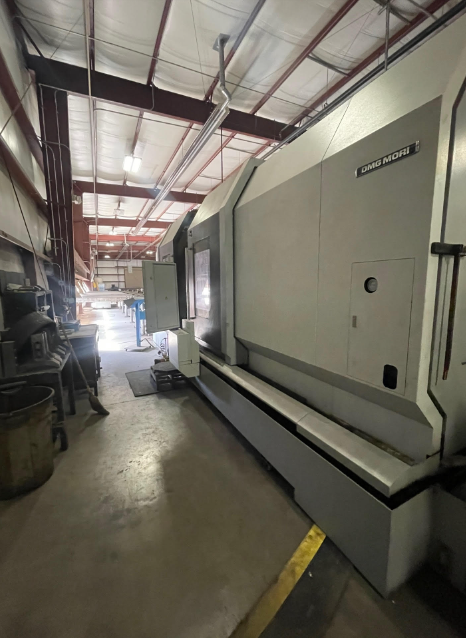

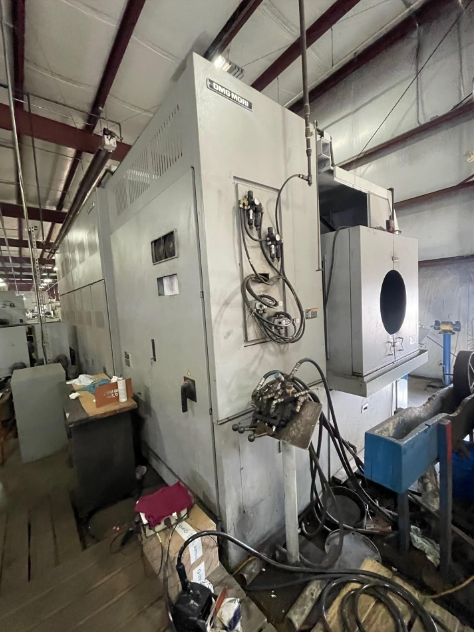

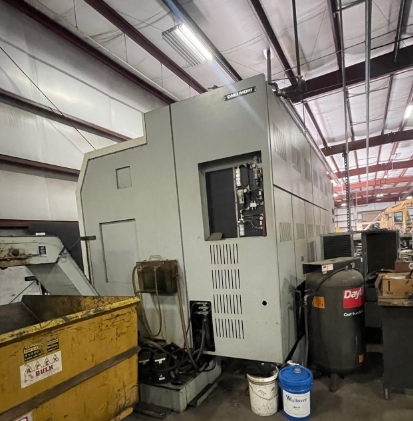

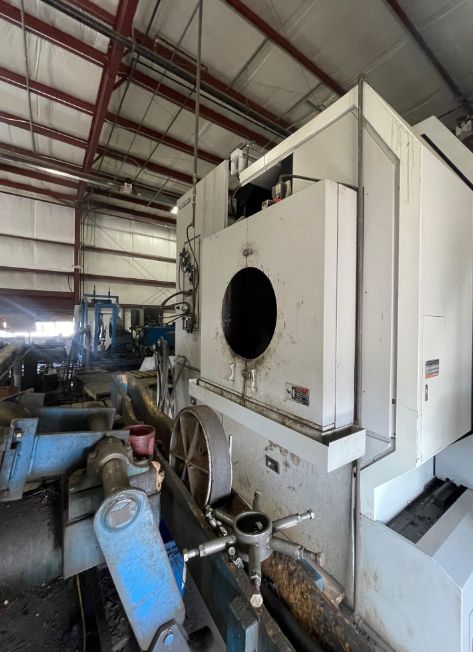

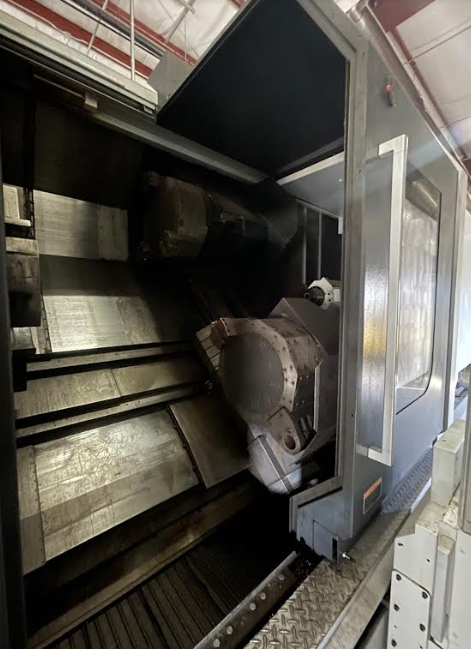

Used DMG Mori NZX-6000E/2000 (2014) CNC Lathe for Sale. This heavy-duty turning center has a 36″ chuck, 20″ bar capacity, 36.6″ swing and 25″ turning diameter, with 78″ distance between centers and spindle speed to 350 RPM. Control is the M730BM (Mapps IV). It carries a 12 station turret with upper and lower turret configuration, X-axis scales on both turrets, front and rear air chucks, variable speed thread cutting cycle, auto tool presetter, programmable tailstock and a chip conveyor for chip removal. The machine can be seen under power for an inspection. See more used CNC lathes or browse our DMG Mori inventory. Use Activate Pricing to view the price, or Request a Quote and we will follow up with details.
Specifications
| Chuck Size |
36" |
|---|---|
| Bar Capacity |
20" |
| Swing |
36.6" |
| Turning Diameter |
25" |
| Spindle Speed |
350 RPM |
| Control |
M730BM (Mapps IV) |
| Distance Between Centers |
78" |
| Turret |
12 Station |
| Chip Removal |
Chip Conveyor |
Features
|
Front & Rear Air Chucks |
Upper Lower Turret |
|
Variable Speed Thread Cutting Cycle |
X-Axis Scales on Both Turrets |
|
Auto Tool Presetter |
Programmable Tailstock |
