Year |
2013 |
|---|---|
Make |
Tsugami |
Model |
SS26 |
Description |
CNC Swiss Lathe |
Reference # |
8072114 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

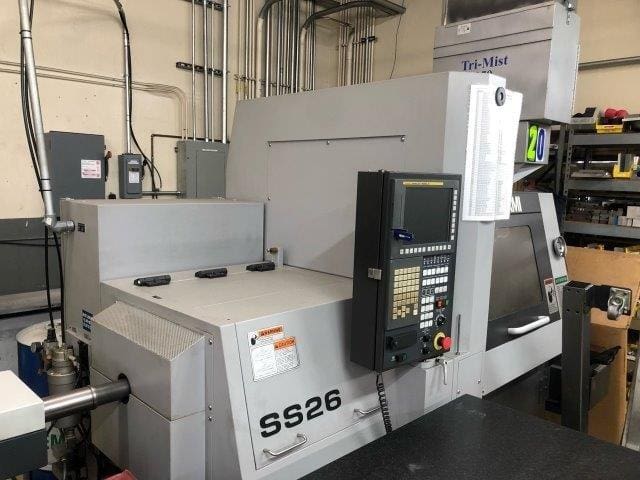

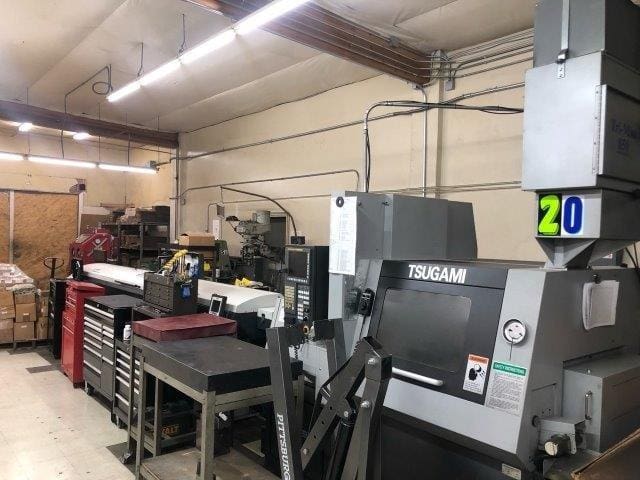

Used Tsugami SS26 (2013) CNC Swiss Lathe for Sale. This pre-owned Tsugami CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Tsugami CNC Swiss Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bar Capacity |
1.02" |
|---|---|
| Control |
Fanuc 32iB |

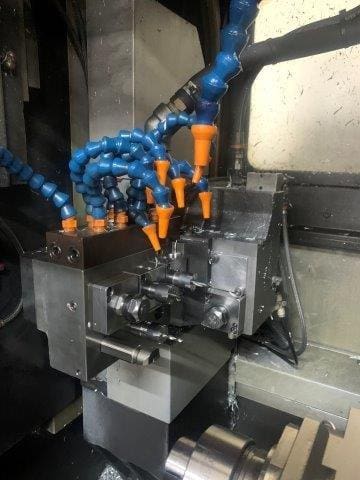

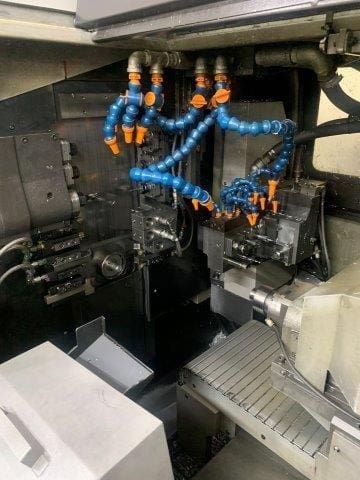

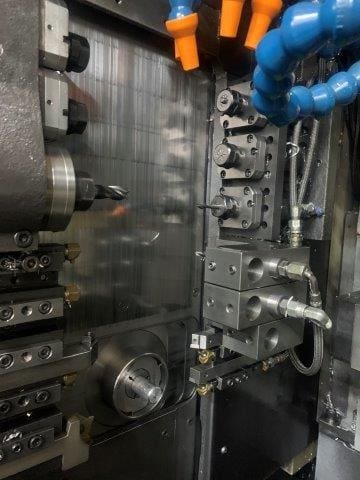

| Live Tooling |
Yes |

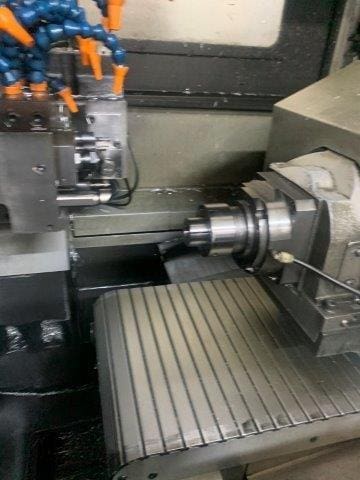

| Main/Sub Spindle |
200-10,000 RPM |
| Max Length With/Without Guide Bushing |
10.62"/1.97" |
| Live Tool Speed |
5,000 RPM |
| Tool Positions (Standard/Max) |
24/40 |
| Live Tool Positions (Standard/Max) |
10/13 |
| Chip Removal |
LNS Chip Conveyor |
| Main Spindle Motor |
3.7/5.5kW |
| Power Requirement |
9 KVA |
| Machine Weight |
9,000 Lbs |
Features
|

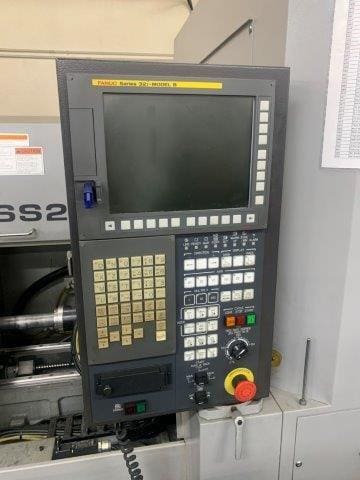

10.4" Color LCD Display |
Coolant Tank |
|
Sliding Headstock Guide Bushing |
7-Axes (X1/Z1/Y1/X2/Z2/Y2/C1) |
|
Tri-Mist Model 850 Mist Collector |
CD25 Guide Bushing Collet |
|
Dual Parts Catcher Front and Rear |

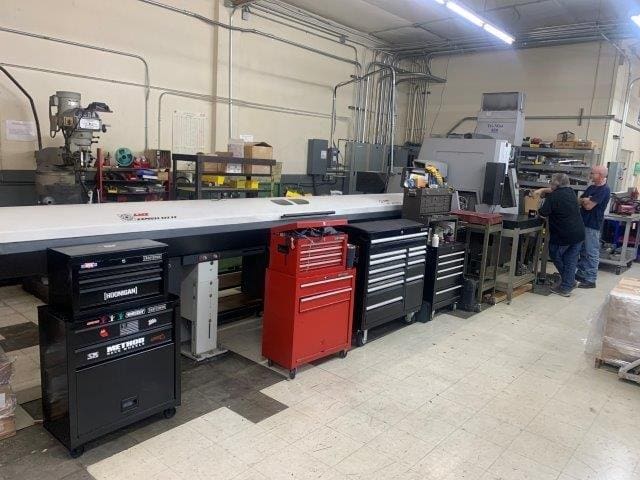

LNS Express 332 S2 Barfeeder |
|
MP Systems Model S2 High Pressure Unit |
