Year |
2013 |
|---|---|
Make |
Mazak |
Model |
VCN 700E/40-II |
Description |
CNC Vertical Machining Center |
Reference # |
8074786 |
Price |
Activate Pricing |

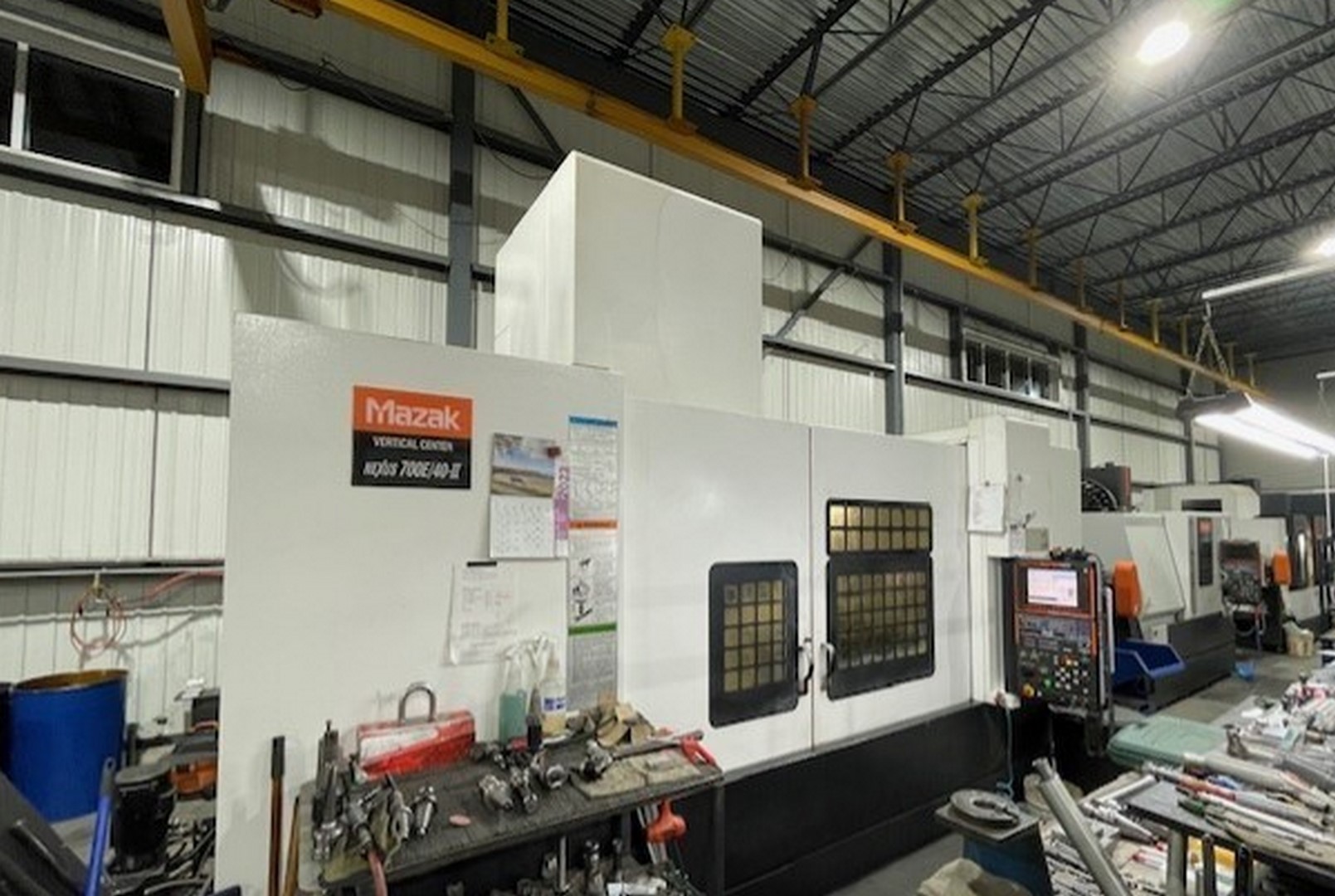

Used Mazak VCN 700E/40-II (2013) CNC Vertical Machining Center for Sale. This machine offers 80″ of X-axis travel, 27.6″ in Y and 26.3″ in Z, with a 30 HP spindle rated to 12,000 RPM and a CAT 40 taper. Tool changes are handled by a 48-station ATC, and the machine runs a Mazatrol Matrix Nexus control. A chip conveyor is fitted, and the machine is equipped with Renishaw OMP-60 touch probing, a Renishaw TS27R tool length and diameter setter, and a remote pulse generator. Approximate dimensions are 162″ x 139″ x 140″ (LWH) with an approximate weight of 26,500 lbs. It can be seen under power for an inspection. Browse more CNC vertical machining centers or other Mazak machines, then Activate Pricing and Request a Quote.
Specifications
| X-Axis Travel |
80" |
|---|---|
| Y-Axis Travel |
27.6" |
| Z-Axis Travel |
26.3" |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
30 HP |
| Tool Magazine Capacity |
48 ATC |
| Control |
Mazatrol Matrix Nexus |
| Chip Removal |
Chip Conveyor |
| Approx. Machine Dimensions |
162” X 139” X 140” (LWH) |
| Approx. Machine Weight |
26,500 Lbs |
Features
|
Renishaw OMP-60 Touch Probing |
Renishaw TS27R Tool Length & Diameter Setter |
|
Remote Pulse Generator |
