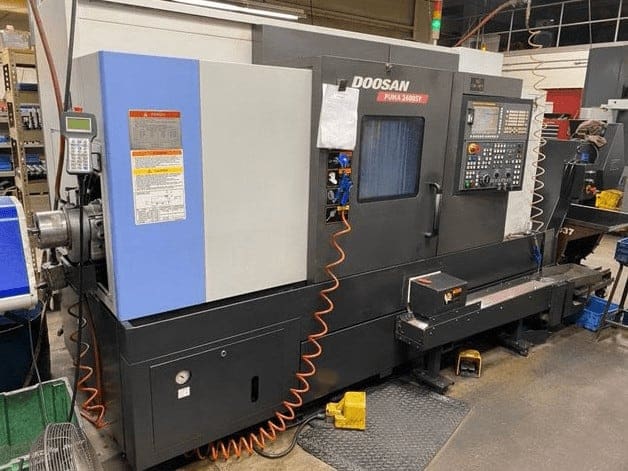

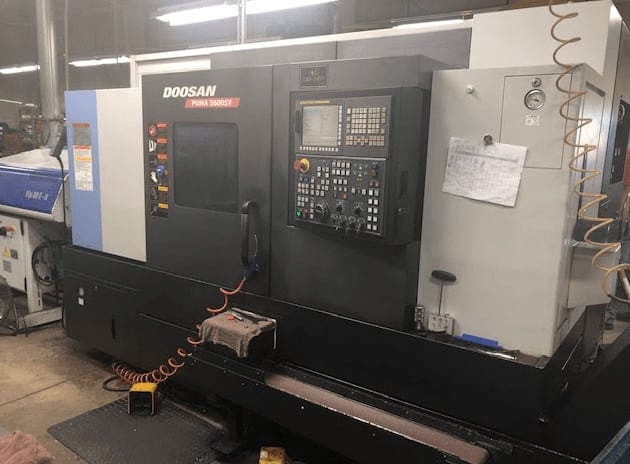

Year |
2013 |
|---|---|
Make |
Doosan |
Model |
Puma 2600SY |
Description |
CNC Lathe |
Reference # |
8070024 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3" |
| Swing |
30.7" |
| Turning Diameter |
14.8" |
| Spindle Speed |
4,000 RPM |
| Control |
Fanuc 31iMA |
| Distance Between Centers |
29.9" |

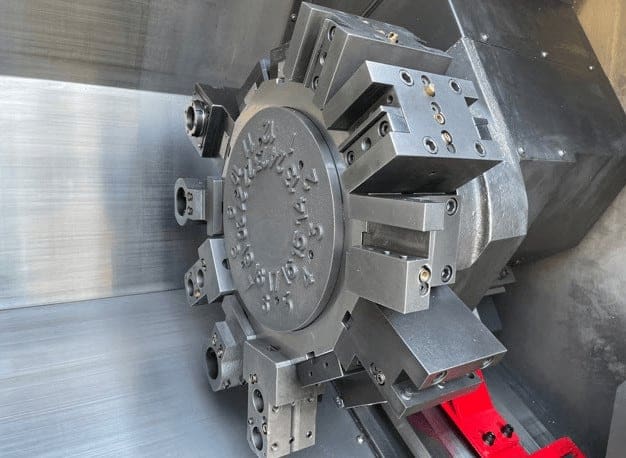

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Milling Motor |
7.5 HP |
| Sub Spindle Motor |
20 HP |
| Sub Spindle Speed |
6,000 RPM |
| Machine Dimensions |
153" x 74" x 85" |
| Machine Weight |
14,000 lbs |
Features
|
Auto Tool Presetter |
(2) Double Boring Bar Holders |
|
(2) OD Live Holders |
(2) Tandem Turning Holders |
|
(2) Turning Holders |
(5) Spindle Liners |
|
10" & 8" Hydraulic Chuck |
S30 Collet for Main Spindle |
|
Parts Catcher |
Parts Conveyor |
|

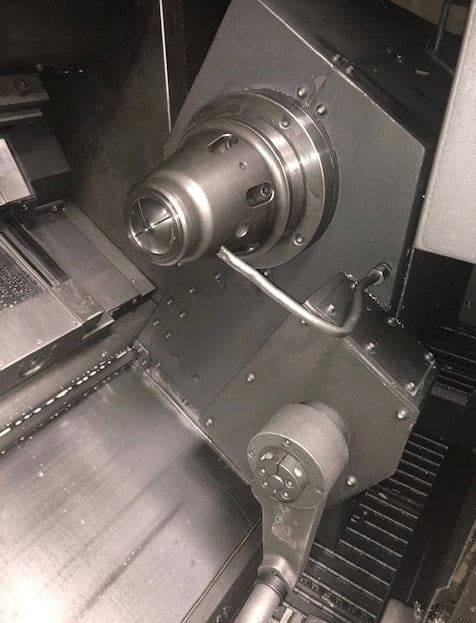

Sub Spindle |
USB Port |
|
(1) Face Live Holder |
(1) Facing Holder |
|

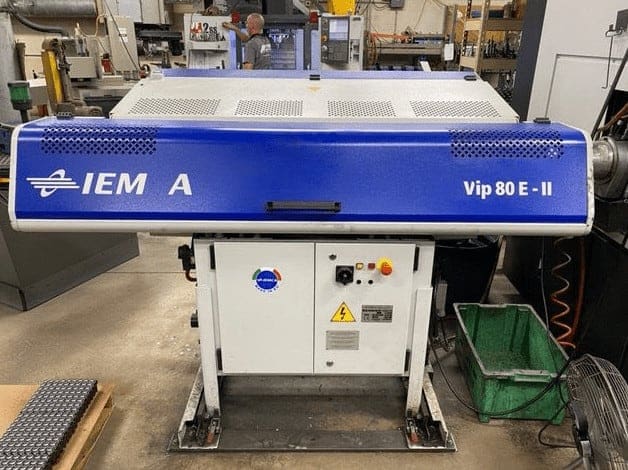

Bar Feed Included |
(2) Boring Bar Holders |
