Year |
2012 |
|---|---|
Make |
Trumpf |
Model |
TruLaser 2030 |
Description |
5' x 10' CNC Laser |
Reference # |
8069634 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
3,200 |
| X-Axis Travel |
120" |
| Y-Axis Travel |
60" |
| Z-Axis Travel |
4.5" |

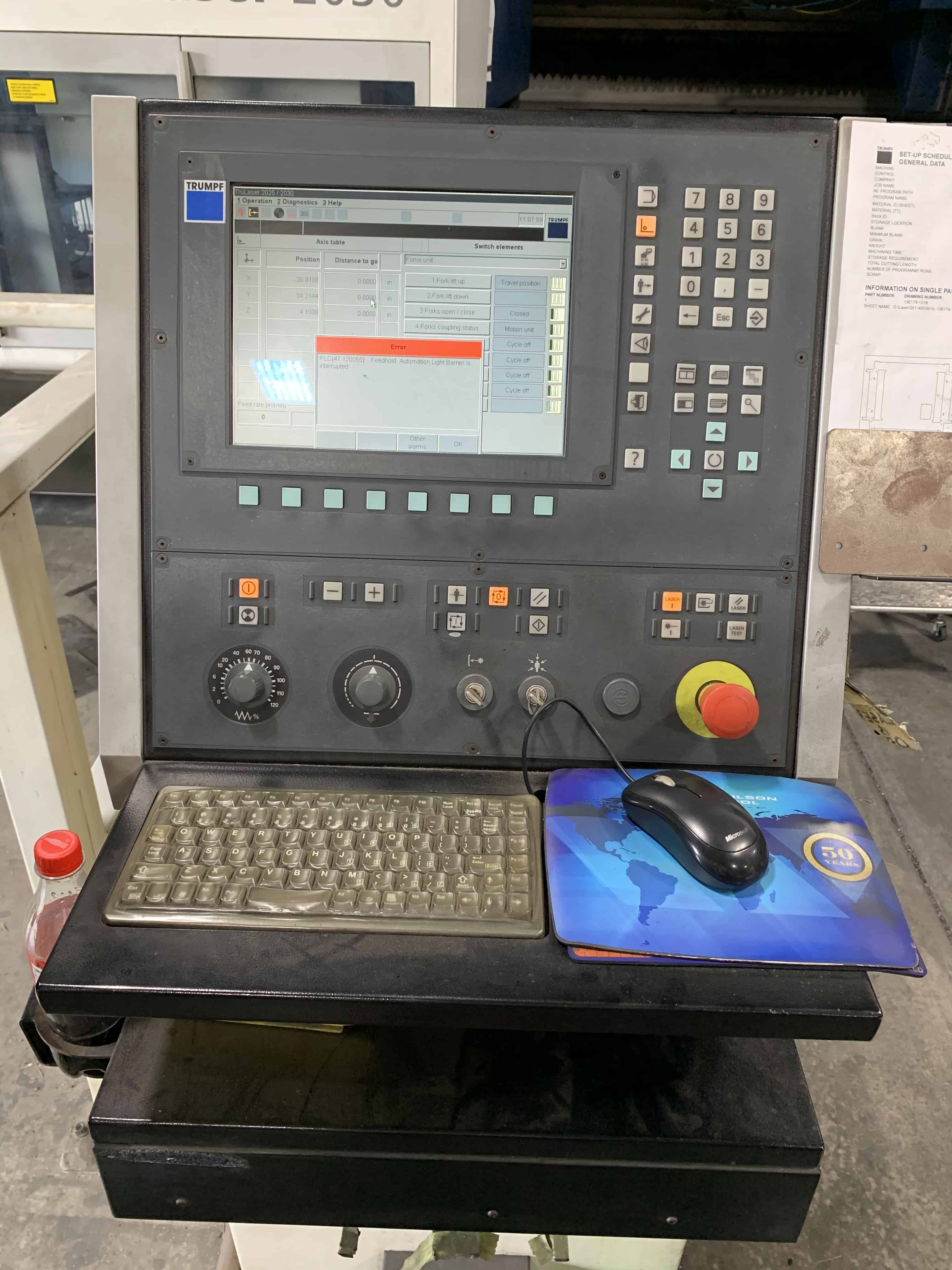

| Control |
Siemens |

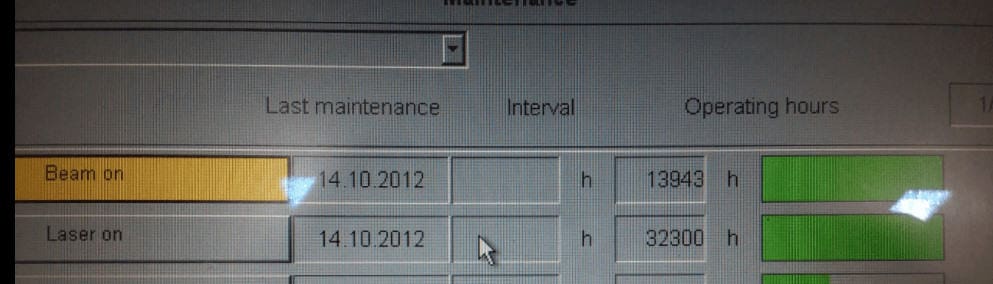

| Hours |
14,000 |
| Power Requirement |
460/3/60 |
| Resonator |
Trucoax 3200 |
| Accuracy |
0.004" |
| Repeatability |
0.001" |
| Max Position Speed X Axis |
4,724 IPM |
| Max Position Speed Y Axis |
4,724 IPM |
| Simultaneous Positioning Speed |
6,693 IPM |
| Mild Steel Capacity |
3/4" |
| Stainless Steel Capacity |
3/8" |
| Aluminum Capacity |
5/16" |
Features
|
Chiller Unit |
Dust Collector |
|
Trucoax 3200 Resonator |
Load and Unload System |
*
