Year |
2012 |
|---|---|
Make |
Tongtai |
Model |
HB-630 |
Description |
CNC Horizontal Machining Center |
Reference # |
8072676 |
Price |
Activate Pricing |

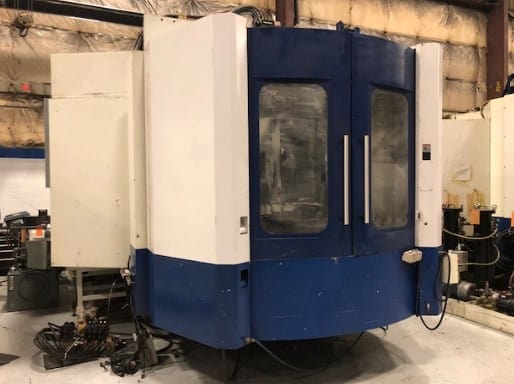

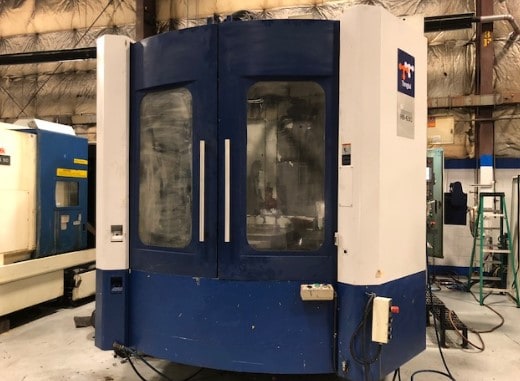

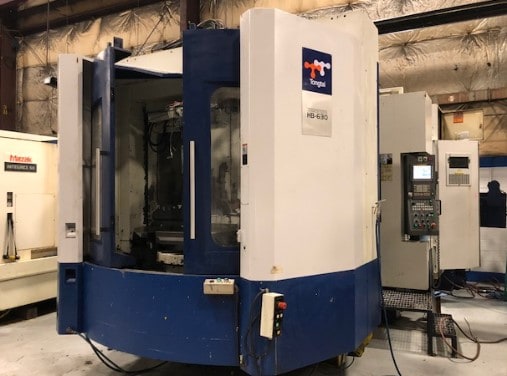

Used Tongtai HB-630 (2012) CNC Horizontal Machining Center for Sale. This machine has a 630 mm pallet measuring 24.8″ x 24.8″, with a maximum pallet load of 2,646 lbs and full 4th axis pallet indexing. Travels are 41.3″ in X, 33.5″ in Y and 38.2″ in Z. The spindle runs to 10,000 RPM with a CAT 50 taper, and the 60-station ATC is controlled by a Fanuc 31IMB. It includes a standard coolant system, 5th and 6th axis Fanuc servo drive modules and cabling, extended height sheet metal raising max part height to 47.24″, and a separate hydraulic package for the clamp system. It can be seen under power for an inspection. See more CNC horizontal machining centers, [Activate Pricing](#activate-pricing), or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
630 |
|---|---|
| Pallet Size |
24.8" x 24.8" |
| X-Axis Travel |
41.3" |
| Y-Axis Travel |
33.5" |
| Z-Axis Travel |
38.2" |
| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
10,000 RPM |
| Spindle Taper |
CAT 50 |
| Control |
Fanuc 31IMB |
| Pallet Indexing |
Full 4th Axis |
| Coolant |
Standard Coolant System |
| Max Pallet Load |
2,646 Lbs |
Features
|
5th & 6th Axis Fanuc Servo Drive Modules and Cabling |
Extended Height Sheet Metal (Raising Max Part Height to 47.24″) |
|
Separate Hydraulic Pkg for Clamp System |
