Year |
2012 |
|---|---|
Make |
Ocean |
Model |
Clipper |
Description |
CNC Angle Line |
Reference # |
8074509 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

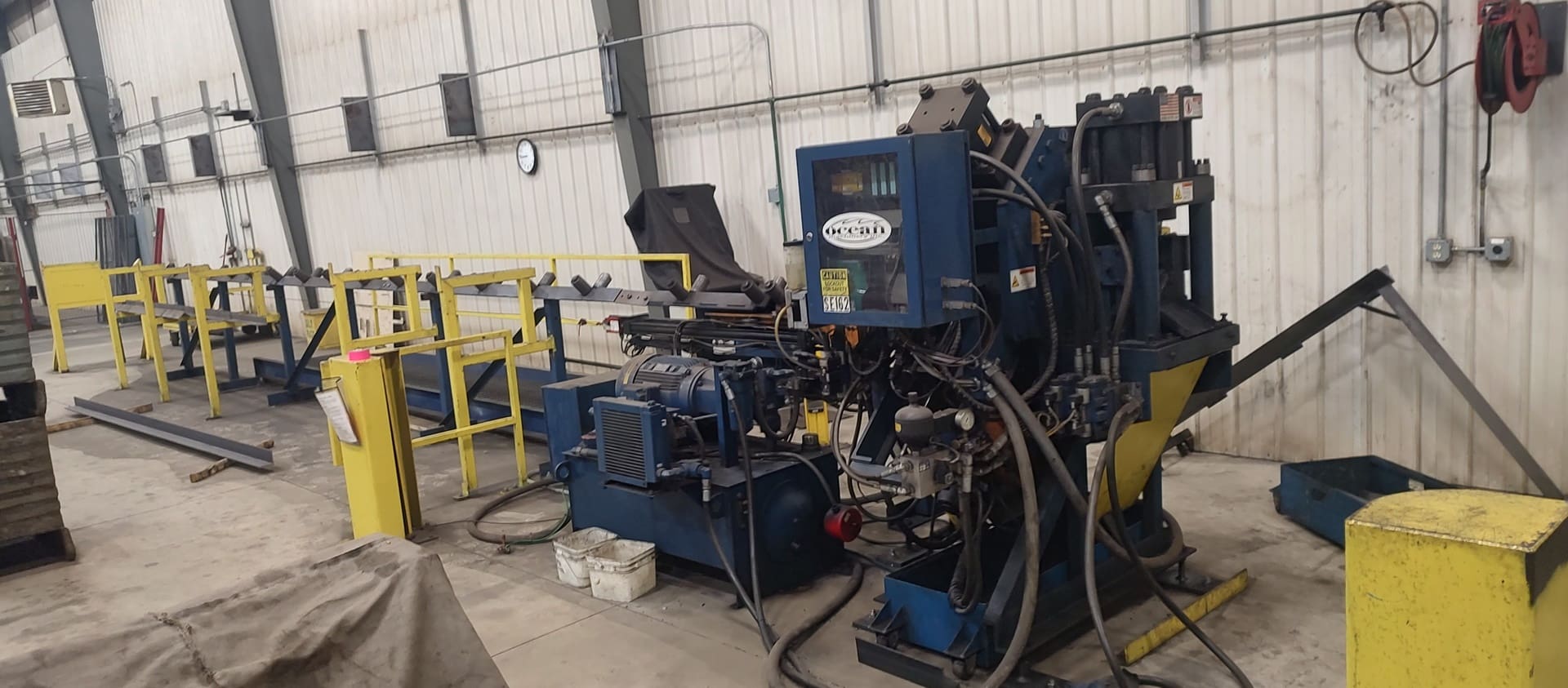

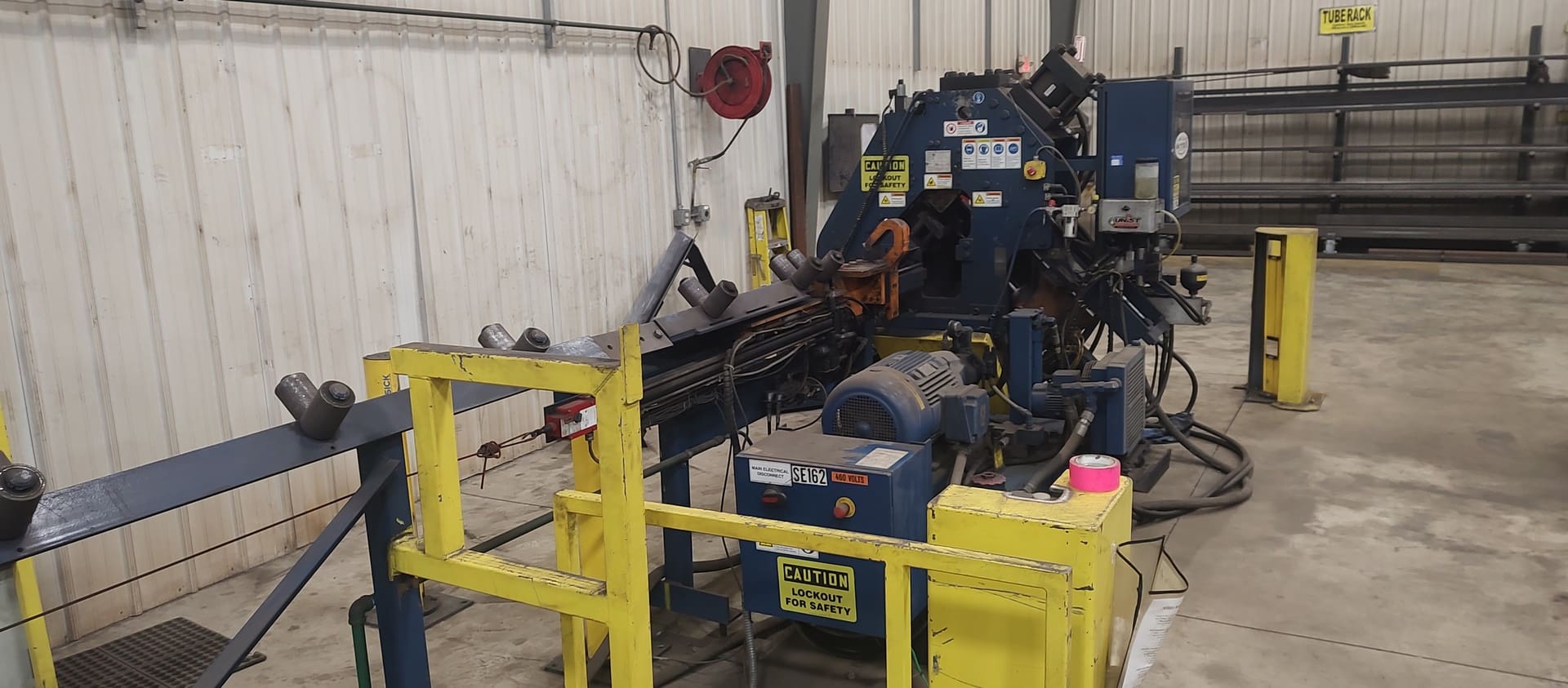

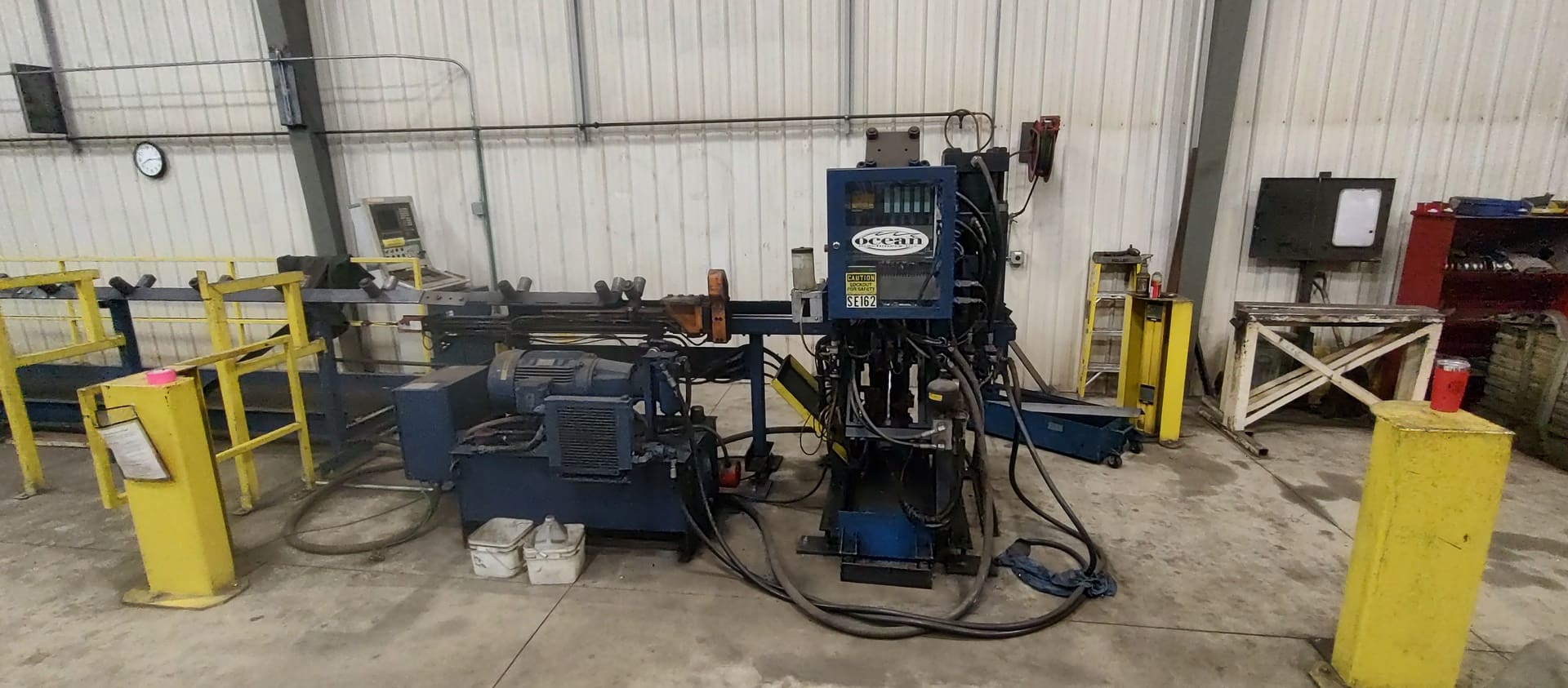

Ocean Clipper
Specifications
| Min Angle Size |
1-1/2" x 1-1/2"x1/8" |
|---|---|
| Max Angle Size |
6" x 6" x 5/8" |
| Min Hole Diameter |
5/16" |
| Max Hole Diameter |
1-9/16 |
| Min/Max Drill Gauge |
0.5" / 5.5" |
| Punching Tonnage |
75 Tons |
| Infeed Length |
20' |
| Max Slot Size |
1-1/4" |
| Shear Tonnage |
100 Ton |
| Shear Cycle Time |
5 Seconds |
| Minimum Drop |
8.125" |
| Slug Size |
1/2" |
| Max X-Axis Stroke |
50" |
| Machine Pass Line |
45" |
| Power Requirement |
480/3/60 |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
