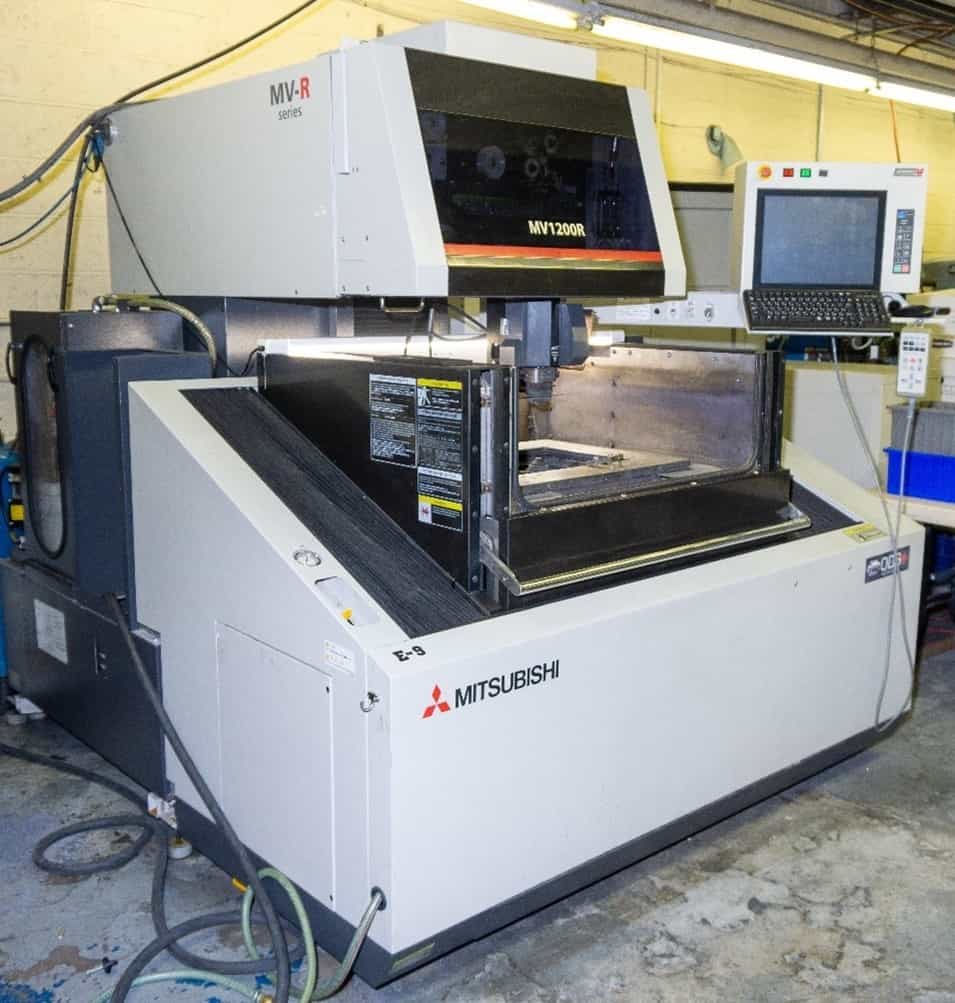

Year |
2012 |
|---|---|
Make |
Mitsubishi |
Model |
MV1200R |
Description |
EDM Wire |
Reference # |
8069499 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
15.7" |
|---|---|
| Y-Axis Travel |
11.8" |
| Z-Axis Travel |
8.7" |
| Control |
M700 Series |
| U/V Axis Travel |
2.4" x 2.4" |
| Degree Taper Cutting |
+-30 Deg Max / +-15 Deg @ 8" |

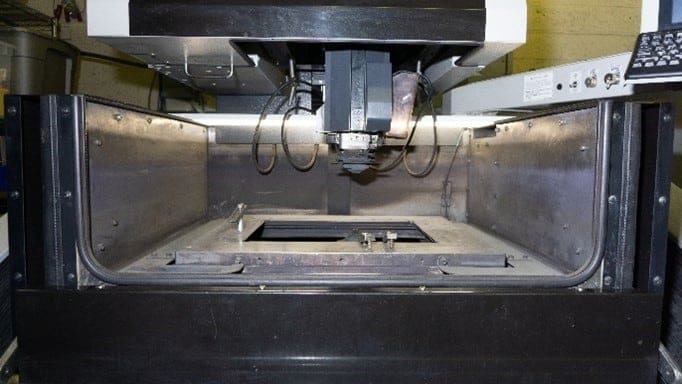

| Inside Tank Dimensions |
31.9" x 27.6" |
| Power Requirement |
200-230V |
| Table Size |
25.2" x 21.3" |
| Maximum Workpiece Size |
31.9" x 27.6" x 8.5" |
| Maximum Workpiece Weight |
1,102 lbs |
| Wire Diameter Range Possible |
0.004" - 0.012" |
| Minimum Resolution |
.000002" |
| Min Hole Diameter for Autothread |
.020" |

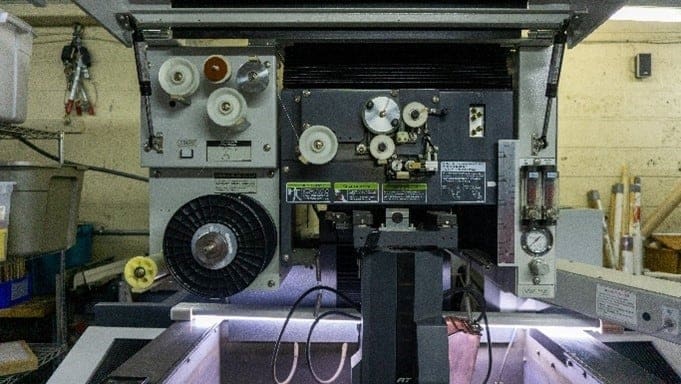

| Max Wire Spool Size |
22 Lbs |
| Filter Tank Capacity |
145 Gal |
| Air Pressure Requirements |
71-100 PSI 2.7 cu ft/min |
| Approx Dimensions (LxWxH) |
80" x 107" x 80" |
| Approx Machine Weight |
5,952 lbs |
Features
|

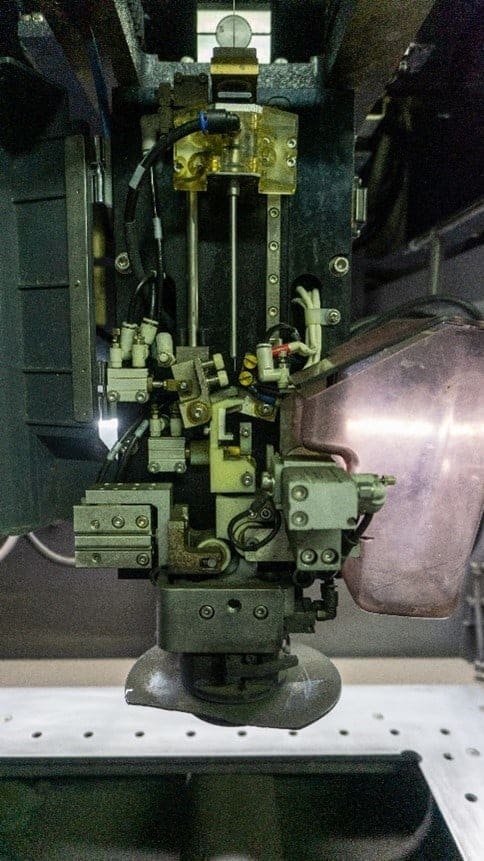

Auto Wire Threading |
Chiller |
|
Wire Chopper |
*
