Year

2012

Make

Mitsubishi

Model

EA12D

Description

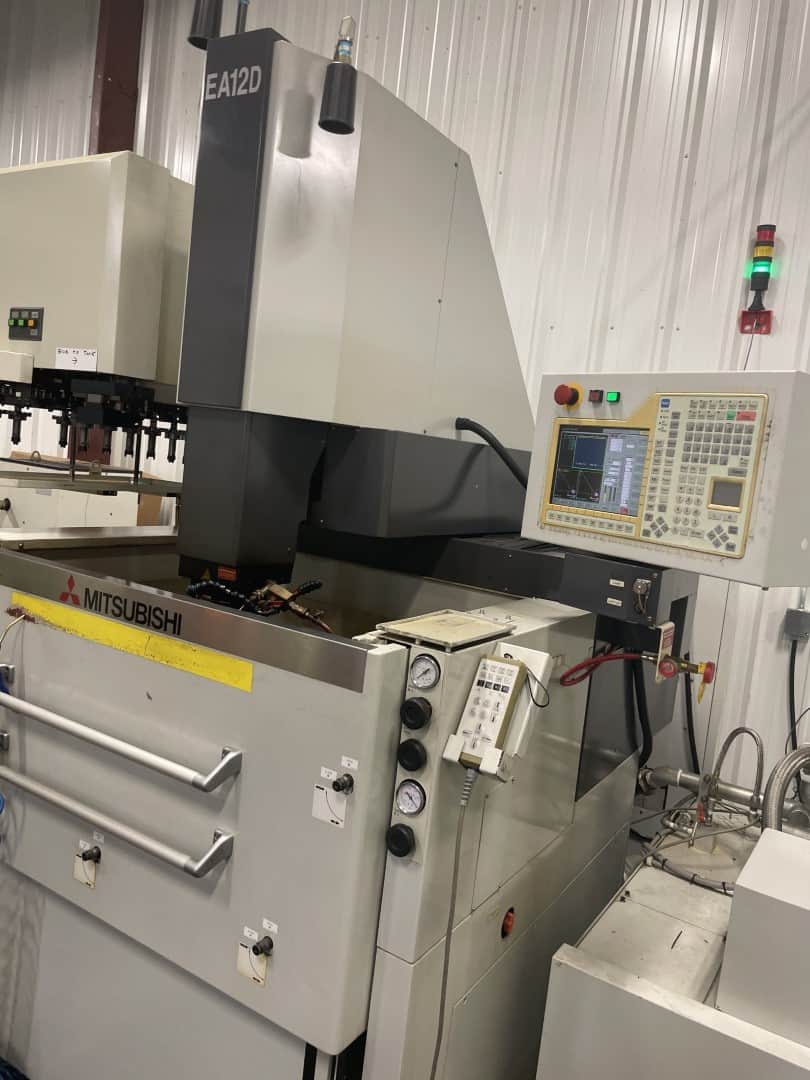

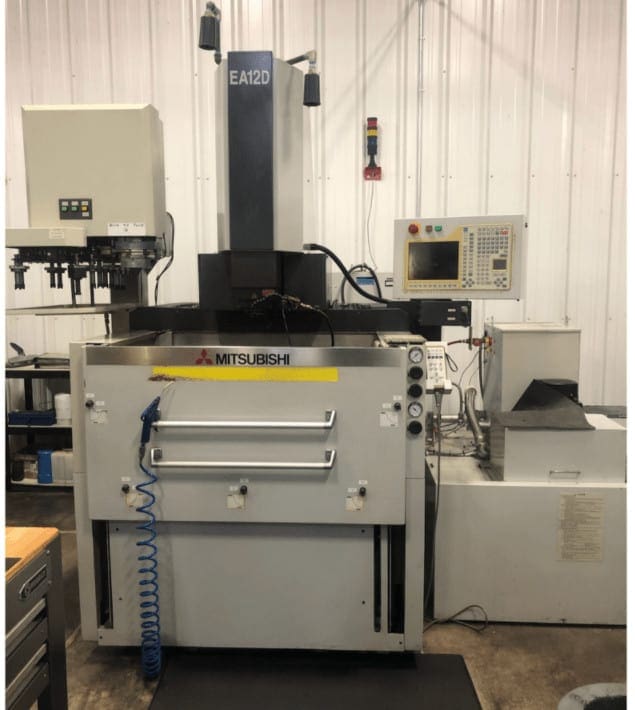

EDM Sinker

Reference #

8069809

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Specifications

X-Axis Travel

15.7"

Y-Axis Travel

11.8"

Z-Axis Travel

11.8"

Control

Fuzzy Logic

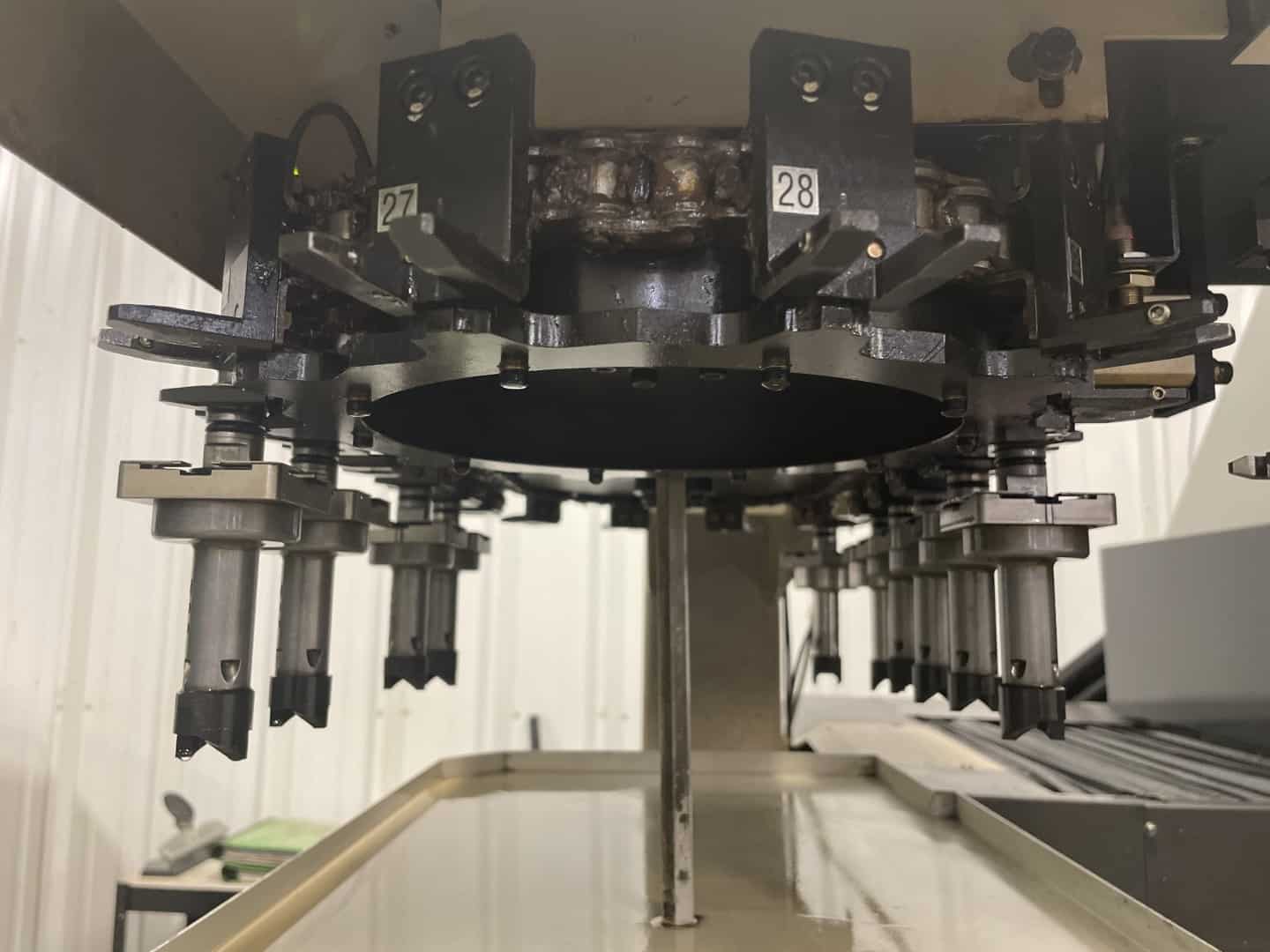

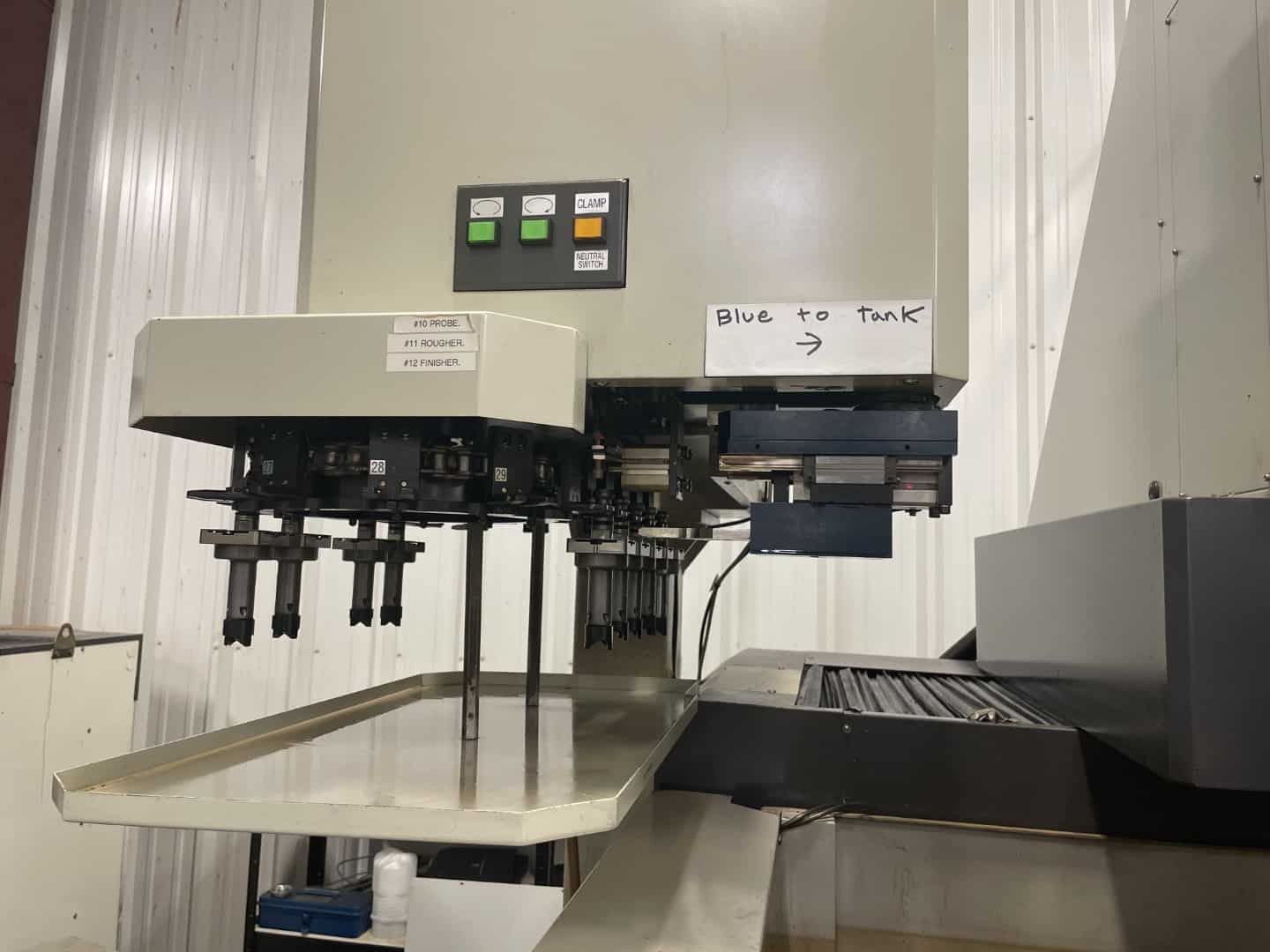

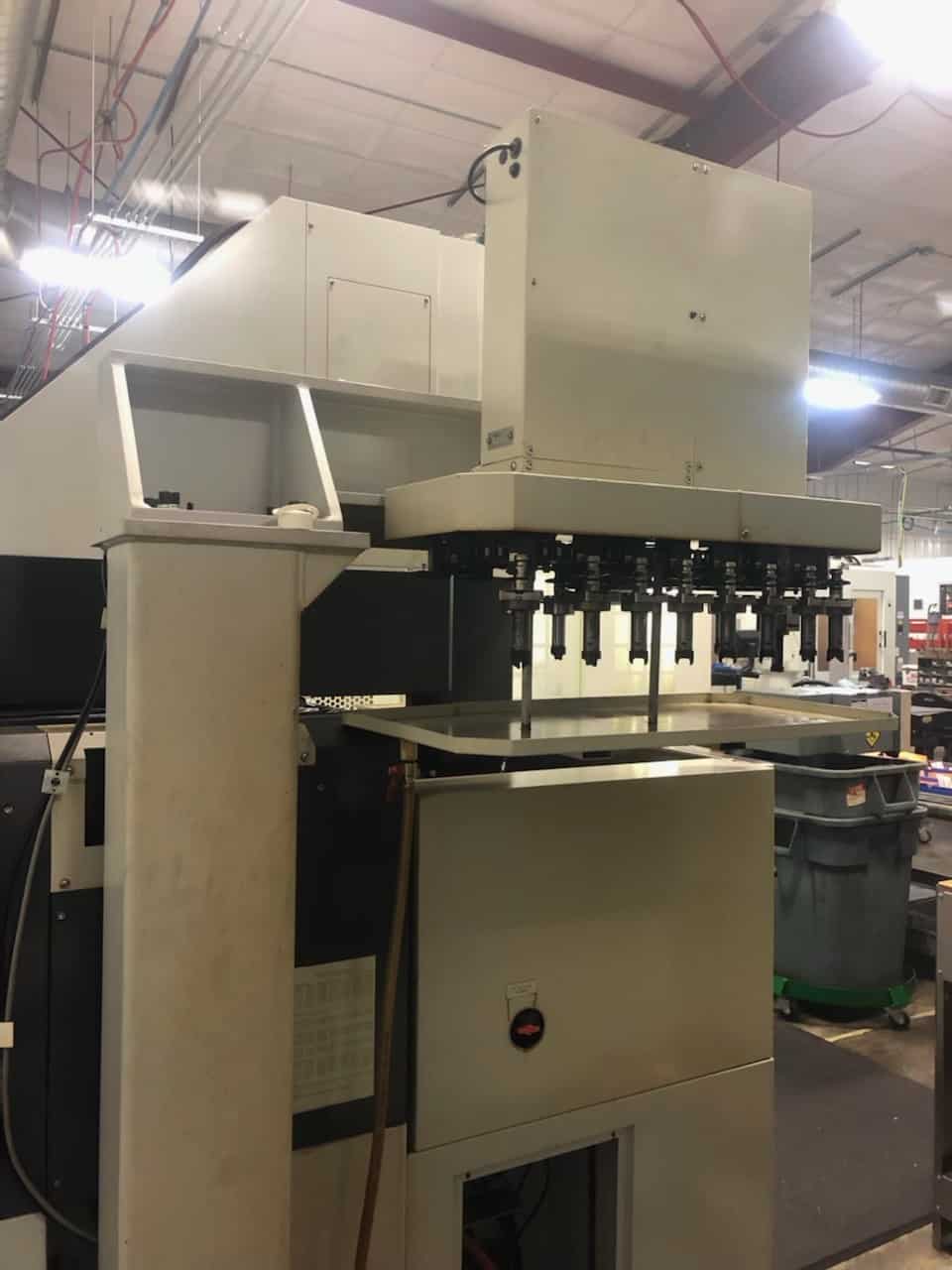

Tool Changer

20 AEC

Power Source

80 AMP

C-Axis

Yes

Chuck

3R

Power Requirement

200-220/3/60

Glass Scale Feedback

Rotary Glass Scales, Linear Scale On Z

Work Tank Internal Dimensions (W X D X H)

41.3” X 27.5” X 17.7”

Dielectric Fluid Level (Max / Min)

15.7” / 7.0”

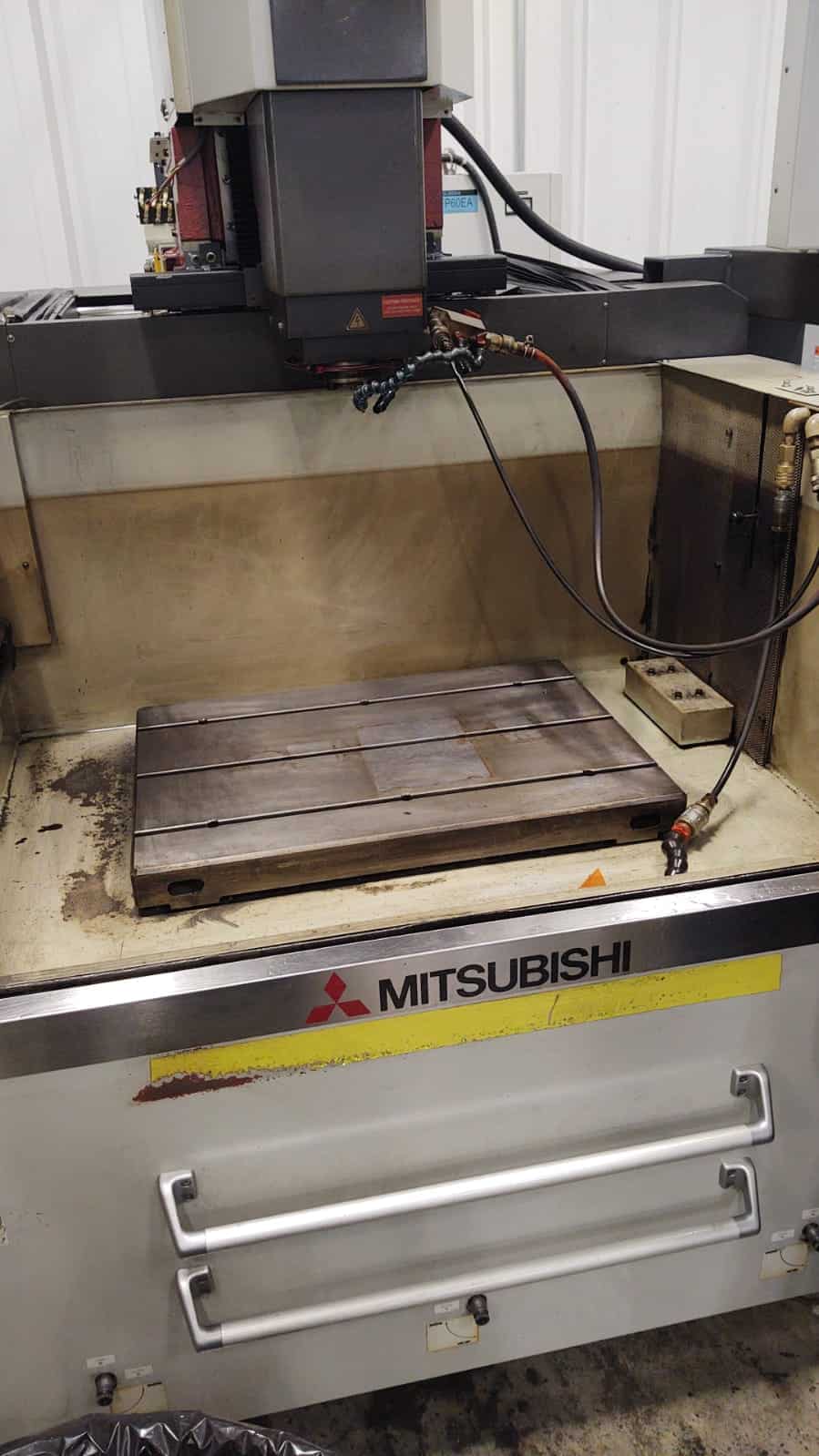

Table Dimensions (W X D)

27.5” X 19.6”

Max. Workpiece Weight

2200 lbs

Table to Platen Distance

11.8” - 23.6”

Rapid Travel Speed

78.74 IPM

Min. Command Input

.00001”

Min. Drive Resolution

.000002”

Drive Motor Type

Intelligent AC Servo

Motor Coupling Type

Direct Drive

Machine Layout Dimensions (W X D X H)

72.4” X 77.1” X 93.5”

Machine Unit Weight

8,300 lbs

Machining Current

Average / Peak 60/80

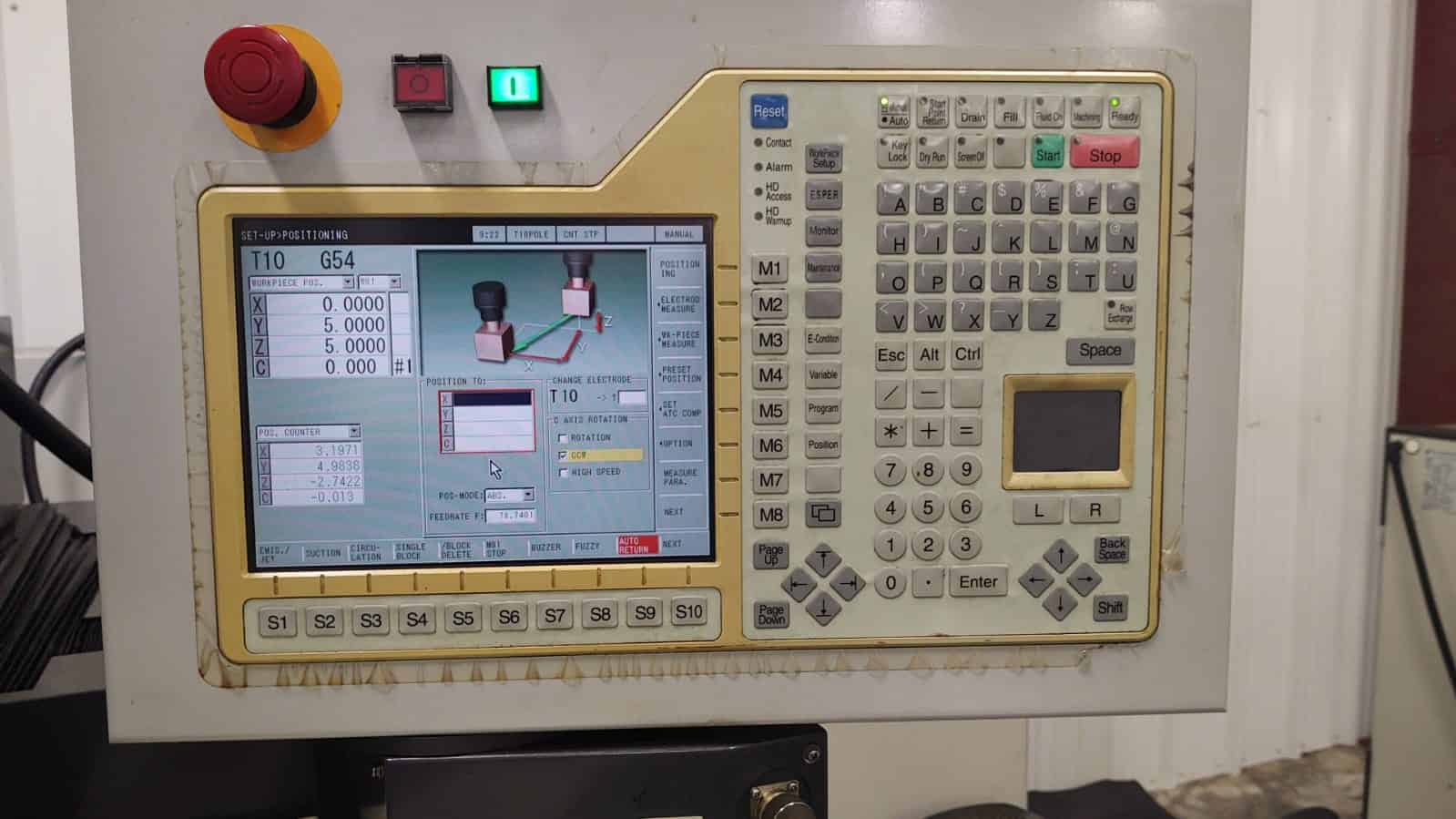

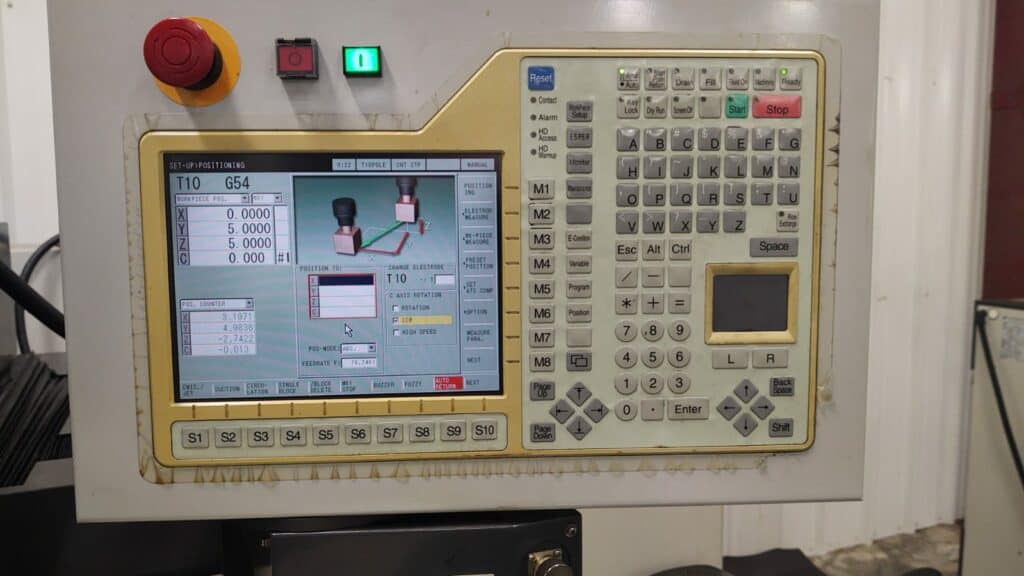

Graphic Display

10.4” TFT Color LCD

Reservoir Capacity

132 Gals

Installation Dimensions (W X D)

91.5” X 87.2”

Floor Space Requirement

55.4 sqft

Max. Electrode Weight

11 lbs

Features

Positioning Detector Optical Rotary Encoder / Scale On Z

Program Support Function E.S.P.E.R.

Rapid Fill / Drain

RS232

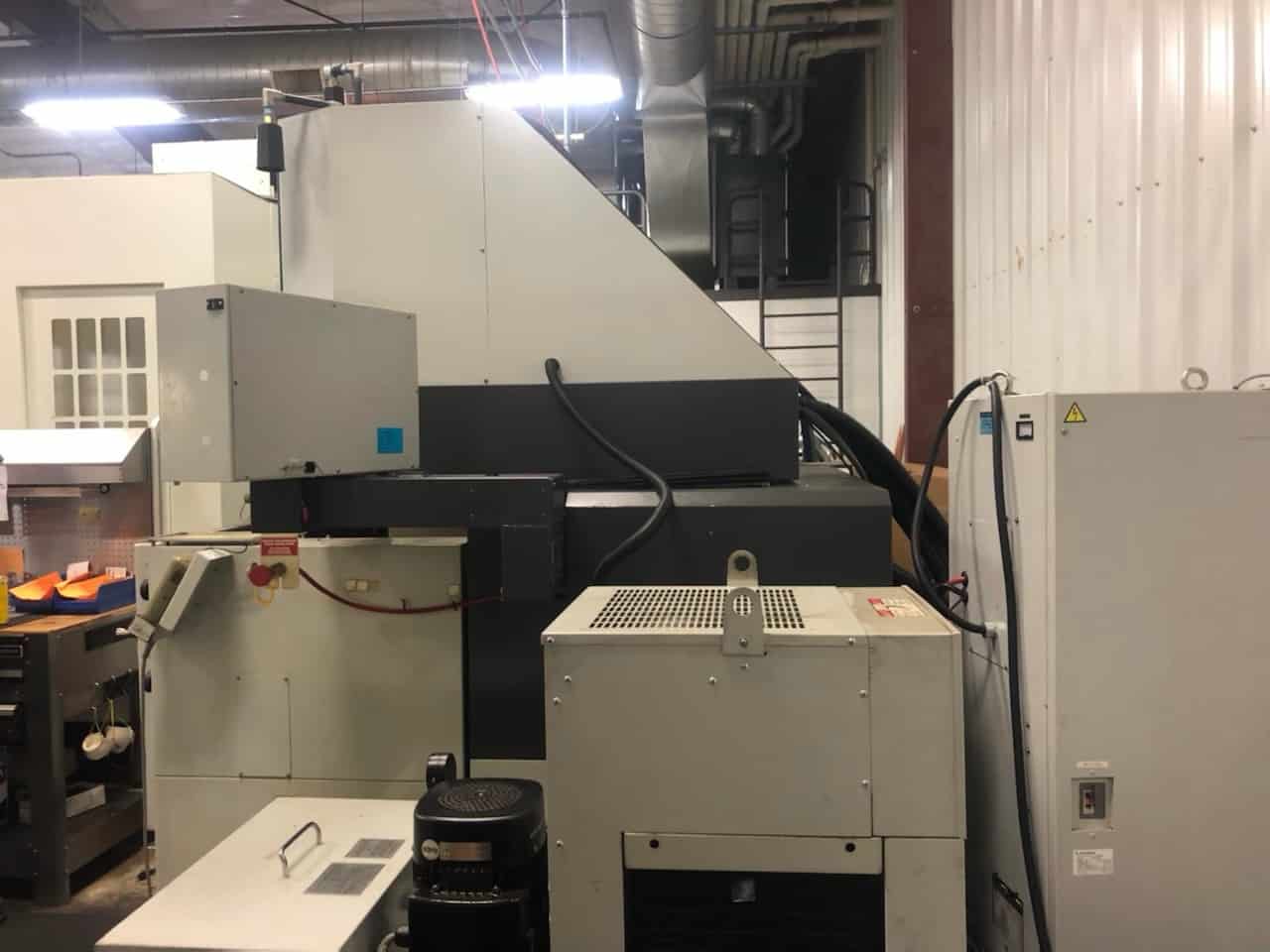

Temperature Control Chiller

Auto Lubrication

CPU / Type 64-Bit / Industrial PC

Filtering Method Paper Cartridge 1 PC

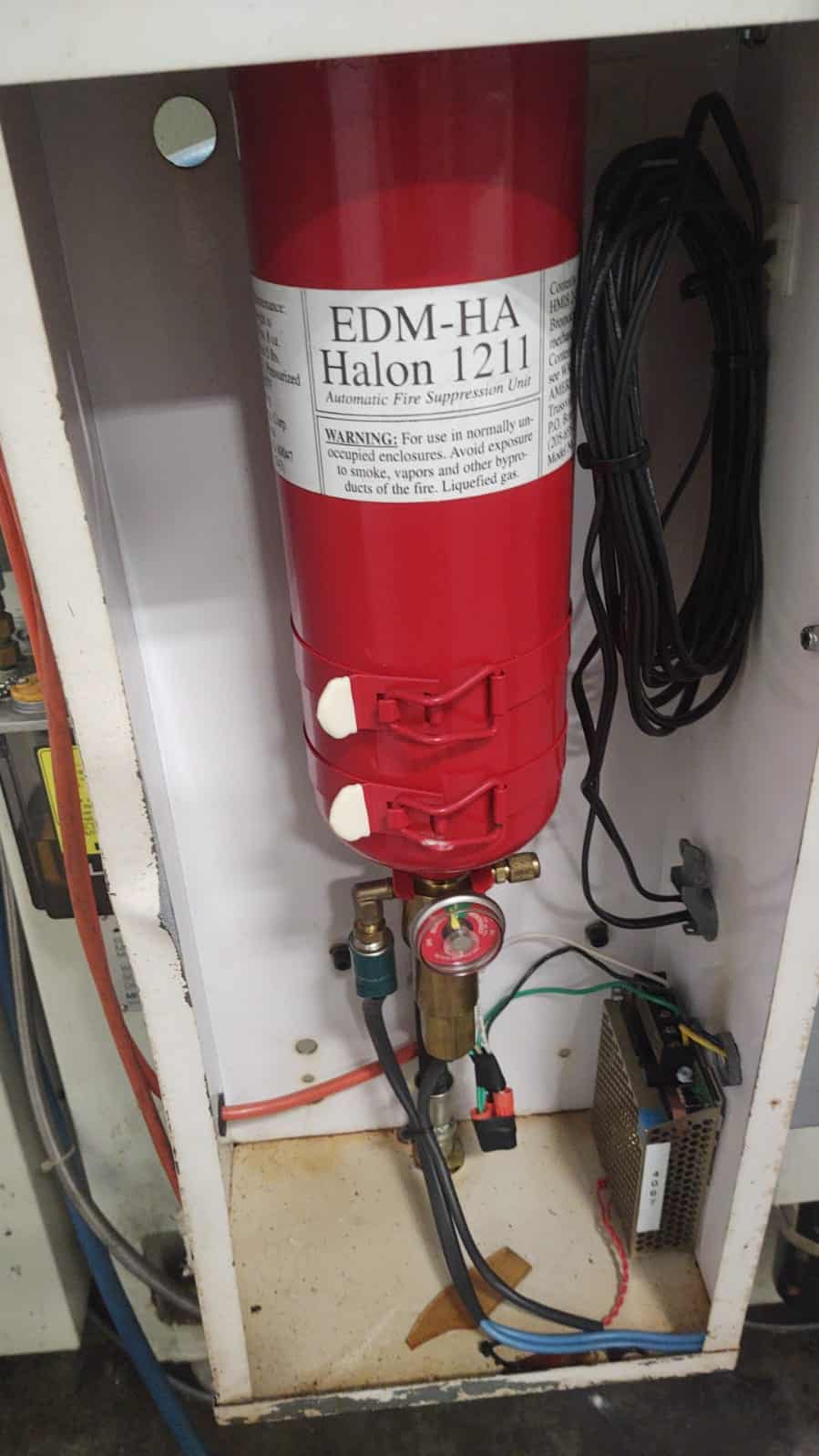

Fire Extinguisher

Machine Structure Fixed Table / Traveling Column

Machining Function Fuzzy Pro3 Plus / Orbit Pro

Work Tank Access Up / Down Style Front Door

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
