Year |
2012 |
|---|---|
Make |
Honor Seiki |
Model |
VL-100C |
Description |
CNC Vertical Turret Lathe |
Reference # |
8075075 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

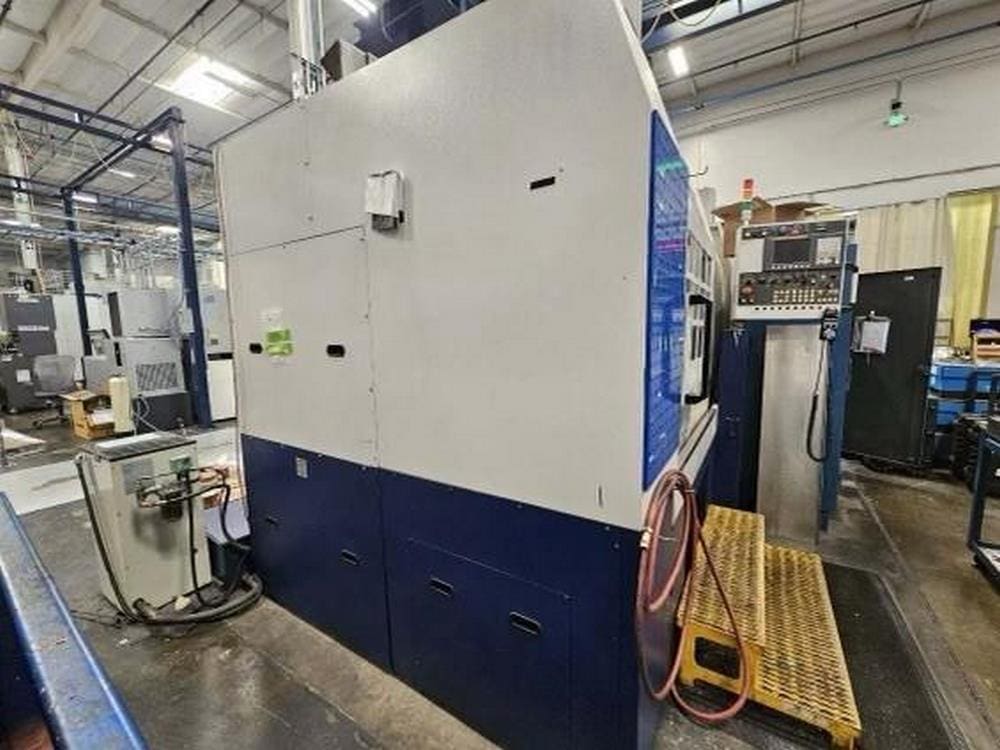

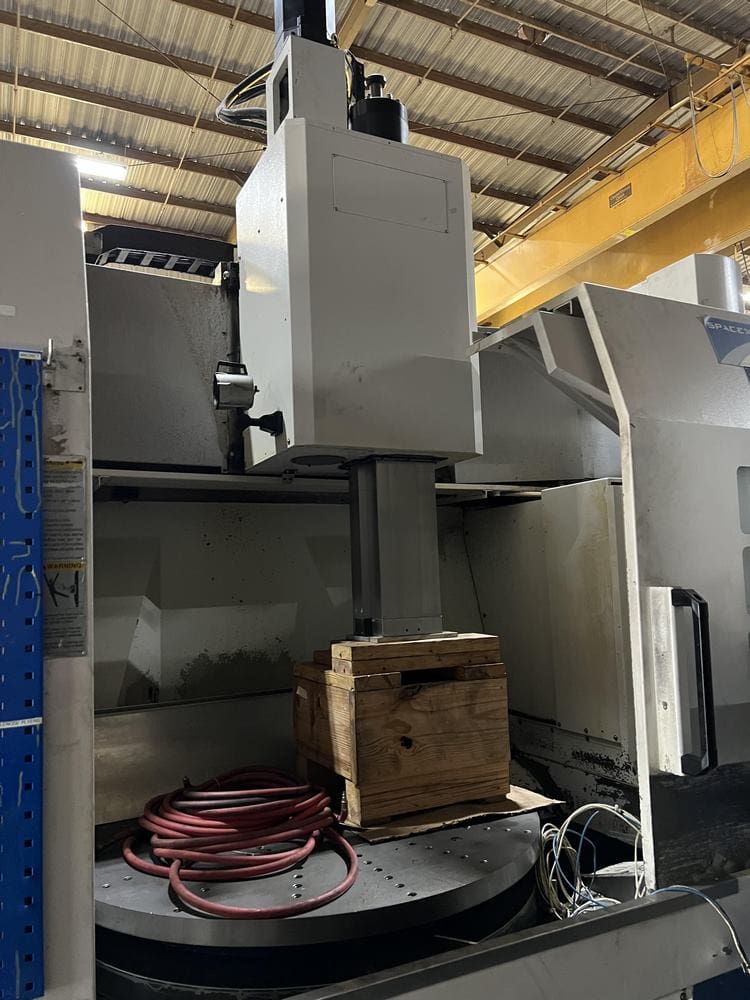

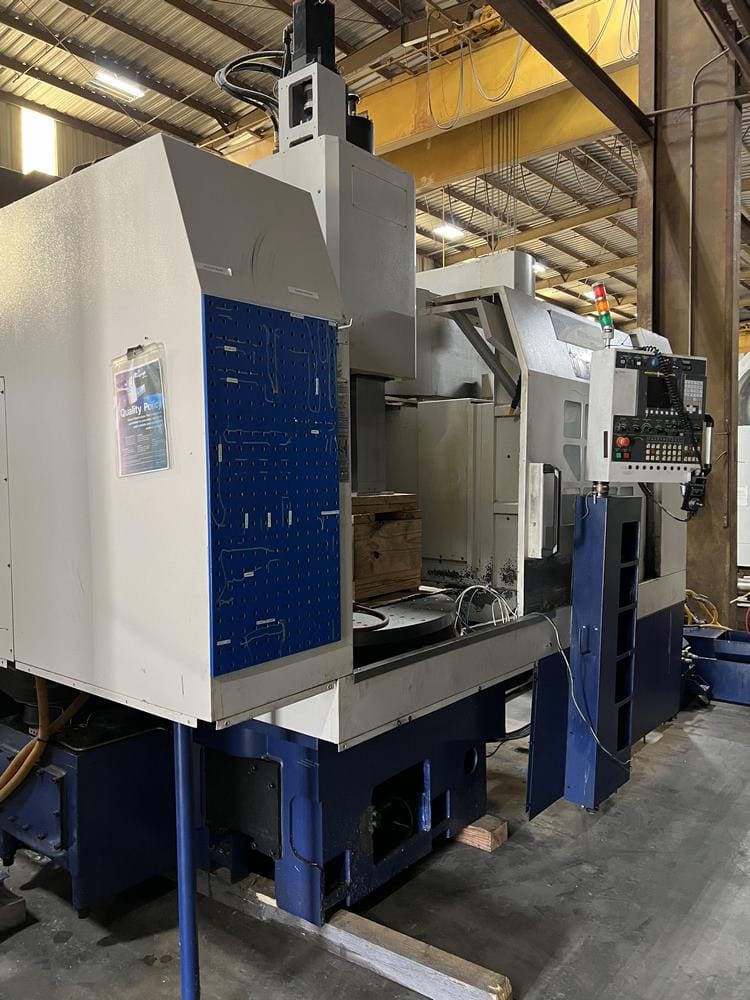

Used Honor Seiki VL-100C (2012) CNC Vertical Turret Lathe for Sale. This pre-owned Honor Seiki CNC vertical turret lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Honor Seiki Vertical Turret Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Swing |
47.24" |
|---|---|
| Turning Diameter |
43.3" |
| Spindle Speed |
400 RPM |
| Control |
Fanuc 0i-TD |
| Distance Between Centers |
15.76" |
| Turret |
12 Station |
| X-Axis Travel |
31.49" |
| Z-Axis Travel |
23.6" |
| Cross Section of Ram |
7.88" x 7.88" |
| Max Turning Height |
31.52" |
| Spindle Motor |
50 HP |
| Chip Removal |
Chip Conveyor |

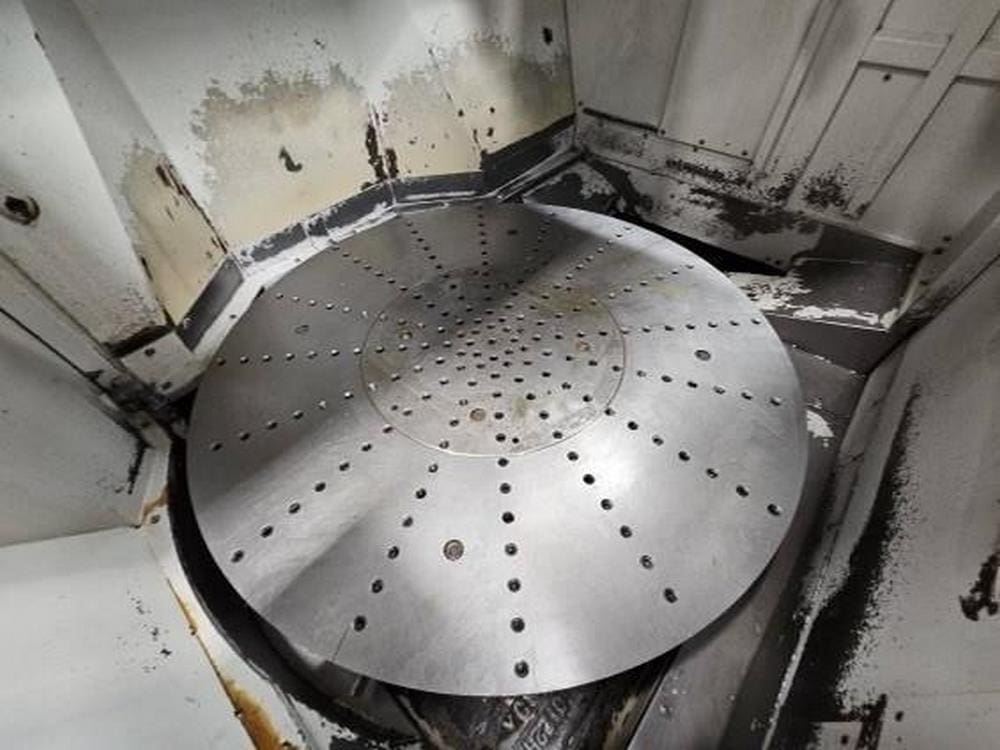

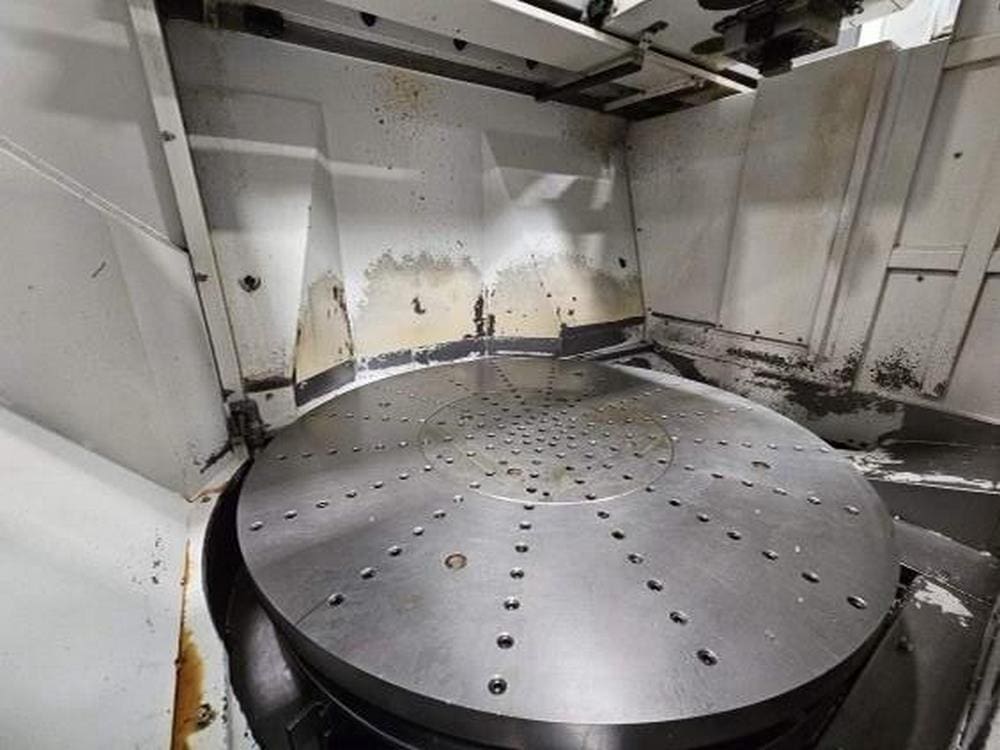

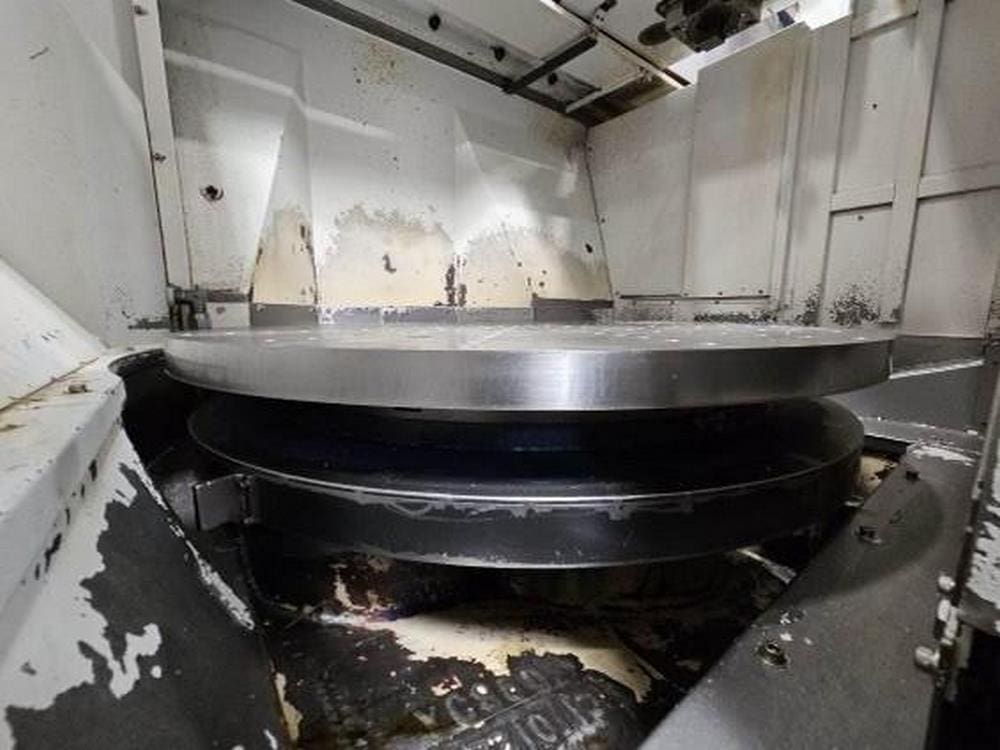

| Table Diameter |
40" |
| Max Table Load |
7,716 Lbs |
| Machine Dimensions |
129" x 111" x 144" |
| Machine Weight |
21,100 Lbs |
Features
|
BT-50 Spindle Taper |
2-Speed Gearbox |
|
Chiller Unit |
Coolant Tank and Pump |
|
Hydraulic Unit |
