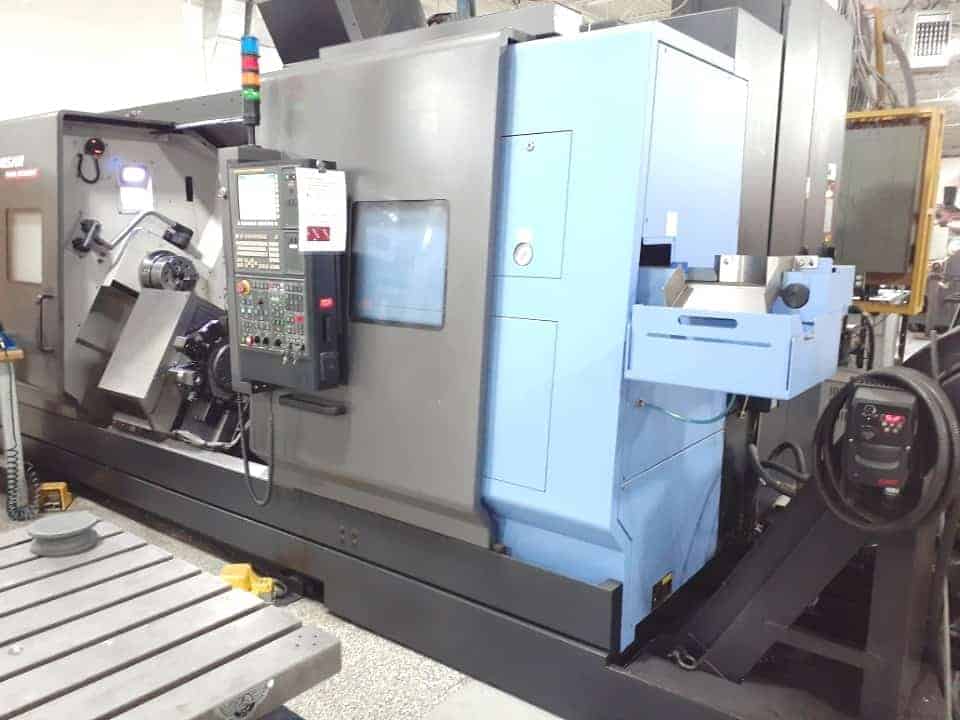

Year |
2012 |
|---|---|
Make |
Doosan |
Model |
Puma MX2600ST |
Description |

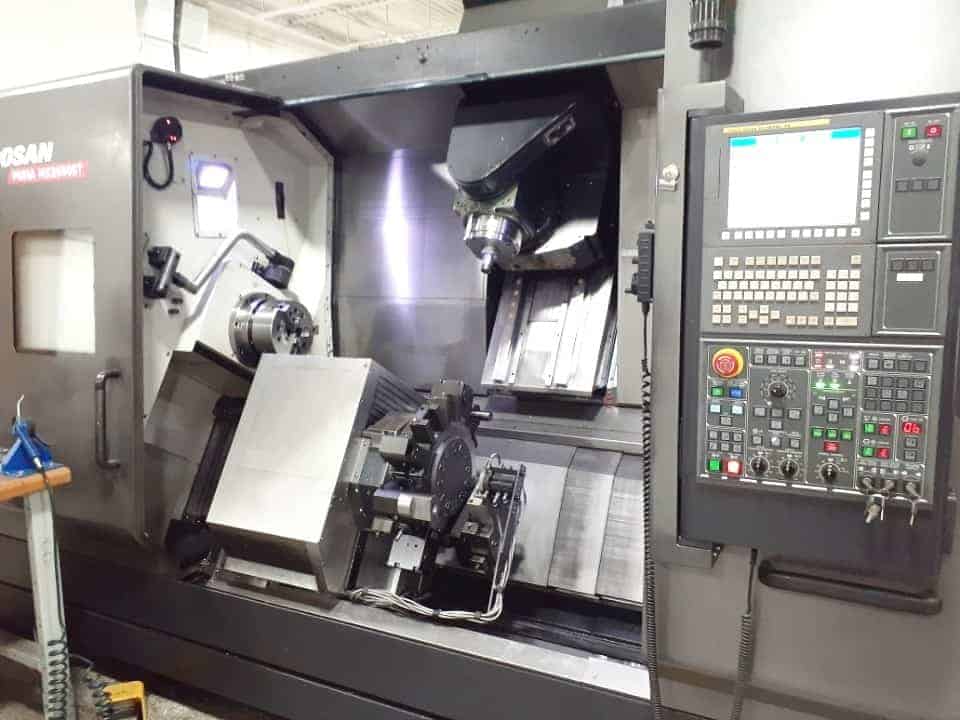

CNC Lathe |
Reference # |
8069239 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3" |
| Swing |
27.56" |
| Turning Diameter |
29.9" |
| Spindle Speed |
4,000 RPM |

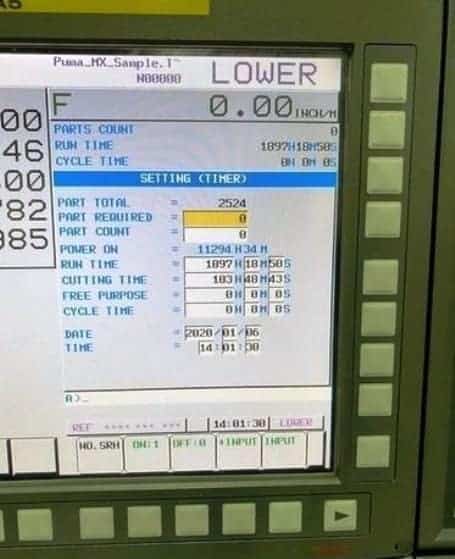

| Control |
Fanuc 31iA5 |
| Distance Between Centers |
72.2" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
220/3ph |
| Max Turning Length |
60.6" |
| Spindle Nose |
A2-8 |
| Left Spindle Draw Tube I.D. |
3.03" |
| Right Spindle Draw Tube I.D. |
2.95" |

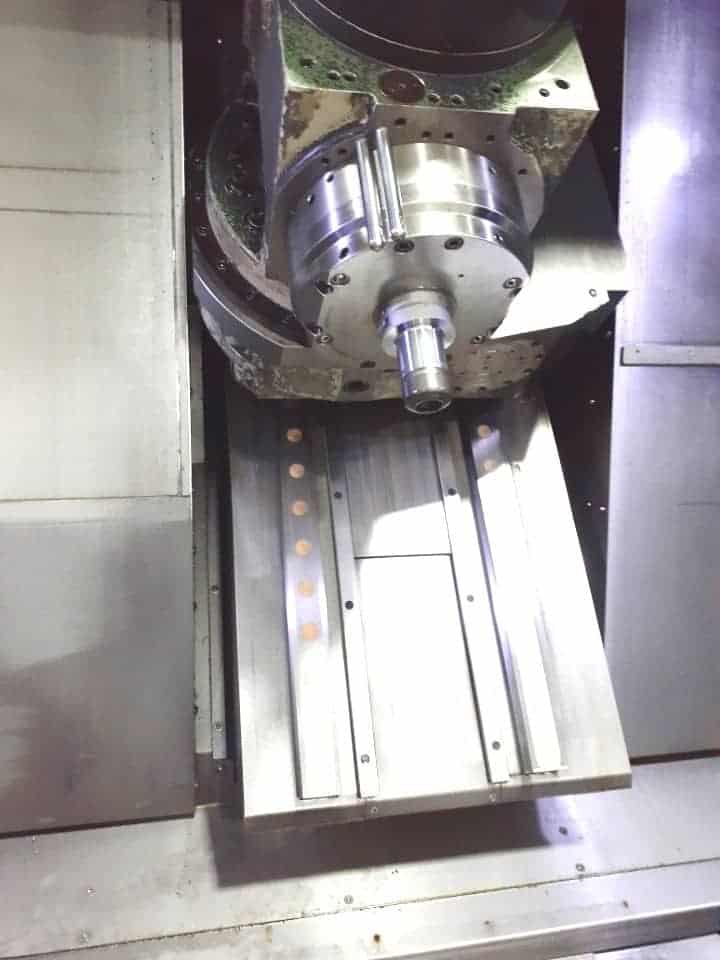

| Milling Spindle Speed |
12,000 RPM |
| Milling Spindle Motor Power |
30 HP |

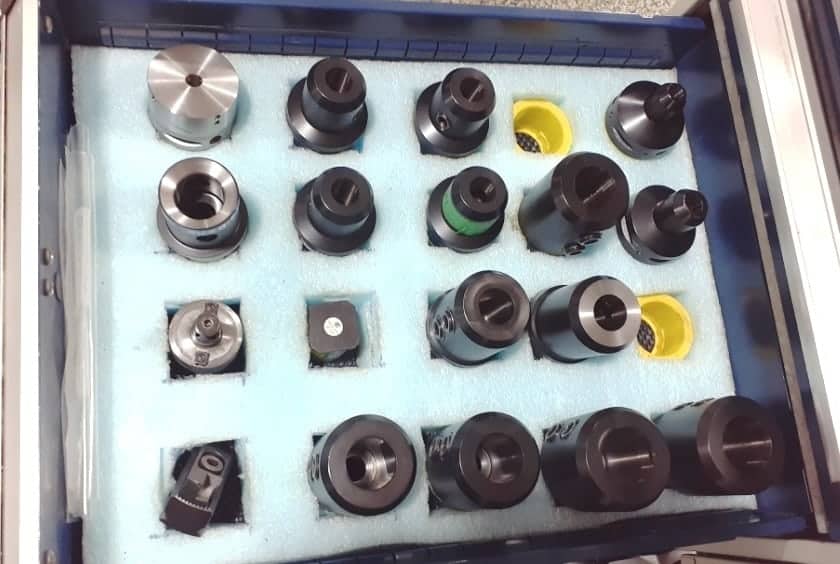

| Tool Holder Type |
CAPTO-C6 |
| Tool Storage Capacity |
80 Tools |

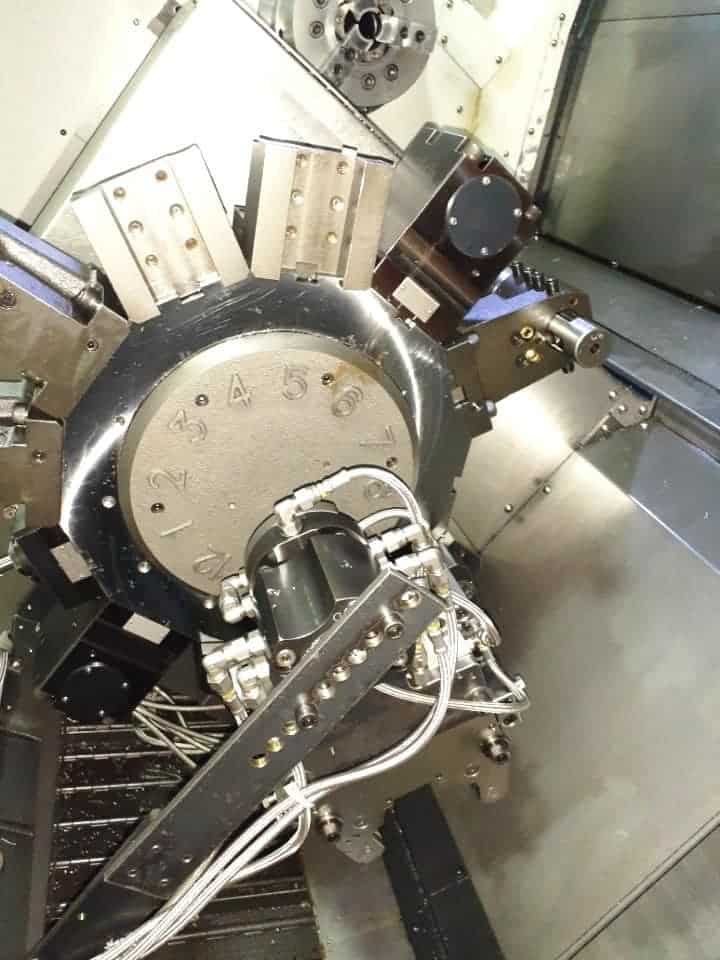

| Lower Turret Rotating Tool Speed |
4,000 RPM |
| Approx Dimensions (LxWxH) |
202" x 103" x 119” |
| Approx Machine Weight |
34,170 lbs |
Features
|
Auto Tool Presetter |
Rigid Tapping on Left and Right Spindles/ Milling / Rotary Tools |
|

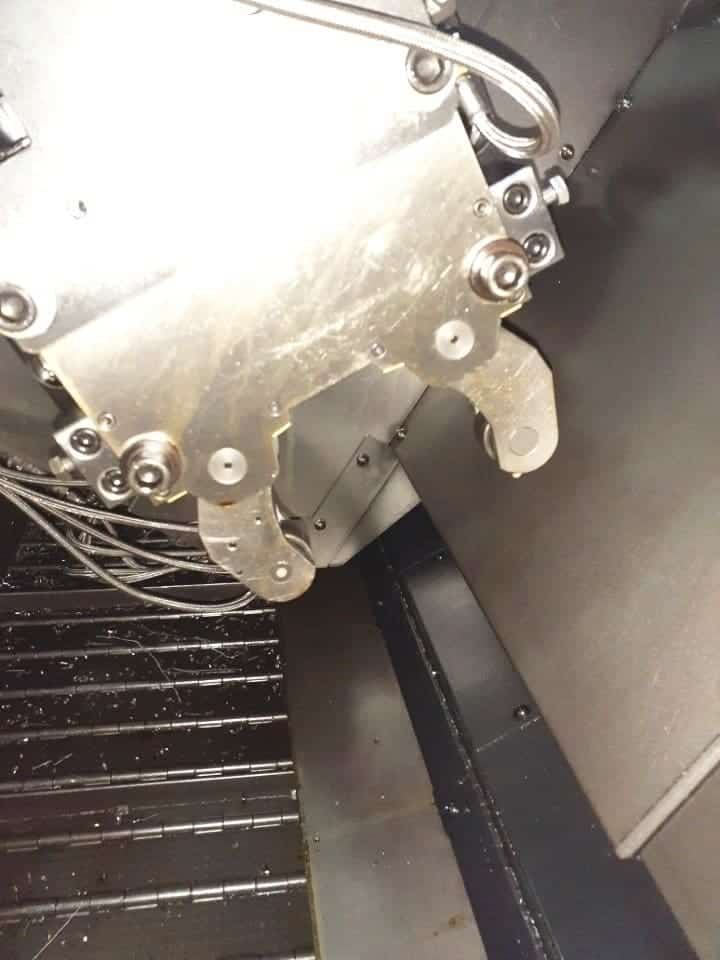

Parts Catcher |

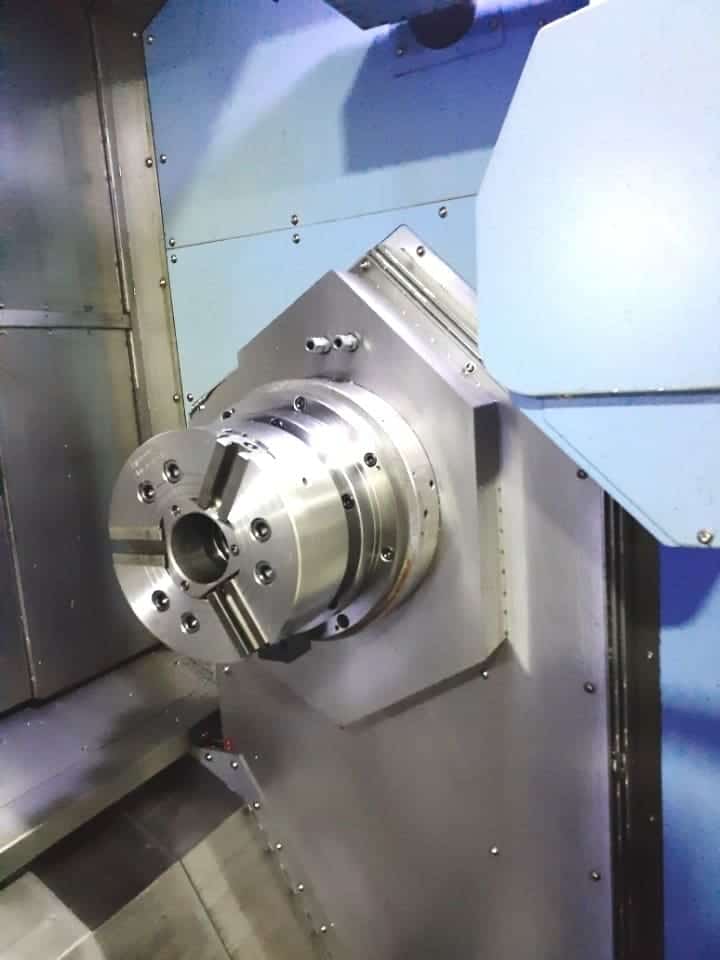

Sub-Spindle |
|
Tool Monitoring System - Wear and Breakage Detection |
Two-GV20-MX Chip Blaster w/ 100 gal. Tank w/ 1000 PSI Dual 5 Micron Filtration System |
