Year |
2012 |
|---|---|
Make |
Doosan |
Model |
DNM 500 |
Description |
CNC Vertical Machining Center |
Reference # |
8079068 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

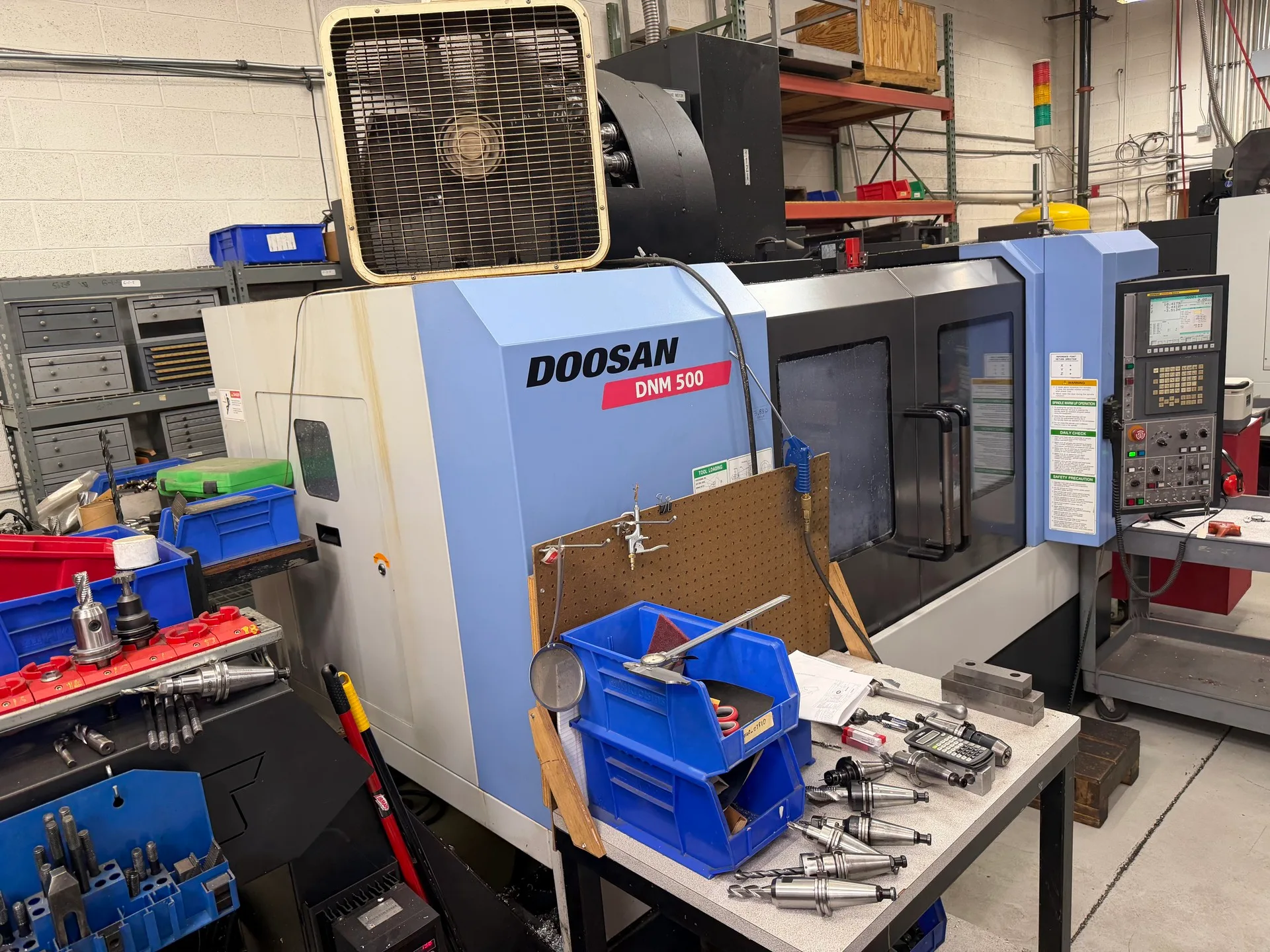

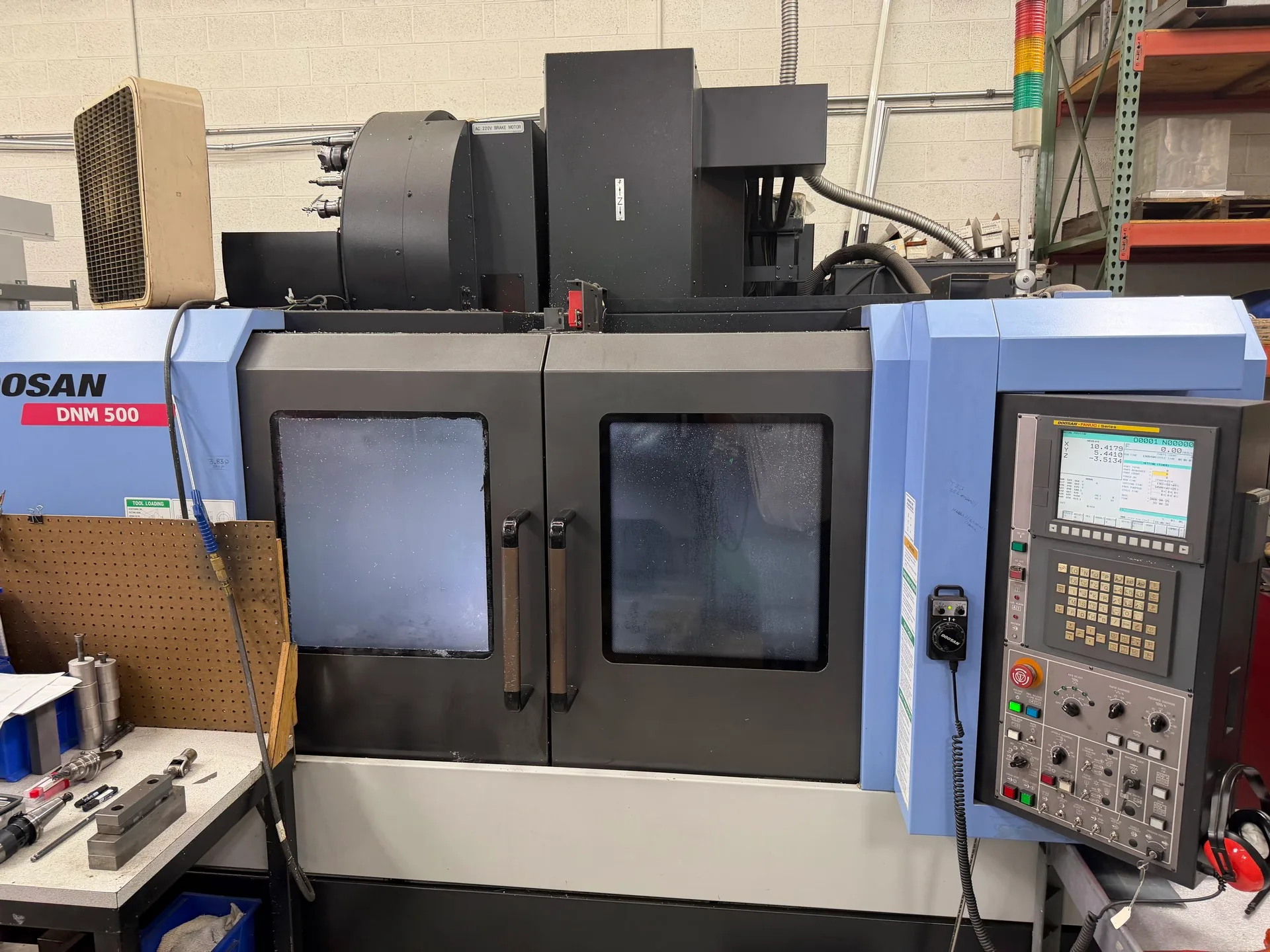

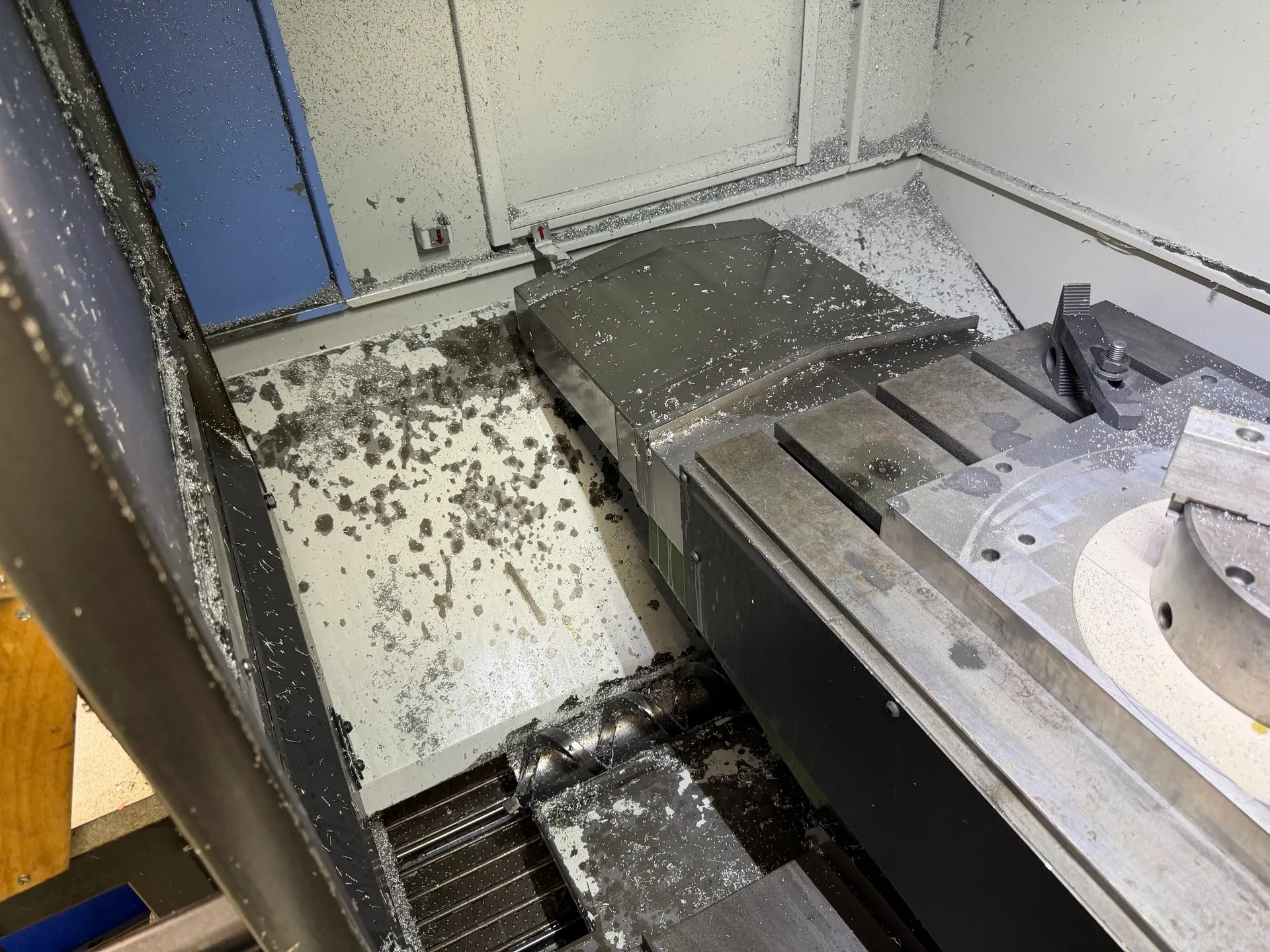

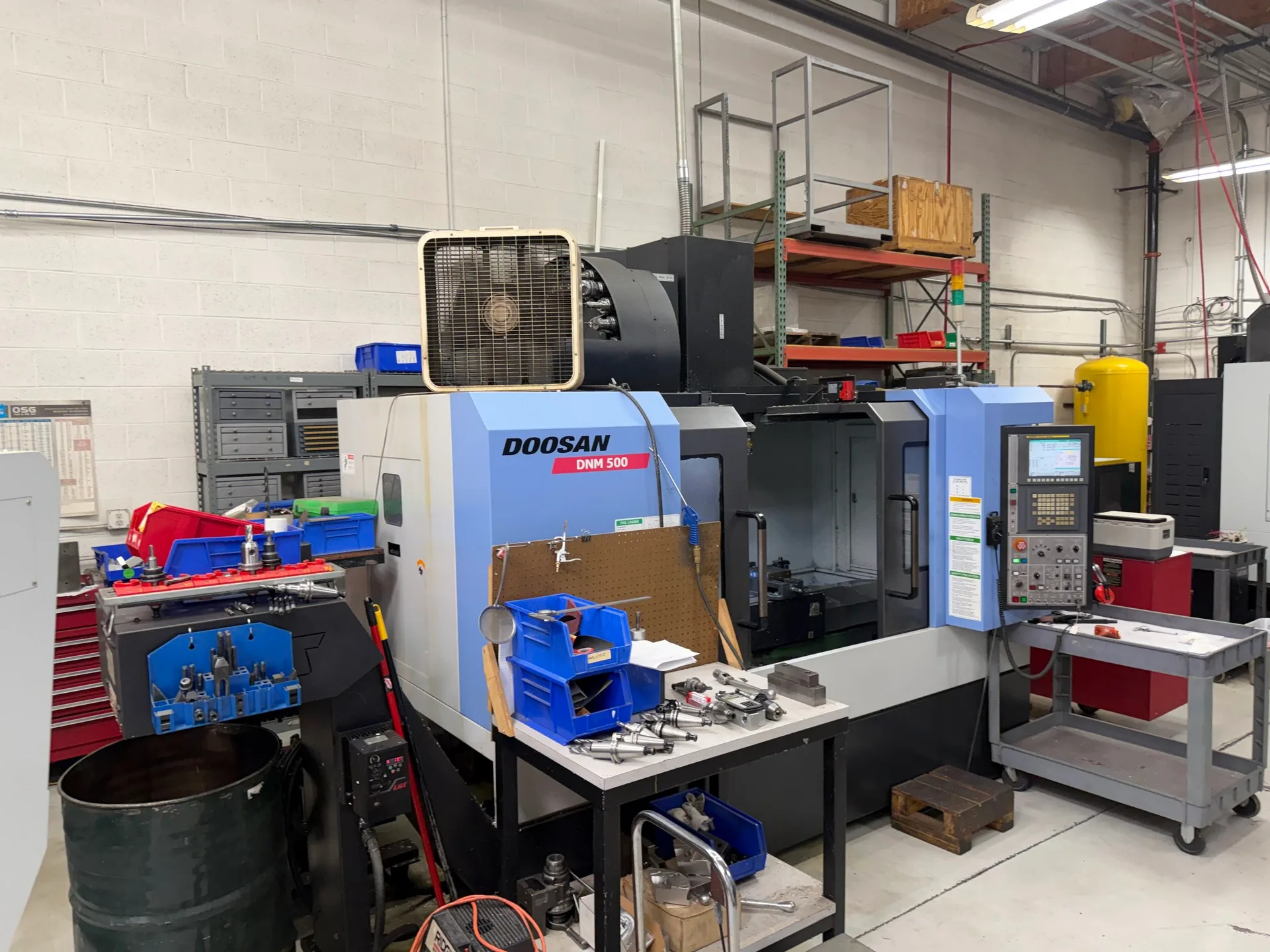

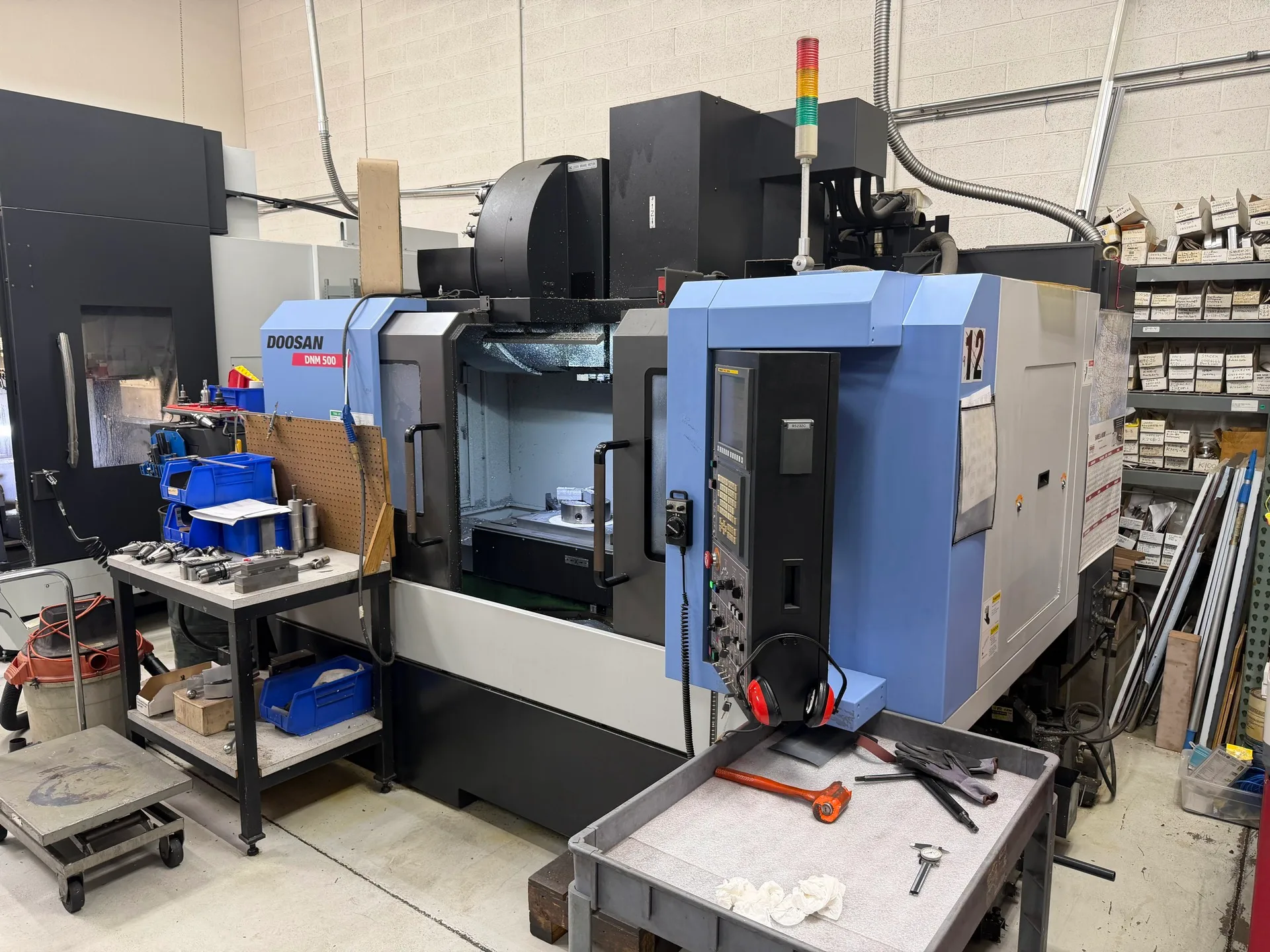

Used Doosan DNM 500 (2012) CNC Vertical Machining Center for Sale. This machine offers 40.2″ of X-axis travel, 21.3″ in Y and 20.1″ in Z, with a 30-station ATC and a BT 40 spindle rated to 12,000 RPM off a 25 HP spindle motor. Control is the Doosan Fanuc I-Series CNC. Equipped with rigid tapping, spindle chiller unit, internal screw conveyor, chip conveyor, coolant tank and chip pan, ProfiFluid MCF 20 coolant system, MPG hand wheel control, PCMCIA card slot and USB drive. Footprint is 132″ x 90″ x 107″ at 14,330 lbs. The machine can be seen under power for an inspection. Browse our other used CNC vertical machining centers and used Doosan machines, then Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
40.2" |
|---|---|
| Y-Axis Travel |
21.3" |
| Z-Axis Travel |
20.1" |
| Tool Magazine Capacity |
30 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
BT 40 |
| Spindle Motor |
25 HP |
| Chip Removal |
Chip Conveyor |
| Control |

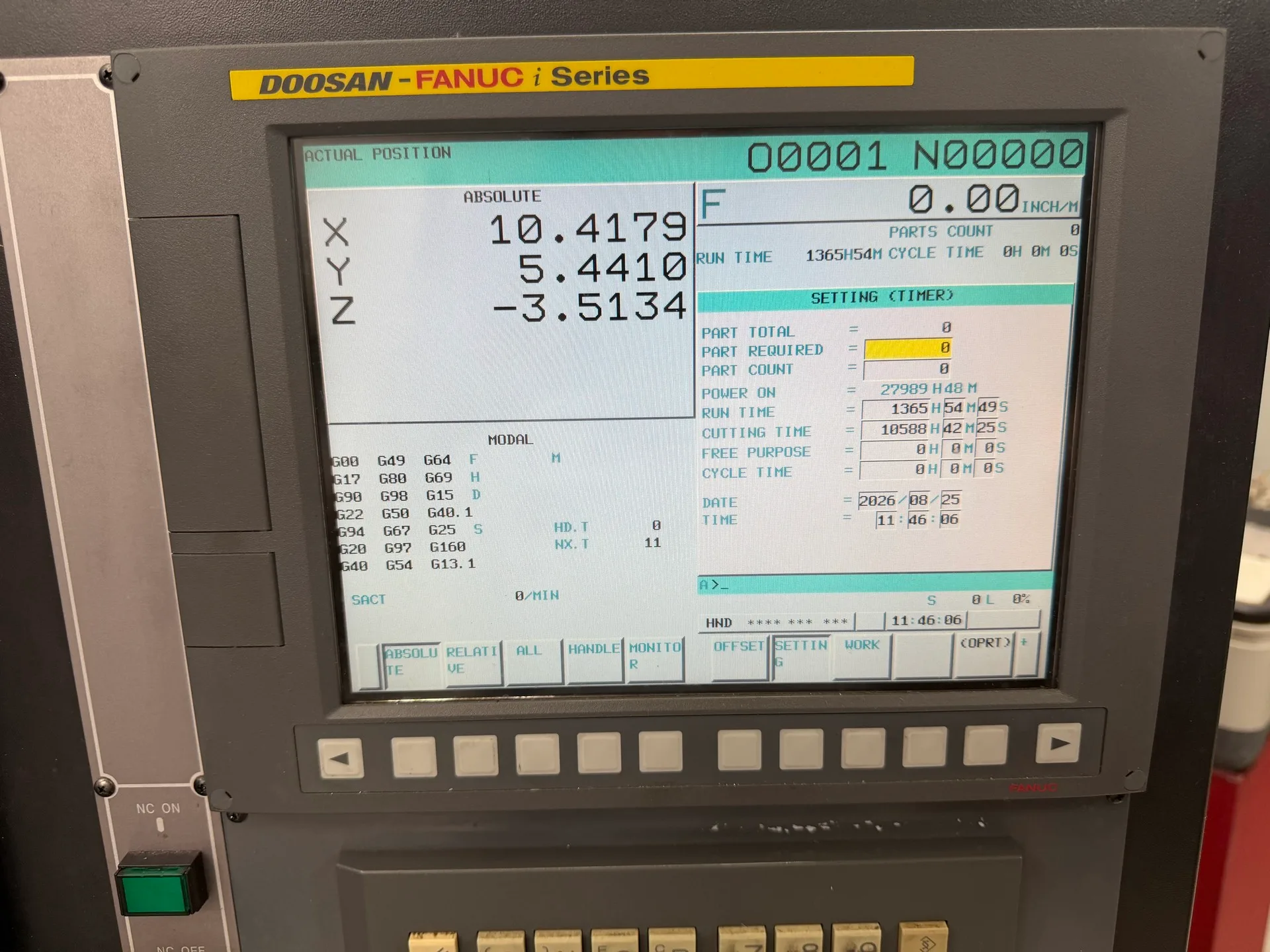

Doosan Fanuc I-Series CNC Control |
| Dimensions |
132" x 90" x 107" |
| Weight |
14,330 Lbs |
Features
|
Coolant Tank & Chip Pan |
Internal Screw Conveyor |
|
MPG Hand Wheel Control |
ProfiFluid MCF 20 Coolant System |
|
Rigid Tapping |
Spindle Chiller Unit |
|
USB Drive |
Pcmcia Card Slot |
