Year |
2011 |
|---|---|
Make |
Flow |
Model |
Mach 3 2513b |
Description |
4.2' x 8.2' DWJ CNC Waterjet |
Reference # |
8071612 |
Price |
$58,995 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

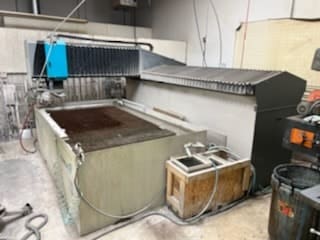

Used Flow Mach 3 2513b (2011) CNC Waterjet for Sale. This pre-owned Flow CNC waterjet is located in The United States. If you have any questions regarding this Flow Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
4.2' |
|---|---|
| Table Length |
8.2' |
| Control |
Flowmaster |
| Pump |
50 HP |
| Max Cutting Pressure |
94,000 PSI |
| Power Requirement |
460-480/3/60 |
| Linear Positioning Accuracy |
+/- .003" |
| X & Y Repeatability |
+/- .002" |
| Rapid Speed |
500 IPM |
| Note |
Available End of August |
Features
|
Pneumatically Powered & Manually Controlled Dramatic Increase in Cutting Cleanliness |
3D Drawing in Z Plane |
|

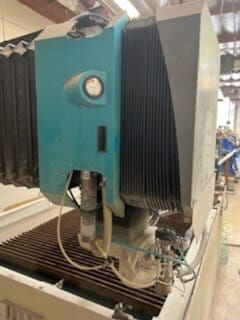

5-Axis Dynamic Cutting Head Taper Compensating |

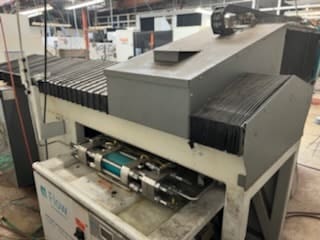

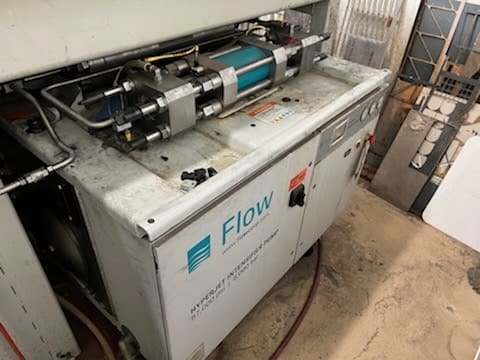

50 HP Hyperjet 94k PSI Intensifier Pump |
|

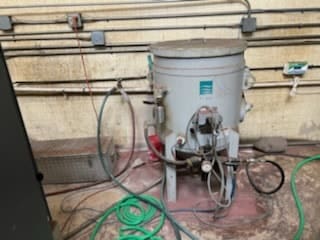

600 Lbs Abrasive Hopper with Sensor |
All AC Servo Driven Ballscrews |
|
Virtually Eliminates Cutting Noise (3" Level Adjustment) |
Easy to Use CAD Drawing and Editing Tools |
|
Flowmaster Windows Based PC Controller |
Imports Industry Standard DXF/DWG/IGS/CADKEY/CDL/HPL Files |
|

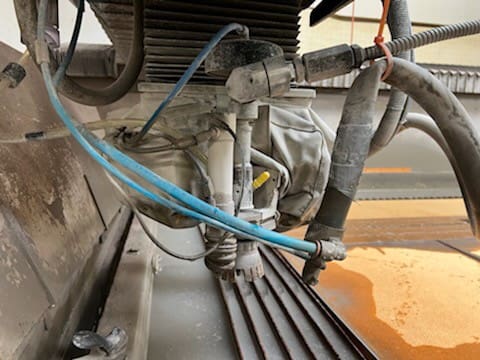

Paser ECL Cutting Head |
Z-Axis Servo Driven (7") |
