Year

2011

Make

Ermak

Model

CNC AP 10x193

Description

193 Ton x 10' Hydraulic Press Brake

Reference #

8072822

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

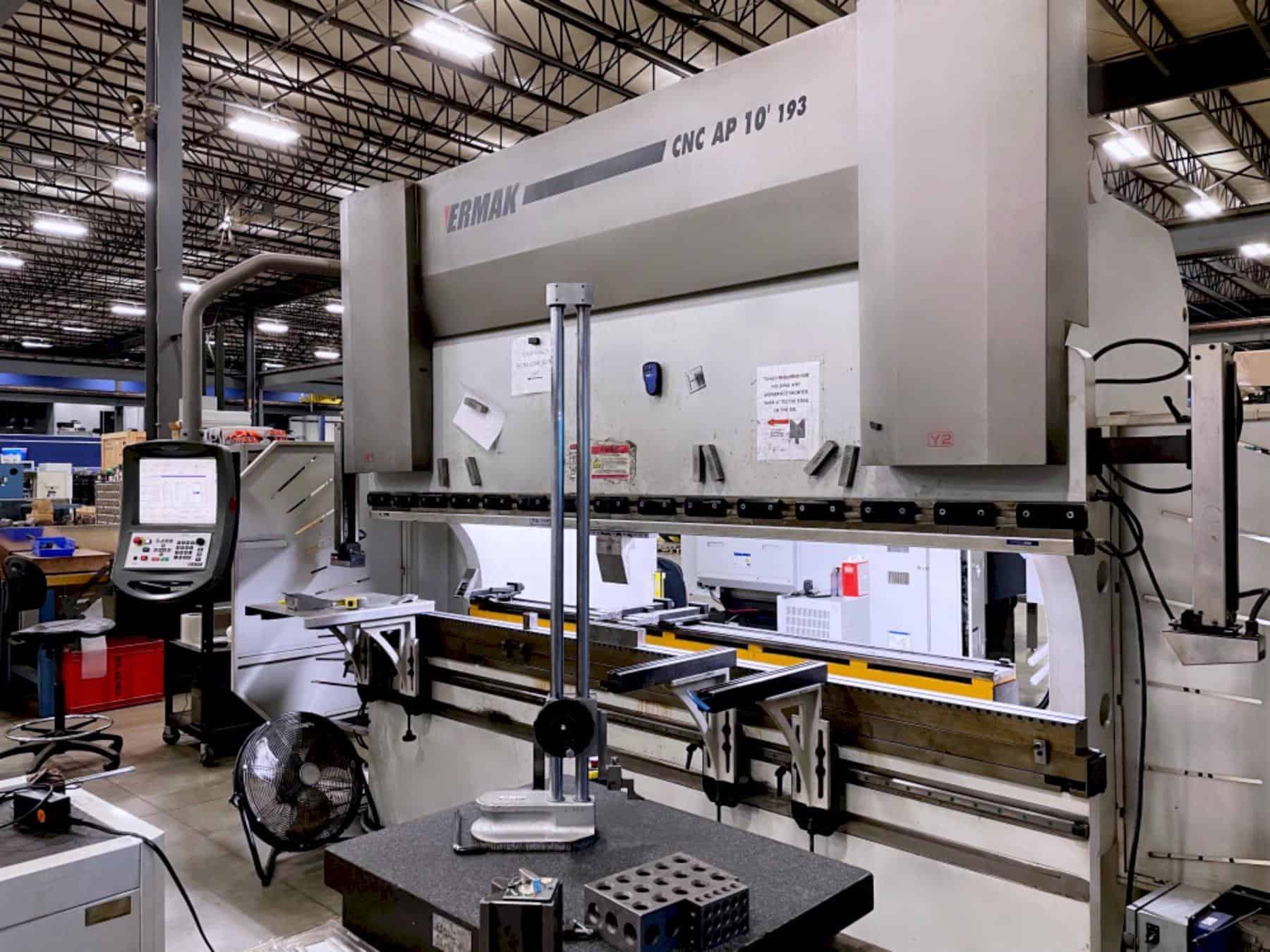

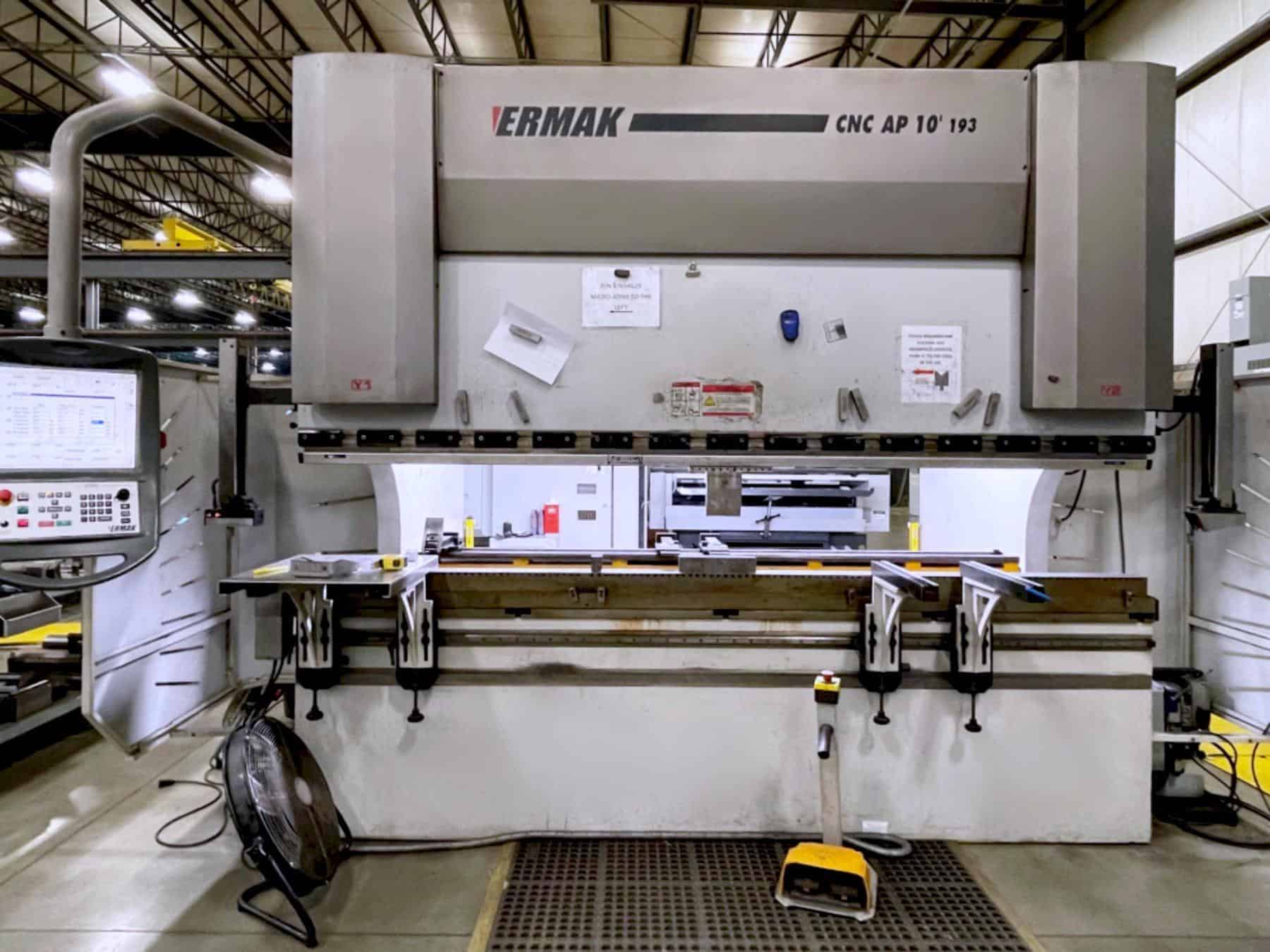

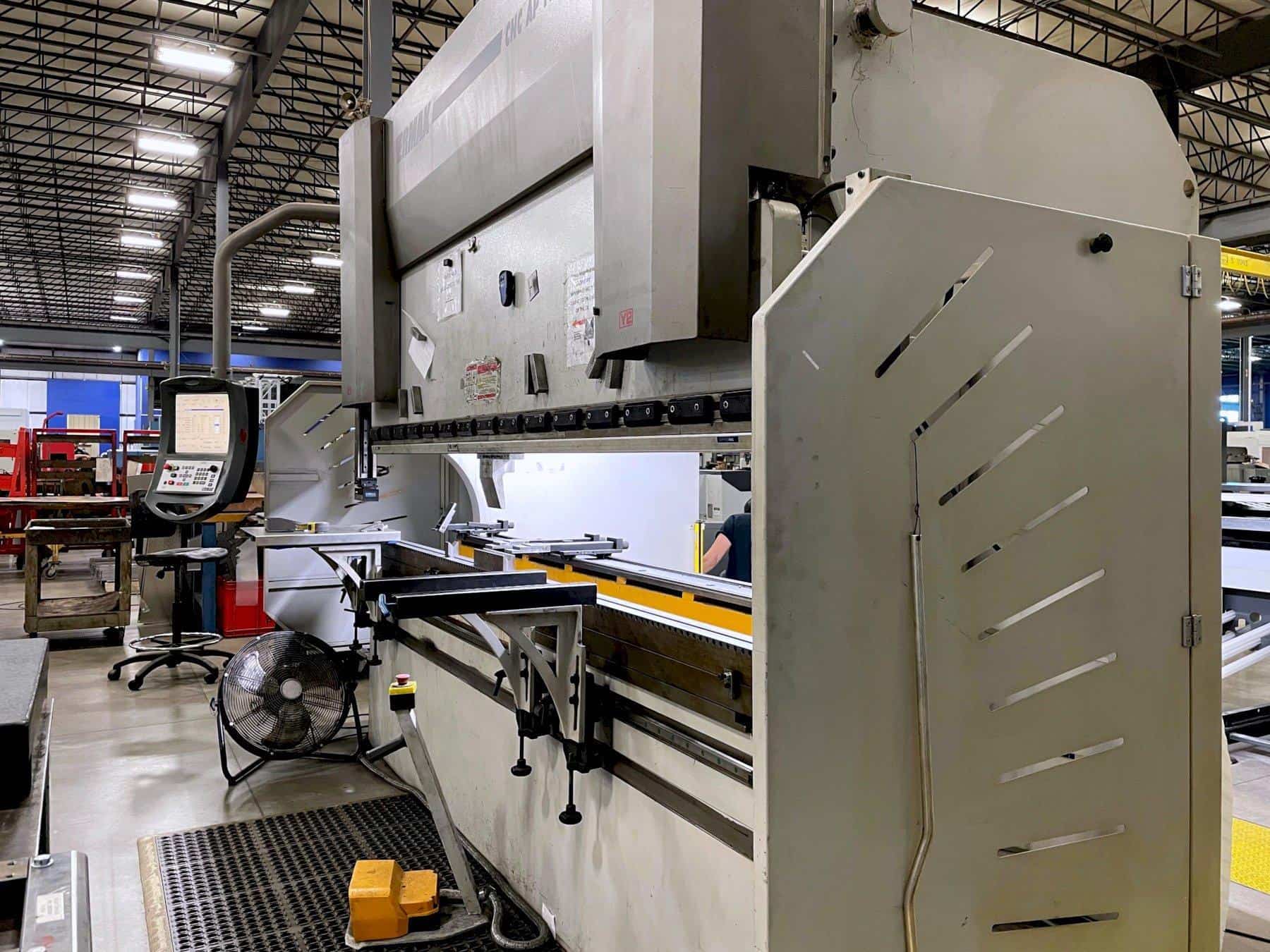

Used Ermak CNC AP 10×193 (2011) CNC Press Brake for Sale.  This pre-owned Ermak CNC press brake is located in The United States.  If you have any questions regarding this Ermak Press Brake, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Capacity

193 Ton

Overall Length of Bed

10'

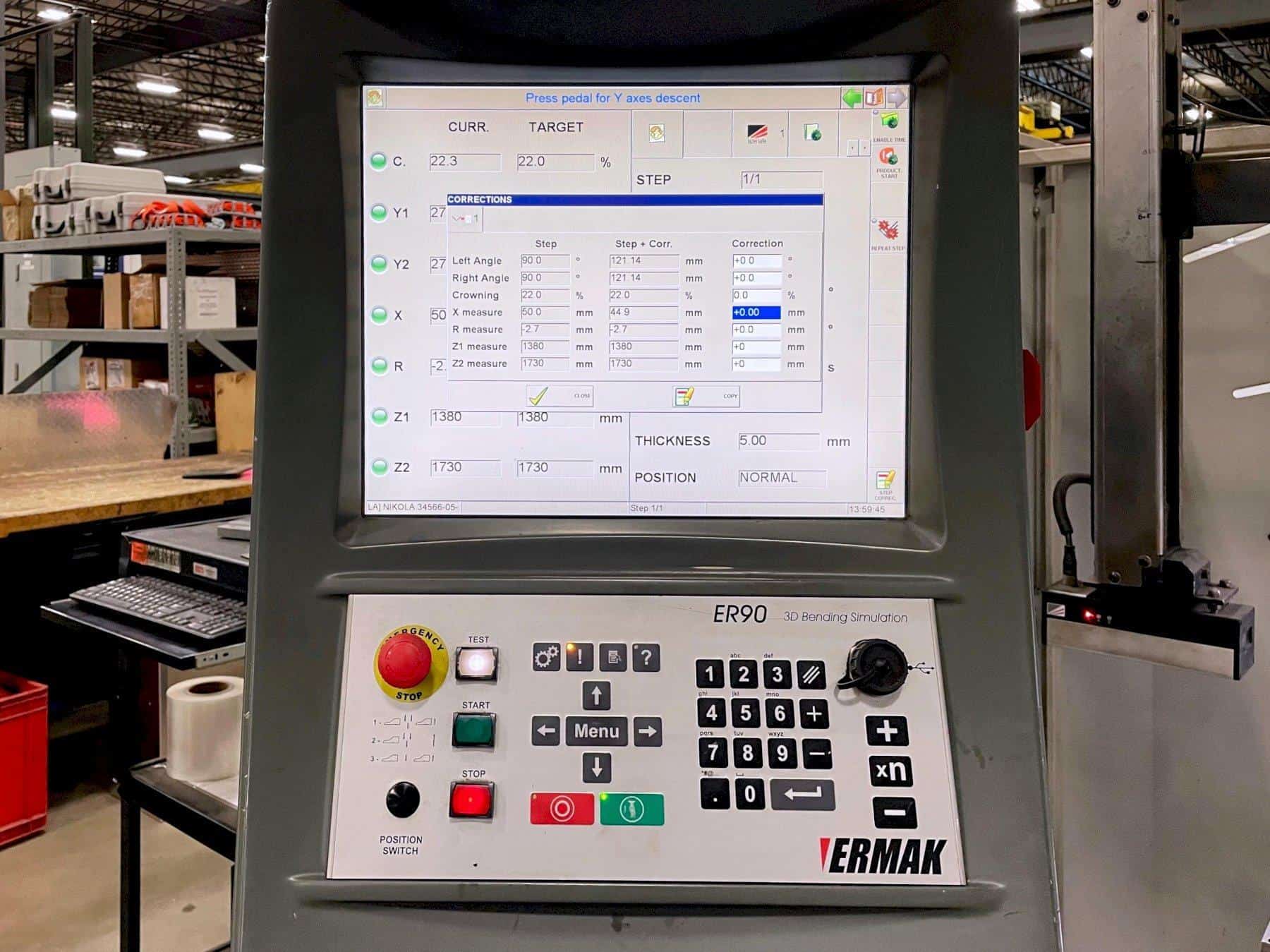

Control

Ermak ER90

Distance Between Housings

102.4"

Throat Depth

16.1"

Open Height

16.9"

Approach Speed

7.1 IPS

Bending Speed

0.47 IPS

Return Speed

7.5 IPS

Backgauge Travel

31.5"

Motor

20 HP

Power Requirement

480V

Approx. Dimensions

167" x 85" x 110"H

Approx. Weight

21,168 Lbs

Features

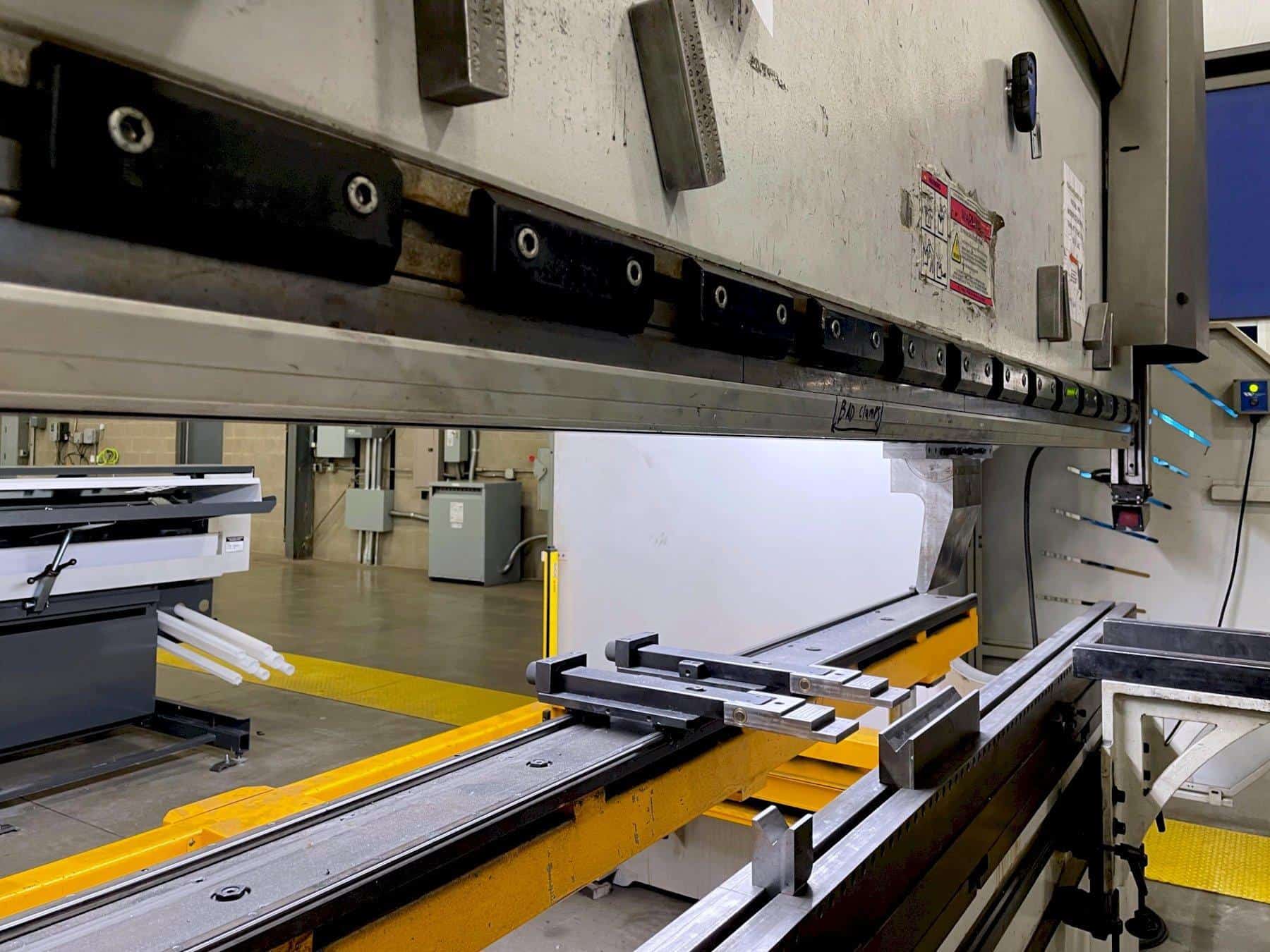

(3) Manual Backgauge Fingers

(4) Front Sheet Supports

CNC Crowning

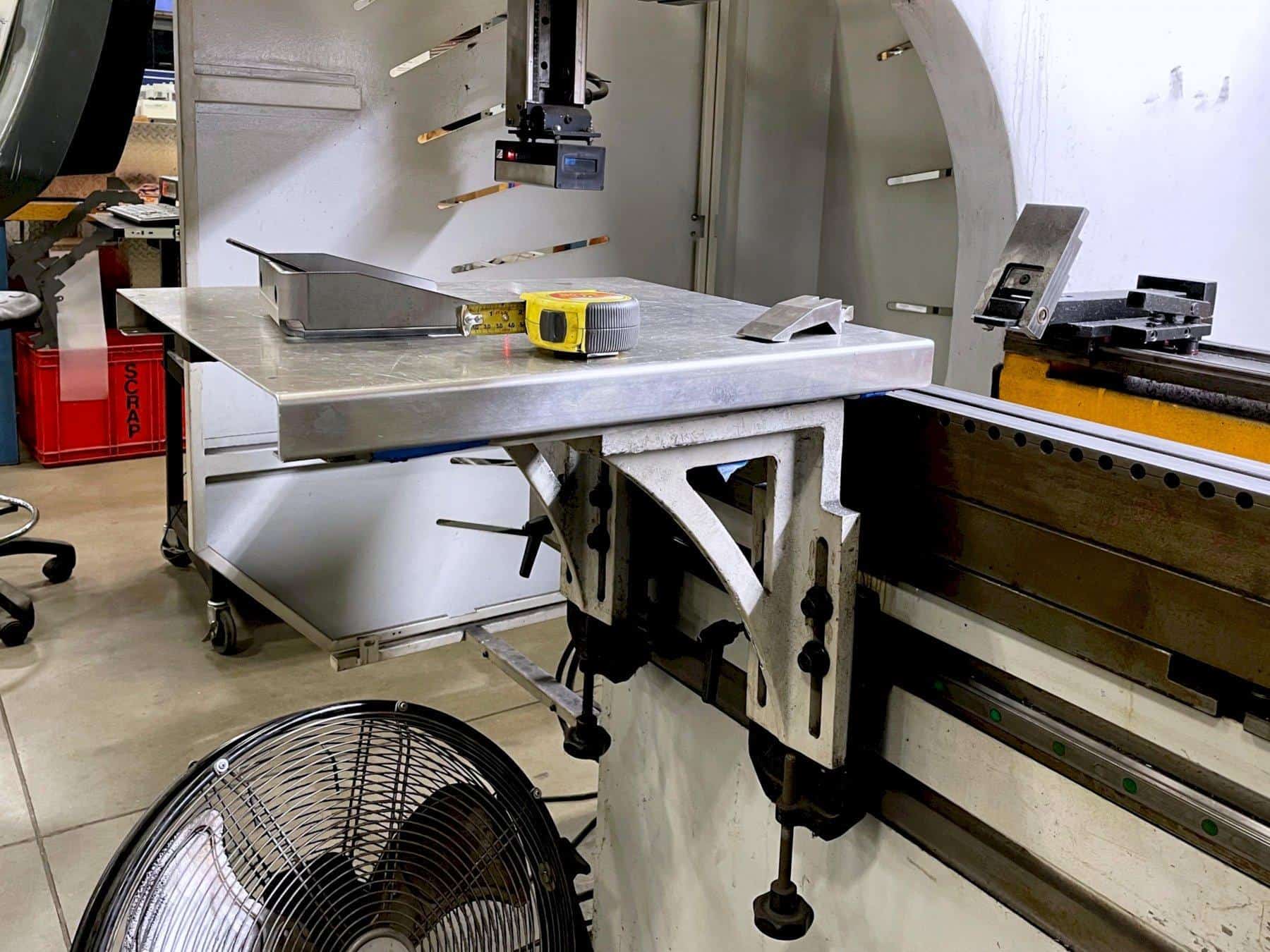

Precision Front Sheet Supports

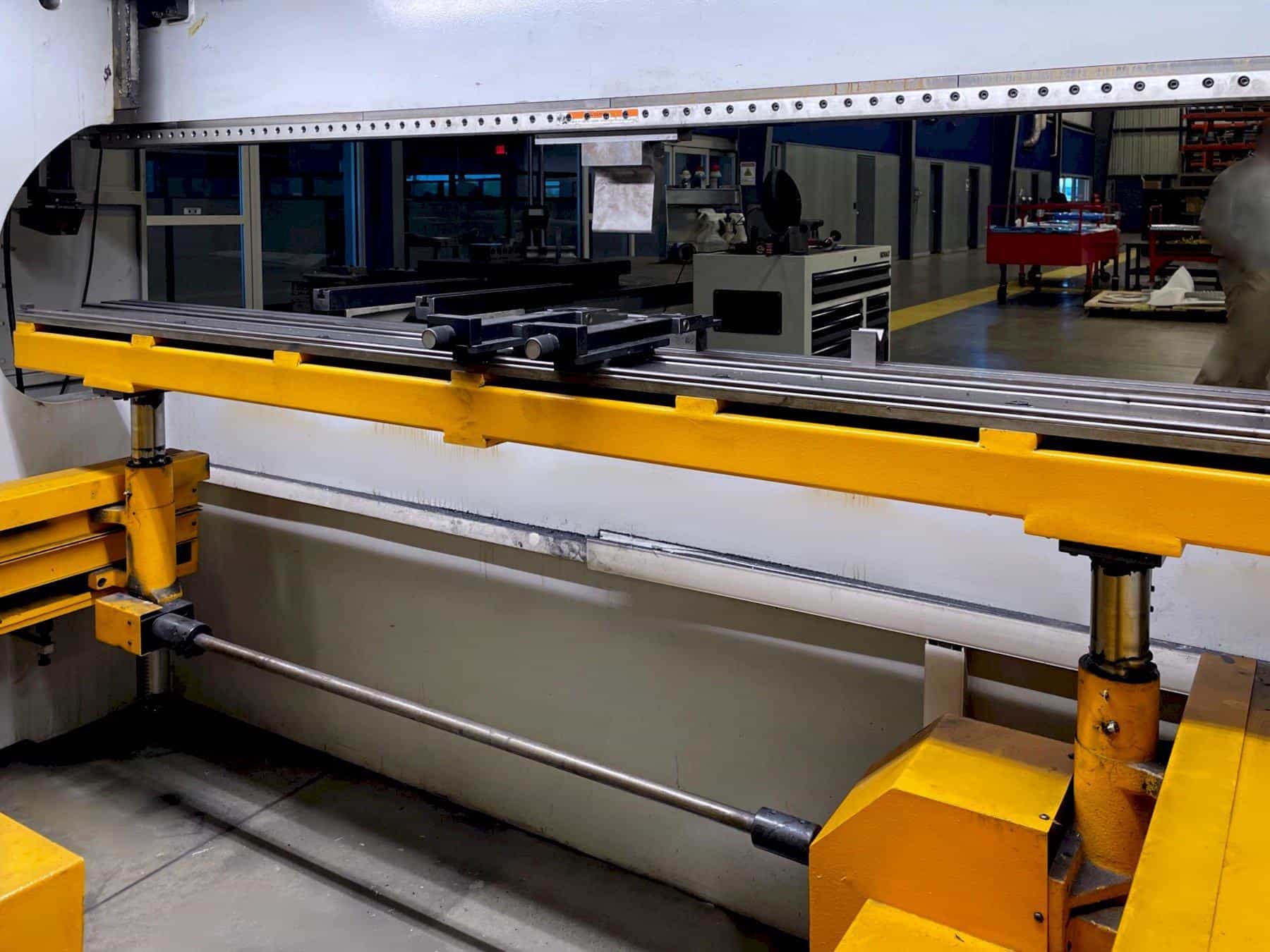

Programmable 2-Axis Backgauge

Programmable Y-Axis

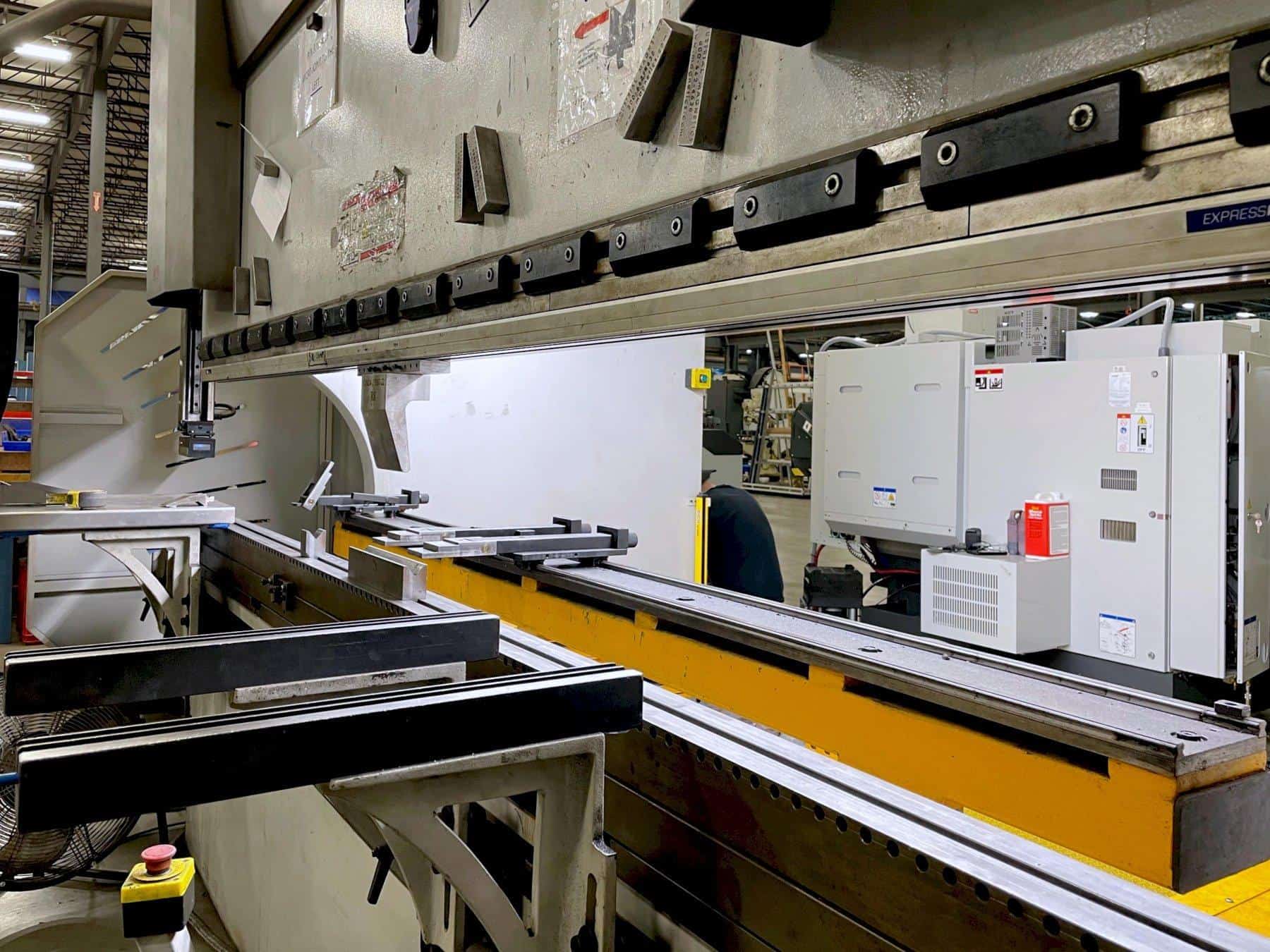

Wilson Express Upper Hydraulic Clamping

American Tooling

Independent Ram Scales

Lazersafe

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
