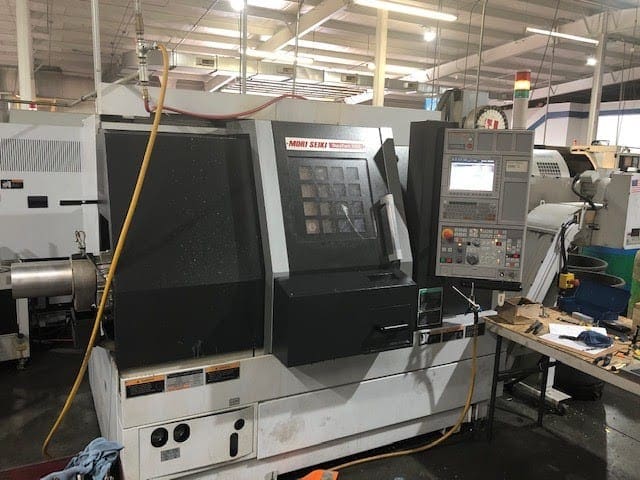

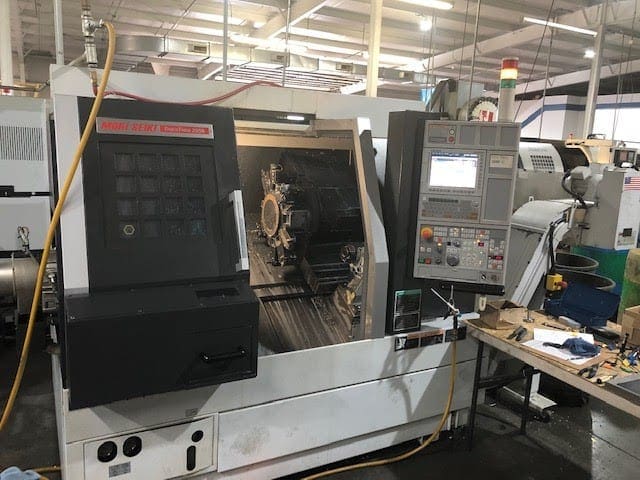

Year |
2010 |
|---|---|
Make |
Mori Seiki |
Model |
DuraTurn 2550MC |
Description |
CNC Lathe |
Reference # |
8068986 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications

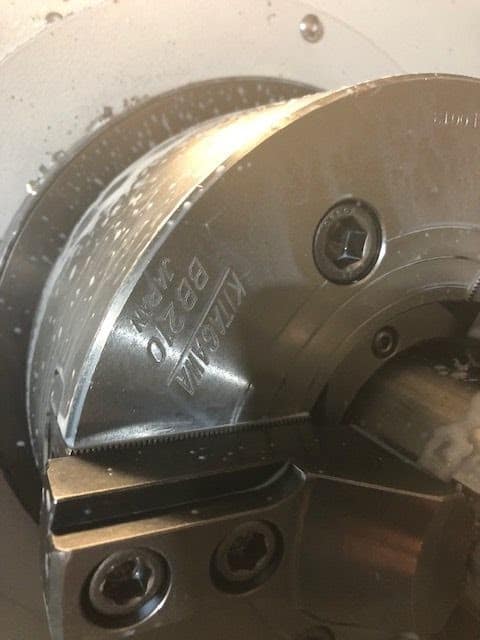

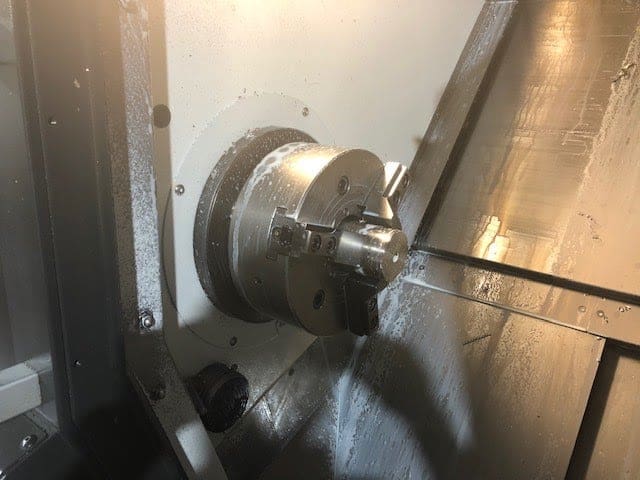

| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3.1" |
| Swing |
14.5" |
| Turning Diameter |
9" |
| Spindle Speed |
3,000 RPM |

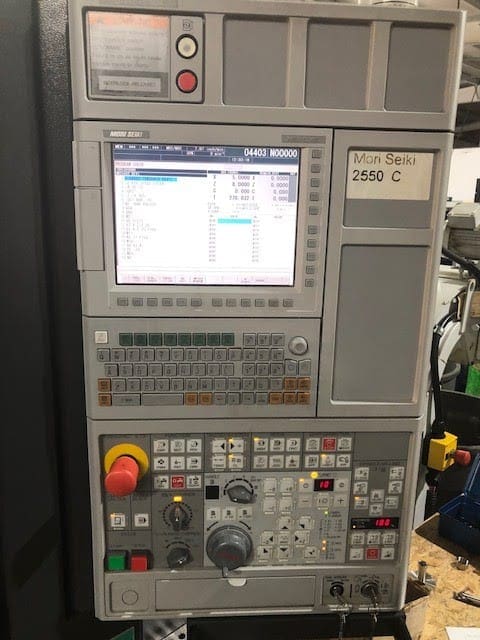

| Control |
Fanuc |
| Distance Between Centers |
20" |

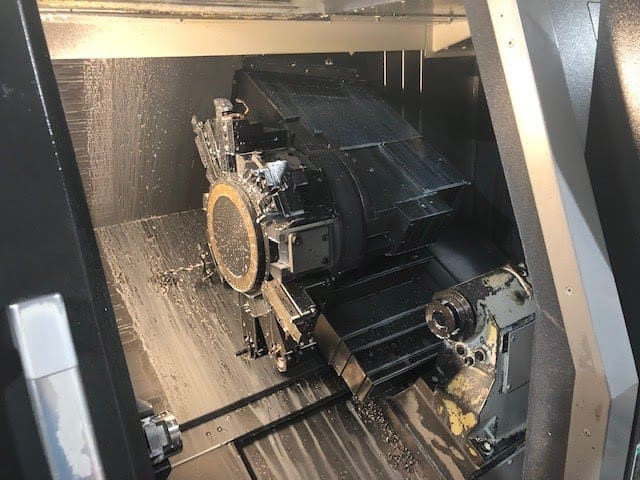

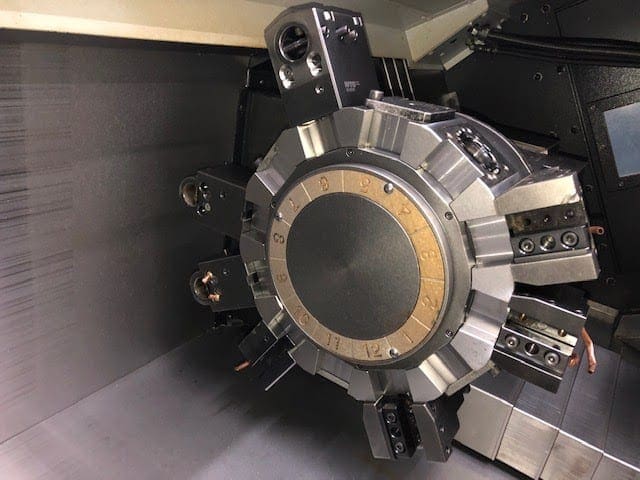

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
| X-Axis Travel |
8.5" |
| Z-Axis Travel |
22.4" |
| Rapid Traverse Rate |
945 IPM |
| Spindle Bore Diameter |
3.6" |
| Spindle Nose |
A2-8 |
| Max Machining Length |
20.1" |
| Machine Weight |
8,800 lbs |
| Machine Dimensions |
86.6" x 72.3" x 69" |
Features
|
(3) Boring Bar Holders |
Auto Tool Presetter |
|
(2) OD Live Holders |
(2) Turning Holders |
|
Tailstock |
10.4" Color TFT |
|
Parts Catcher |
(1) Cutoff Holder |
|
USB Ports |

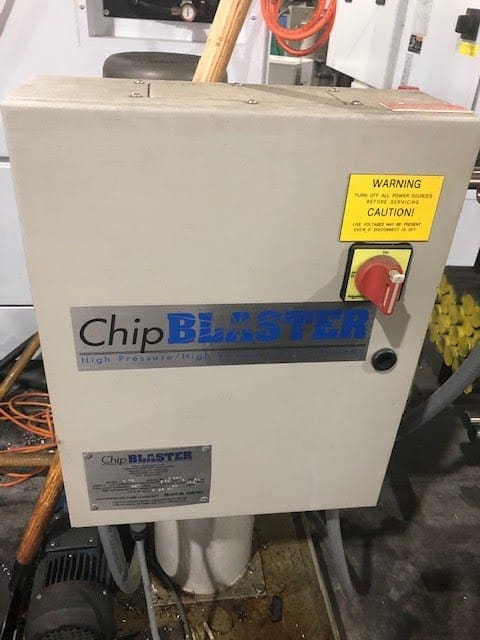

ChipBlaster High Pressure Coolant |
|
MAPPS IV Conversational Programming |
MT#4 Tailstock |
|
PC/MCIA Interface |
*
