Year |
2010 |
|---|---|
Make |
Mazak |
Model |
Integrex 300-IV S |
Description |
CNC Lathe |
Reference # |
8077132 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

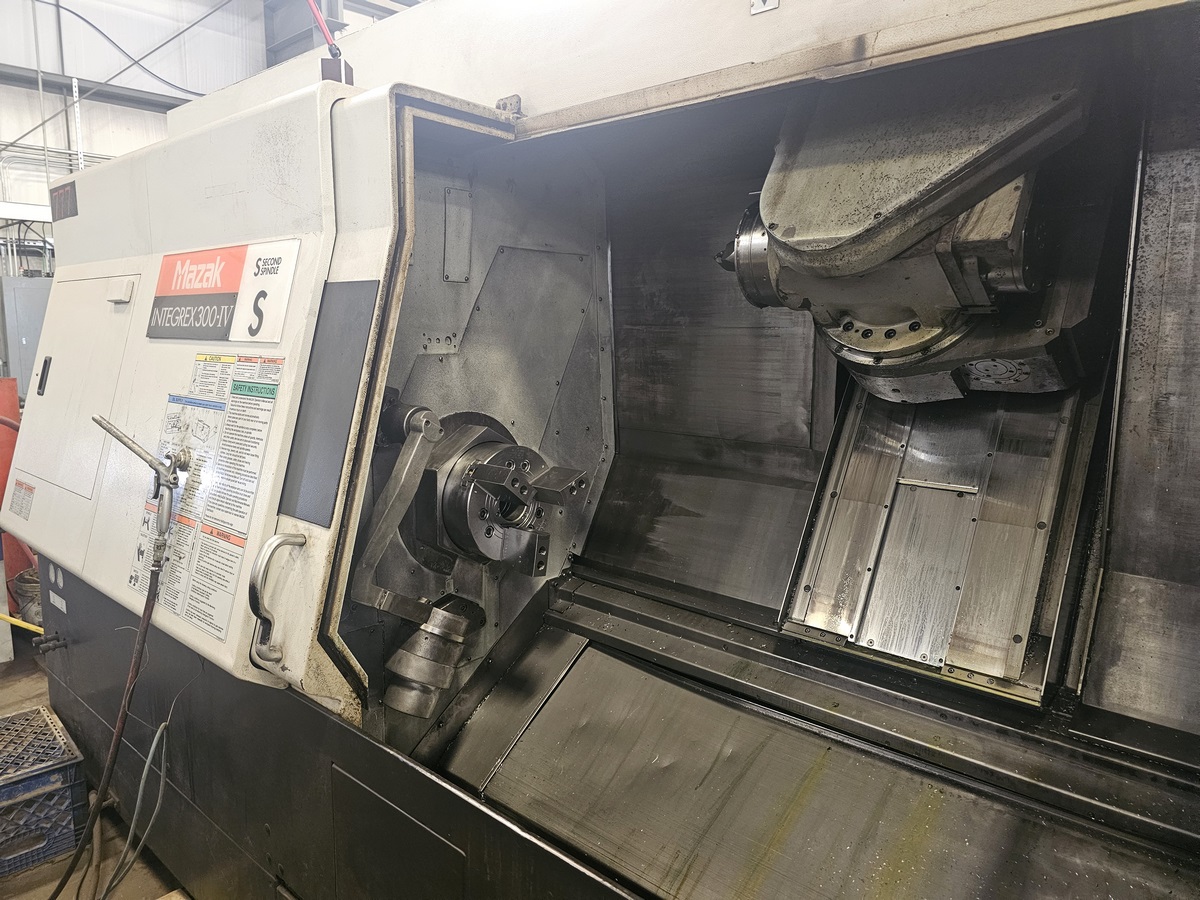

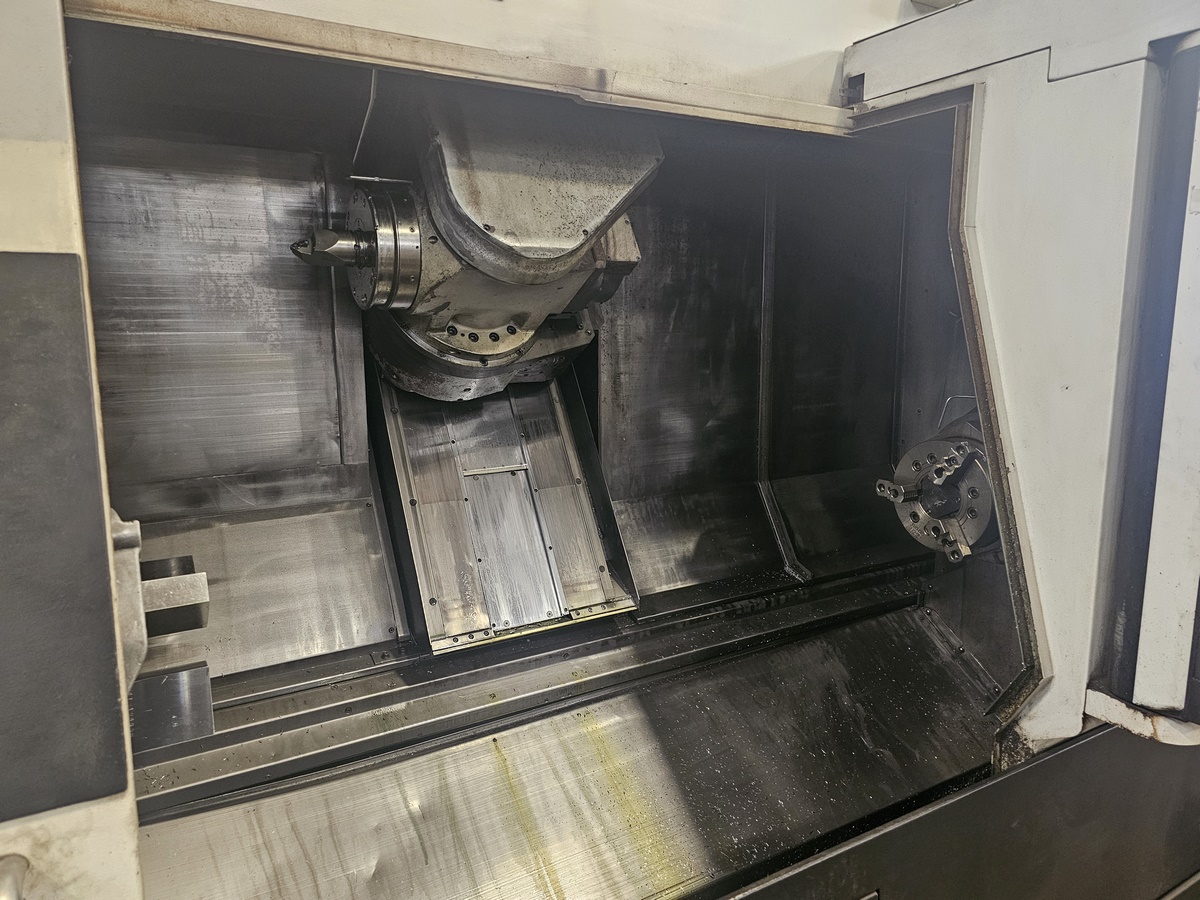

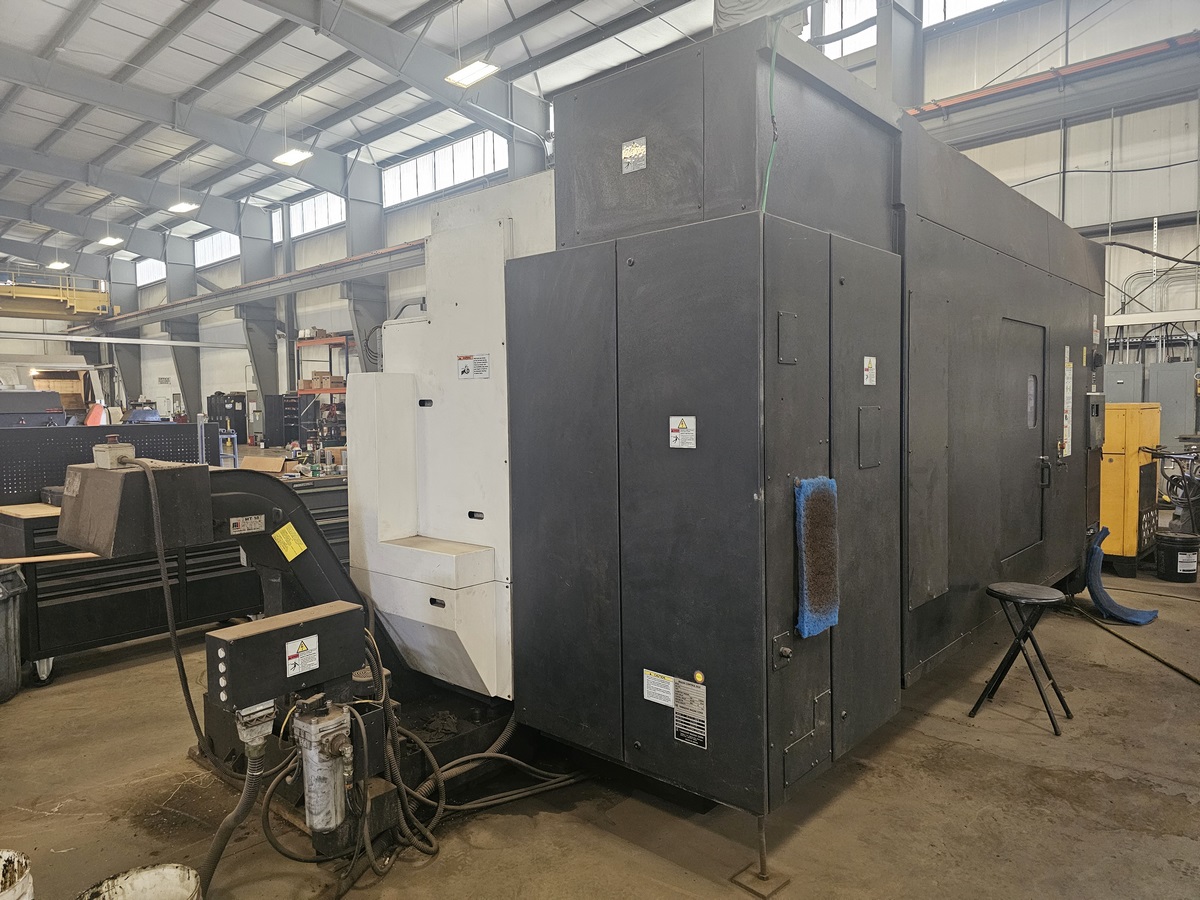

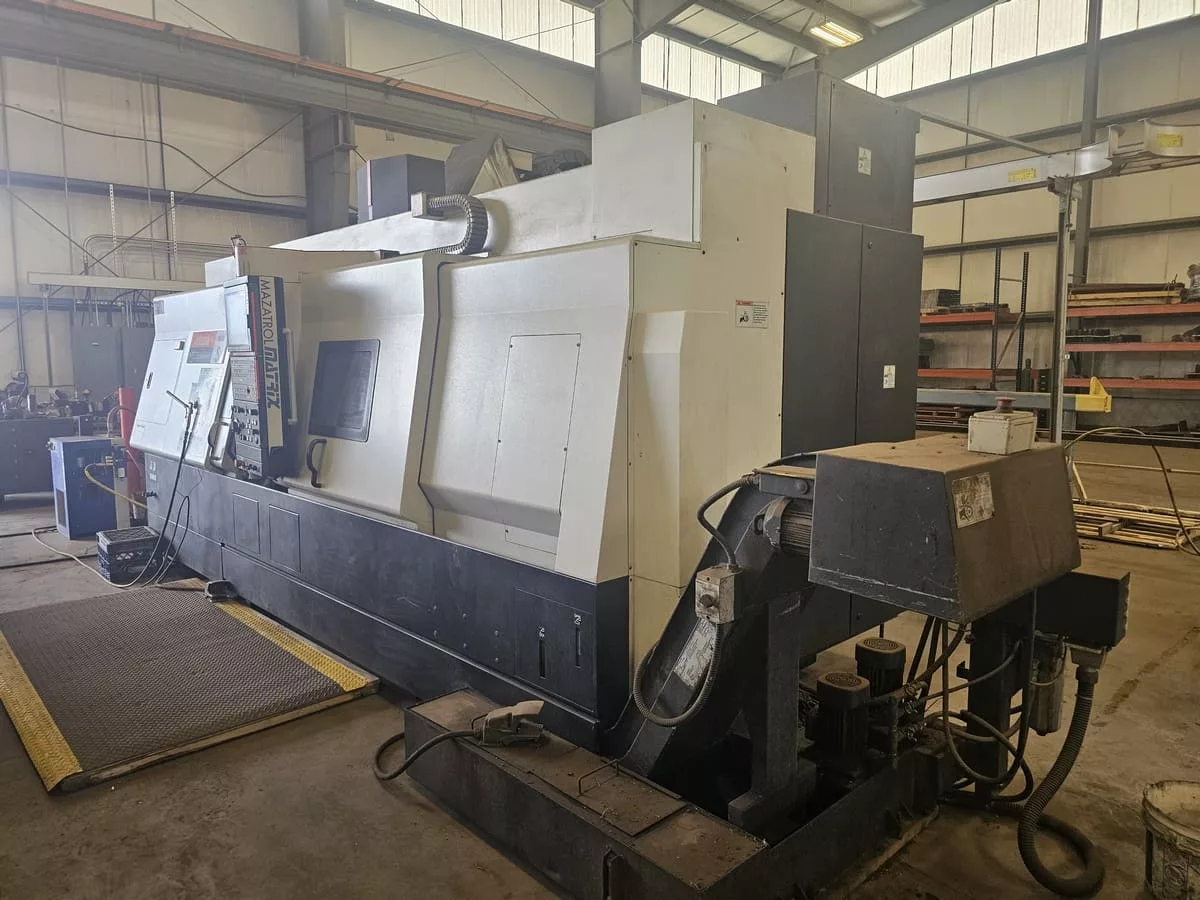

Used Mazak Integrex 300-IV S (2010) CNC Lathe for Sale. This multi-tasking turning center is equipped with a Mazatrol Matrix control, a 10″ chuck, 3″ bar capacity, and a 30″ swing with 30″ turning diameter. Distance between centers is 60″. The main spindle and sub-spindle both run to 4,000 RPM, with a 40 station turret, C-axis live tooling and Y-axis capability. Travels measure 24.8″ in X, 9.06″ in Y and 62.4″ in Z. The B-axis indexes in .001 degree increments to 12,000 RPM, and the C-axis covers 360 degrees in .001 degree increments. Additional equipment includes a chip conveyor, 90 degree spindle index and auto tool presetter. The machine can be seen under power for an inspection. See more used CNC lathes or other Mazak equipment, and Request a Quote.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3" |
| Swing |
30" |
| Turning Diameter |
30" |
| Spindle Speed |
4,000 RPM |

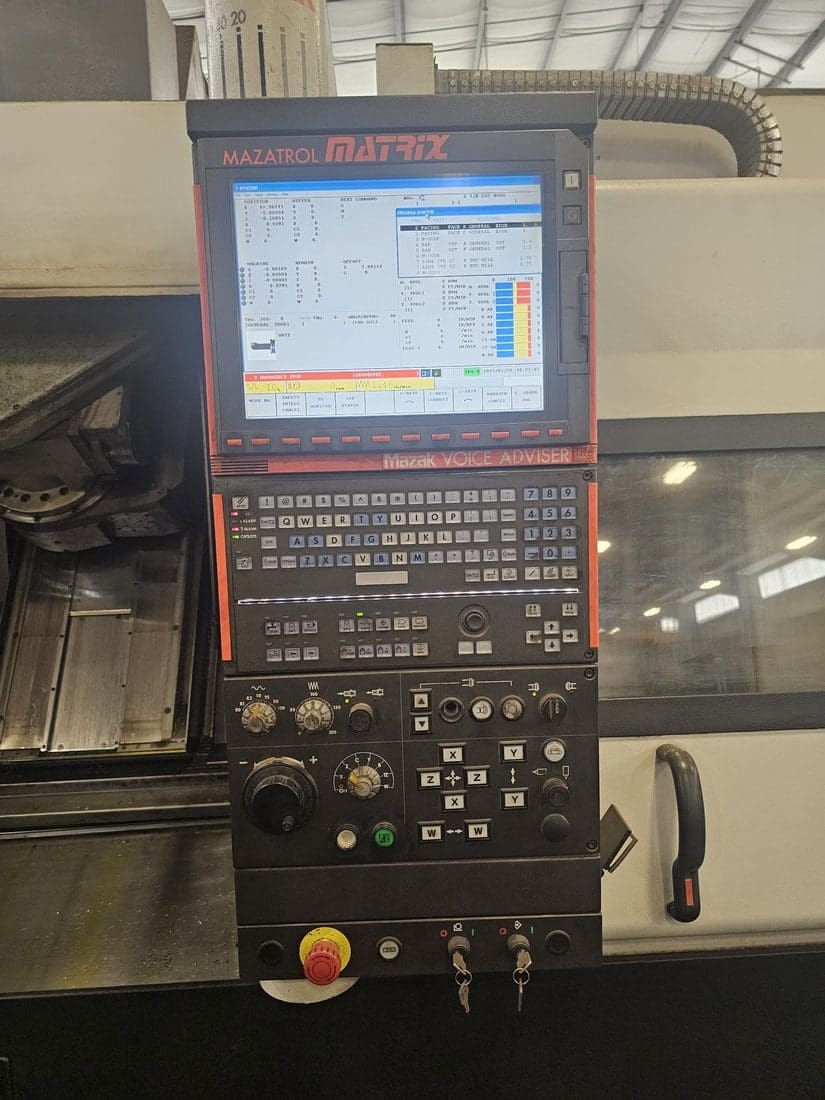

| Control |
Mazatrol Matrix |
| Distance Between Centers |
60" |
| Turret |
40 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
4,000 RPM |
| X-Axis Travel |
24.8" |
| Y-Axis Travel |
9.06" |
| Z-Axis Travel |
62.4" |
| B-Axis |
.001 Degree, 12,000 RPM |
| C-Axis |
360 Degree (.001 Increments) |
| Chip Removal |
Chip Conveyor |
Features
|
90 Degree Spindle Index |
Auto Tool Presetter |
