Year |
2010 |
|---|---|
Make |
Burlington Automation |
Model |
Python X |
Description |
Beam Line |
Reference # |
8070703 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

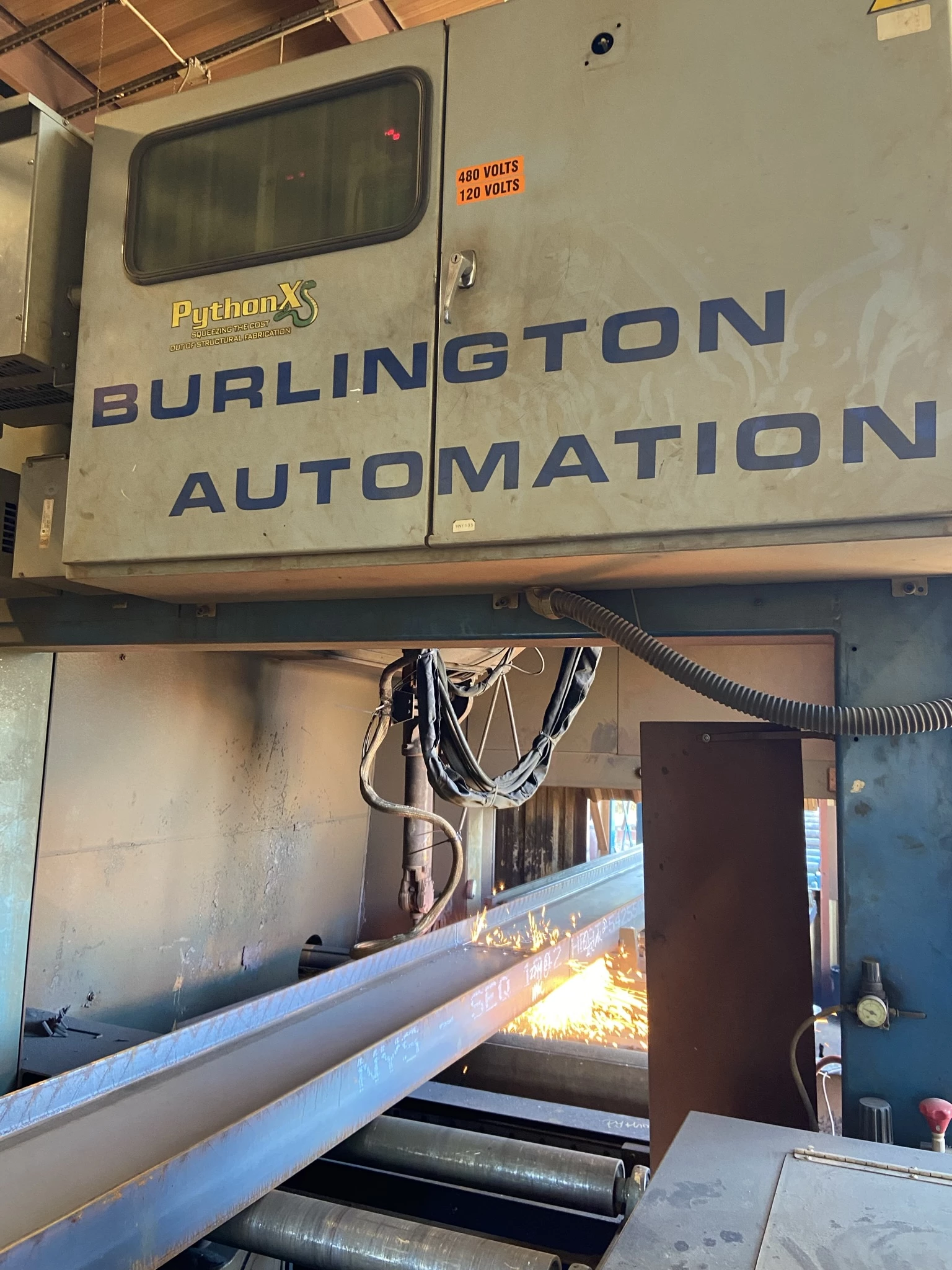

Burlington Automation Python X
Specifications
| Beam Width |
4"-36" |
|---|---|
| Beam Height |
4"-6" |
| KSS Tube Min/Max |
2" x 2"/24" x 16" |
| Channel Width |
3"-36" |
| Channel Height |
1.25" x 4" |
| Angle Min/Max |
3" x 3"/8" x 8" |
| Strip Width |
4"-36" |
| Strip Thickness |
.25"-1.25" |
| Useful Length |
40' |
| Travel Speed |
170 FPM |
| Horsepower |
7.5 HP |

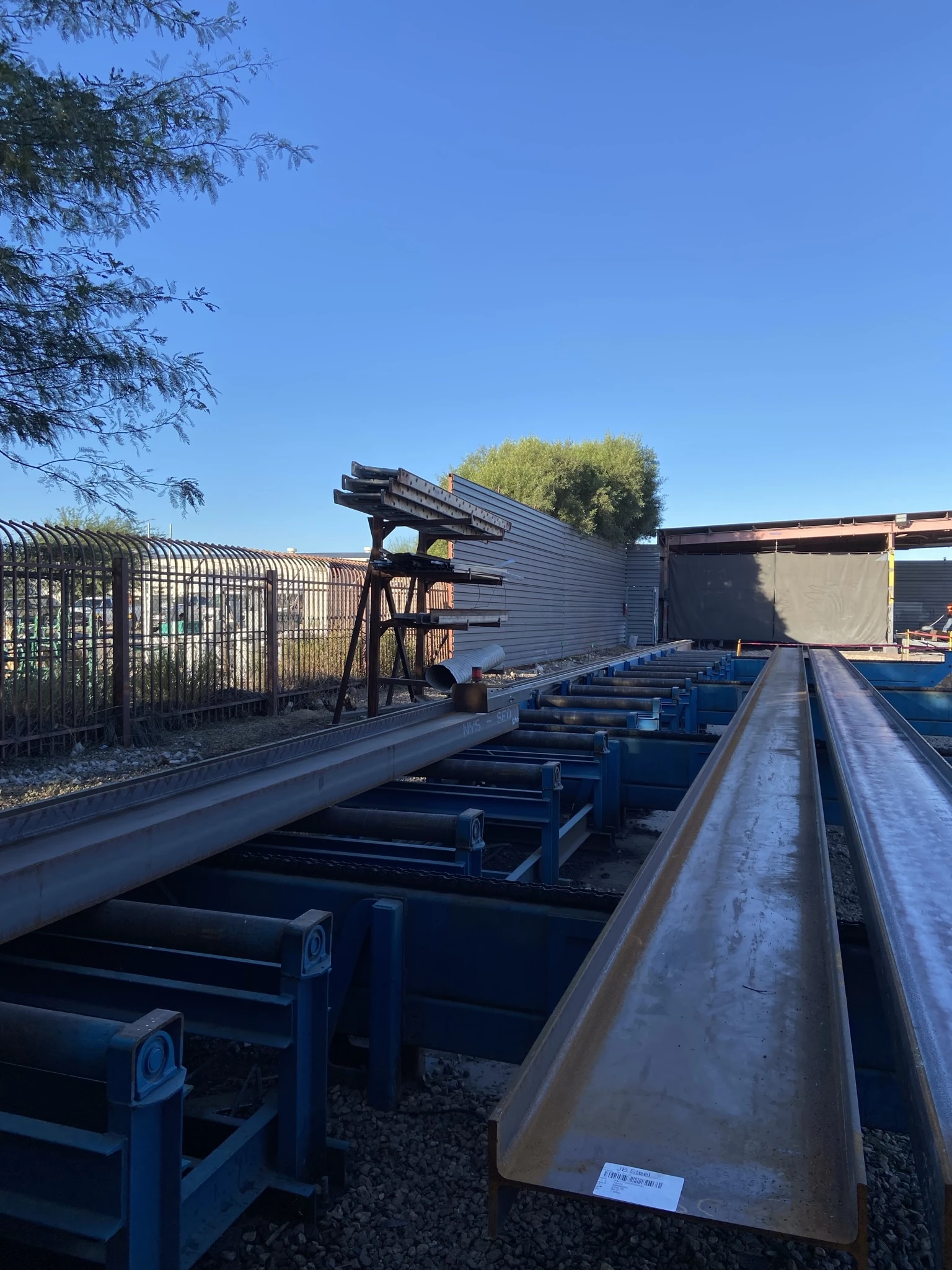

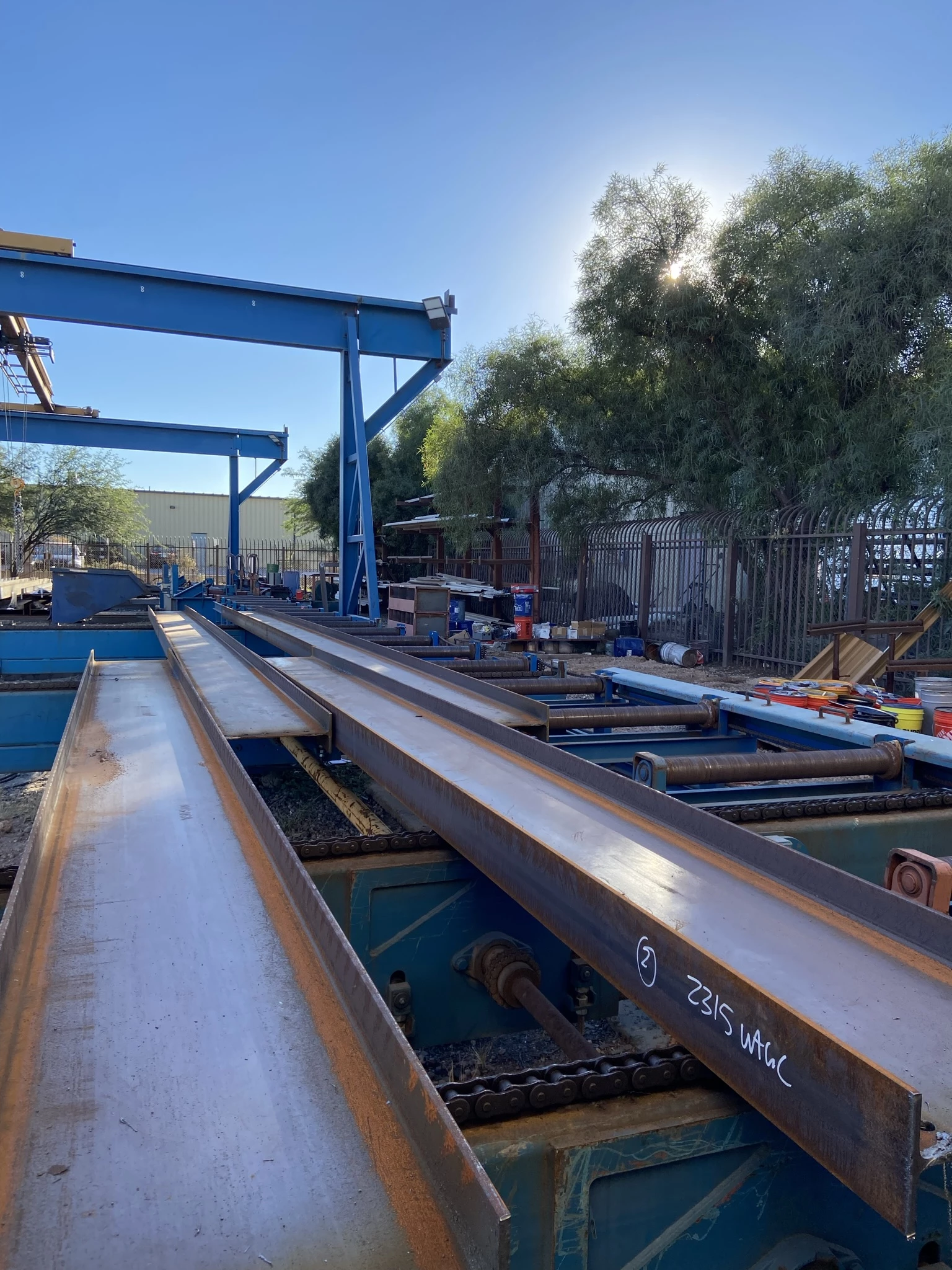

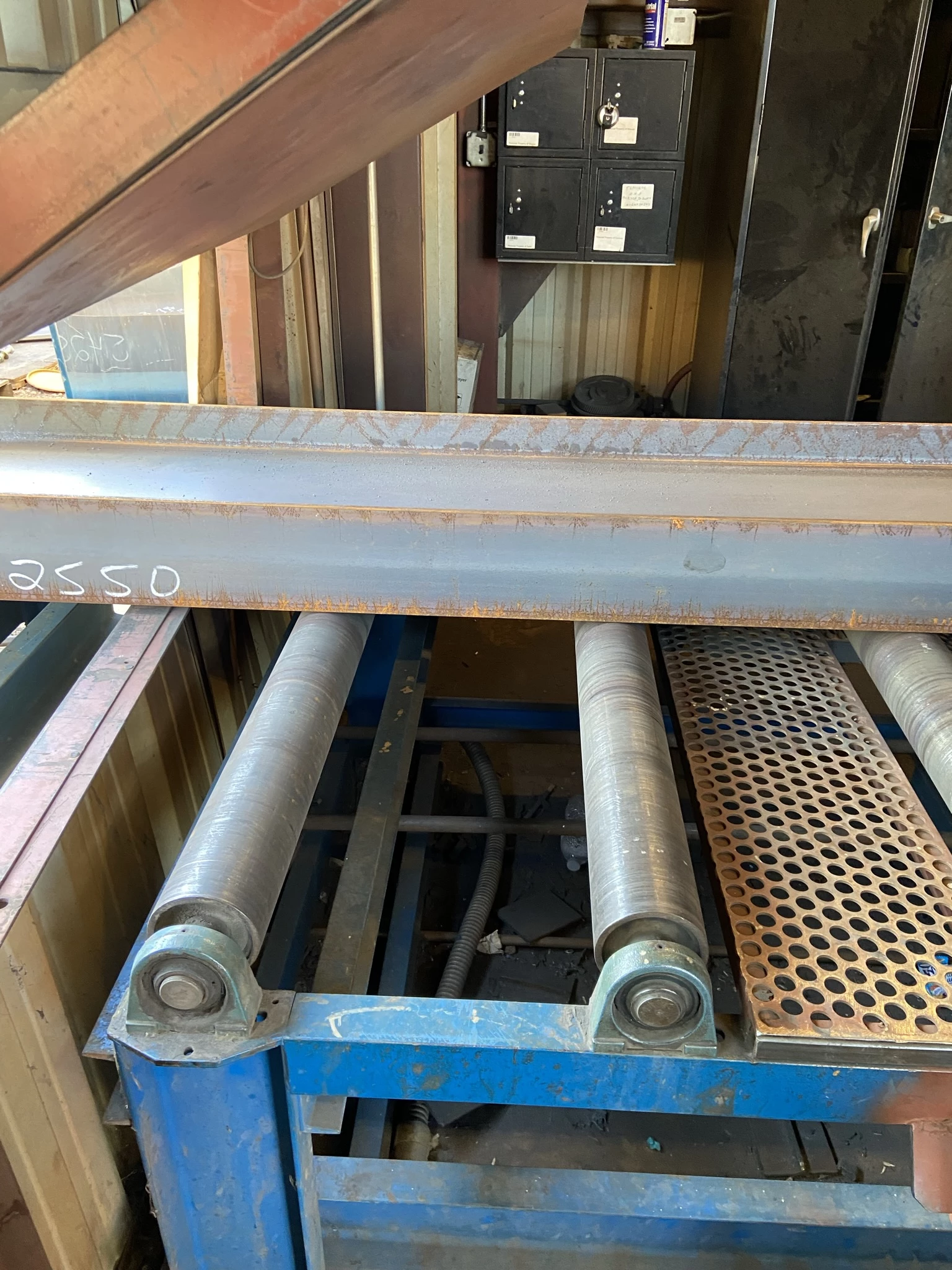

| Infeed Conveyor |
48' |
| Outfeed Conveyor |
40' |
| Max Starting Length |
40' |
| Roll Spacing Within 96" of Plasma Cutting Arm |
16"/48" Elsewhere |
| Roll Diameter |
4" |
Features
|
Rack and Pinion Drive |

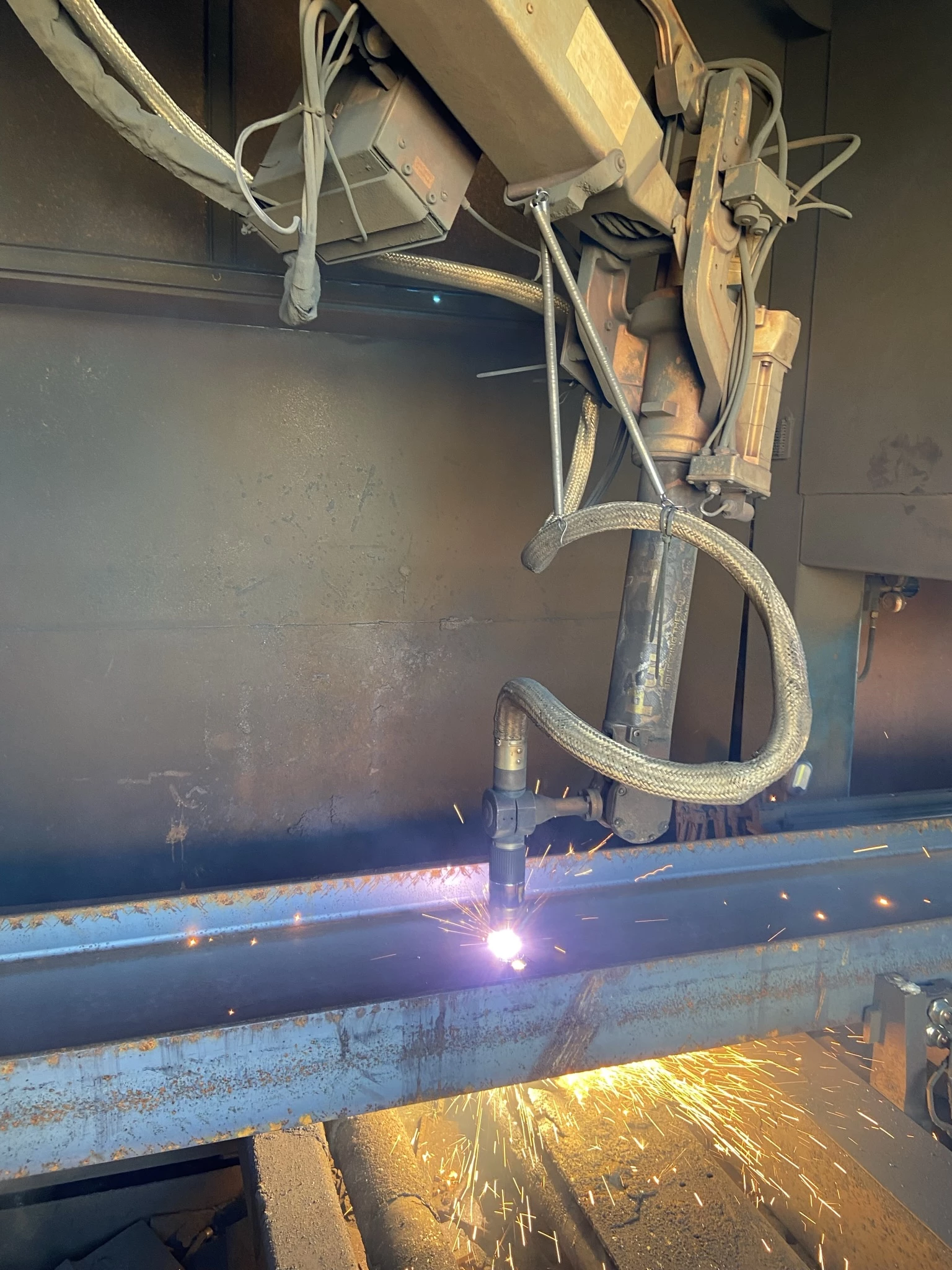

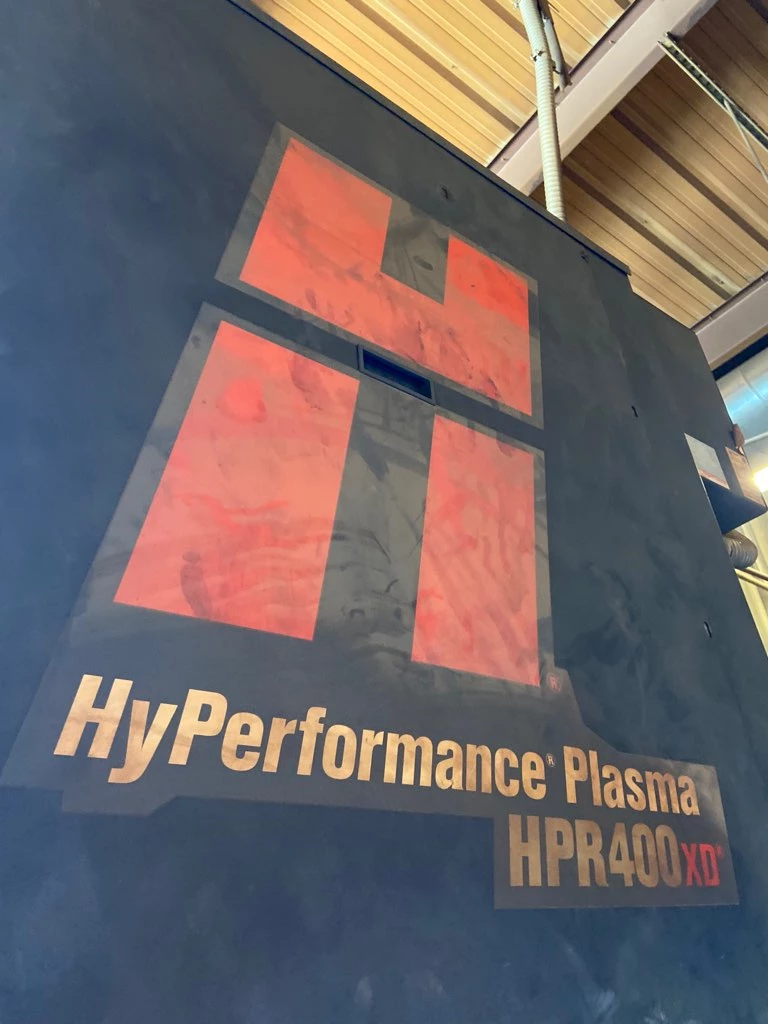

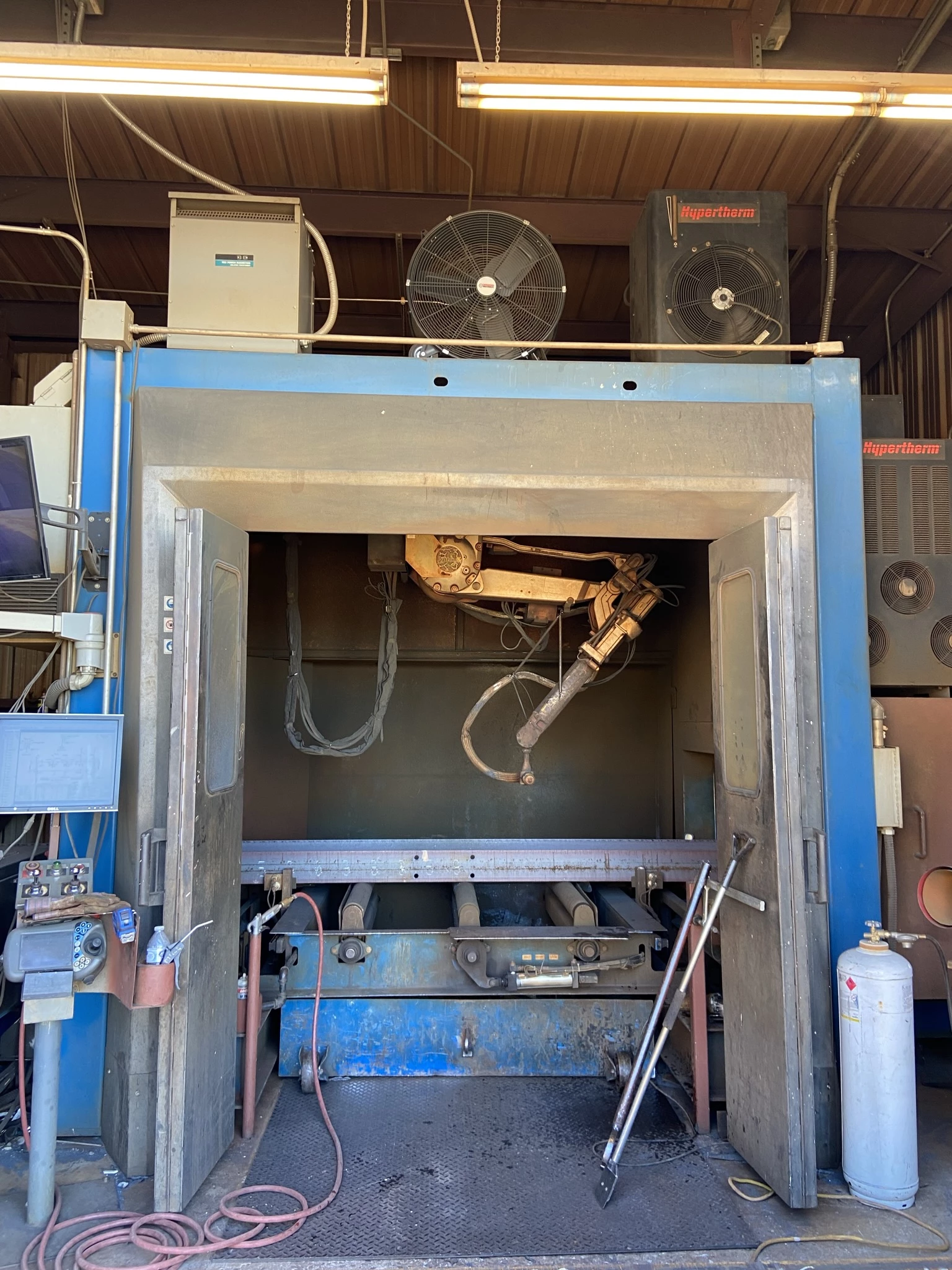

(1) Hypertherm HPR400XD Plasma System |
|
6-Axis |
Auto Gas Console |
*
