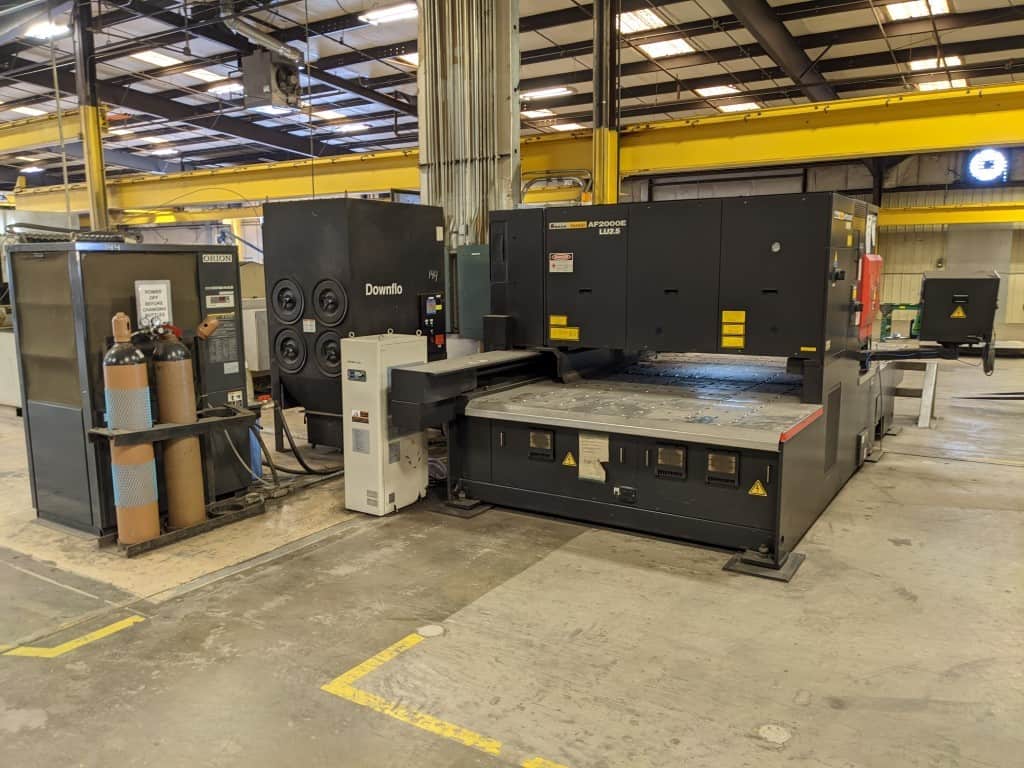

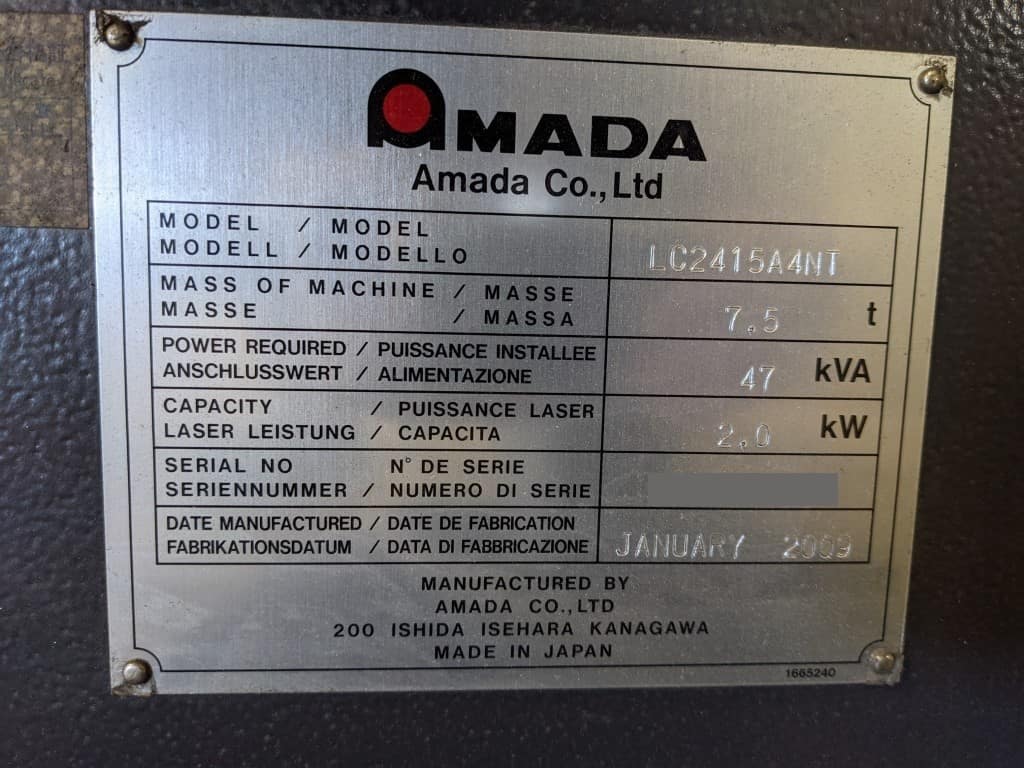

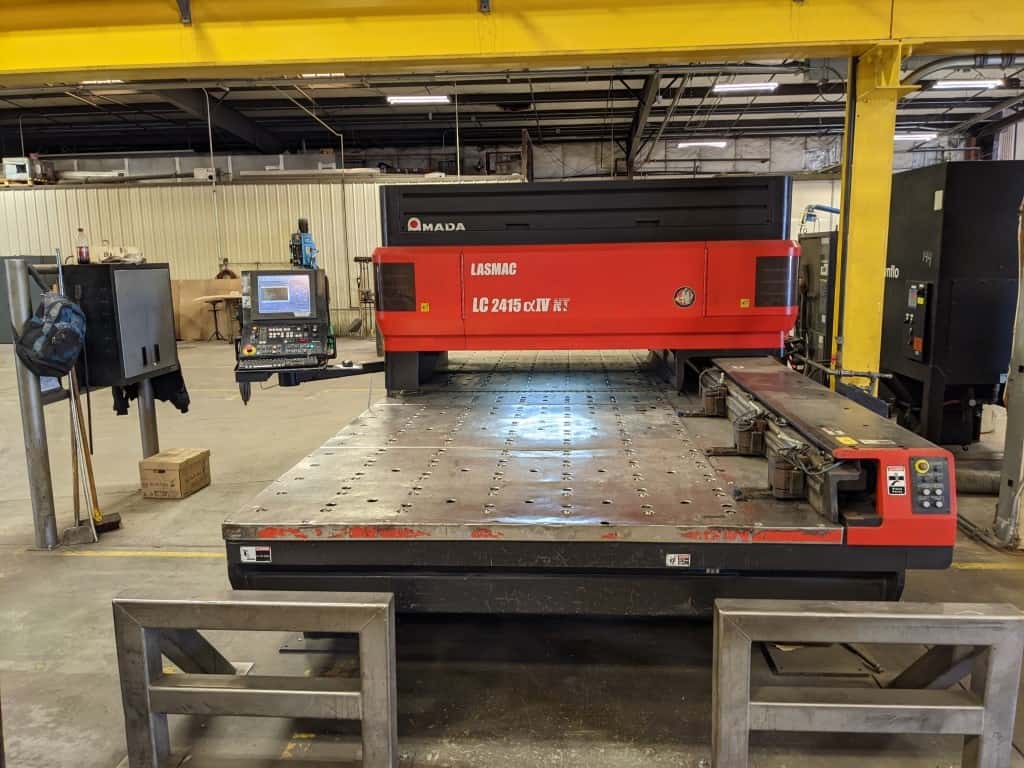

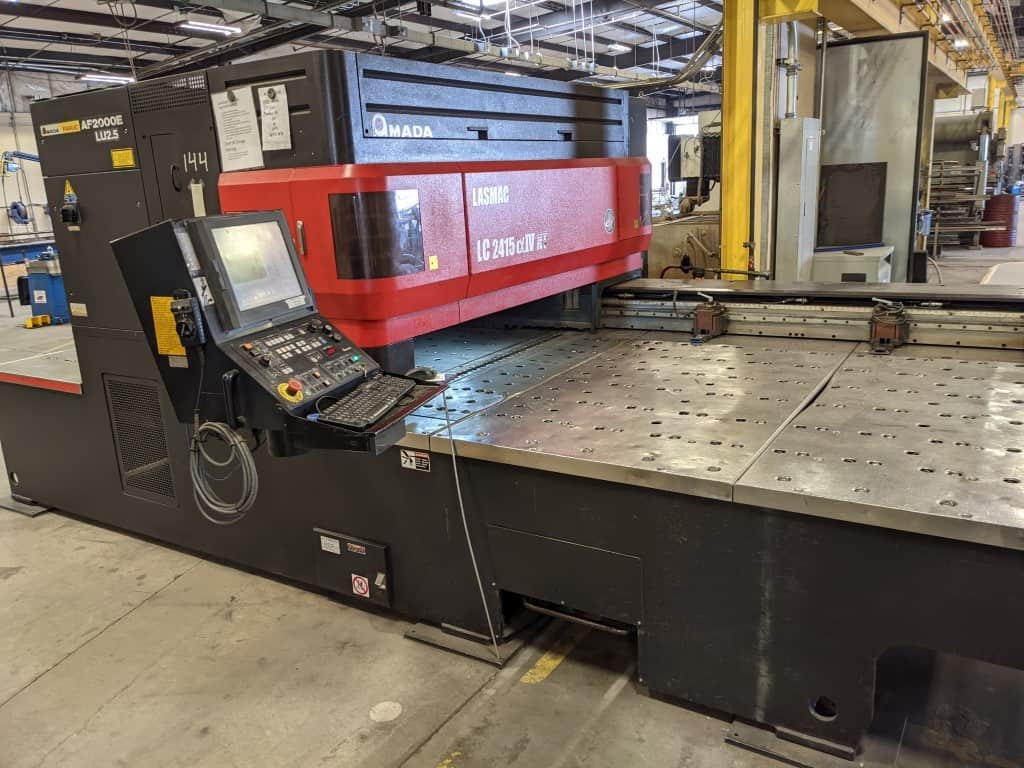

Year |
2009 |
|---|---|
Make |
Amada |
Model |
Lasmac LC-2415A4NT |
Description |
5' x 8.25' CNC Laser |
Reference # |
8069683 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
8.25' |
| Max Wattage |
2,500 |
| X-Axis Travel |
99" |
| Y-Axis Travel |
61″ |
| Z-Axis Travel |
11.8" |
| Control |
Amada AMNC-F CNC Control |

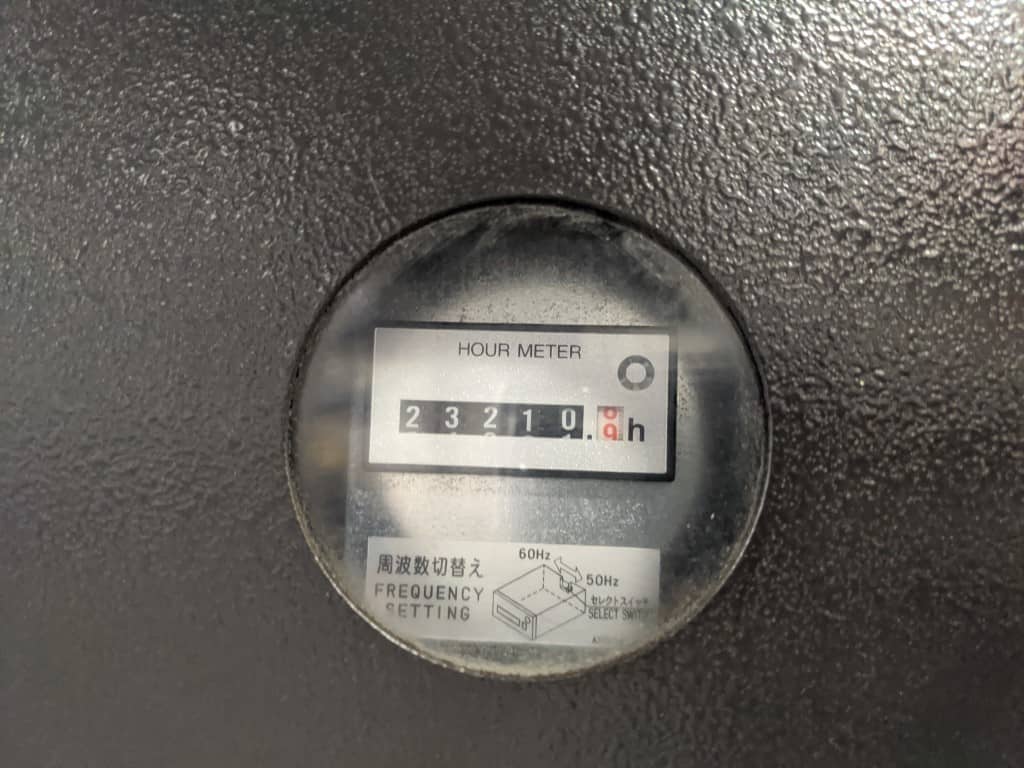

| Hours |
Approx 23,000 Beam on |
| Power Requirement |
208/3/60 |
| Maximum Cutting Speed |
787 IPM |
| Maximum Axis Travel |
0.78" |
| Maximum Table Speed |
3,149 IPM |
| Maximum Speed - Z-Axis |
787 IPM |
| Positioning Accuracy |
+/- 0.0004"/20" |
| Repeatability |
0.0004" |
| Maximum Material Weight |
727 lbs |
| Number of Clamp |
3 |
| Work Chute (Y x X) |
66" x 21" |
| Approximate Machine Weight |
20,000 lbs |
Features
|

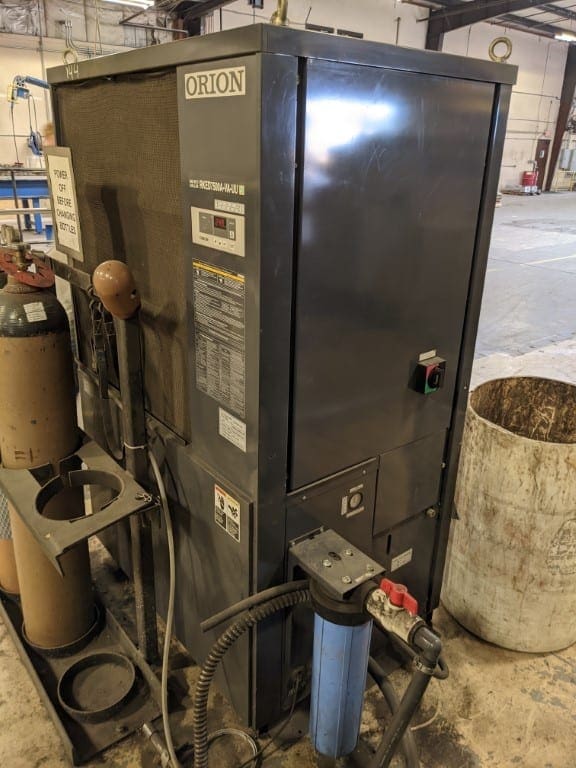

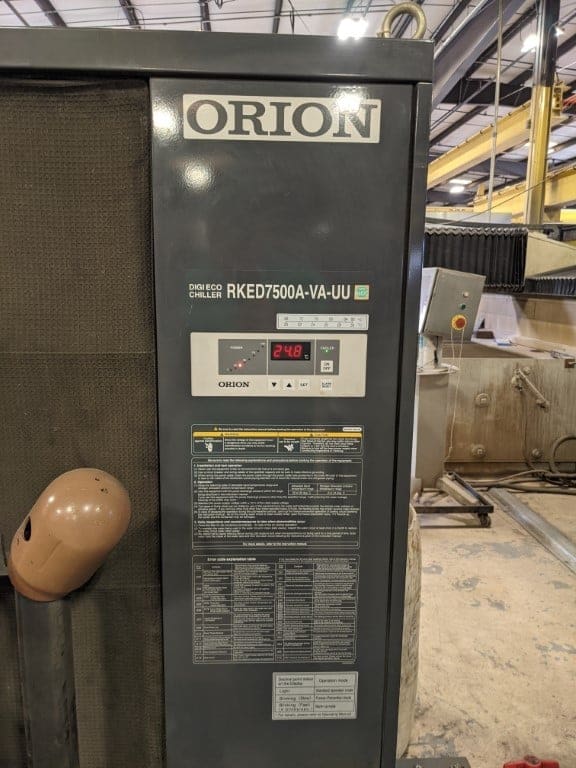

Chiller Unit |

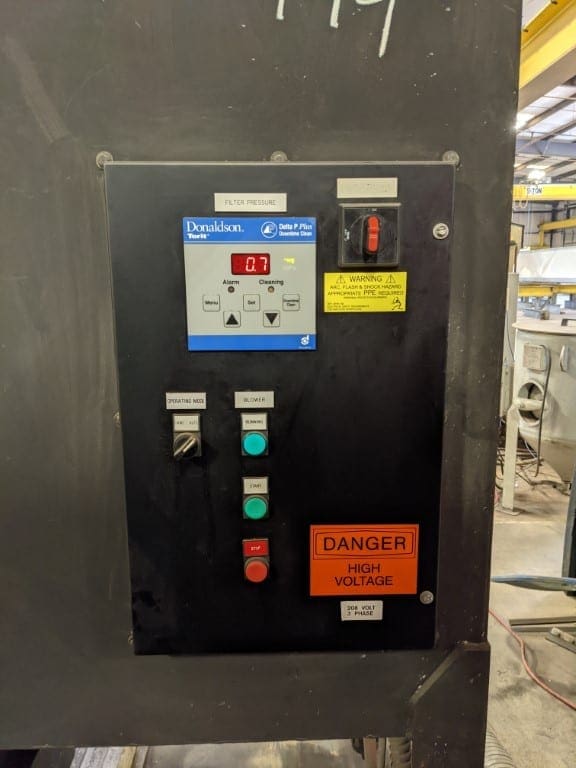

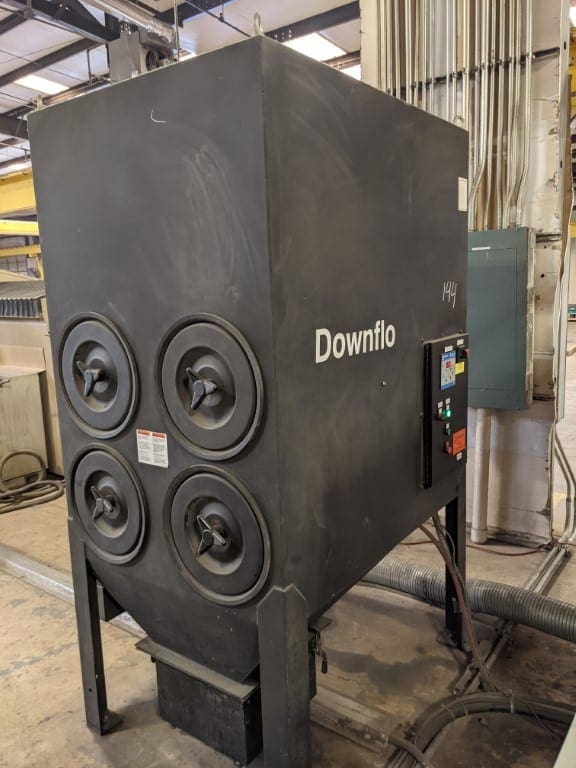

Dust Collector |
|
X Axis For Work Piece Movement |
X/Y/Z Simultaneous 3 Axis Control And B Axis |
|
Y Axis For Cutting Head Movement |
