Year |
2008 |
|---|---|
Make |
Makino |
Model |
EDGE3S |
Description |
EDM Sinker |
Reference # |
8039367 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
17.71" |
|---|---|
| Y-Axis Travel |
11.81" |
| Z-Axis Travel |
12.59" |

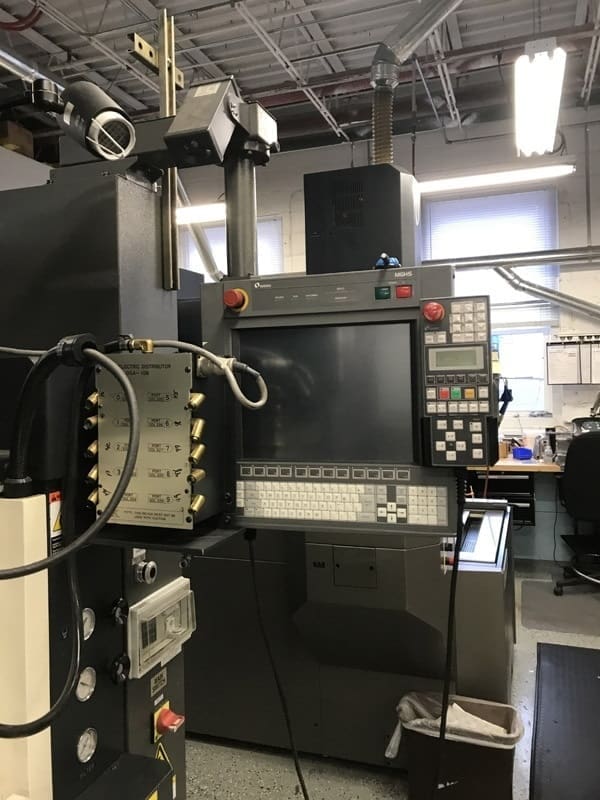

| Control |
Makino MGH5 |
| Tool Changer |
16 Station |
| Power Source |
60 AMP |
| Chuck |
Erowa |
| Table Size |
23.62" x 17.71" |
| Max Work Piece Weight |
1,763 lbs |
| Work Tank Inner Dimension |
1.49" x 21.65" x 13.77" |
| Work Tank Capacity |
140 L |
| Electrode Attachment Plate Size |
4.92" |
| Max Electrode Mass Including Holder |
110 lbs |
| Rapid Traverse |
196 IPM |
| Simultaneous Controlled Axes |
3 |
| Power Requirement |
200-480/3/60 |
| Machine Dimensions |
72" x 82" x 92" |
| Weight |
10,440 lb |
Features
|
C-Axis |
Chiller |
|
Rotary Scales Glass Scale Feedback |
Tungsten Carbide Circuit |
|
Fire Extinguisher |
*
