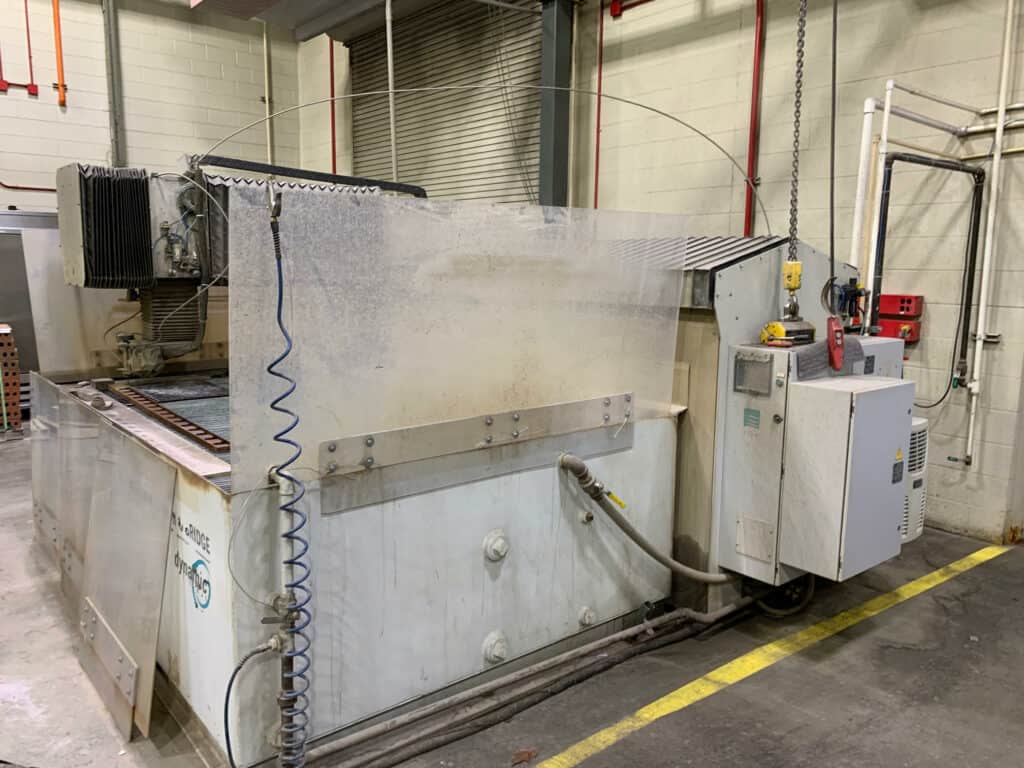

Year |
2008 |
|---|---|
Make |
Flow |
Model |
IFB 4800 |
Description |

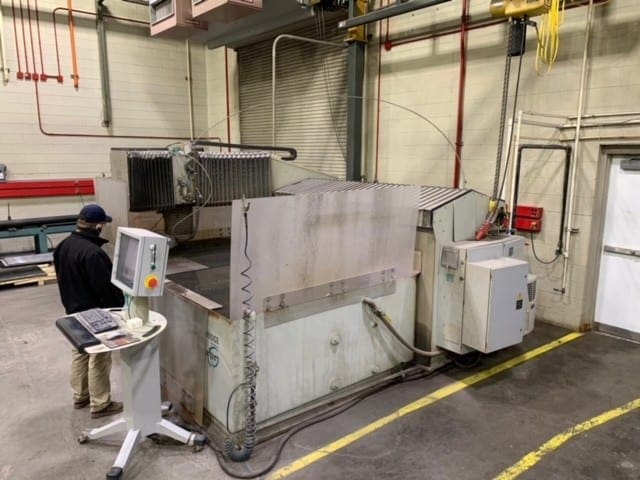

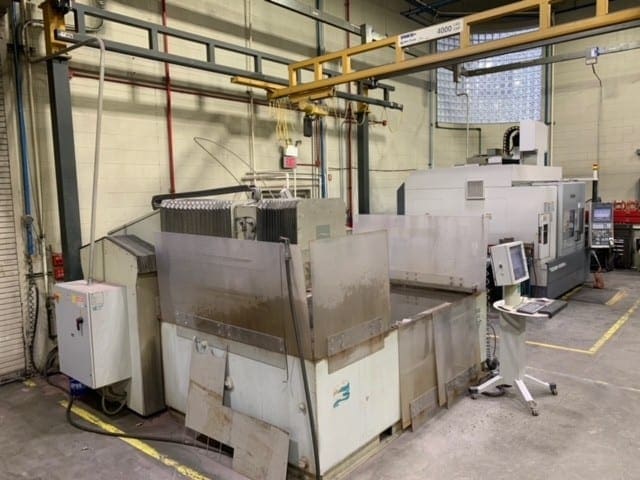

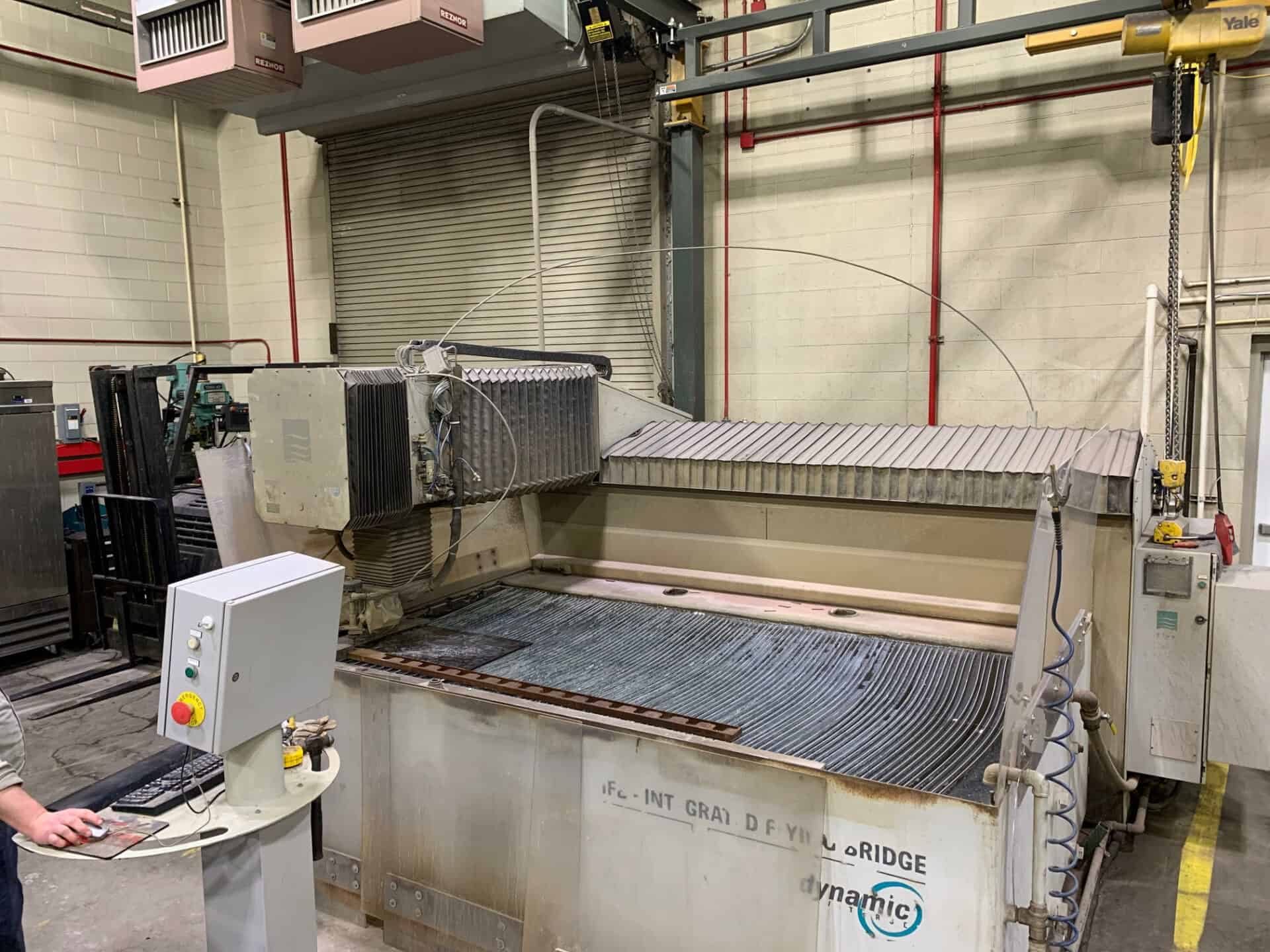

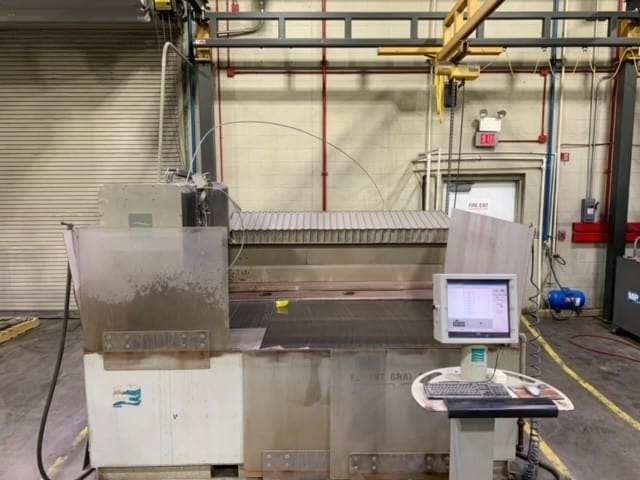

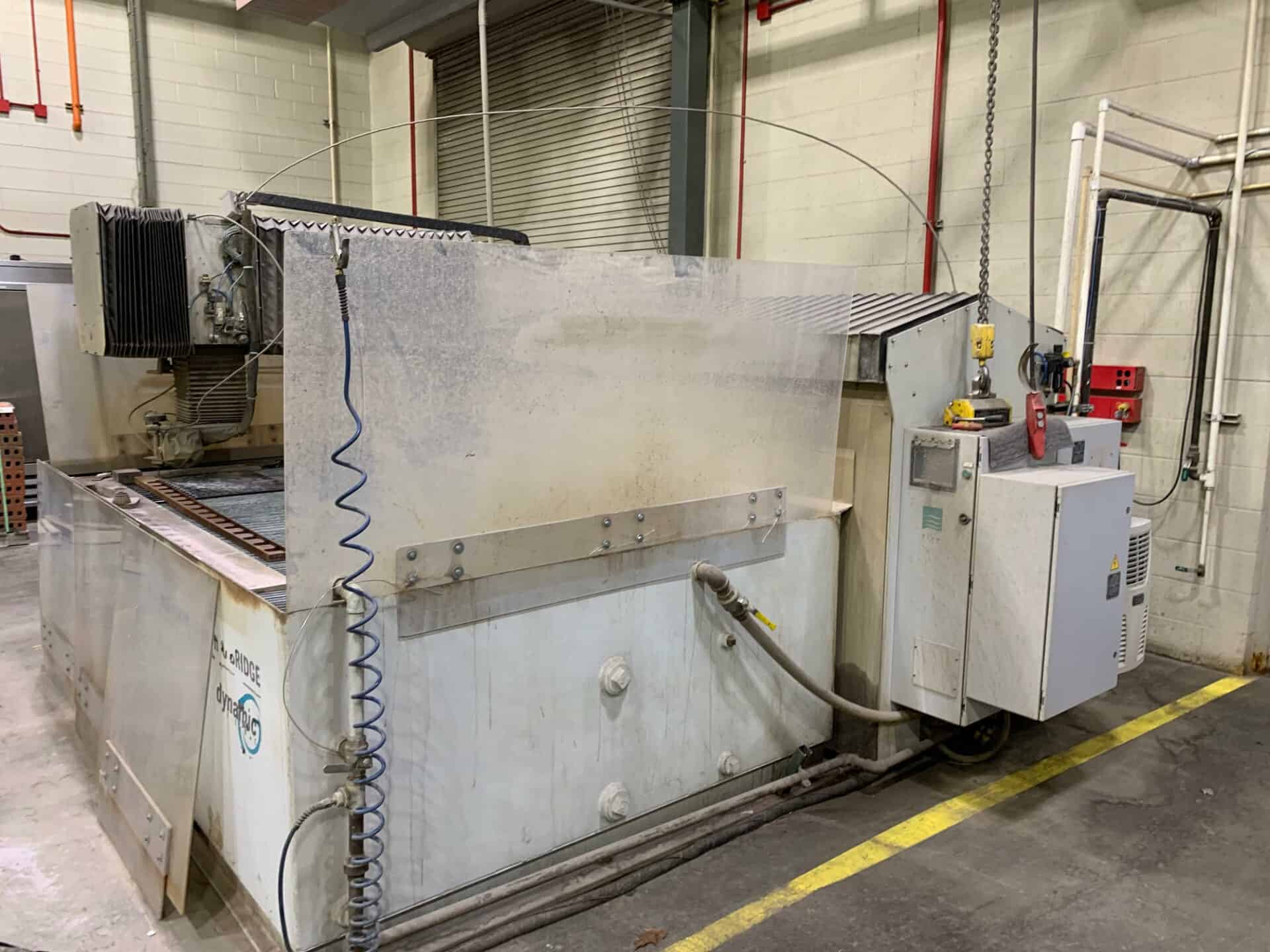

4' x 8' Dynamic Head CNC Waterjet |
Reference # |
8069605 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
4' |
|---|---|
| Table Length |
8' |
| Control |
Flowmaster |
| Pump |

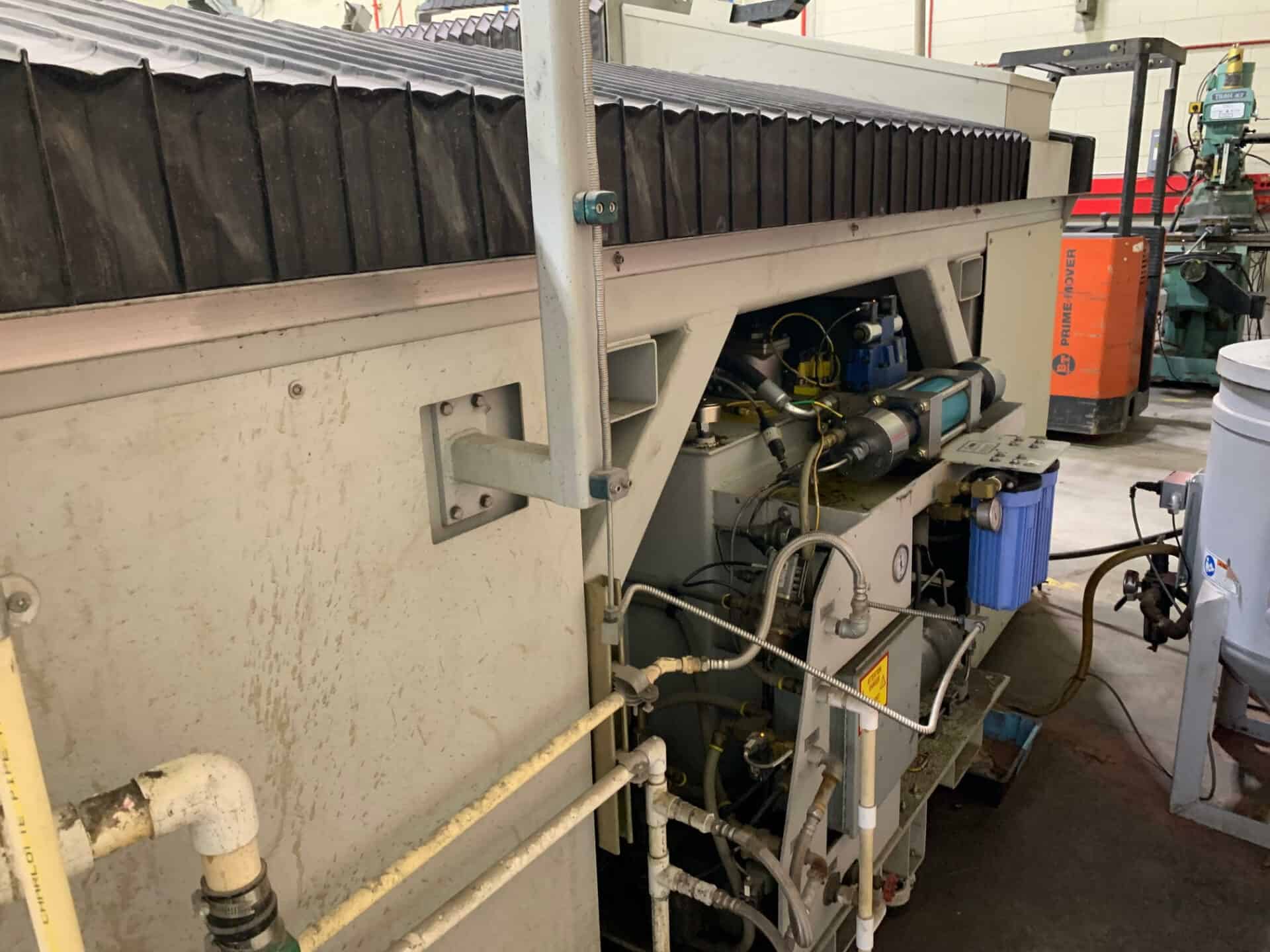

50 HP |
| Max Cutting Pressure |
90,000 PSI |
| Power Requirement |
460-480/3/60 |
| Cutting Envelope |
8’ X 4’ |
| Approx Dimensions (LxWxH) |
155” X 140” X 67” |
| Approx Machine Weight |
11,000 Lbs |
Features
|
Built-in CAD Functions & Automatic Tool Path Generation |
FlowNEST - Optimizes Material Yield With Full Geometric Nesting |
|
Flowpath CAD/CAM System |
Hardened Ball Screw Linear Motion System |
|
Roll Around Control For Easy Operation |
Separate Robotics From Catcher Tank Eliminates Impact & Vibration Effects And Thermal Expansion On Motion System |
|
Rigid Open Gantry Design |
Simply Choose Material And Thickness And Software Does The Rest |
|
500 IPM Speed Range With +/- 0.0015” Accuracy |
All Electronic Manuals Available |
|

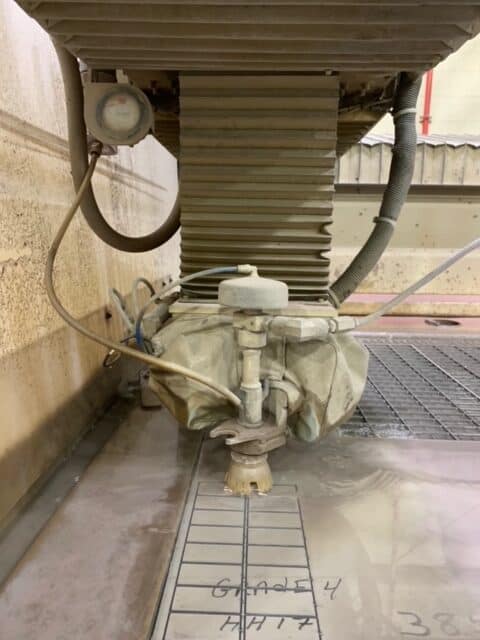

Dynamic Cutting Head With Taper Compensation |
Easy To Load Catcher Tank With 3 Open Sides |
|
Ethernet Network and USB Drive Compatible |
FlowCUT Machine Interface with Smart-Stream Technology |
|
Full Wrap Around Bellows To Protect Drive Components |
Heavy Duty Welded Steel Base And Catcher Tank |
