Year |
2008 |
|---|---|
Make |
Amada |
Model |
AC255 NT |
Description |
22 Ton Turret Punch |
Reference # |
8074956 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

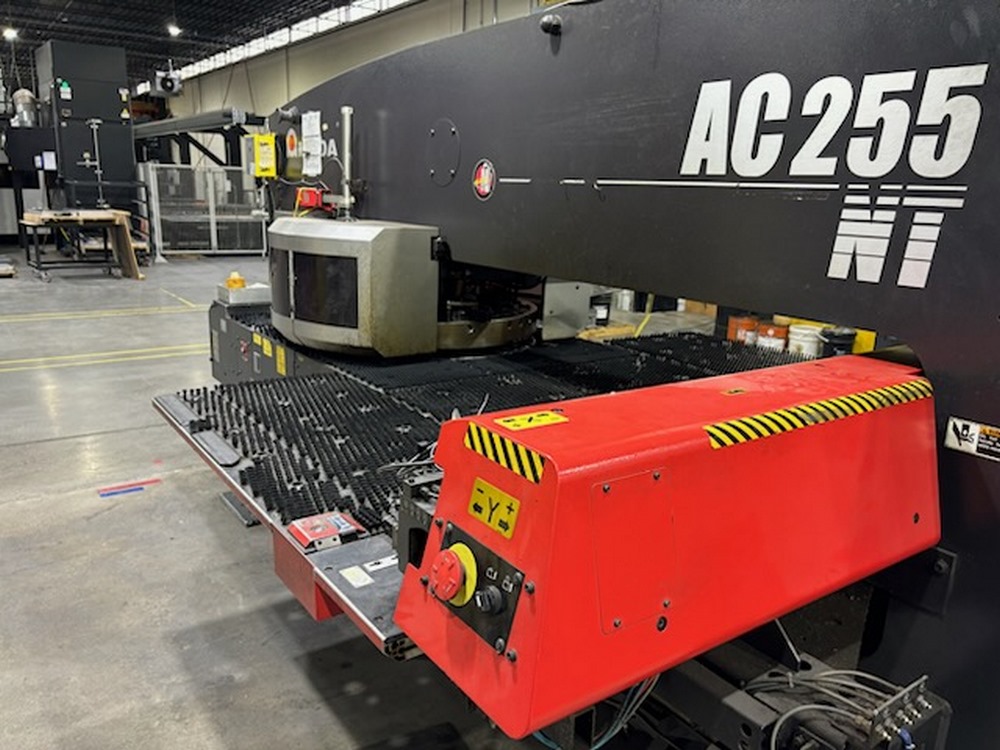

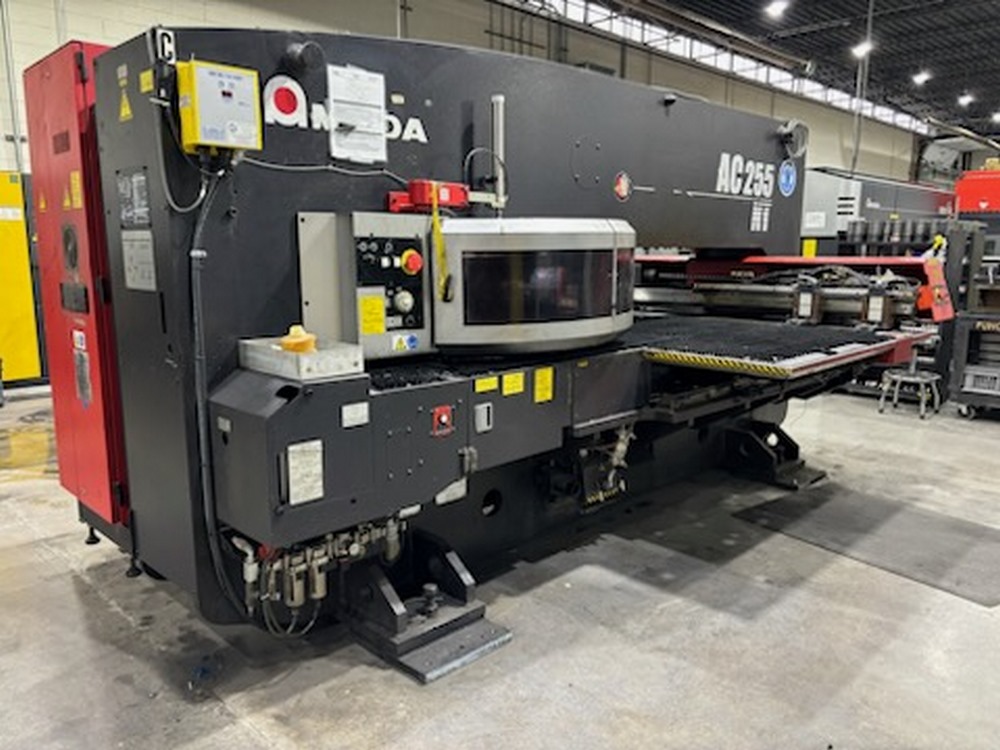

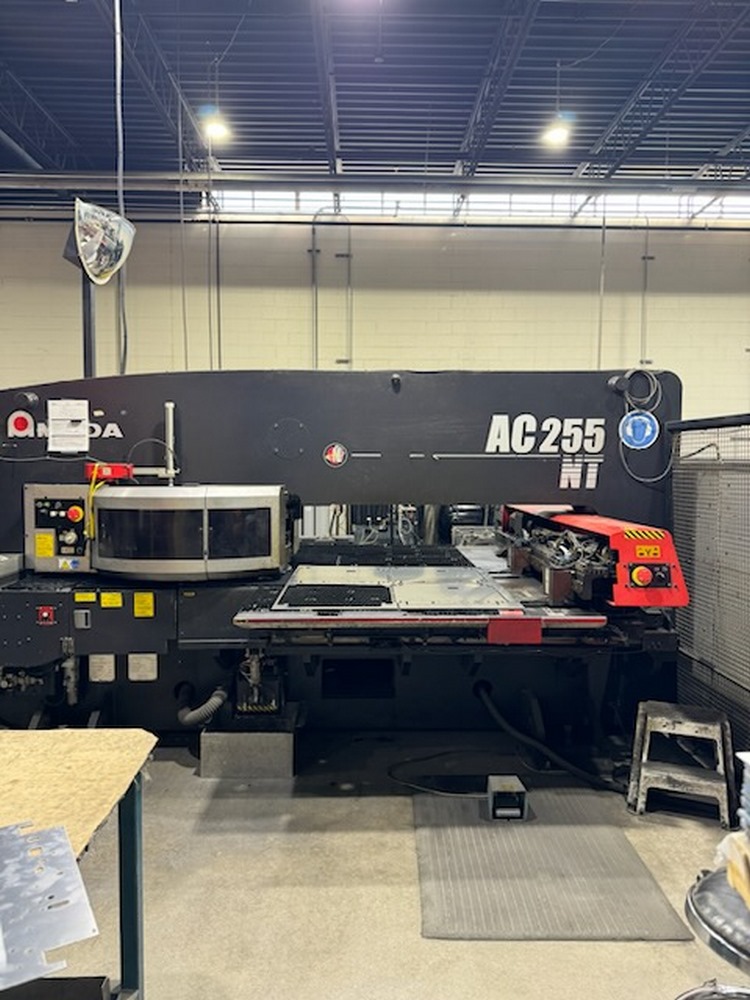

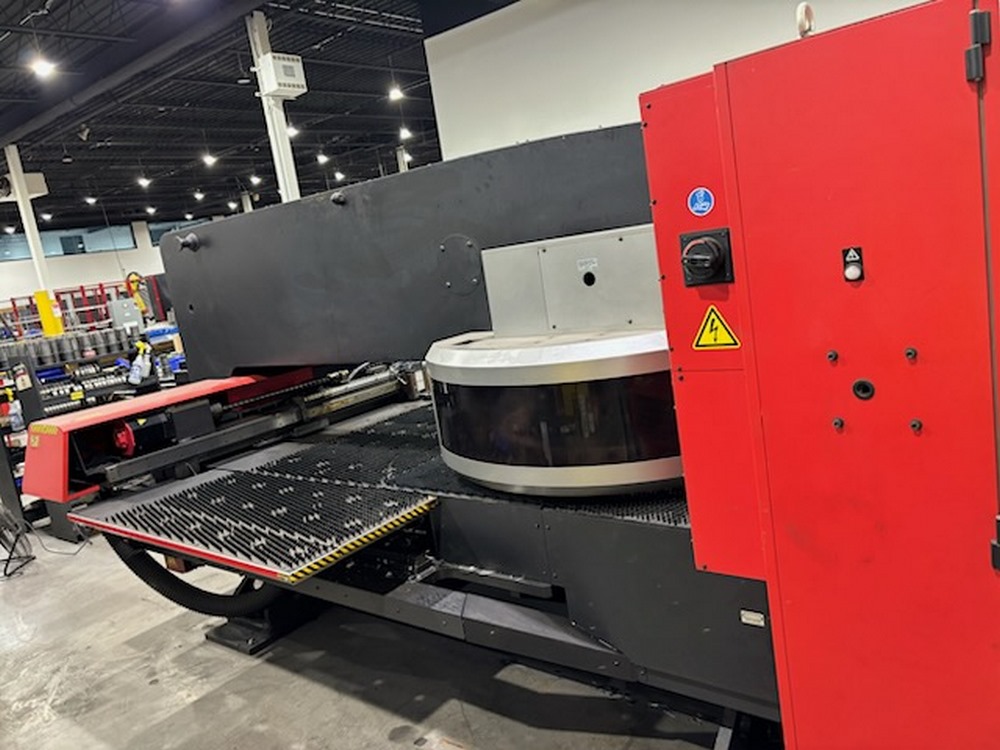

Used Amada AC255 NT (2008) Turret Punch for Sale. This pre-owned Amada turret punch is located in the United States. If you have any questions regarding this Amada Turret Punch, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
48" |
| Sheet Length |
96" |
| Turret Stations |
51 with 4 (A/I) |
| Max Sheet Size without Repositioning |
50" x 50" |
| Throat Depth |
50" |
| Stroke Length |
1.65" |
| Control |
Amada AMNC-F NT |
| Max Material Thickness |
0.126" |
| Auto-Index Rotation Speed |
60 RPM |
| Turret Rotation Speed |
30 RPM |
| Punching Accuracy |
+/- 0.004" and +/- 0.002" |
| Max Feed Rate (X & Y-Axis) |
X - 3,150 IPM / Y - 2,362 IPM |
| Max Hit Rate (X & Y-Axis) |
X - 370 HPM / Y - 275 HPM |
| Max Weight of Material F1/F4 Speed |
F1 - 110 Lbs / F4 - 331 Lbs |
| Machine Weight |
26,400 Lbs |
| Dimensions |
162" x 101" |
Features
|
Bridge Frame Design |
Thick Turret Tooling |
|
(2) Work Clamps |

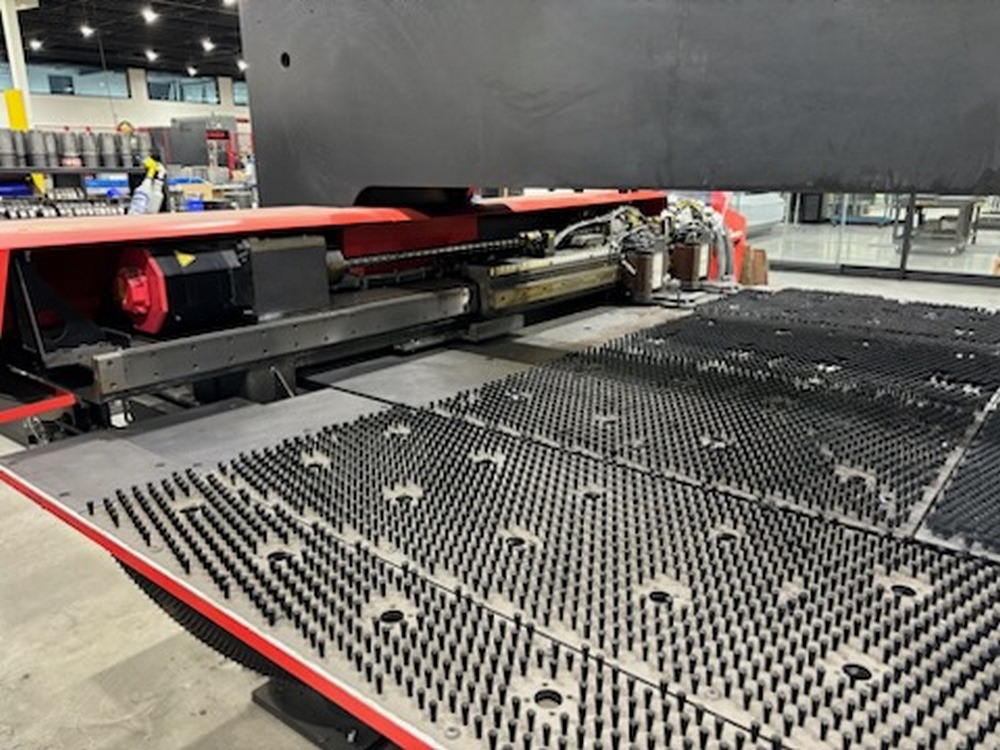

Brush Table |
|
Single Motor AC Servo Drive |
