Year |
2007 |
|---|---|
Make |
Okuma |
Model |
MacTurn 550-W |
Description |
CNC Lathe |
Reference # |
8071745 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

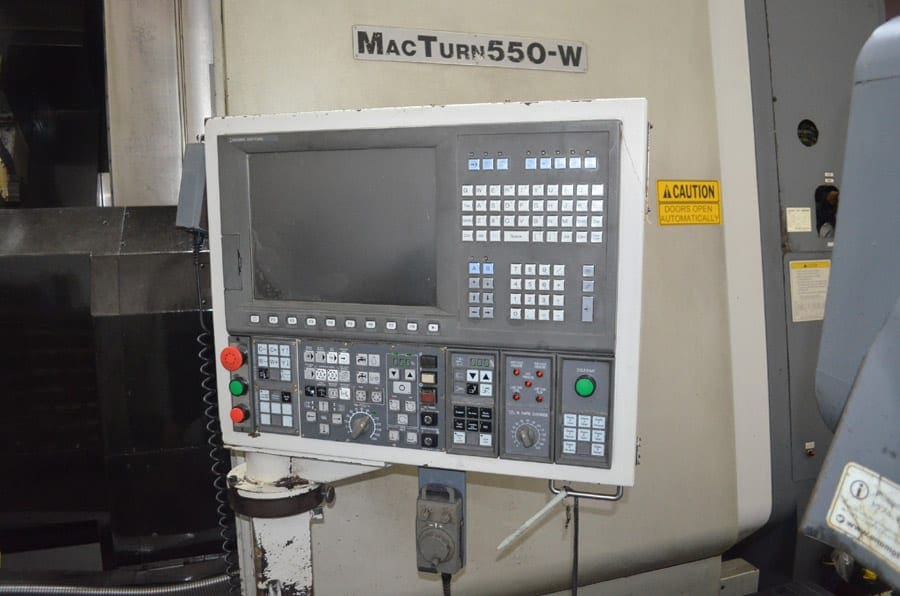

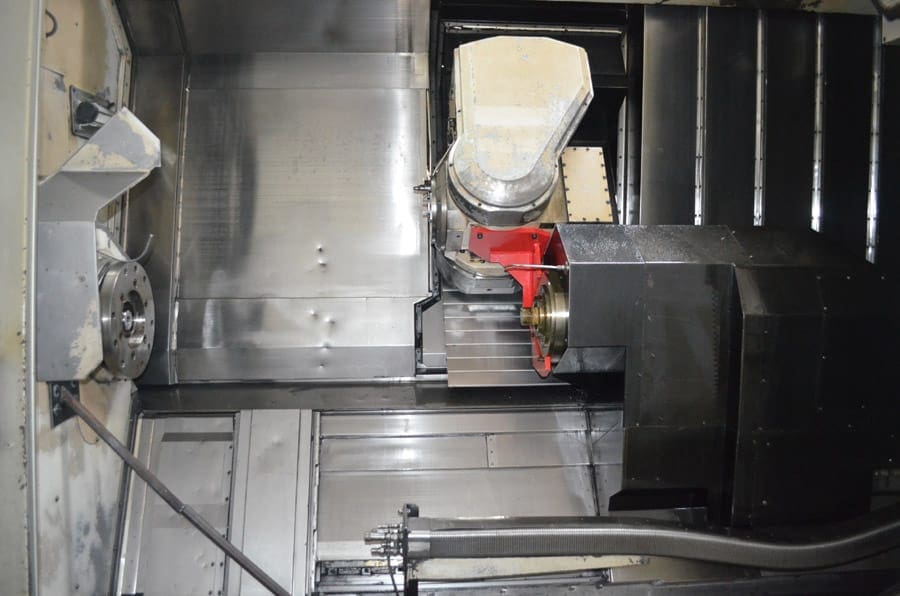

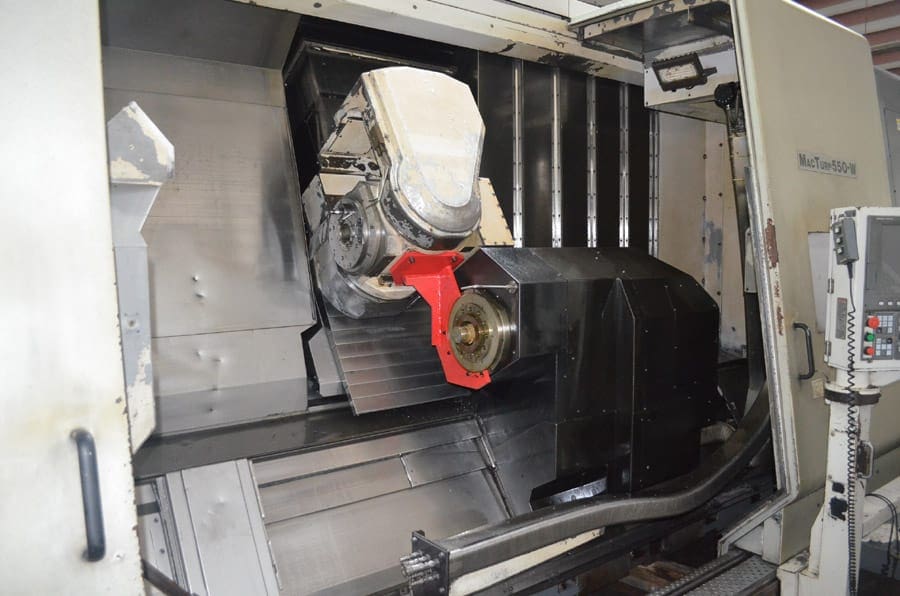

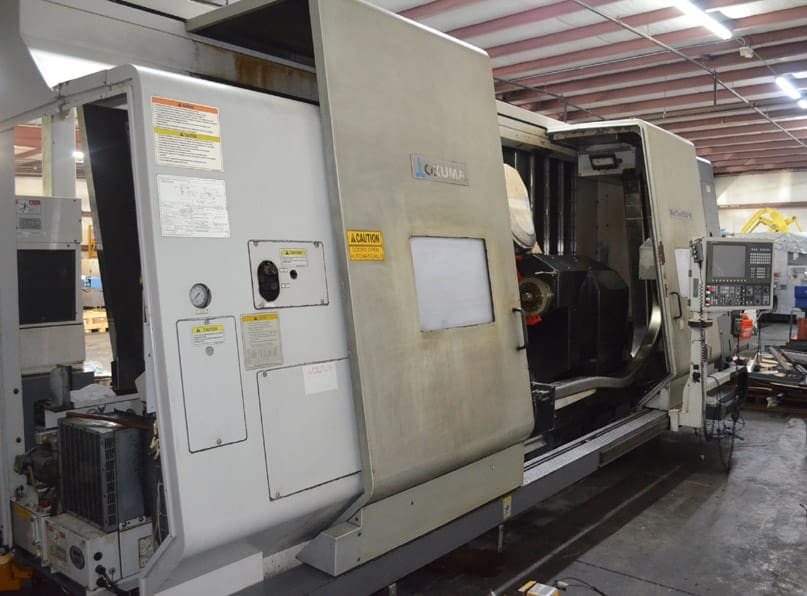

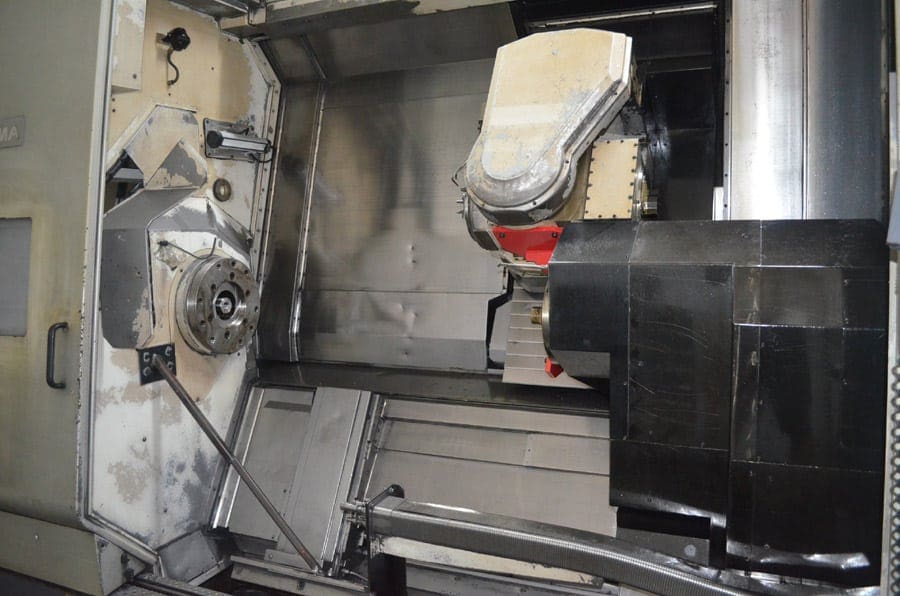

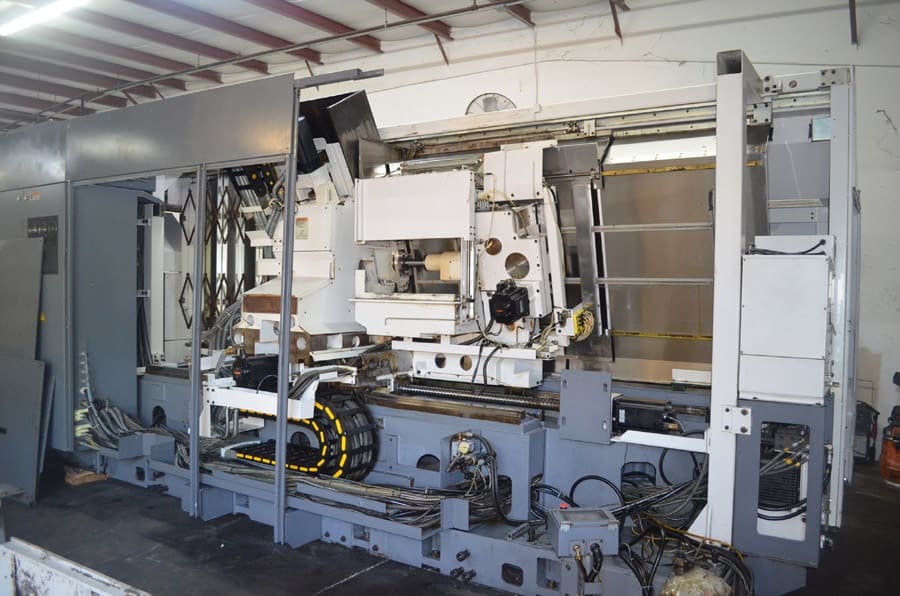

Used Okuma MacTurn 550-W (2007) CNC Lathe for Sale. This pre-owned Okuma CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
19.5" |
|---|---|
| Swing |
28.3" |
| Turning Diameter |
28.3" |
| Spindle Speed |
3,800 RPM |
| Control |
OSP-P200L |
| Distance Between Centers |
82.68" |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| X-Axis Travel |
XA: 25.98" / XB: 9.05" |
| Z-Axis Travel |
ZA: 87.2" / ZB: 82.68" |
| Y-Axis Travel |
+/- 4.921 |
| C-Axis Control Angle |
360 (Min. Control Angle 0.001 Deg) |
| B-Axis Index Angle |
.001 Deg |
| Automatic Tool Changer |
80 ATC |
| Chip Removal |
Chip Conveyor |
| Machine Size |
242” x 120” x 122” |
| Machine Weight |
61,700 Lbs |
Features
|
2 Saddle Machine |
Auto Tool Presetter |
|
Program Select |
Renishaw OMP60 Probe |
|
Spindle Orientation |
Sub Spindle |
|
3D Animation |
Thread Override |
|
Touch Sensor/Touch Setter |
C Zero Offset |
|
Heavy Tooling |
HI-G Control |
|
I/M Switch |
JIS A2-8 Spindle Nose |
|
L Tool Index |
M-Axis Orientation |
|
NC Turret |
Pitch Error Comp |
