Year |
2007 |
|---|---|
Make |
Mazak |
Model |
Integrex 100-IV |
Description |
CNC Lathe |
Reference # |
8071688 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

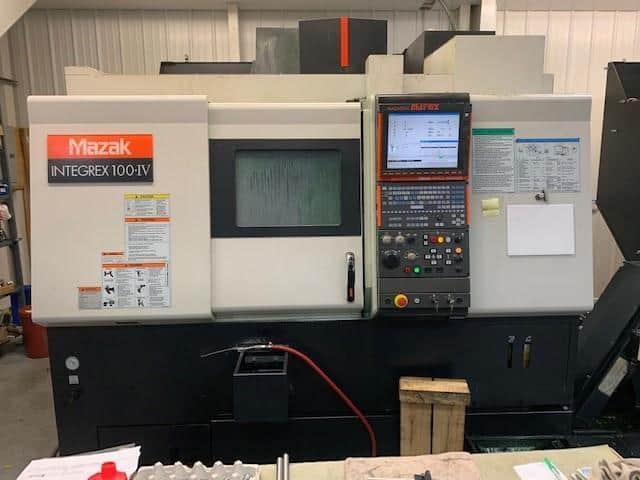

Used Mazak Integrex 100-IV (2007) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
6" |
|---|---|
| Bar Capacity |
2" |
| Swing |
21.46" |
| Turning Diameter |
21.46" |
| Spindle Speed |
6,000 RPM |
| Control |
Mazatrol Matrix |
| Distance Between Centers |
31.69" |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Chip Removal |
Chip Conveyor |
| X-Axis Travel |
16.14" |
| Y-Axis Travel |
+/- 2.75" |
| Z-Axis Travel |
31.69" |
| C-Axis Rotation |
0.001 Degrees |
| Spindle Motor |
15 HP |
| Tool Changer |
40 ATC |
| Spindle Bore |
2.4" |
| Rotary Tool Speed |
12,000 RPM |
| Rotary Motor |
7.5 HP |
| Weight |
11,088 Lbs |
Features
|
Auto Tool Presetter |
Parts Catcher |
|
Programmable Tailstock |
A2-5 Spindle Nose |
|
B-Axis Pendulum Head (225 Degree Movement) |

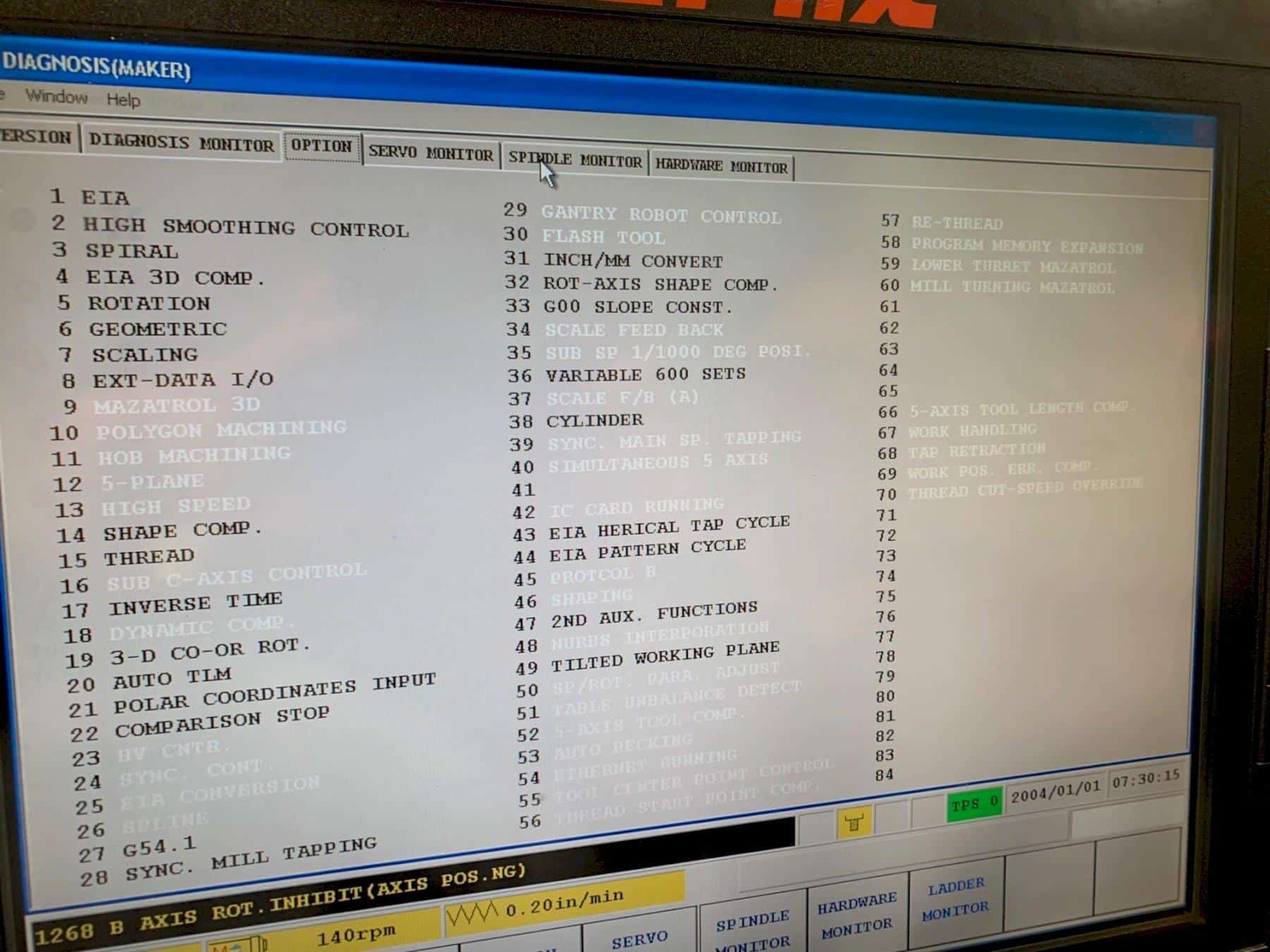

EIA/Smoothing/Spiral Interpolation/3D Comp/Rotation/Scaling |
|
KM 63 Spindle Taper |
Y-Axis Capability for Off Center Work |
