Year |
2007 |
|---|---|
Make |
Imcar |
Model |
SIHR 12/5 |
Description |
10' x 1/2" Double Pinch Hydraulic Plate Roll |
Reference # |
8074554 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

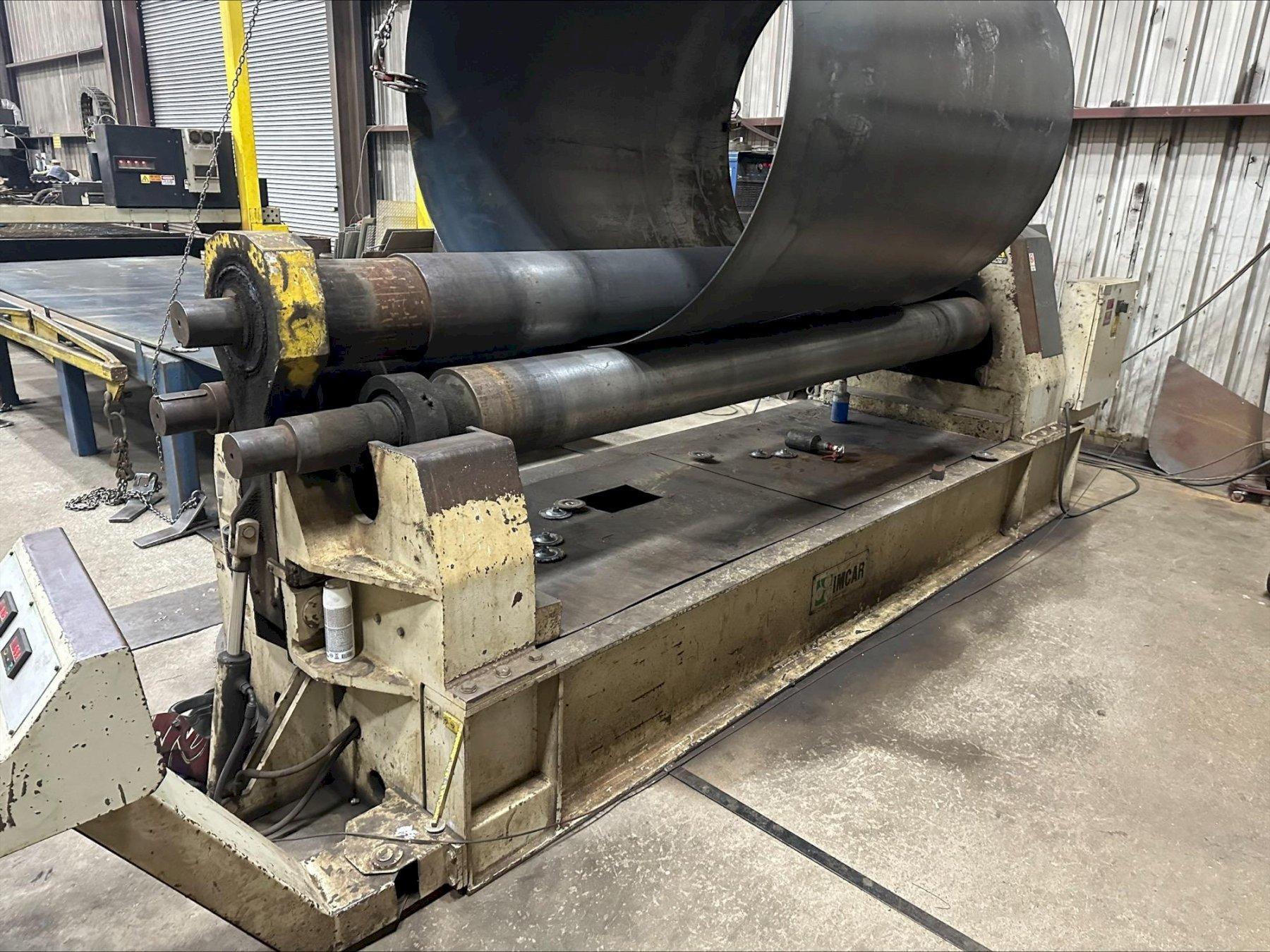

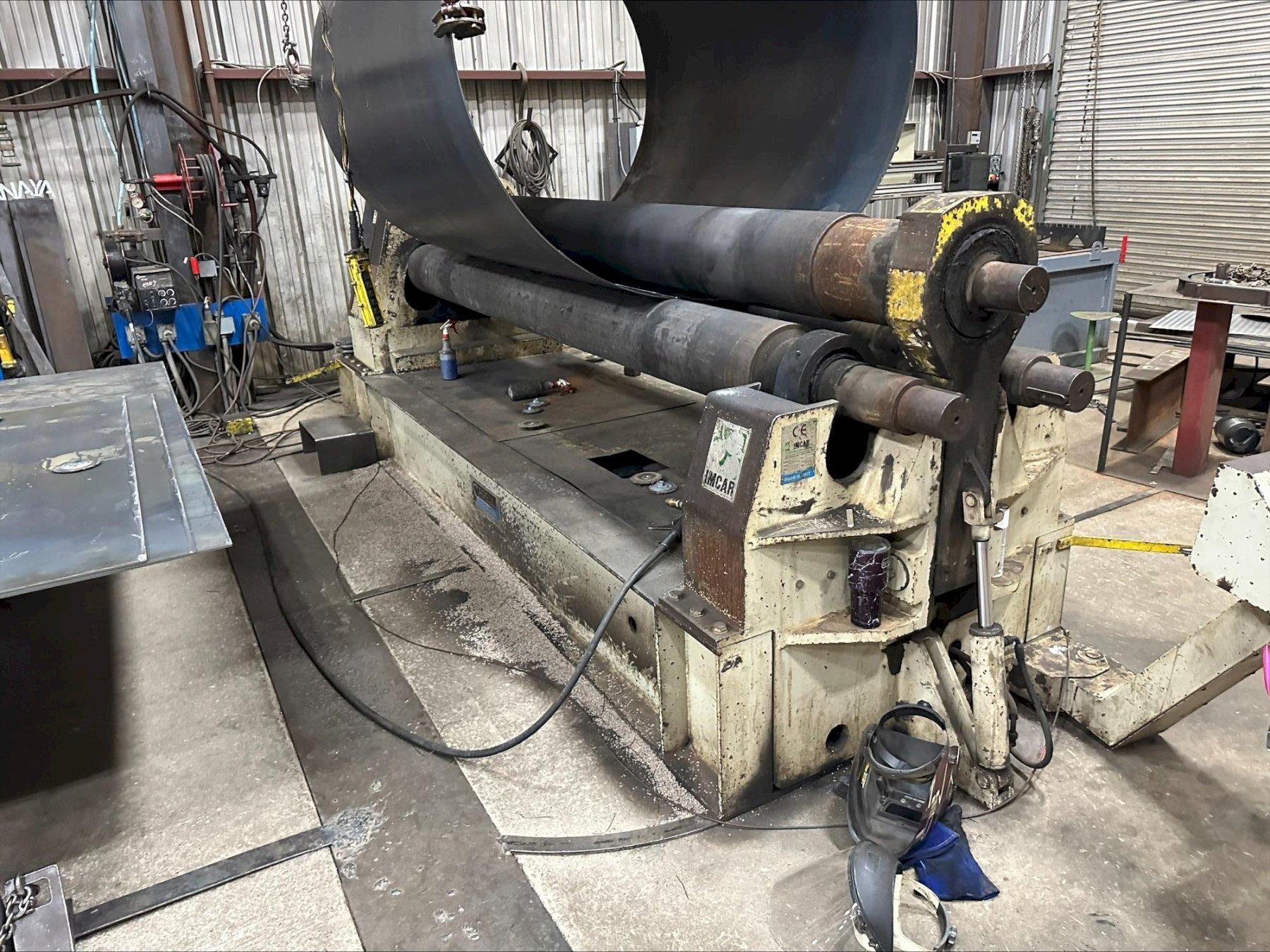

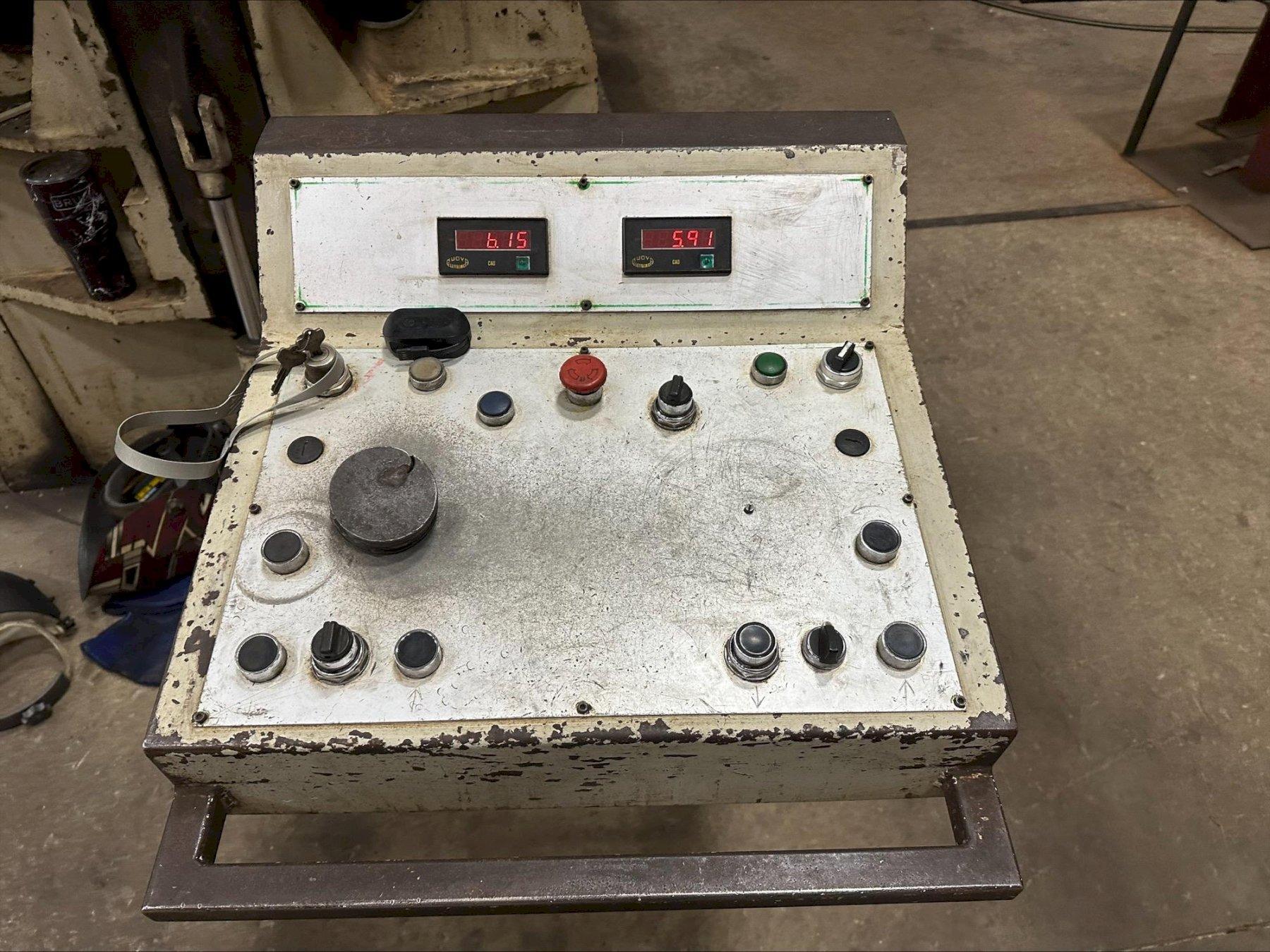

Used Imcar SIHR 12/5 (2007) Plate Rolls for Sale. This four-roll style hydraulic plate roll has a capacity of 10′ x 1/2″, with a pre-bend capacity of 3/8″. The top roll measures 11″ in diameter and the bottom rolls measure 10.25″ in diameter, driven by a 15 HP motor. The machine is equipped with a digital read out for side roll position, allowing repeatable setups from job to job. If the SIHR 12/5 fits your plate forming requirements, or you want additional detail on the controls and drive, Request a Quote and we will follow up with the information you need.
Specifications
| Capacity |
10' x 1/2" |
|---|---|
| Capacity Pre Bend |
3/8" |
| Top Roll Diameter |
11" |
| Bottom Rolls Diameter |
10.25" |
| Motor |
15 HP |
Features
|
Digital Read Out for Side Rolls Position |
