Year |
2007 |
|---|---|
Make |
Hyundai Kia |
Model |
KBN-135 |
Description |
CNC Horizontal Boring Mill |
Reference # |
8070291 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

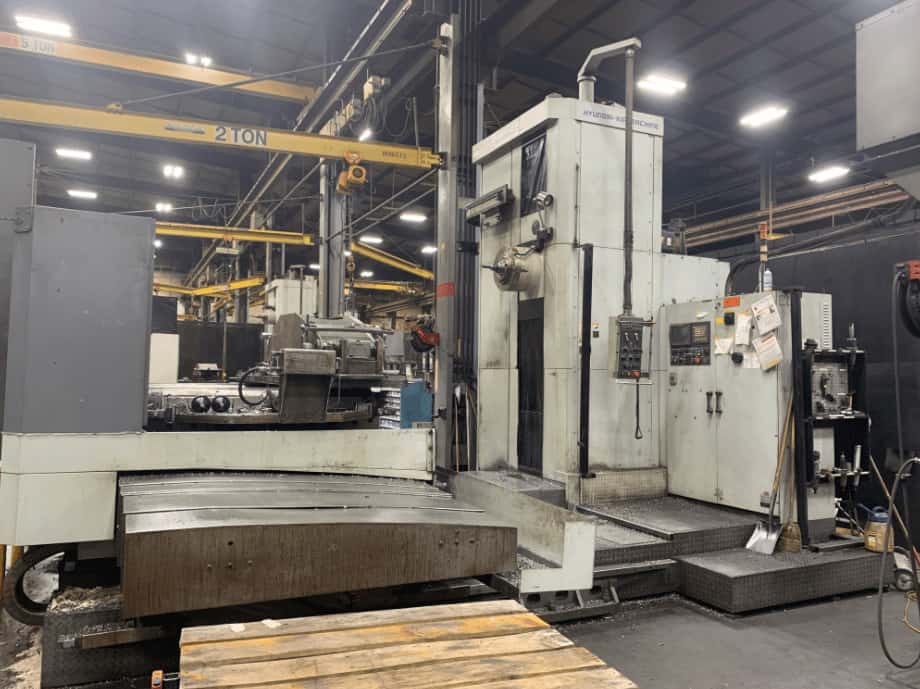

Hyundai Kia KBN 135
Specifications
| X-Axis Travel |
118.1" |
|---|---|
| Y-Axis Travel |
78.7" |
| Z-Axis Travel |
63" |
| Spindle Speed |
2,000 RPM |
| Spindle Taper |
CAT 50 |
| Spindle Motor |
30 HP |
| Tool Magazine Capacity |
40 ATC |
| Control |

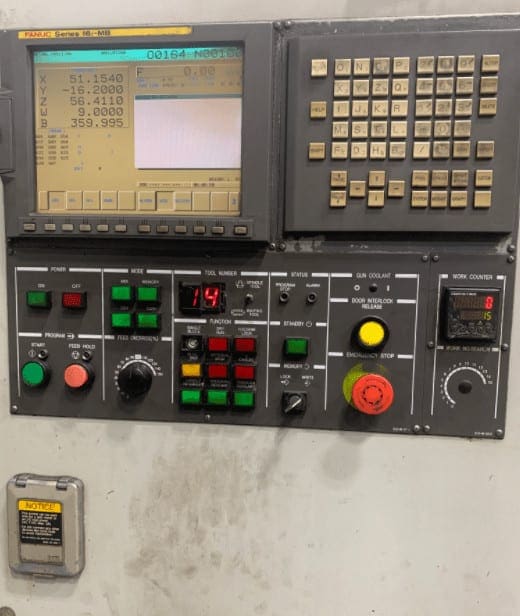

Fanuc 16i |
| Chip Removal |
Chip Conveyor |
| Coolant |
1,000 PSI CoolJet Through Spindle Coolant |
| Table Size |
78.74'' X 70.87'' |
| Table Load Capacity |
22,046 LBS. |
| Spindle Diameter |
5.3" |
| W - Axis Travel |
27.6" |
| B - Axis Indexing |
.001 |
| Tool Diameter |
5.1", 9.8" |
| Tool Length |
23.6" |
| Tool Weight |
66 LBS. |
| Rapid Traverse X, Y, Z, W |
315, 315, 315 IPM |
| Cutting Feed Rate |
.04 ~ 197 IPM |
| Machine Weight |
82,012 LBS |
Features
|
Program Restart |
Pulse Generator |
|
Helical Interpolation |
Scale Feedback System |
|
Rigid Tapping |
Spindle Speed Meter |
|
Spindle System |
Full 4th Axis Rotary Table |
|
Full High Guarding |
Hydraulic Clamping on Quill |
