Year |
2007 |
|---|---|
Make |
Haas |
Model |
TL-4 |
Description |
CNC Lathe |
Reference # |
8069829 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications

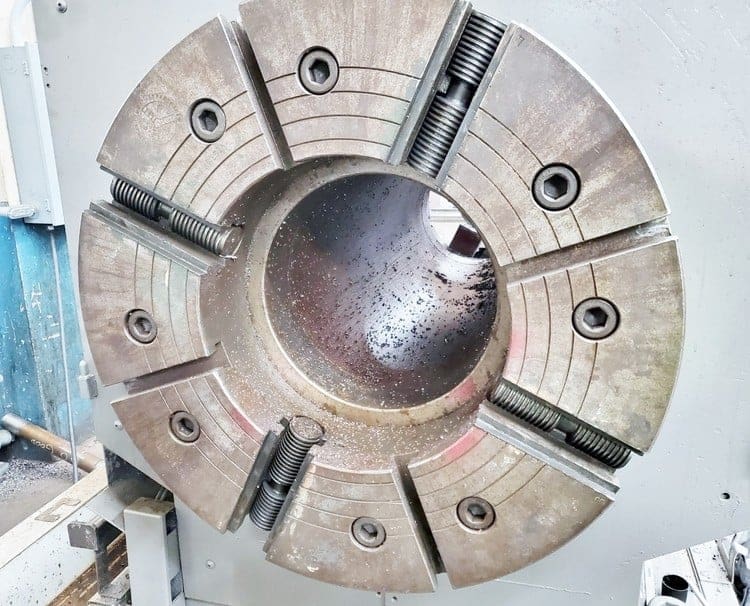

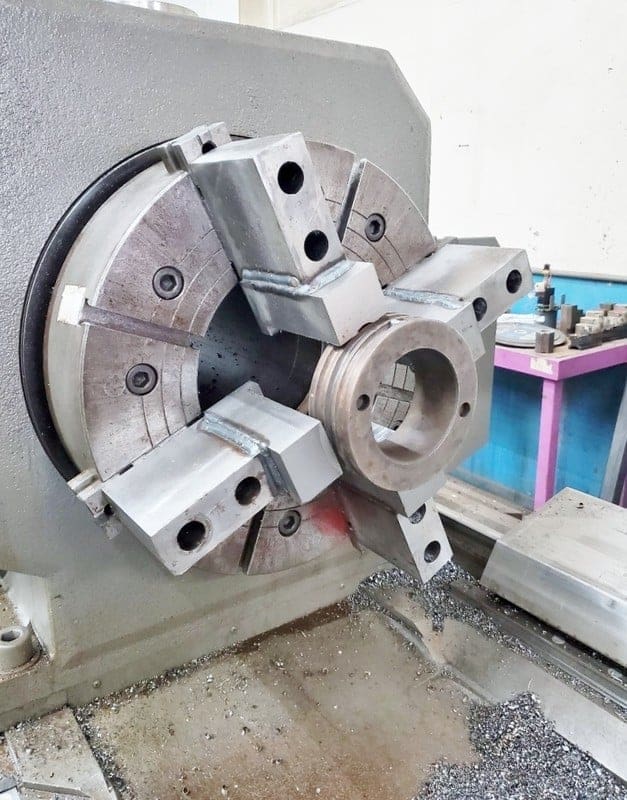

| Chuck Size |
24" |
|---|---|
| Bar Capacity |
10.8" |
| Swing |
35" |
| Turning Diameter |
35" |
| Spindle Speed |
500 RPM |

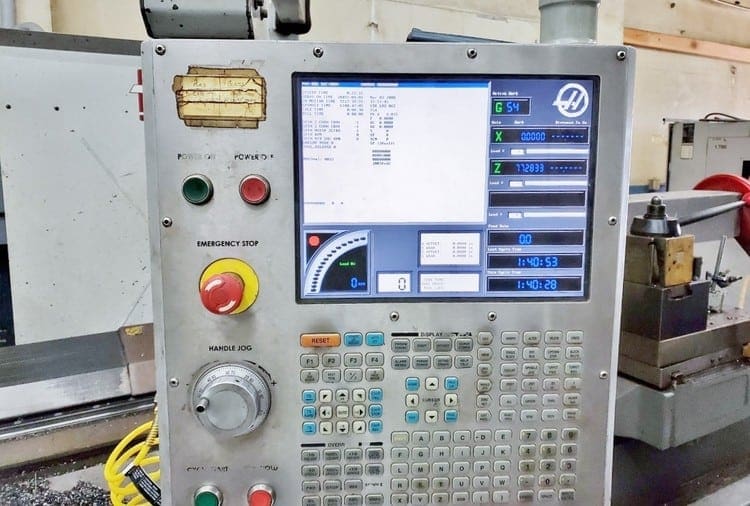

| Control |
Haas CNC |
| Distance Between Centers |
91" |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
230V |
| Swing Over Cross Slide |
16" |
| Max Cutting Length |
80" |
| Spindle Nose |
A1-20 |
| X-Axis Travel |
18" |
| Z-Axis Travel |
80" |

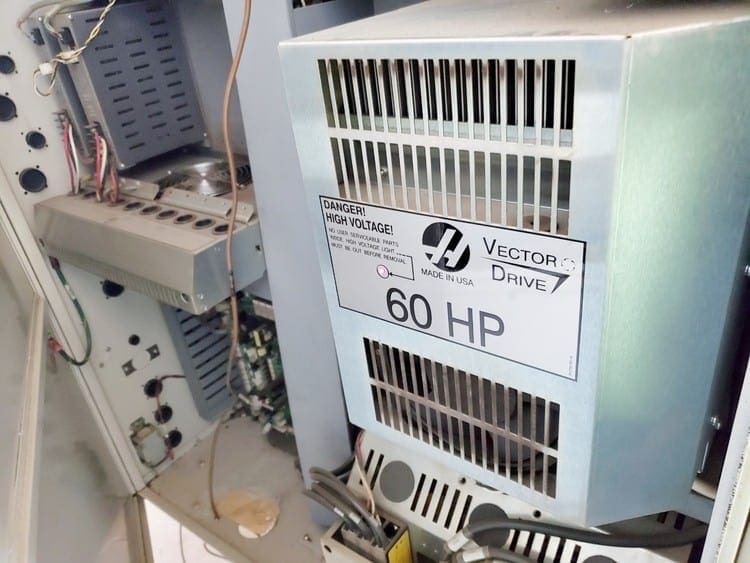

| Horsepower |
60 |
Features
|

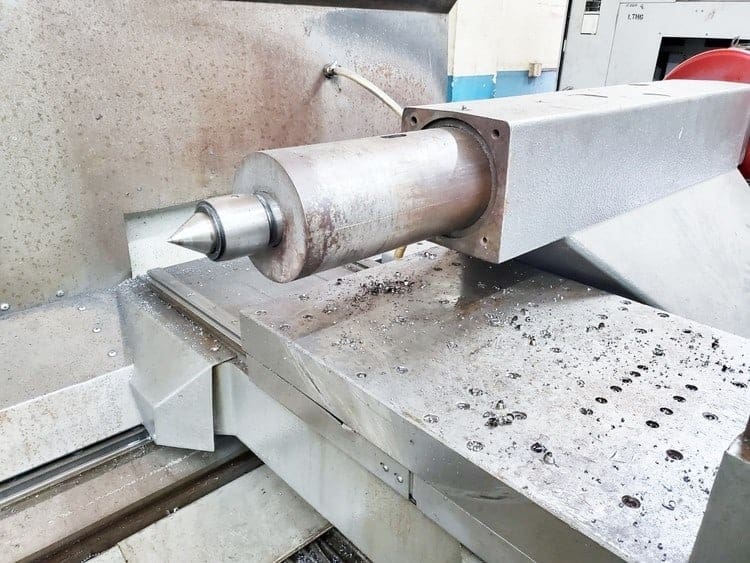

Tailstock |
2-Speed Gearbox |
|
100-Gallon Coolant Tank |
Intuitive Programming System |
|
Rigid Tapping |
Spindle Orientation |
|
USB Port |

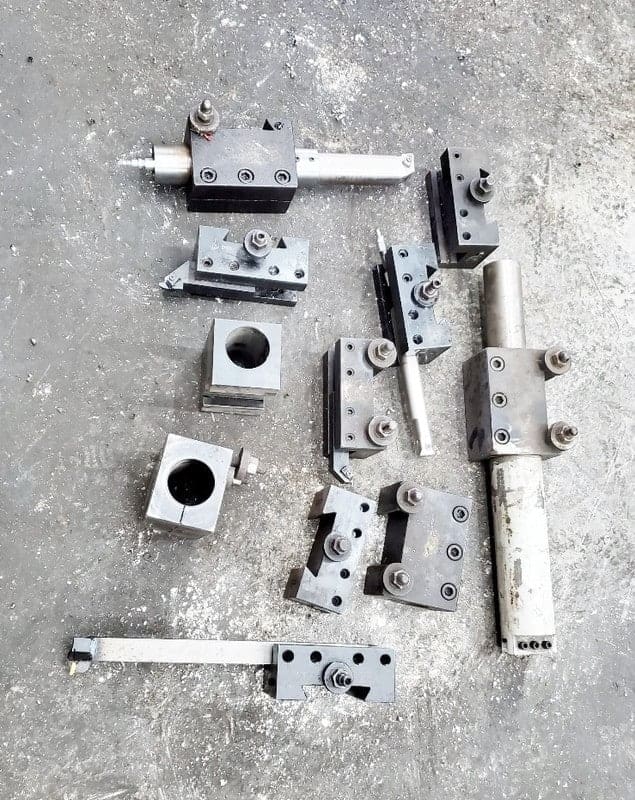

Assorted OD/ID Toolholders |
|

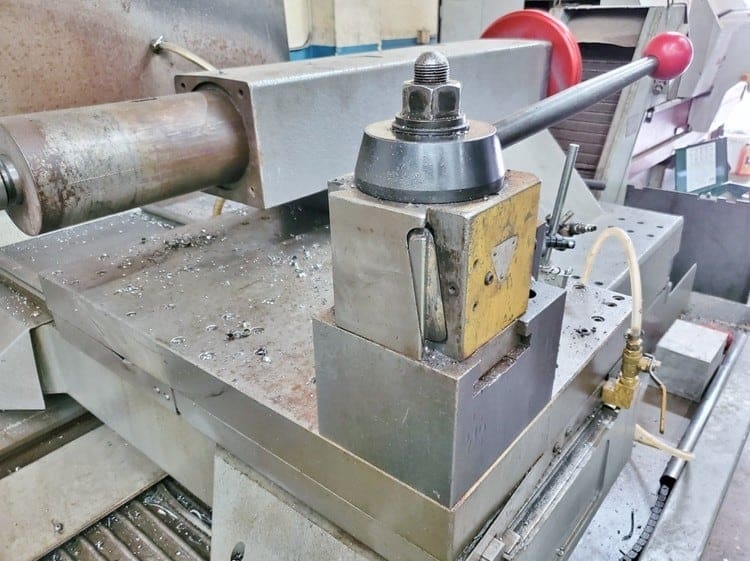

Manual Toolpost |
