Year |
2007 |
|---|---|
Make |
Doosan |
Model |
Revo 3020 |
Description |
CNC Vertical Machining Center |
Reference # |
8073235 |
Price |
Activate Pricing |

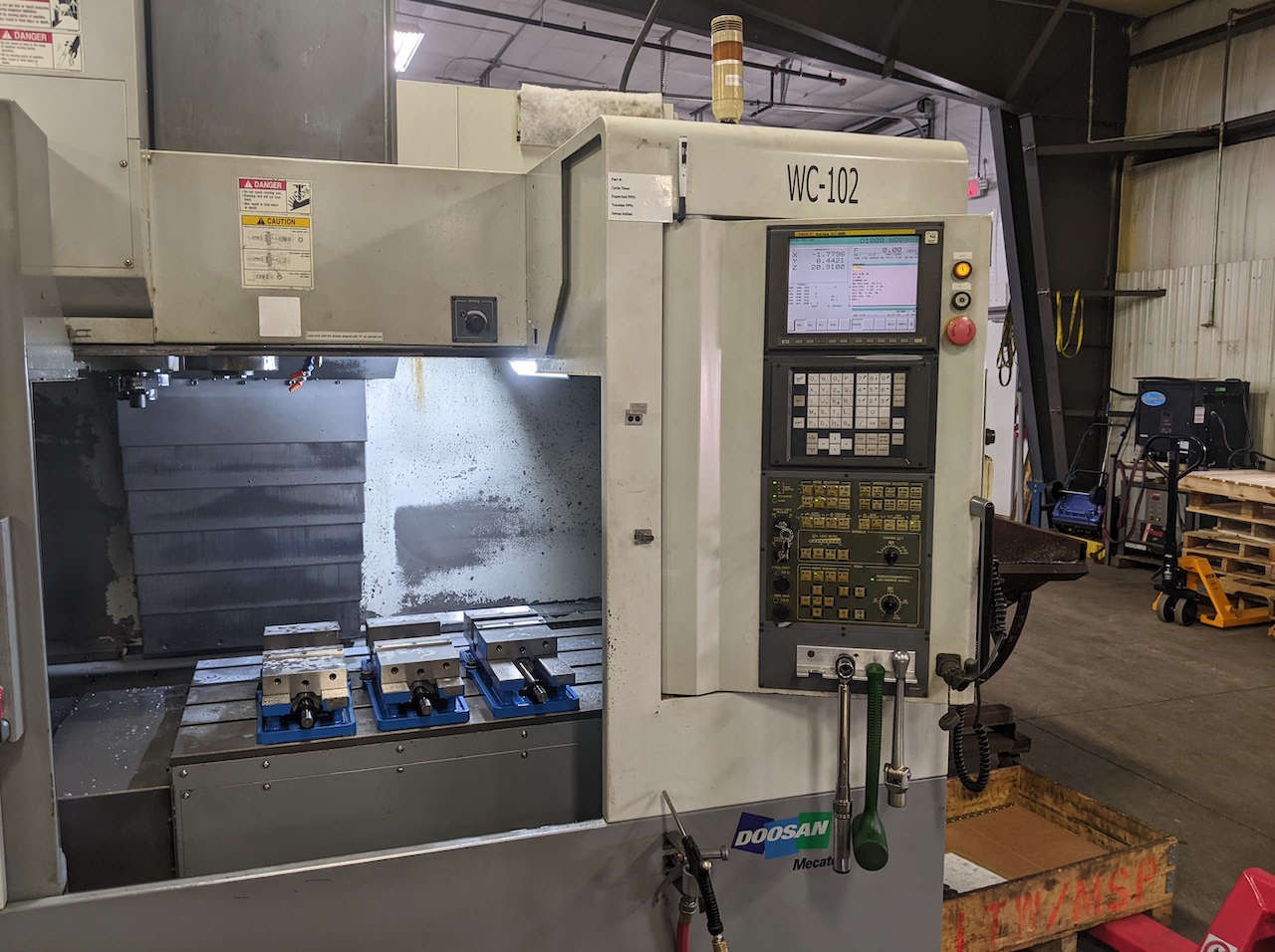

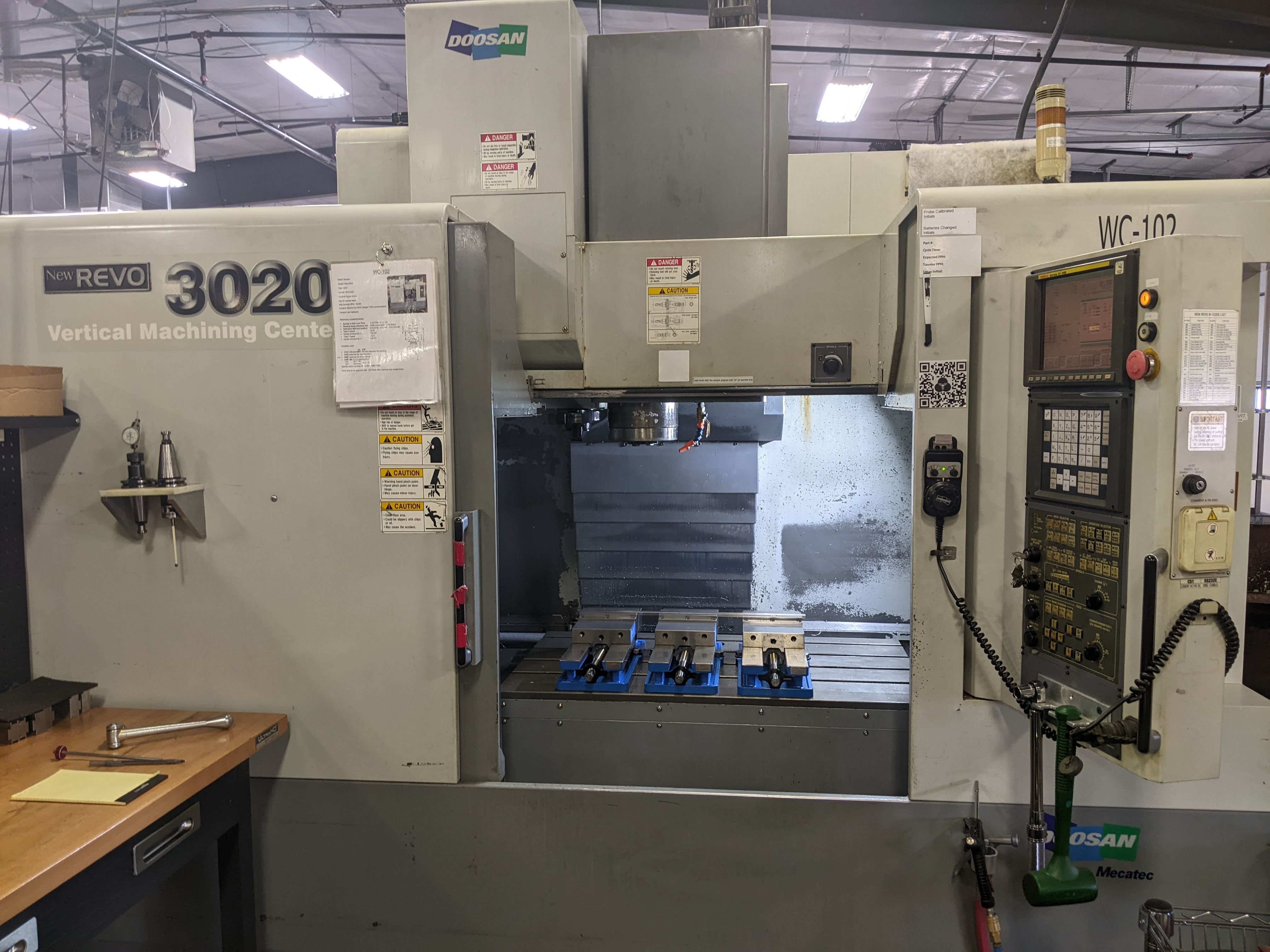

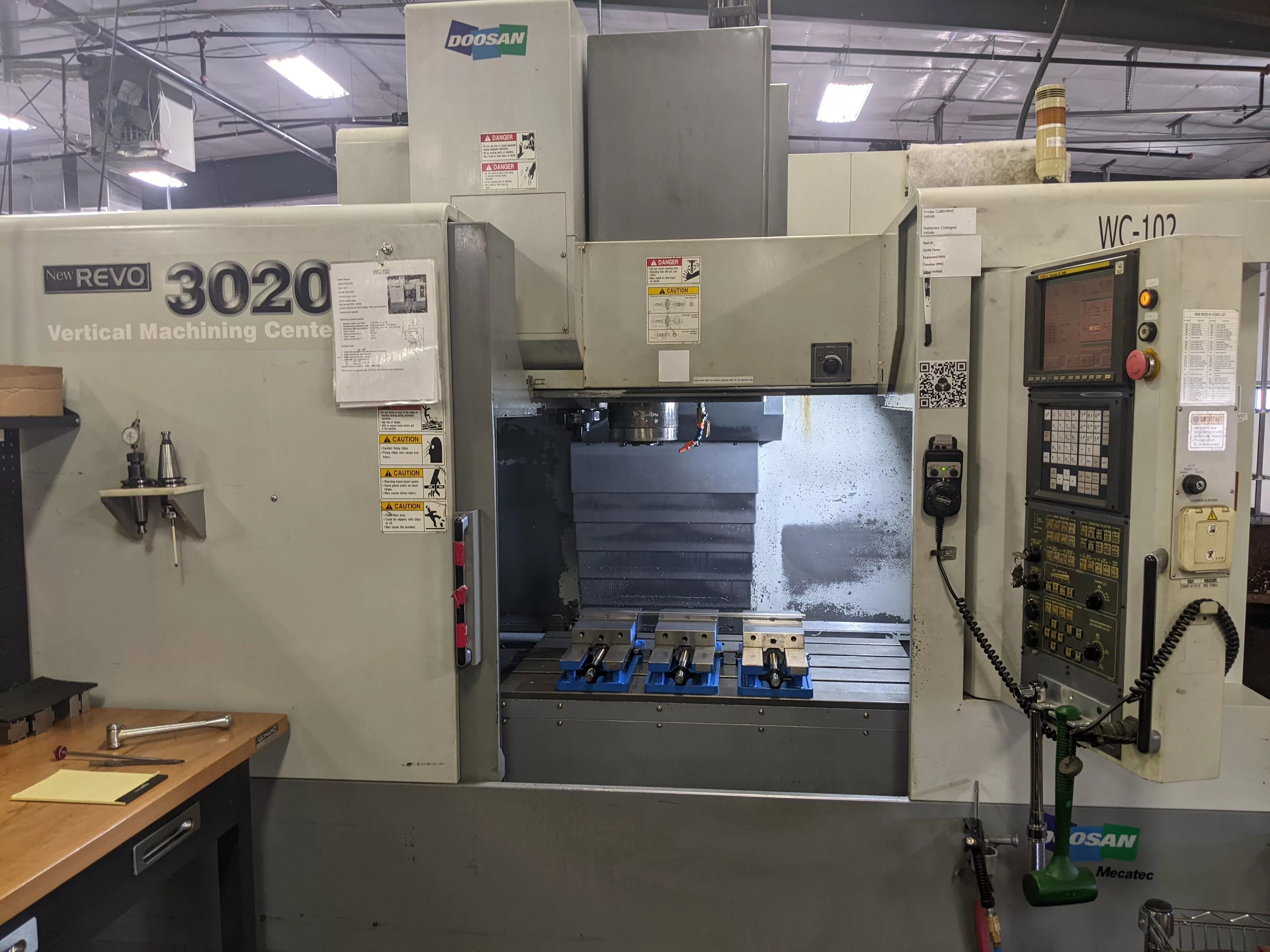

Used Doosan Revo 3020 (2007) CNC Vertical Machining Center for Sale. This machine offers 32.3″ of X-axis travel, 20.1″ in Y, and 20.1″ in Z, with a 40.2″ x 24″ table rated for a maximum load of 2,204 lbs. The 25 HP spindle turns to 10,000 RPM with a CAT 40 taper, and tool changes are handled by a 30-station ATC. Control is Fanuc Oi-MB, and a chip conveyor is fitted. Machine dimensions are 104.1″ x 110.7″ x 112.4″ with a weight of 14,320 lbs. It can be seen under power for an inspection. See more CNC vertical machining centers or browse our Doosan inventory. Activate Pricing to view the figure, or Request a Quote for details.
Specifications
| X-Axis Travel |
32.3" |
|---|---|
| Y-Axis Travel |
20.1" |
| Z-Axis Travel |
20.1" |
| Spindle Speed |
10,000 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
25 HP |
| Tool Magazine Capacity |
30 ATC |
| Control |
Fanuc Oi-MB |
| Chip Removal |
Chip Conveyor |

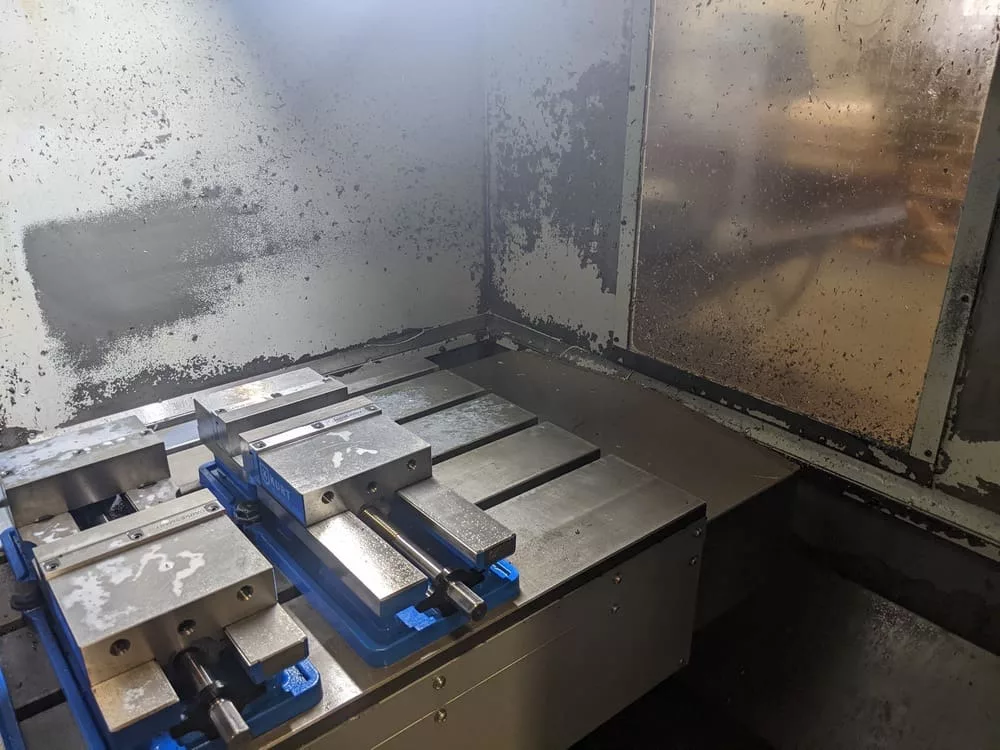

| Table Size |
40.2" x 24" |
| Max Table Load |
2,204 Lbs |
| Machine Dimensions |
104.1" x 110.7" x 112.4" |
| Machine Weight |
14,320 Lbs |
