Year |
2006 |
|---|---|
Make |
Bridgeport |
Model |
XR 760 |
Description |
CNC Vertical Machining Center |
Reference # |
8072876 |
Price |
Activate Pricing |

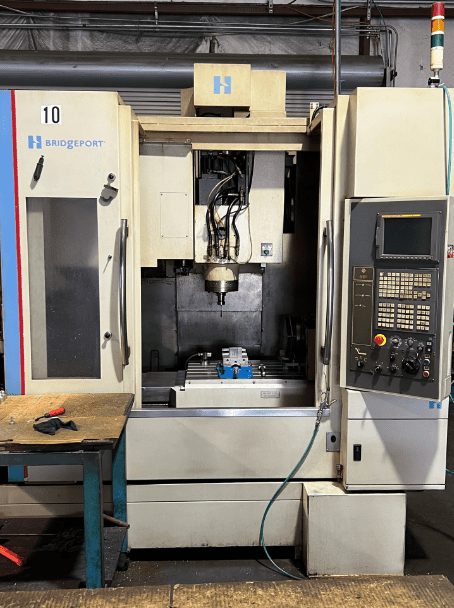

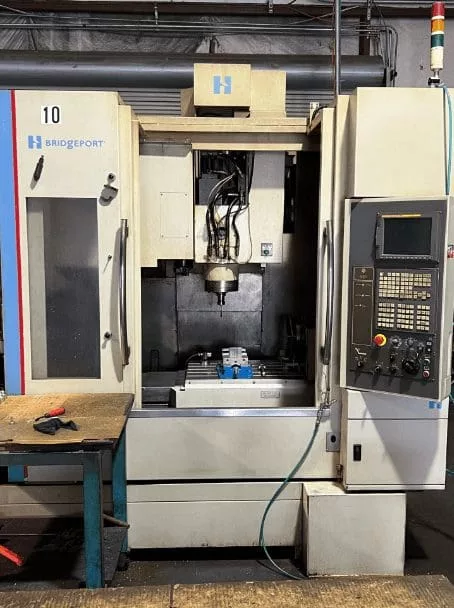

Used Bridgeport XR 760 (2006) CNC Vertical Machining Center for Sale. This CNC vertical machining center offers 30″ of X-axis travel, 24″ of Y-axis travel and 24″ of Z-axis travel, with a 25 HP spindle rated to 12,000 RPM in a CAT 40 taper. Tool changes are handled by a 30-station ATC, and the machine runs a Fanuc 18i control. It includes a chip conveyor, 500 PSI high pressure through-spindle coolant, a chiller, and a Renishaw Wireless Intuitive Probing System (WIPS). A 4th axis rotary table is not included. The machine can be seen under power for an inspection by appointment. [Activate Pricing](#activate-pricing) to view the figure, or Request a Quote and we will follow up with details.
Specifications
| X-Axis Travel |
30" |
|---|---|
| Y-Axis Travel |
24" |
| Z-Axis Travel |
24" |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
25 HP |
| Tool Magazine Capacity |
30 ATC |

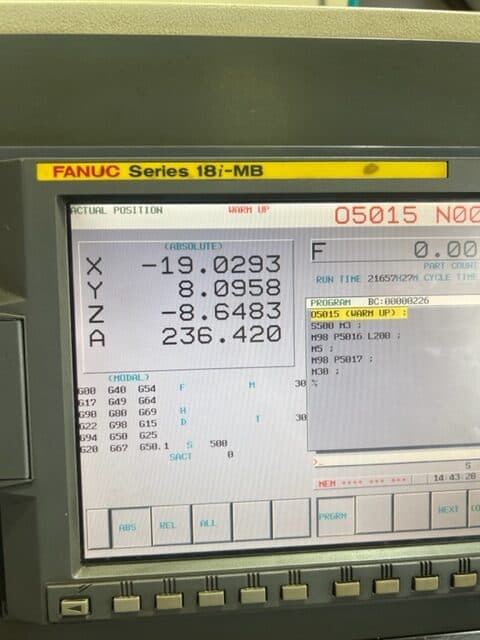

| Control |
Fanuc 18i |
| Chip Removal |
Chip Conveyor |
| Coolant |
500 PSI High Pressure Through Spindle Coolant |
Features
|

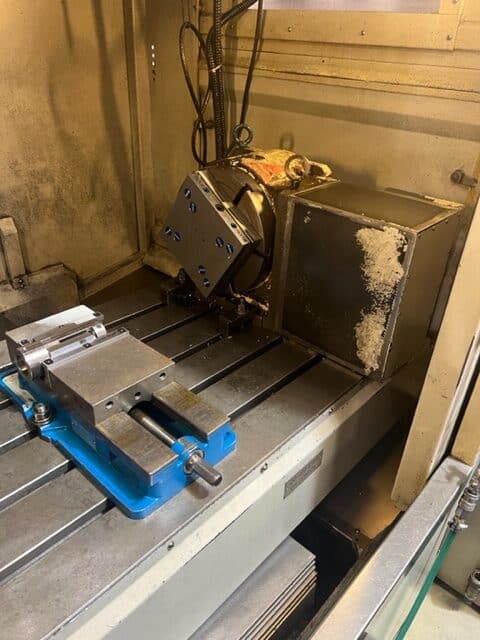

4th Axis Rotary Table Not Included |
Chiller Included |
|
Wireless Intuitive Probing System (WIPS) - Renishaw |
