Year |
2005 |
|---|---|
Make |
Twinhorn |
Model |
VA 500 |
Description |
CNC Vertical Machining Center |
Reference # |
8076976 |
Price |
Activate Pricing |

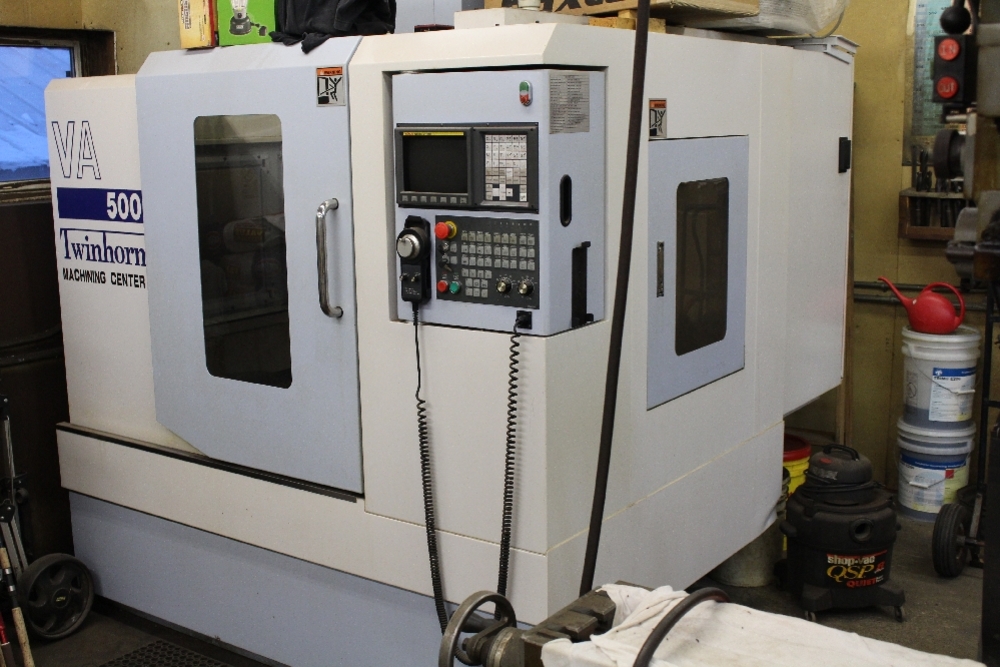

Used Twinhorn VA 500 (2005) CNC Vertical Machining Center for Sale. This machine offers 20″ of X-axis travel, 16″ of Y-axis travel and 18″ of Z-axis travel, with an 8,000 RPM BT 40 spindle driven by a 10 HP motor and a 16-tool ATC. Control is a Fanuc Series oi-MB. It is equipped with 2 new S675 Kurt vices, an armless type GENEVA system, an assortment of indexable tooling and collets, cutting coolant system, spindle air blast, rigid tap and an automatic lubrication system. Power requirement is 220v 3PH. Approximate weight is 11,000 lbs, with approximate dimensions of 99″ x 86″ x 106″. The machine can be seen under power for an inspection. Use Activate Pricing or Request a Quote, and see more CNC vertical machining centers.
Specifications
| X-Axis Travel |
20" |
|---|---|
| Y-Axis Travel |
16" |
| Z-Axis Travel |
18" |
| Spindle Speed |
8,000 RPM |
| Spindle Taper |
BT 40 |
| Spindle Motor |
10 HP |
| Tool Magazine Capacity |
16 ATC |
| Control |
Fanuc Series oi-MB |
| Coolant |
Standard Coolant System |
| Power Requirement |
220v 3PH |
| Approx Weight |
11,000 Lbs |
| Approx Dims |
99" x 86" x 106" |
Features
|
2 New S675 Kurt Vices |
Armless Type GENEVA system |
|
ASST of Indexable Tooling and Collets |
Cutting Coolant System |
|
Spindle Air Blast |
Rigid Tap |
|
Automatic Lubrication System |
