Year |
2004 |
|---|---|
Make |
Timesavers |
Model |
3121-13-04 |
Description |
Metal Dual Head Wet Sander |
Reference # |
8077842 |
Price |
Activate Pricing |

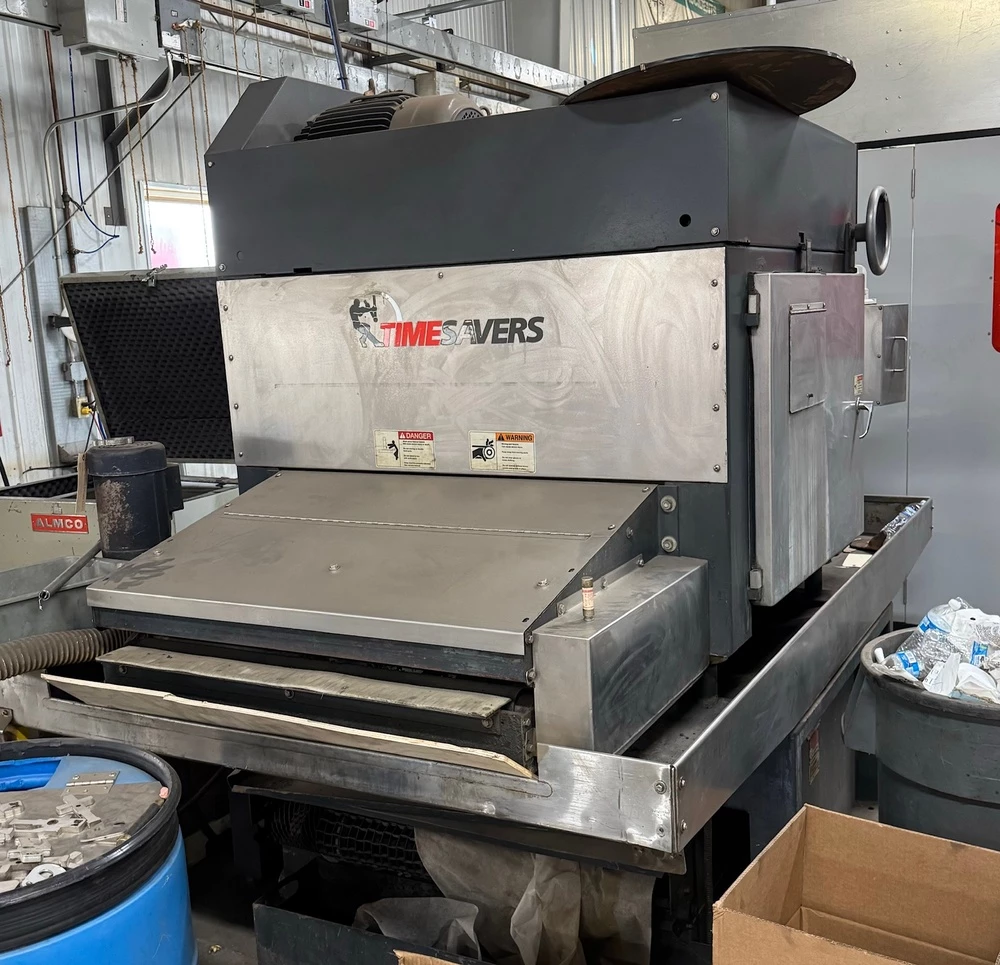

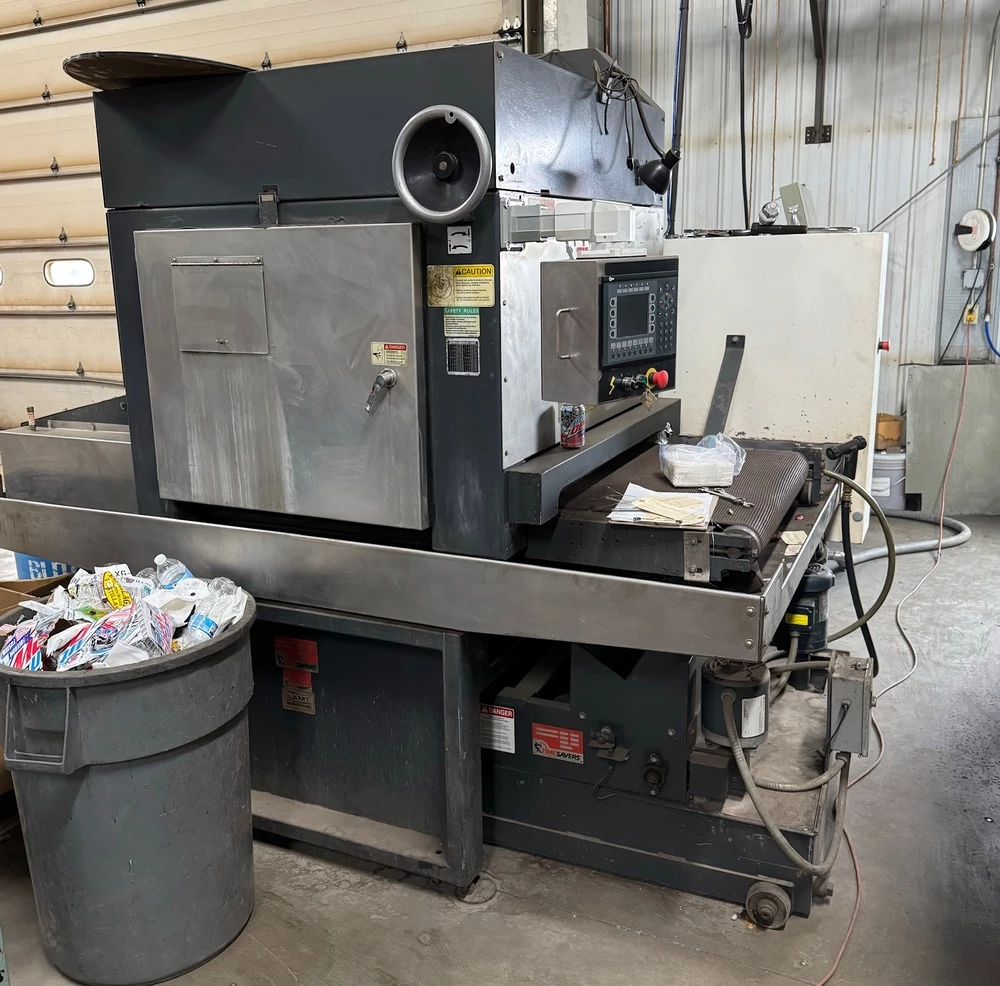

Used Timesavers 3121-13-04 (2004) Other Equipment for Sale. This wet grinding and deburring machine has a 36” working width and handles material thickness from 0 to 8” on the pass line. It uses a 37” x 60” belt with feed belt speeds of 15 – 45 F.P.M. Two heads are fitted, drum and brush, each 6” in diameter, driven by a 20 HP drum motor and a 15 HP brush motor. Also included are a 5 HP knife dryer motor, 2 HP conveyor motor, 1 HP coolant belt motor and ¼ HP coolant motor. Equipped with a built in coolant system with paper filtration, wet base style double infeed and outfeed hold-down rolls, air knife dryer and conveyor belt tracking. Power requirement is 460v/3 Ph/60 Hz; weight 8500 lbs. Available to be seen under power for inspection. Request a Quote for details.
Specifications
| Working Width |
36” |
|---|---|
| Belt Width |
37” |
| Belt Length |
60” |
| Feed Belt Speeds |
15 - 45 F.P.M. |
| Material Thickness (Pass Line) |
0-8” |
| Heads |
(2) Drum & Brush |
| Drum Diameter |
6” |
| Brush Diameter |
6” |
| Knife Dryer Motor |
5 HP |
| Coolant Motor |
¼ HP |
| Coolant Belt Motor |
1 HP |
| Conveyor Motor |
2 HP |
| Drum Motor |
20 HP |
| Brush Motor |
15 HP |
| Power Requirement |
460v/3 Ph/ 60 Hz |
| Machine Weight |
8500 Lbs |
Features
|
Built In Coolant System with Paper Filtration |
Wet Base Style Double Infeed & Outfeed Hold-Down Rolls |
|
Air Knife Dryer Conveyor Belt Tracking |
