Year |
2003 |
|---|---|
Make |
Trumpf |
Model |

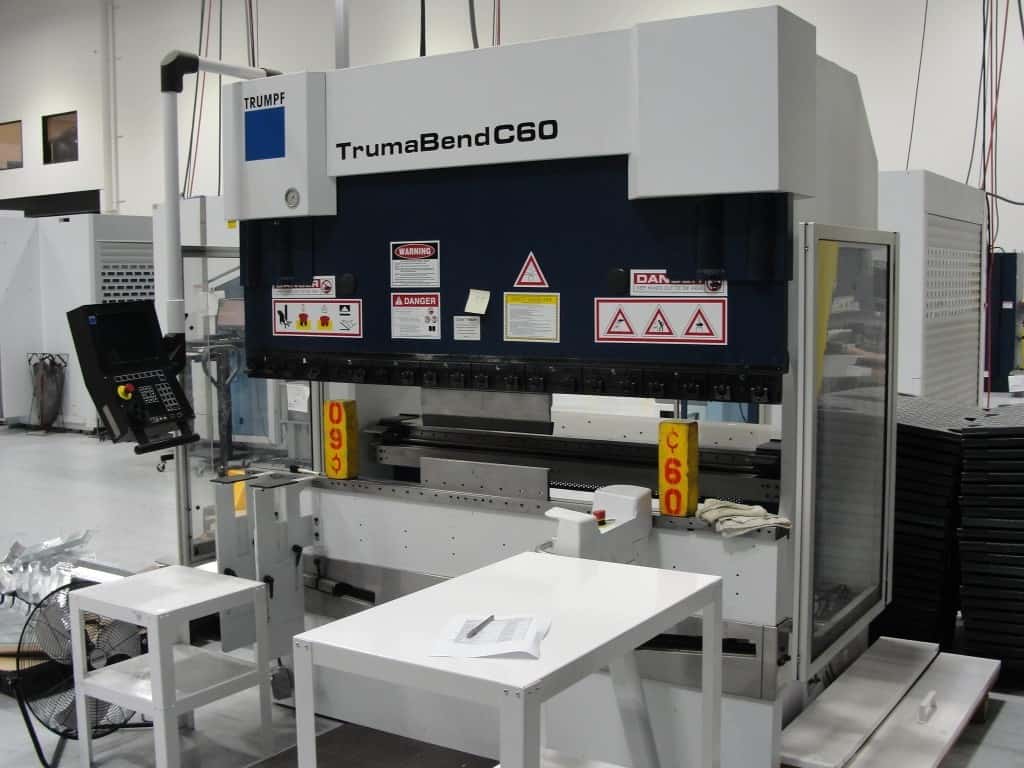

TrumaBend C60 |
Description |
66 Ton x 6.8' Hydraulic Press Brake |
Reference # |
8069099 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
66 Ton |
|---|---|
| Overall Length of Bed |
6.8' |
| Control |

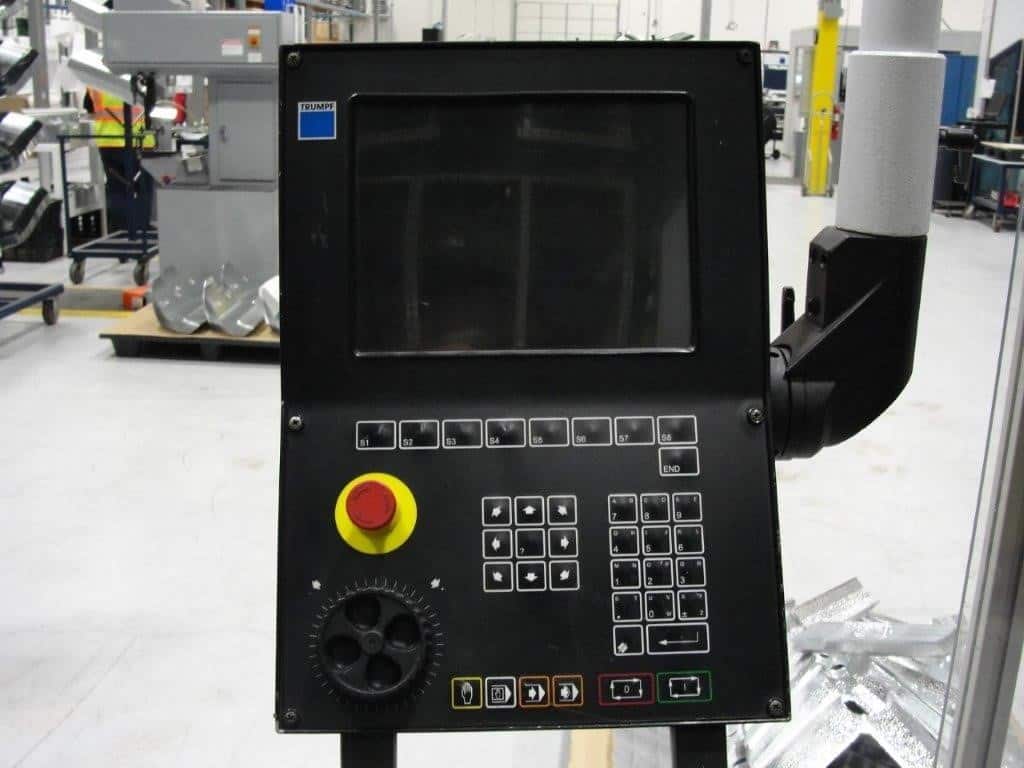

Delem DA-65TW |
| Distance Between Housings |
69" |
| Stroke |
7.87" |
| Throat Depth |
16.5" |
| Open Height |
13.4" |
| Power Requirement |
460/3/60 |
| Maximum Inclination of Ram |
+/- 0.12" |
| Distance Floor to Top of Bed |
39" |
| Width at Top of Bed |
3" |
| Oil Capacity |
26 Us Gallons |
| Main Motor |
10 HP |
| Overall Weight |
10,780 Lbs |
| Overall Dimensions |
96"L x 65"W x 95"H |
Features
|
Rear Safety Door |
Side Safety Doors |
|
4-Axis Back-Gauge (X/R/Z1-Z2) |
Foot with Pedestal |
|
Independent Ram Scales |
Passive Crowning |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
